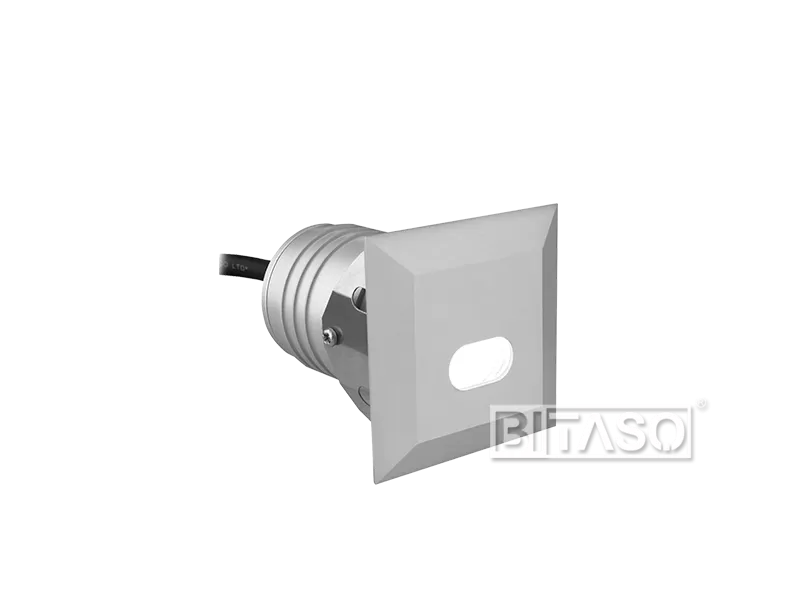

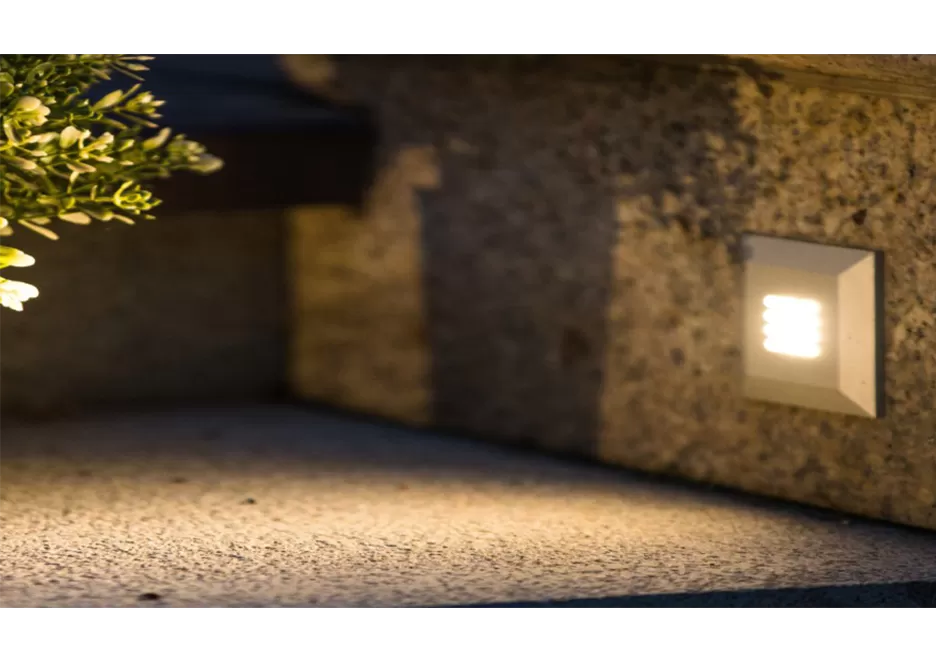

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort compact architectural and stylish outdoor innovative luminaries for garden and path way. Free of colour shifts and dis- torsion. Special PCB layouts ensure the led modules are optimally matched to the optical system of the luminaries.
ELECTRONICS
Power(Luminaire) | 3W,5W | Power Factor | >0.9 |
Input Voltage | AC12V/AC24V, DC12V/DC24V | Driver Option | Integral control gear |
Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
Optional Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | SMD | Lumen (Luminaire): | 250LM/550LM |
| /550LED Brand | CREE | Luminaire Lminous Efficacy | 84/110LM/W |
| Full White LED(FW) | 3000K | Tunable White | 3000K-5000K |
| Multi Color | RGB, RGBW | CRI | Ra>80, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 40° |
CONTROL SYSTEM
| Control | ON/OFF/PWM/0-10V/Triac/DALI/DMX512 | CMS, CCS | Optional |
ENVIRONMENT
| Operating Ta | ~-30 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | CNC 6063# aluminum housing |
| Compliance | IK08 | Certificate | IP65, CE, RoHS |
MECHANICS
| Dimension | 64x102mm | Finish | Matt Silver/Black Anodized |

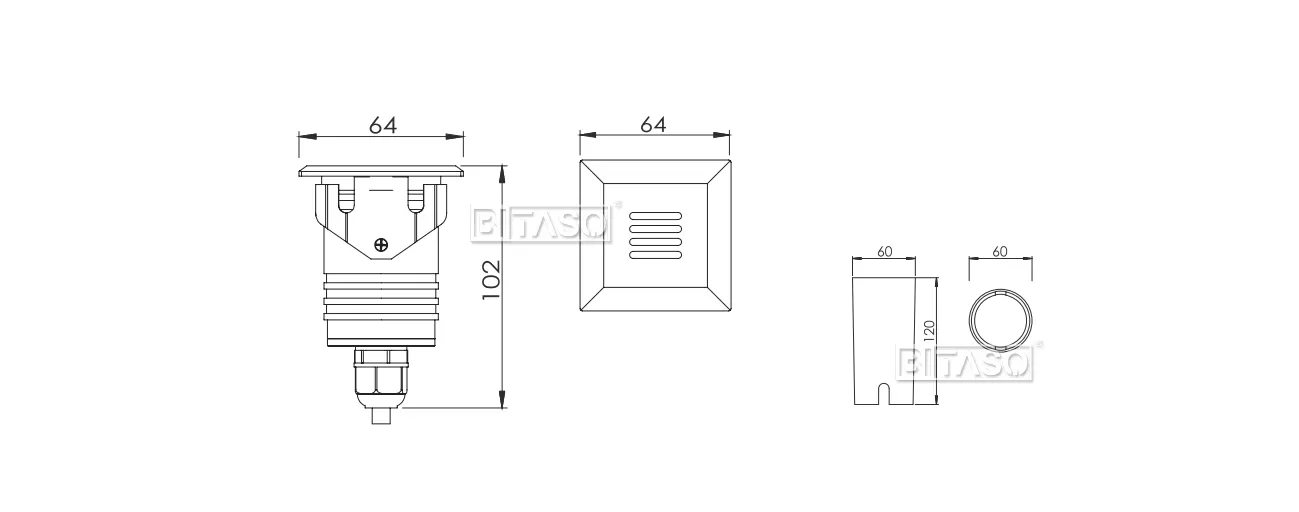

LUMINAIRE DIMENSION

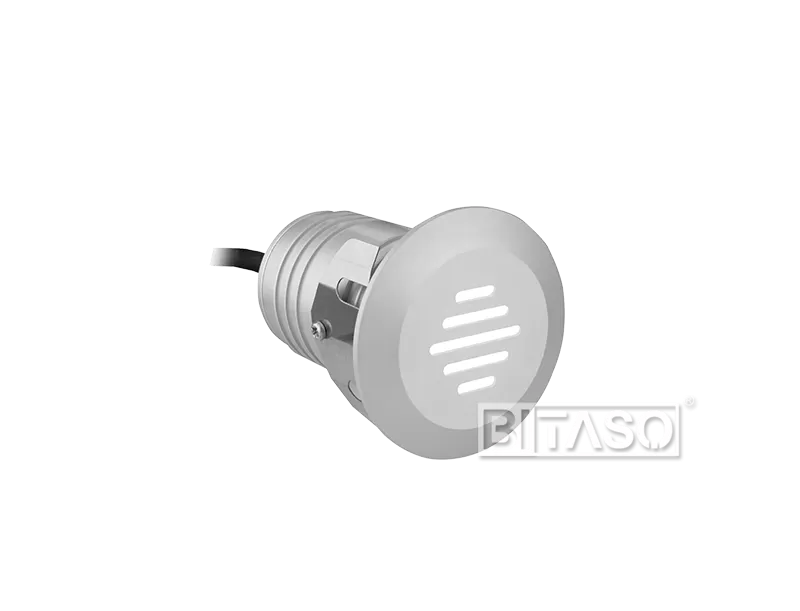

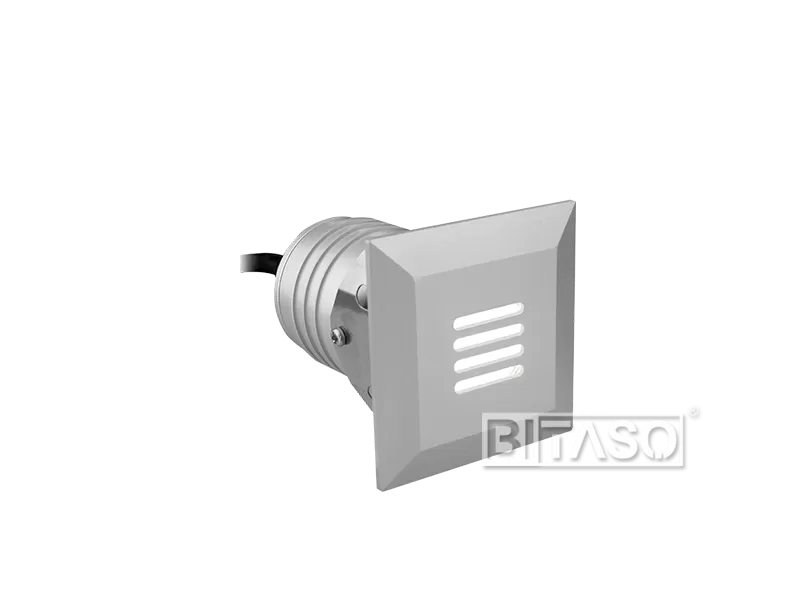

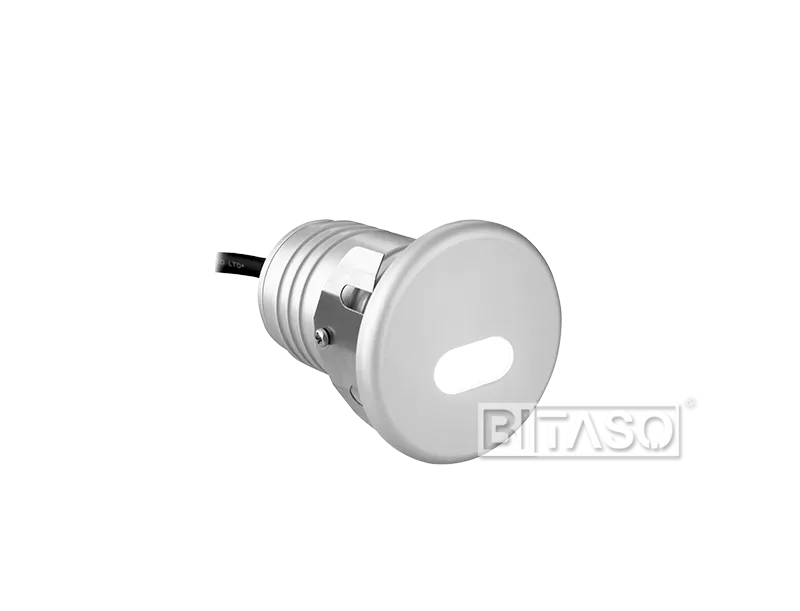

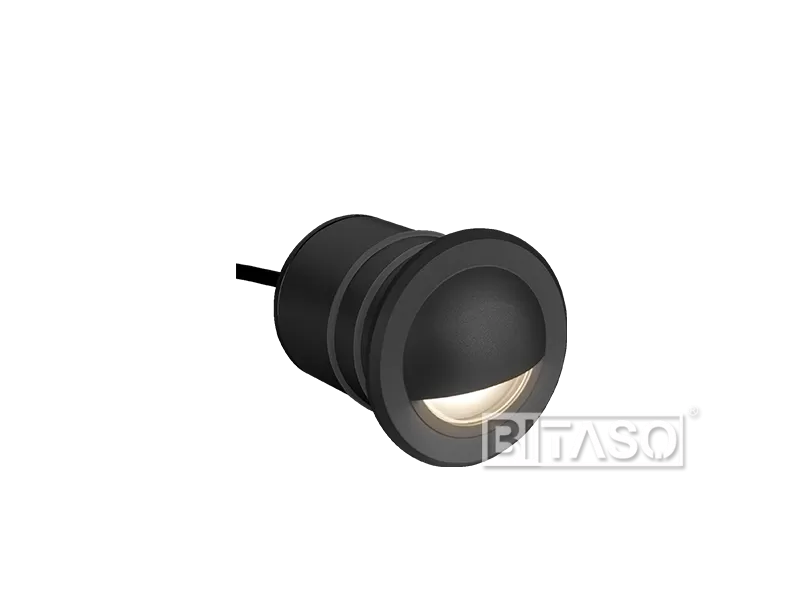

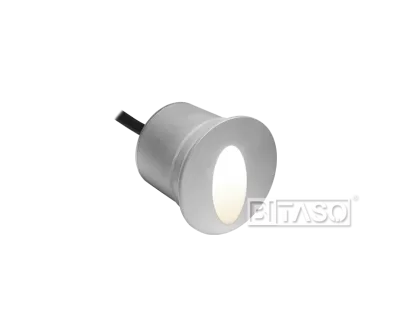

Related Products
