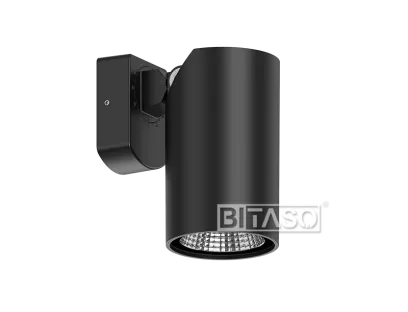

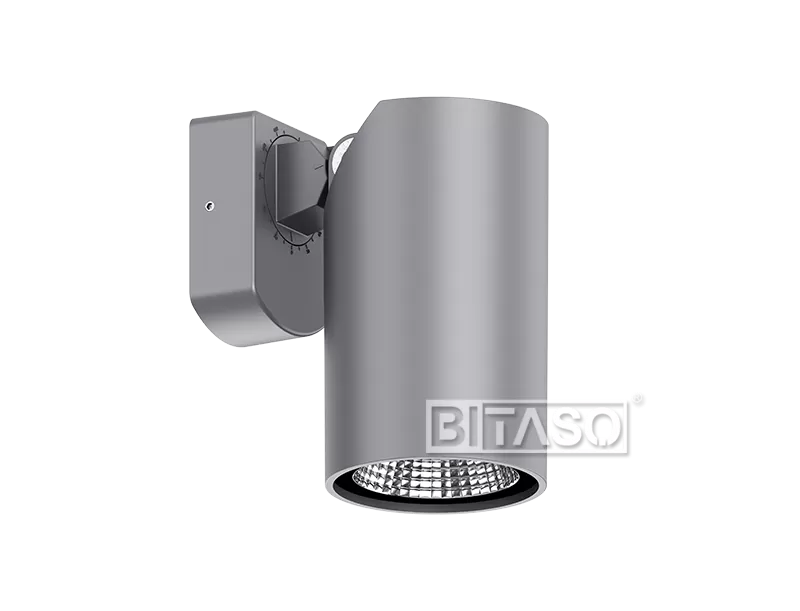

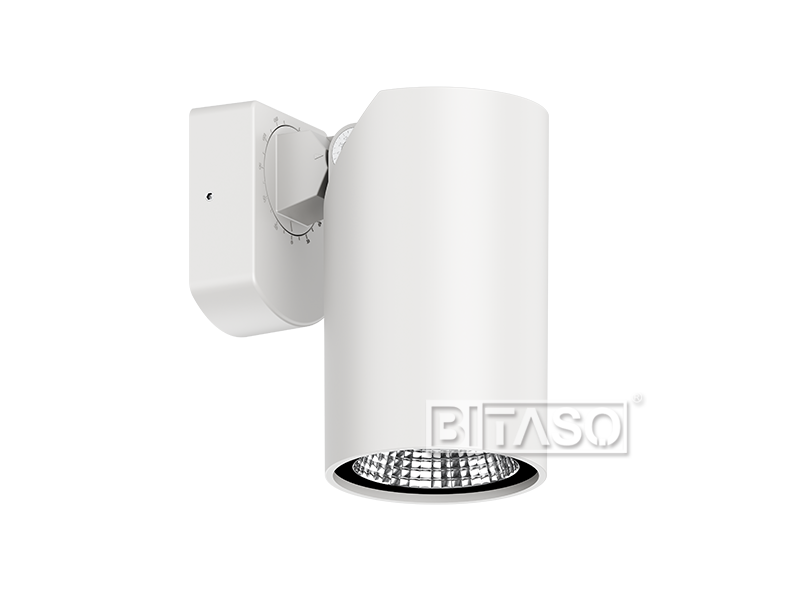

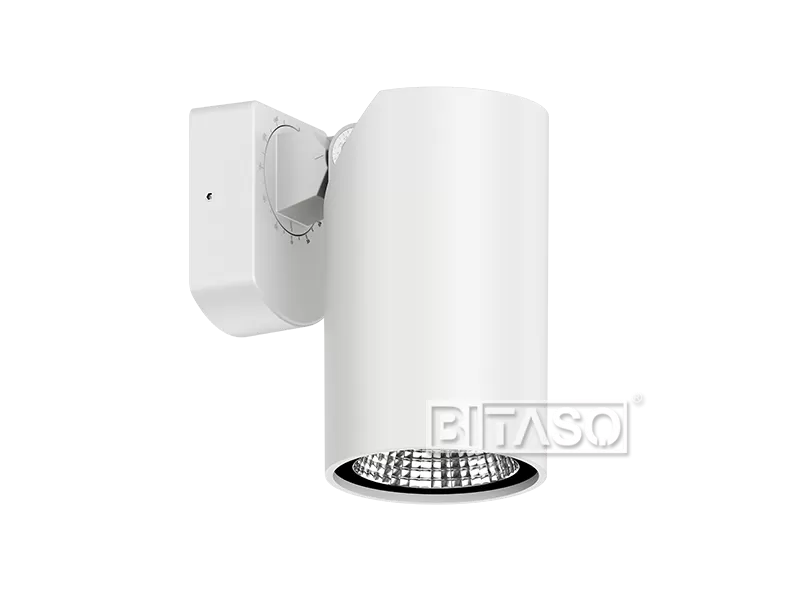

AGLAIA 2.0 D86 COB WALL MOUNTED

AGLAIA outdoor wall sconce is constructed with 12# Die-casting powder coated aluminum, not rusty and corroded. Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort. Discreet and compact aesthetically designed architectural outdoor spotlight, ideal for glare-free accent lighting, floodlighting and wall washing in the outdoor area. Led outdoor wall mounted down light for front door, patio, exterior porch lights.

ELECTRONICS

Power(Luminaire)15-24WPower Factor>0.9
Input VoltageDC24V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMXDriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source1PCS COBLumen(Luminaire):1350LM-2160LM
LED BrandCREE/BRIDGELUX/CITILED/TYANSHINE COBLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K/3000K/4000K/5000K/5700KTunable White2700K/6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle15°,18°,34°,60°(Reflector Cup)/15°,24°,36°,50°,60°(Lens)
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesHoneycomb Louver


CONTROL SYSTEM

ControlON/OFF, 0-10V, DALI, Triac, DMXDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP65, Class ICertificateIP65, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension86x159mmWeight0.55KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeWall Mounted


OPTIONAL ACCESSORIES

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

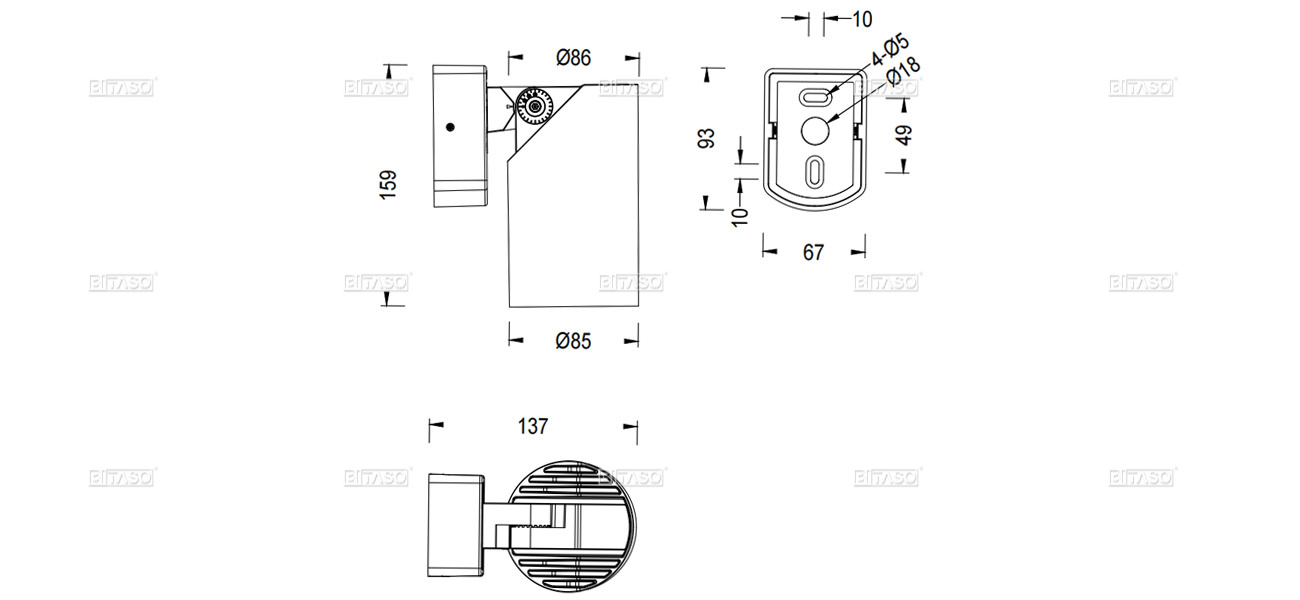

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

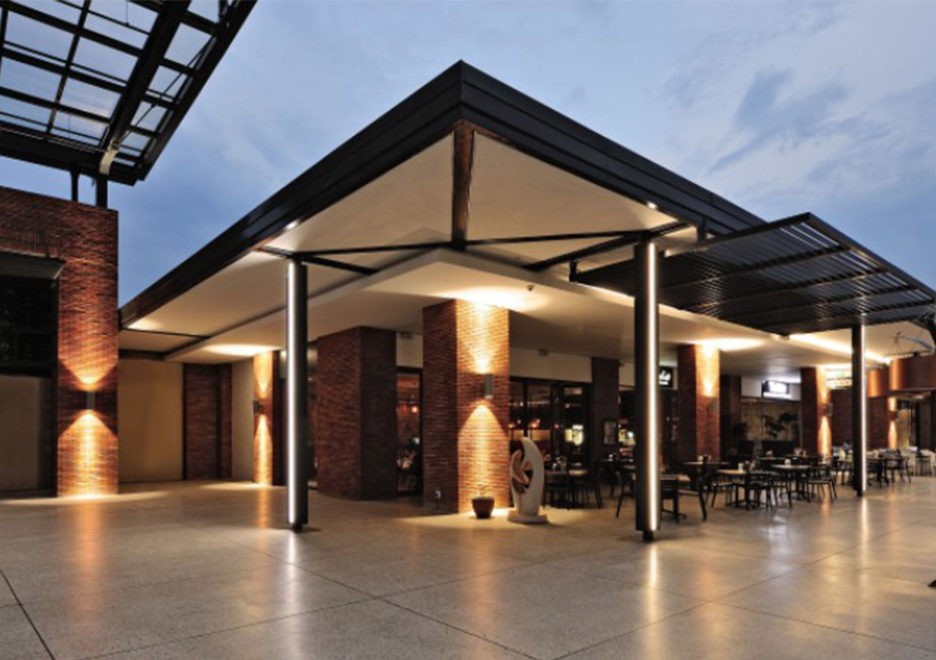

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

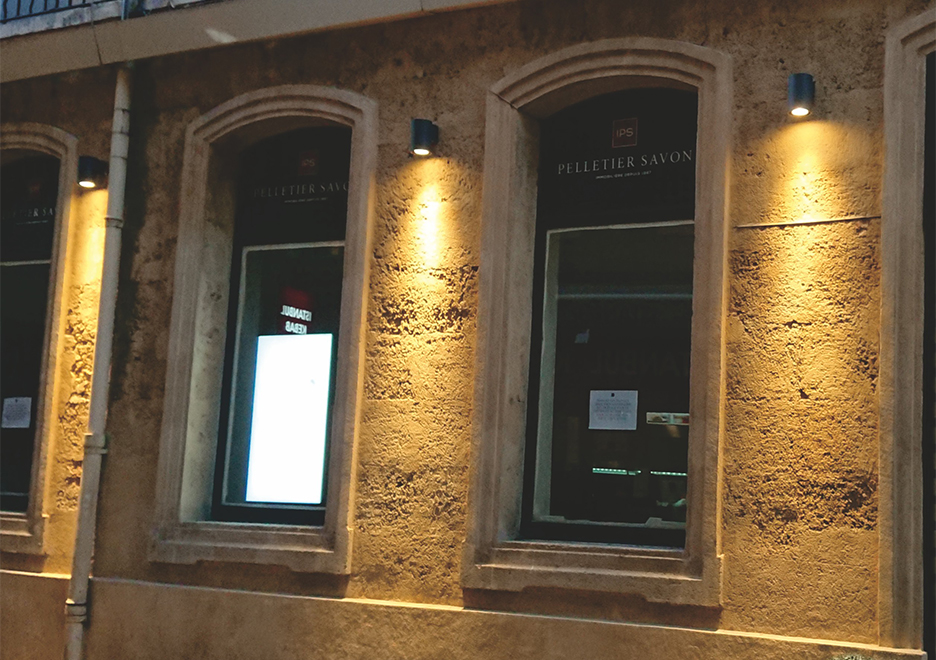

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

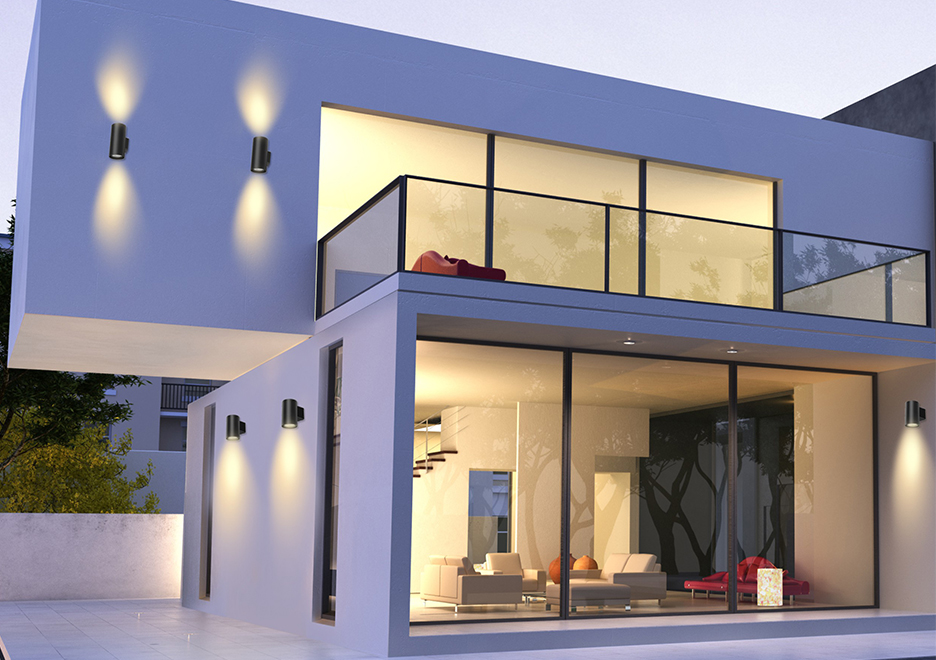

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

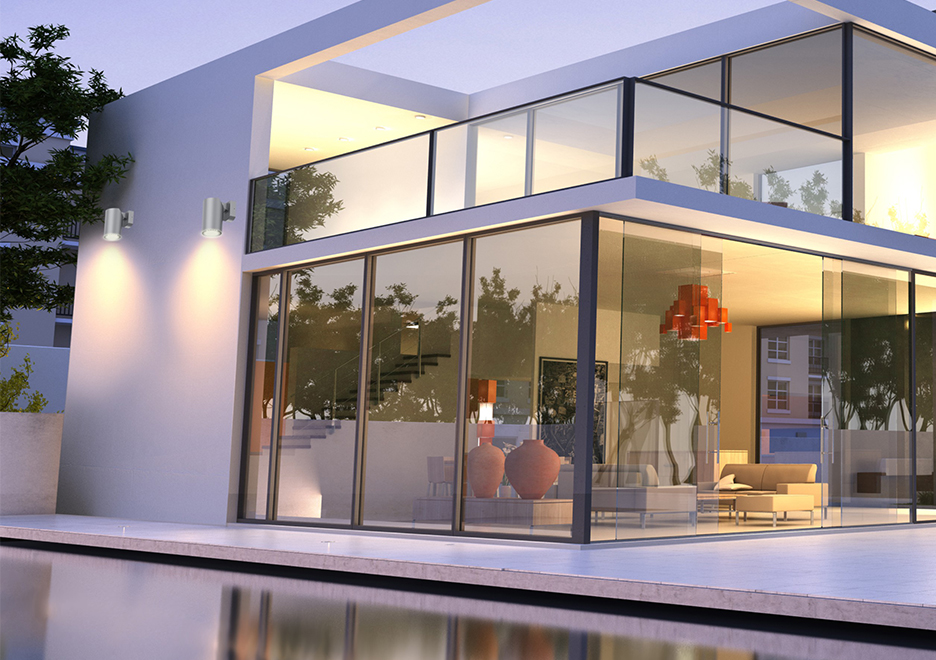

  • PROJECT REFERENCE
