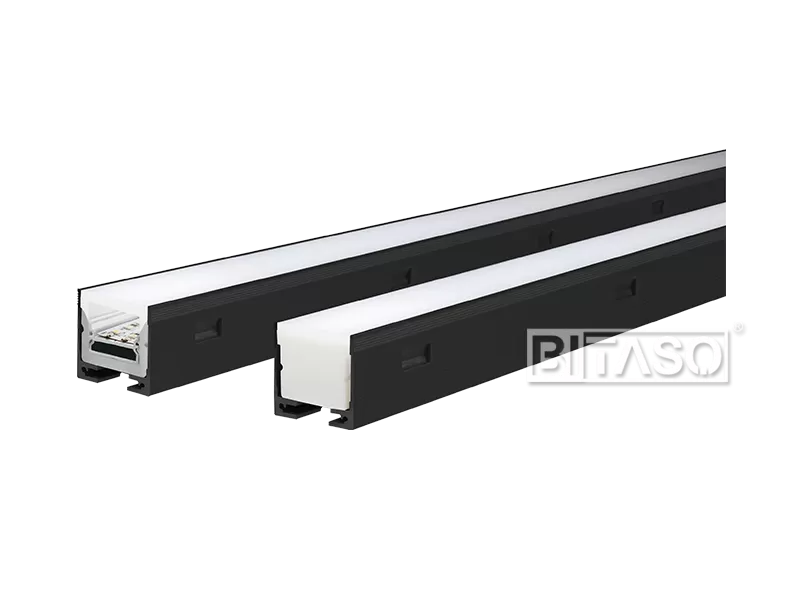

BL-SFL10AL2 Trimless Linear In-ground Light

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,excellent heat dissipation,requires constant voltage remote driver,aluminum profile,6063 aluminum material anodized or powder coating finished 1m,2m,3m length,customized length is available on request.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	9W/15W/18W/30W/36W	Power Factor	>0.9, CCS auto calibrating
Input Voltage	DC24V	Driver Option	Integral control gear
Dimming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	8 pin power+DMX integrated cable

OPTICS

Light Source	SMD	Lumen (Luminaire):	100LM
LED Brand	CREE /OSRAM/EPISTAR LED	Luminaire Lminous Efficacy	90-100LM/W
Full White LED(FW)	2700K/3000K/3500K/4000K/5000K/5700K/6500K	Turnable White	2700K-6500K
Multi Color	RGB 3in1, RGBW 4in1	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Agle	Diffuser soft beam 110°.
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Diffuser, Filter, Honeycomb Louver,

CONTROL SYSTEM

Control	DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP67, Class I	Certificate	IP67, CE, ETL, RoHS, CCC

MECHANICS

Dimension	L300/500/600/1000/12004545mm	Weight	1.2KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Stainless steel SUS316	Mounting Type	Outdoor lighting for squares, outdoor parks, leisure places, etc

OPTIONAL ACCESSORIES

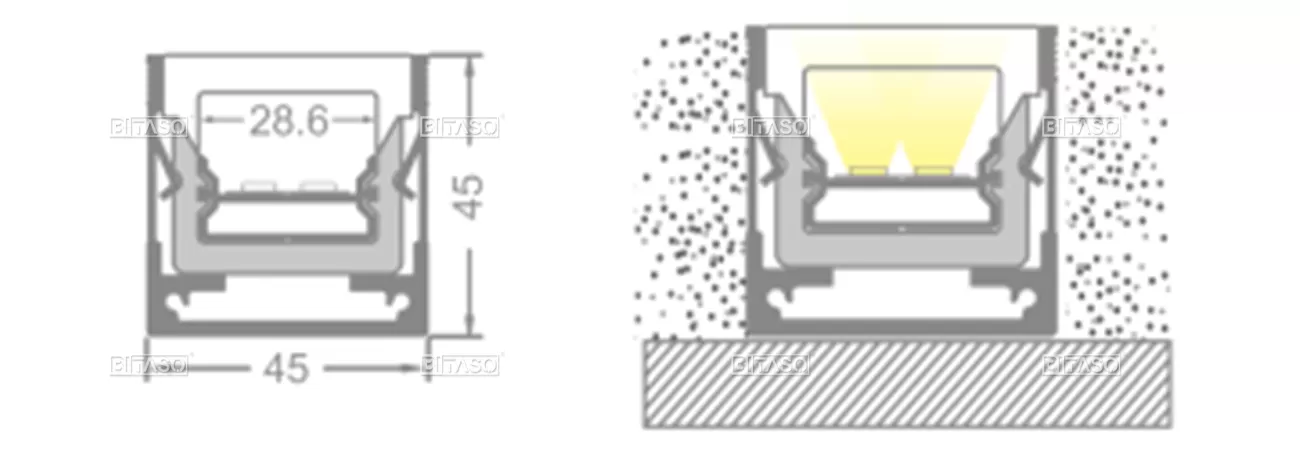

LUMINAIRE DIMENSION

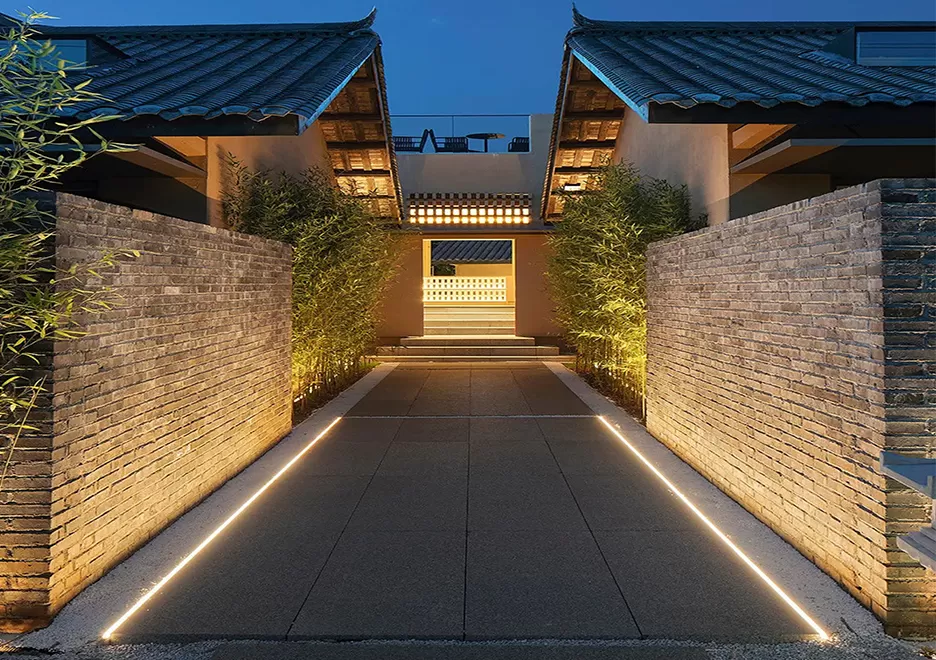

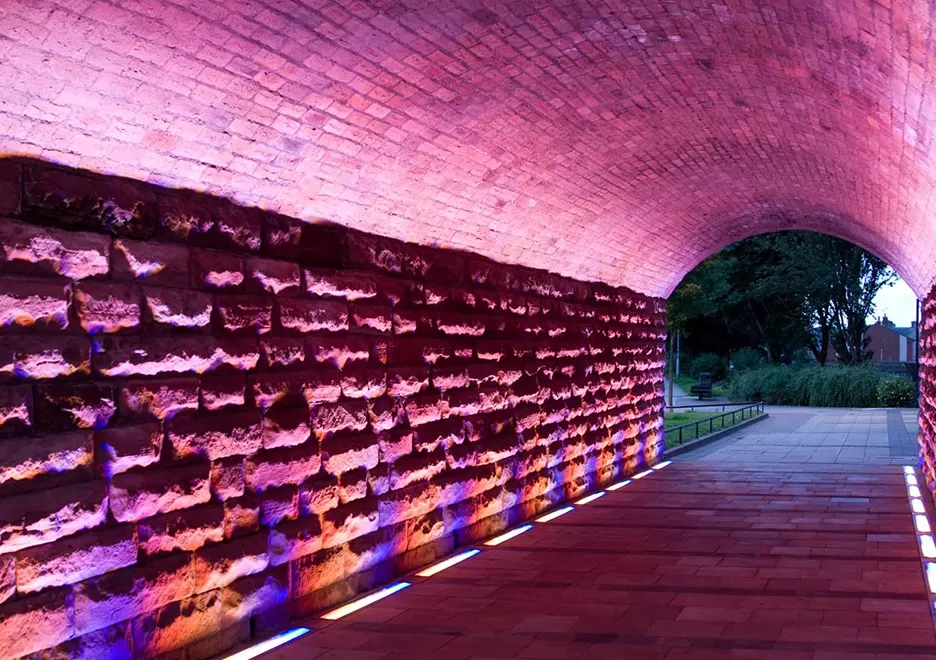

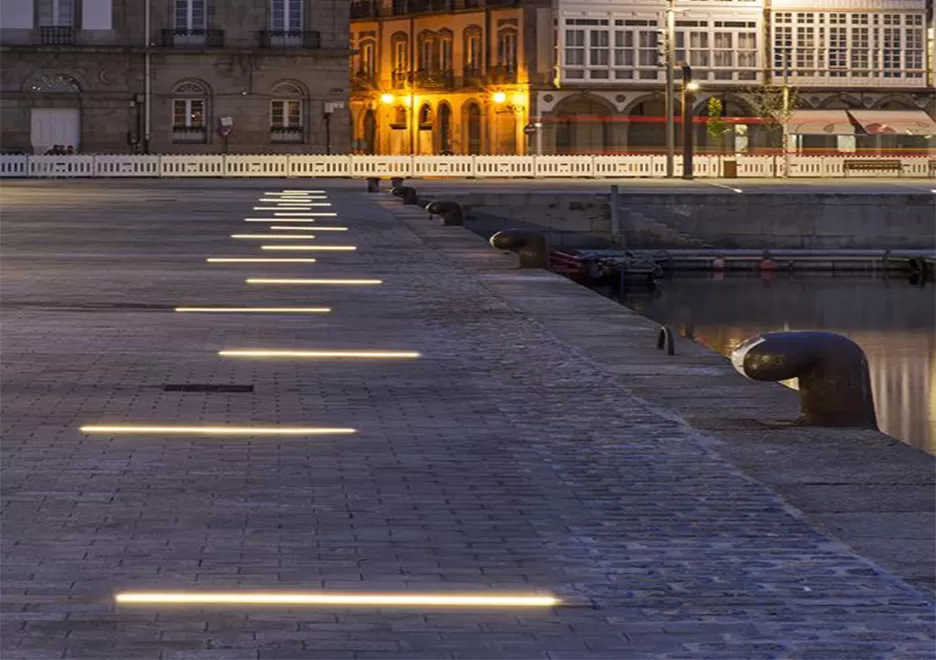

PROJECT REFERERNCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.
