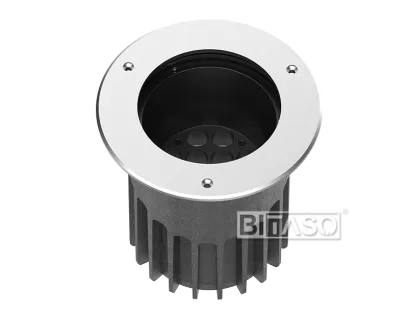

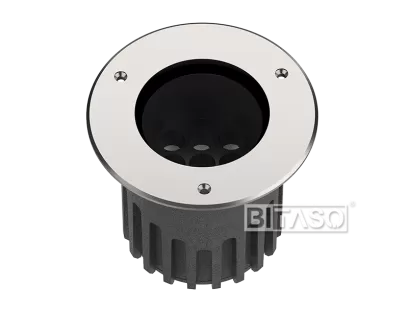

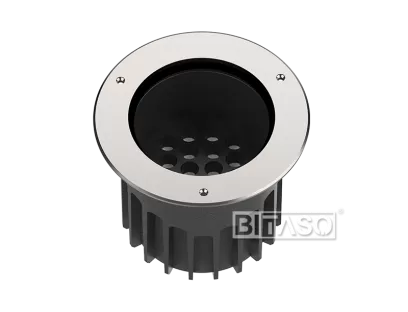

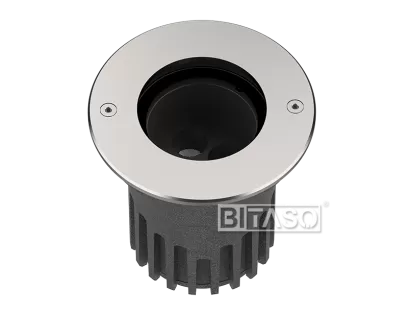

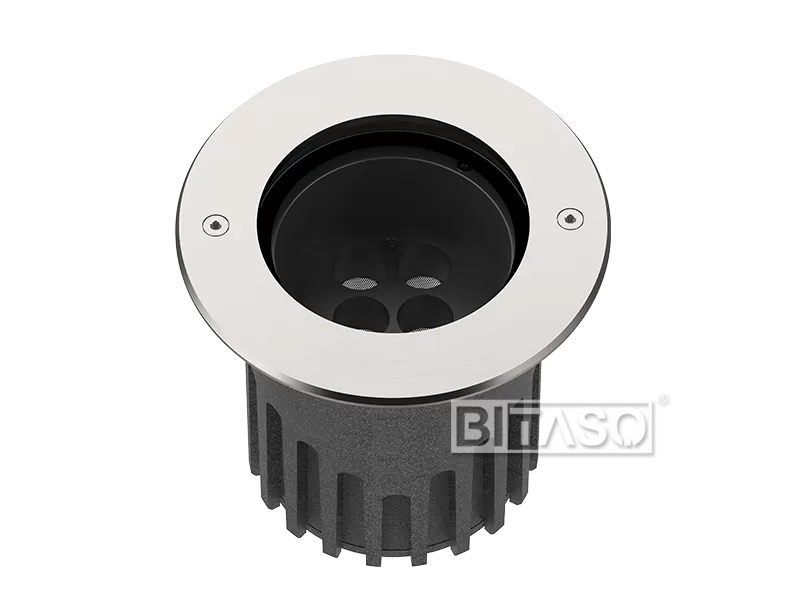

EARTHA D160 SMD Non-Adjustable Inground Light

Special Housing Designs And High-quality Optical Components Specifically For Demanding Visual Tasks To Provide Enhanced Visual Comfort Discreet And Compact Aesthetically Designed Architectural Outdoor Spotlight, ldeal For Glare-free Accent Lighting, Floodlighting And Wall Washing In The Outdoor Area.


ELECTRONICS

Power(Luminaire)15-18WPower Factor>0.9
Input VoltageDC12V DC24V DC36V DC48V AC110-130V AC110-240V AC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source6PCS SMDLumen(Luminaire):1350LM-1620LM
LED BrandCREE/TYANSHINE SMDLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500KTunable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle8°/12°/17°/20°/25°/30°/40°/45°/60°/10*22°/15*55°/15*30°/20*60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesFilter, Honeycomb Louver, Round-meshed grill


CONTROL SYSTEM

ControlDMX512/DALI/ 0-10V/TraicDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS,  CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22



ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK09, IP67, Class ICertificateIP67, CE, ETL, RoHS, CCC

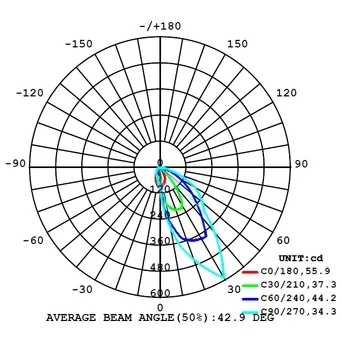

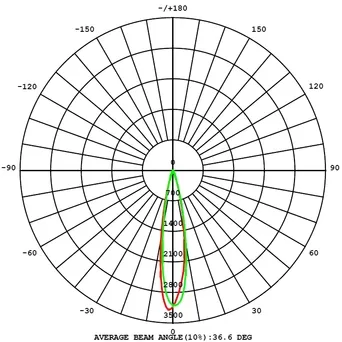

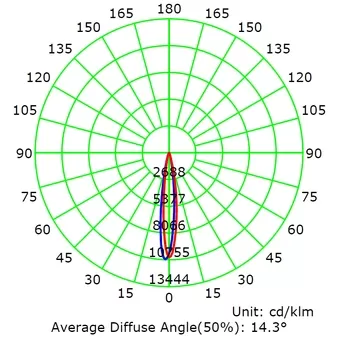

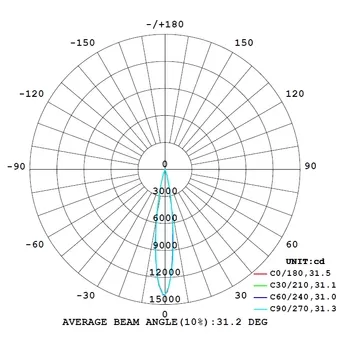

LIGHT DISTRIBUTION

MECHANICS

Dimension132x142mmWeight1.55KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishPowder CoatedMounting Typeground recessed

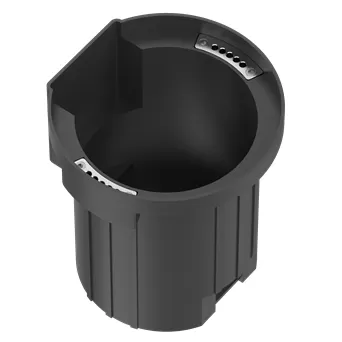

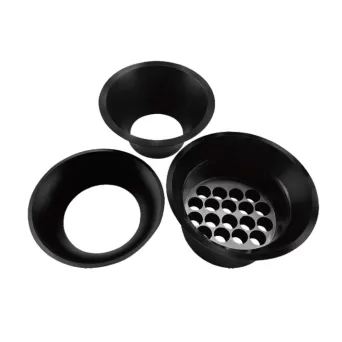

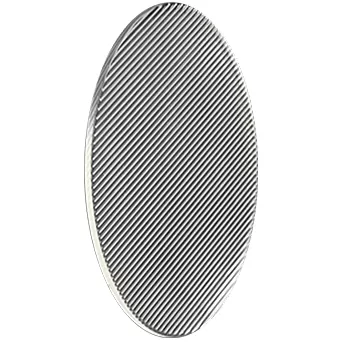

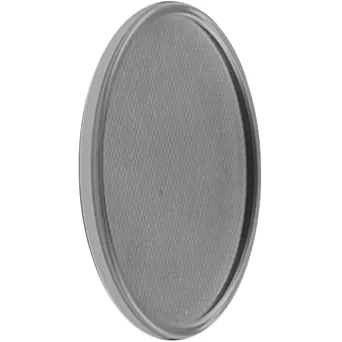

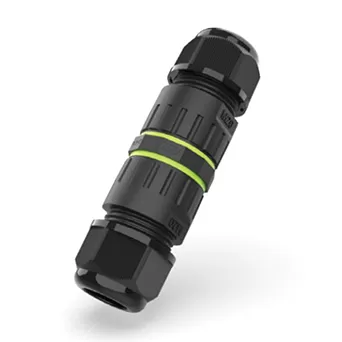

OPTIONAL ACCESSORIES

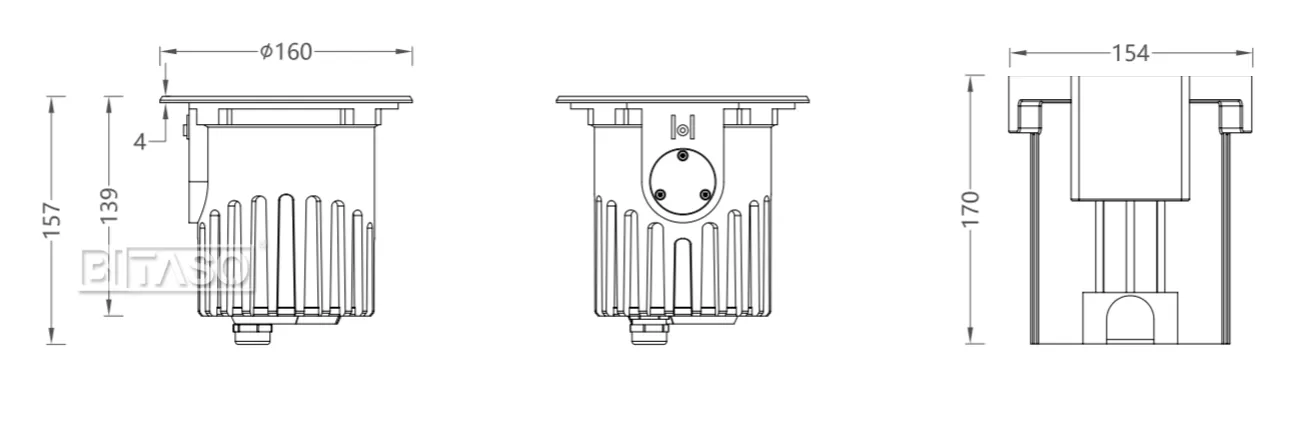

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

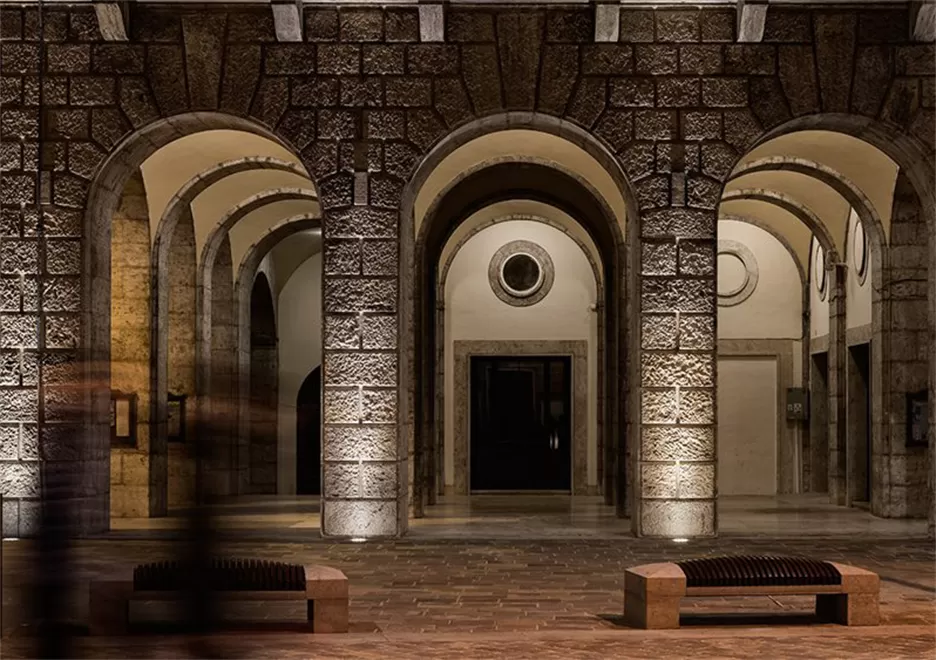

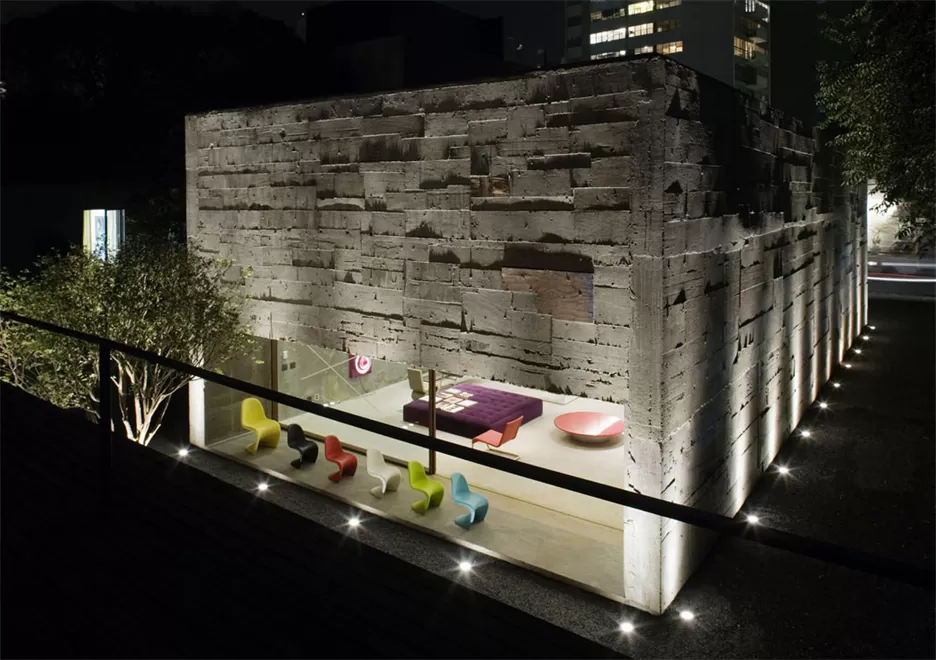

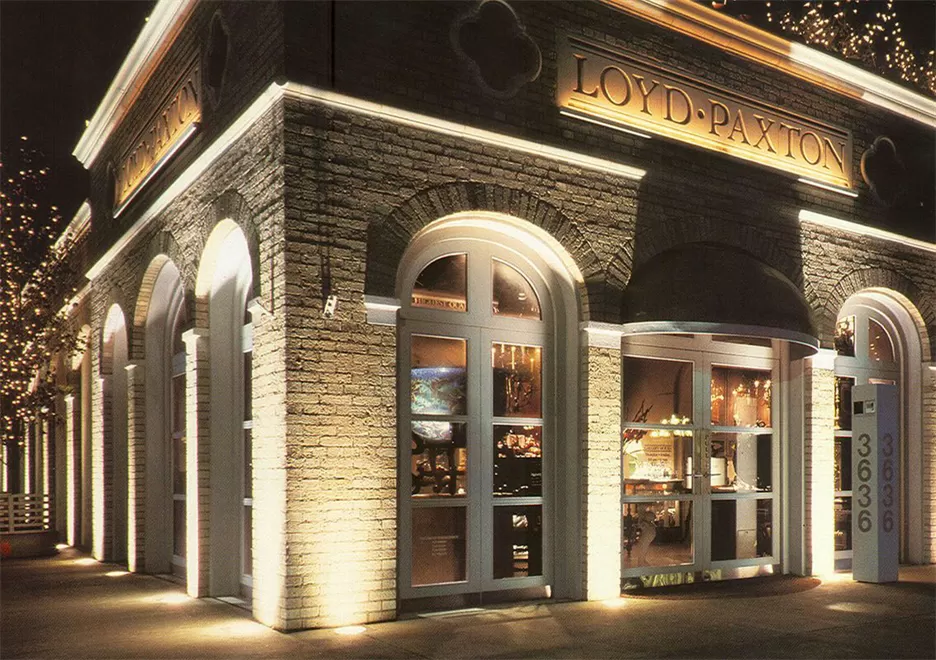

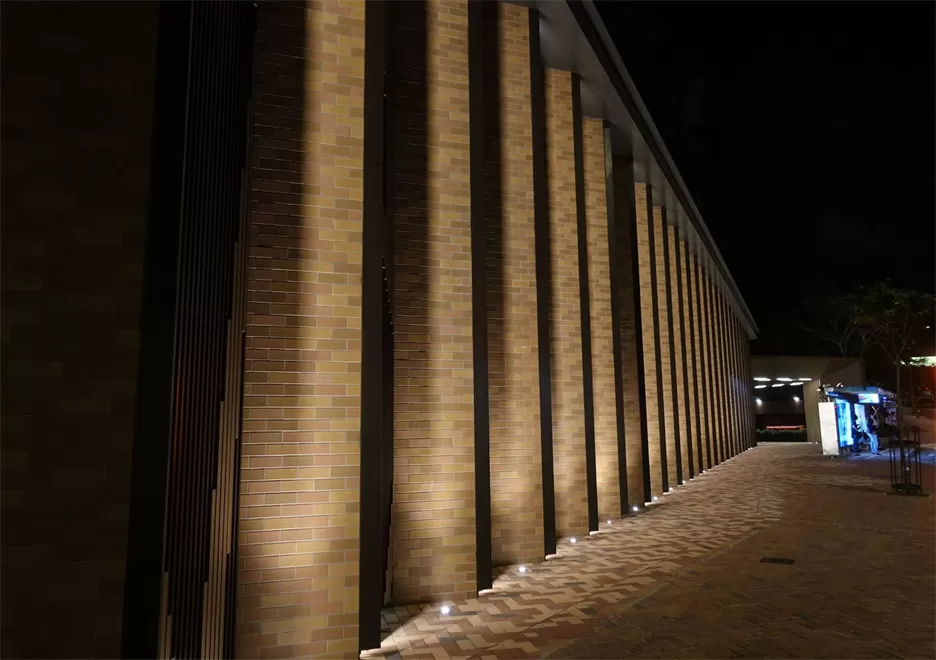

  • PROJECT REFERENCE

    PROJECT REFERENCE

  • PROJECT REFERENCE

    PROJECT REFERENCE

  • PROJECT REFERENCE

    PROJECT REFERENCE

  • PROJECT REFERENCE

    PROJECT REFERENCE
