ELECTRONICS
Power(Luminaire) | 6W/8W/10W | Power Factor | >0.9 |
Input Voltage | AC100V-250V | Driver Option | Integral control gear |
Dmming Type | ON-OFF/DMX512 | Driver | Integral control gear |
Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | SMD | Lumen (Luminaire): | 236.9LM |
| LED Brand | CREE | Luminaire Lminous Efficacy | 18.4LM/W |
| Full White LED(FW) | 3000K-6500K/RGB/RGBW/DMX | Tunable White | 3000K-6000K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 6*180° |
CONTROL SYSTEM
| Control | ON-OFF/DMX512 | CMS, CCS | Optional |
ENVIRONMENT
| Operating Ta | ~-30 °C to 50 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK06 | Certificate | IP65, CE, RoHS |

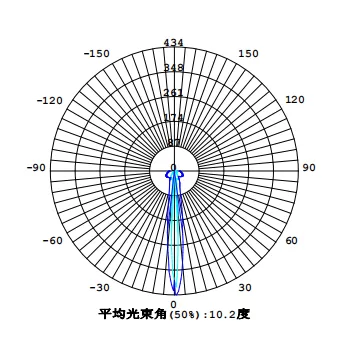

LIGHT DISTRIBUTION
MECHANICS
| Dimension | L148*W60*H100mm | Weight | 0.6g |
| Material | 12# Die-casting aluminum housing | Housing Fixture Material | Aluminum |

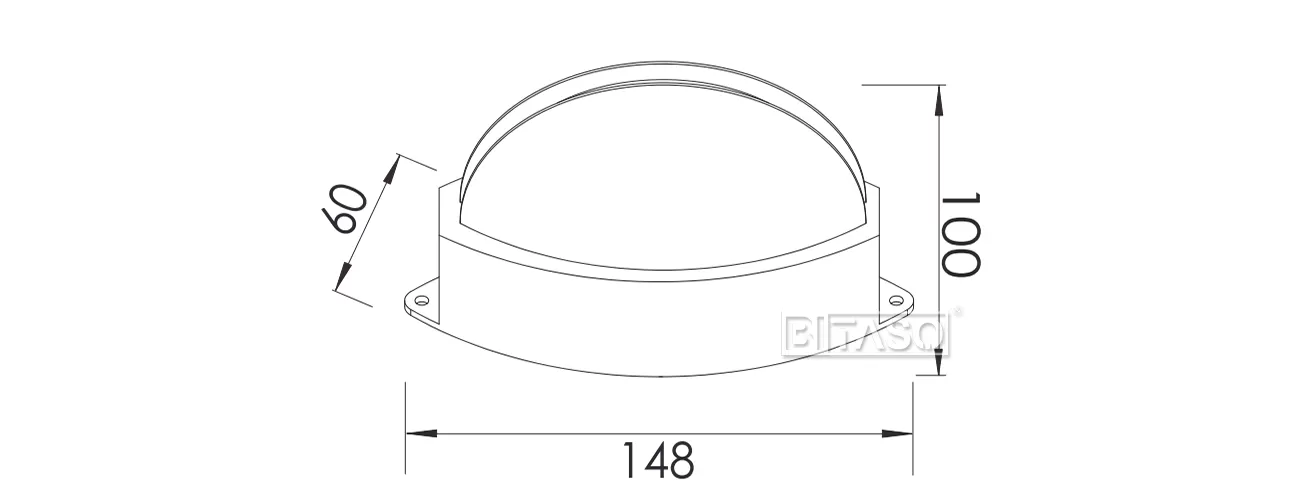

LUMINAIRE DIMENSION
