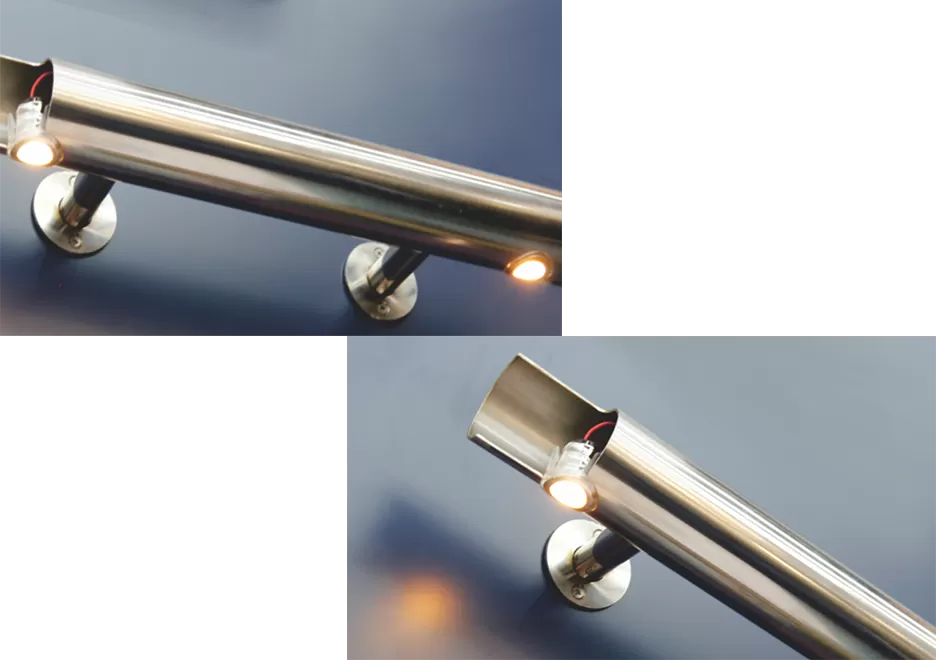

Special Housing Designs And High-Quality Optical Components Specifically For Demanding Visual Tasks To Provide enhanced Visual Comfort. Compact architectural And Stylish Outdoor Innovative Projector For Variety of Flood lighting applications，Ideal for Illuminating Large Buildings And Objects.
ELECTRONICS
Power(Luminaire) | 1.5/2W | Power Factor | >0.9 |
Input Voltage | DC24V/DC12V/DC3V/500mA | Driver Option | Integral control gear |
Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
Optional Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB | Lumen (Luminaire): | 280LM |
| LED Brand | OSRAM, CREE, PHILIPS | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 3000K | Tunable White | 2700K&6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | Symmetric 26°/60°/80° |
CONTROL SYSTEM
| Control | ON/OFF/DALI/0-10V/Triac | CMS, CCS | Optional |
ENVIRONMENT
| Operating Ta | ~-30 °C to 50 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK09 | Certificate | IP67, CE, RoHS |
MECHANICS
| Dimension | ∅29*H26.7/30.5mm | Suit for Standard | ∅48-63mm |
| Handrail Wall Thickness | 1.0-1.5mm | Hole or Groove Size | for a Ø27 hole |
| Finish | Sliver | Housing Fixture Material | Stainless Steel and Aluminum |

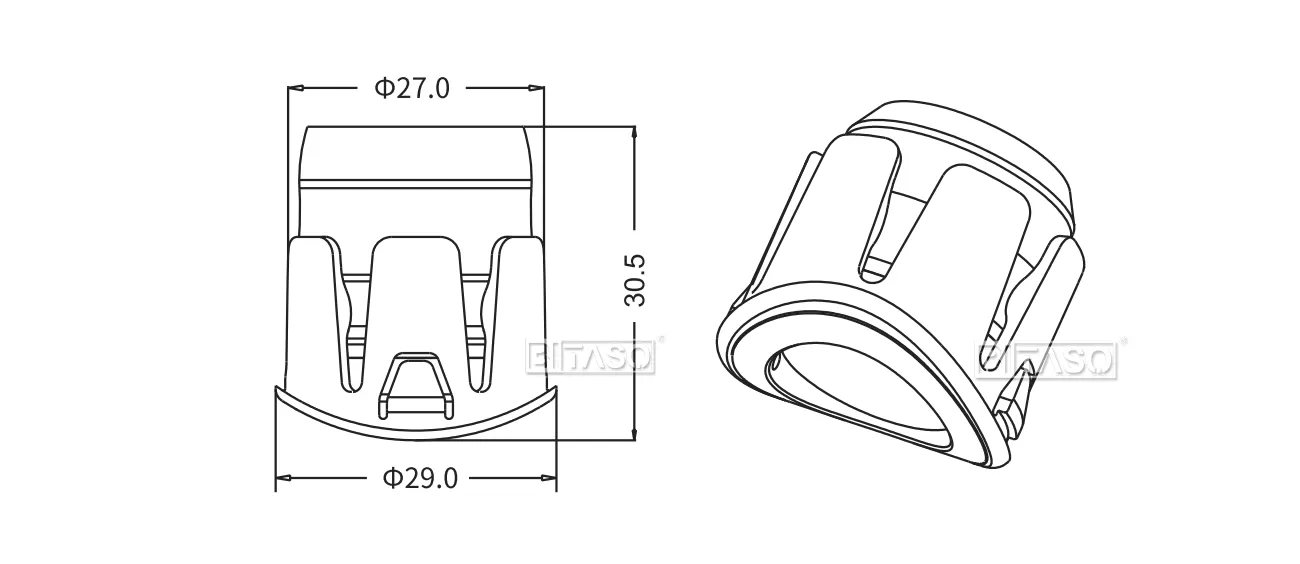

LUMINAIRE DIMENSION
