ELECTRONICS
| Power（Luminaire） | 12W/24W/36W | Power Factor | >0.9,CCS auto calibrating |
| Input Voltage | DC24V | Driver Option | Integral control gear |
| Diming Type | ON/OFF,0-10V,DALI,Traic | Driver | Integral control gear |
| Optional Eectronic Accessories | / | Connector | / |
OPTICS
| Light Source | SMD | Lumen（Luminaire): | 955-2808LM |
| LED Brand | / | Luminaire Lminous Efficacy | 78LM/W |
| Full White LED(FW) | 3000-6000K | Turnable White | / |
| Multi Color | / | CRI | Ra>80, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 16°/24°/36° |
| MacAdam Ellipse | 3 SDCM,5SDCM | Optional Optical Acessories | / |
CONTROL SYSTEM
| Control | DALI/ 0-10V/Triac | DMX Channel | / |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | -20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IP20，Class I | Certificate | IP20,CE, ETL, RoHS, CCC |
MECHANICS
| Dimension | L337*W38.5*H50mm | Weight | 1.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Black/White | Mounting Type | Track |

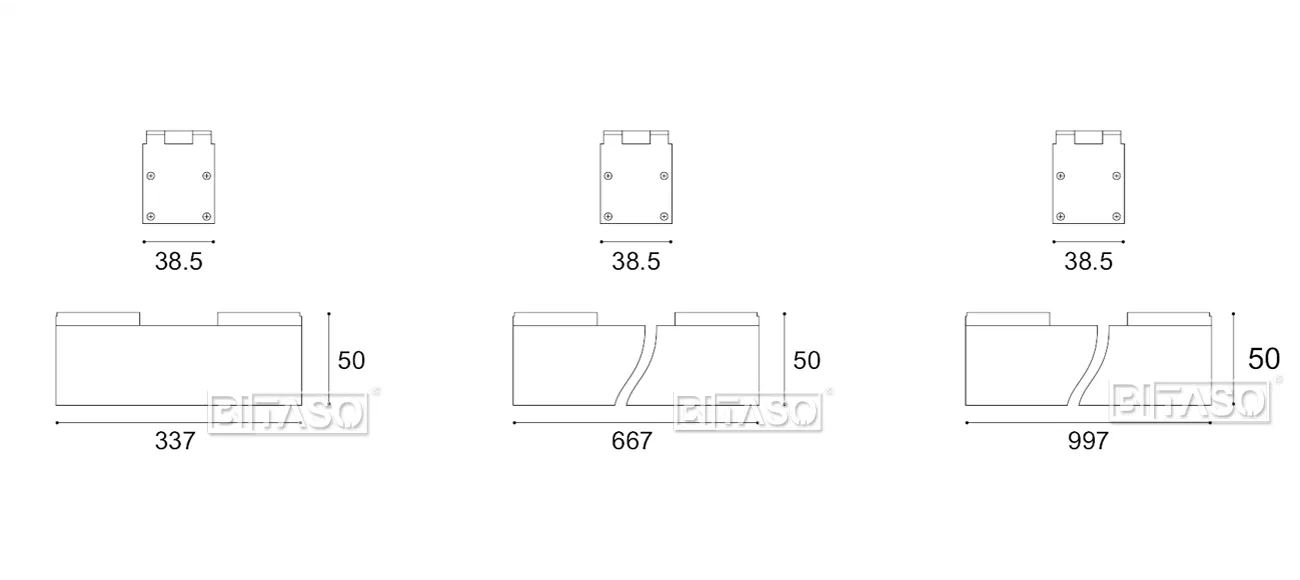

LUMINAIRE DIMENSION
