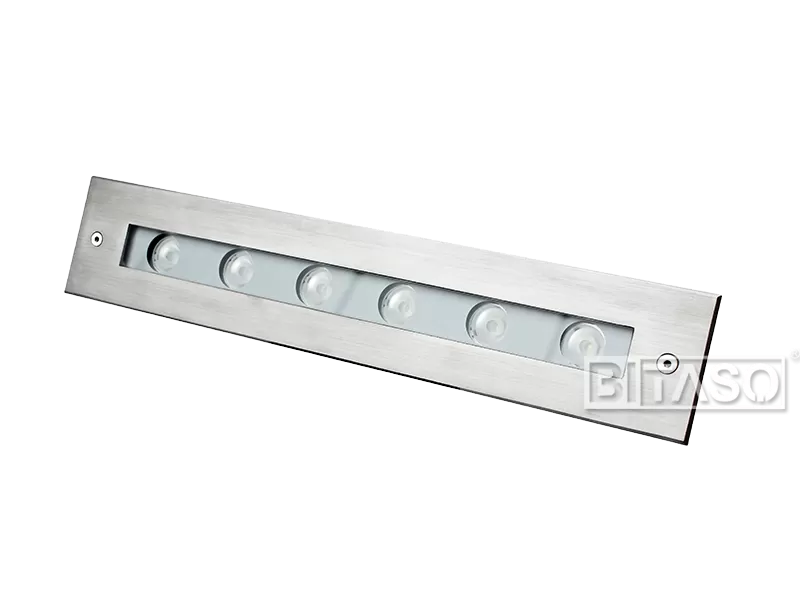

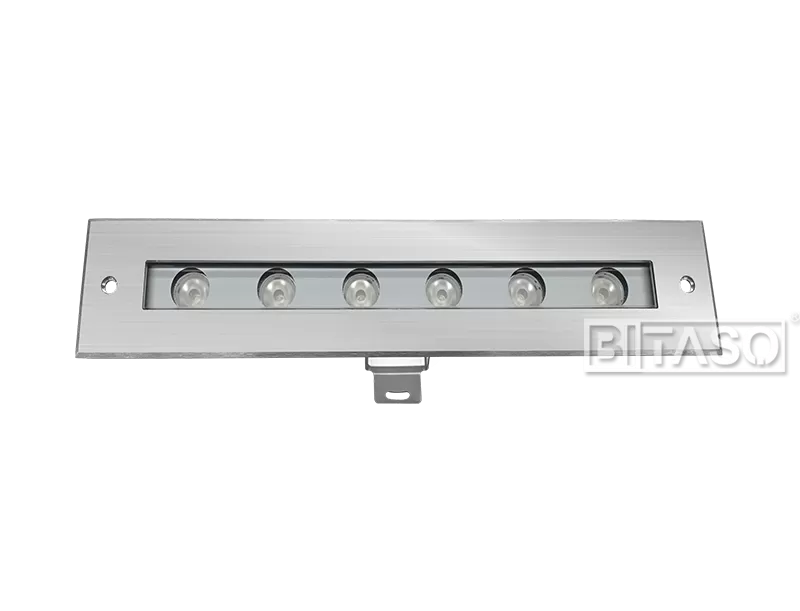

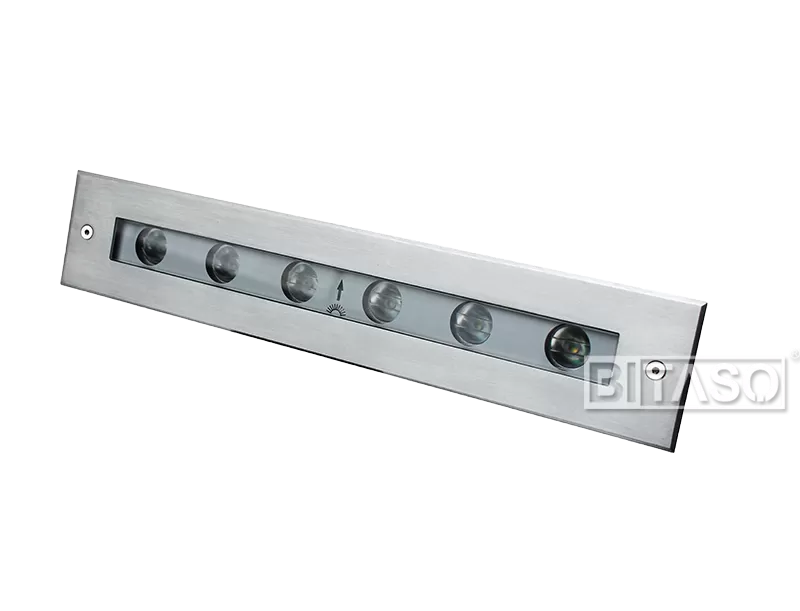

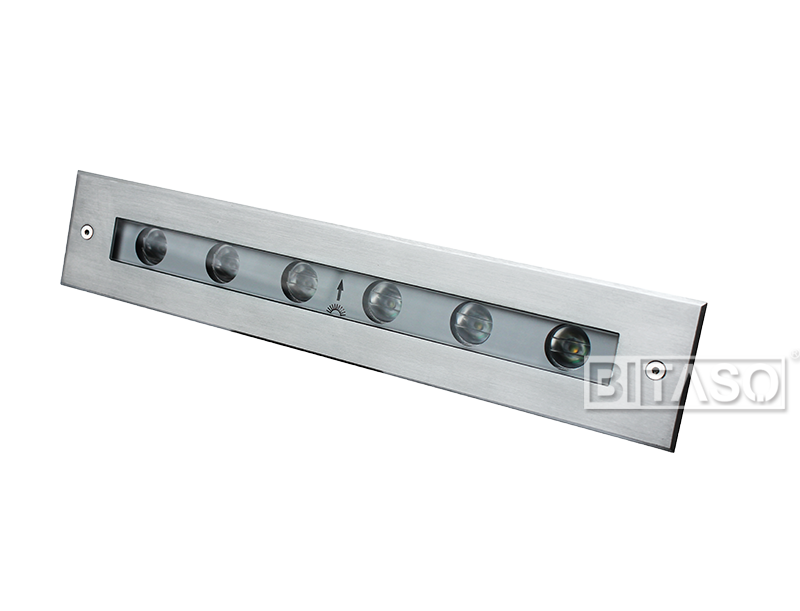

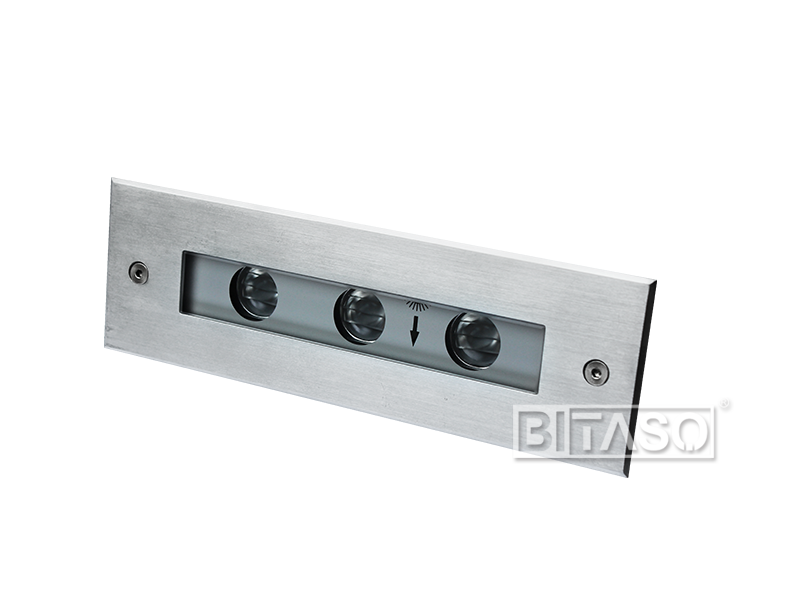

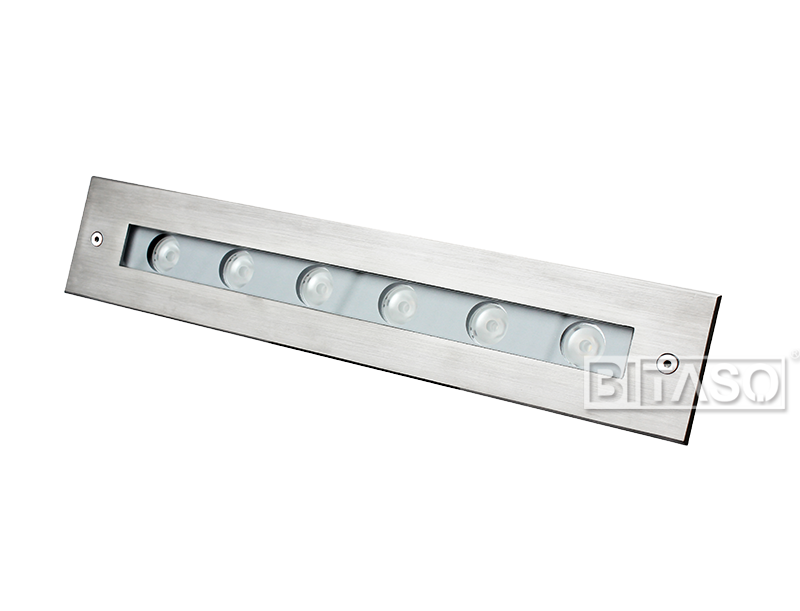

Pisces L328

IP68 LED underwater light made of SUS 316 stainless steel is suitable as underwater spotlight for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.


ELECTRONICS

Power(Luminaire)12W/18W Power Factor>0.9
Input VoltageDC24VDriver OptionExternal Power Supply Required
Dmming TypeON/OFF, 1-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source6PCS SMDLumen(Luminaire):1080LM/1620LM
LED BrandCREE/OSRAM/EPISTARLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K-6500KTunable White
Multi ColorRGW,RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle15°,30°,45°,60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories


CONTROL SYSTEM

ControlON/OFF, 1-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive Cooling

Stainless steel SUS 316L#

ComplianceIK08, IP68, Class ICertificateIP68, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension328x65mmWeight0.6.5KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialStainless steel SUS 316L#
FinishStainless SteelMounting TypeUnderwater/Ground


OPTIONAL ACCESSORIES

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

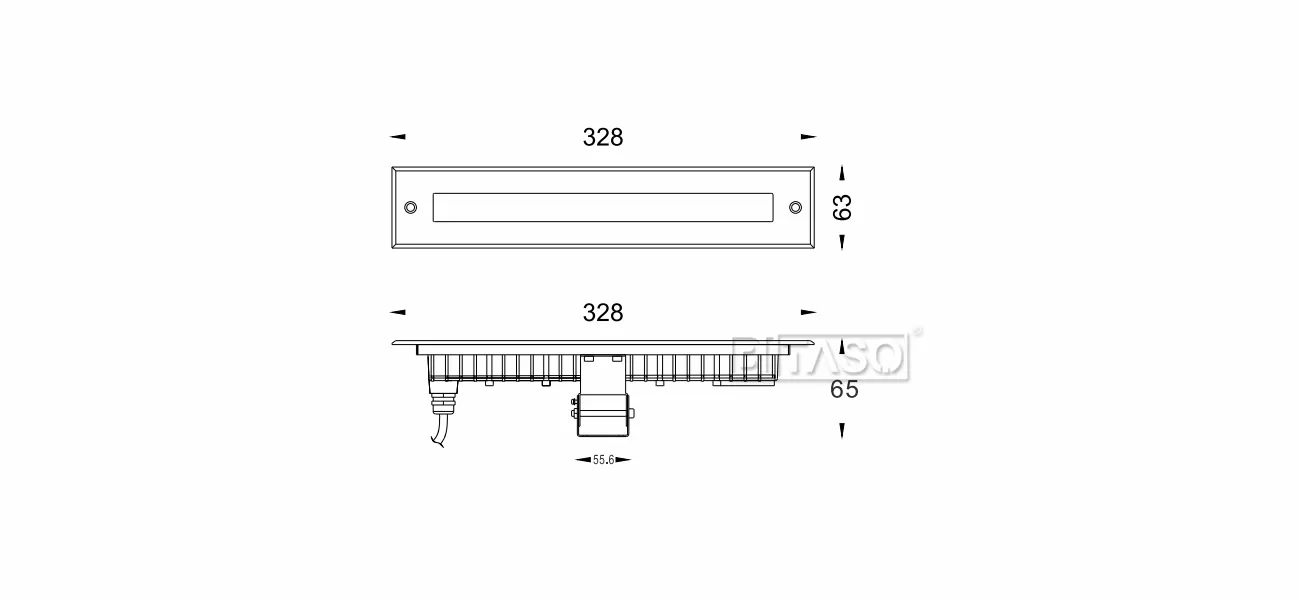

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

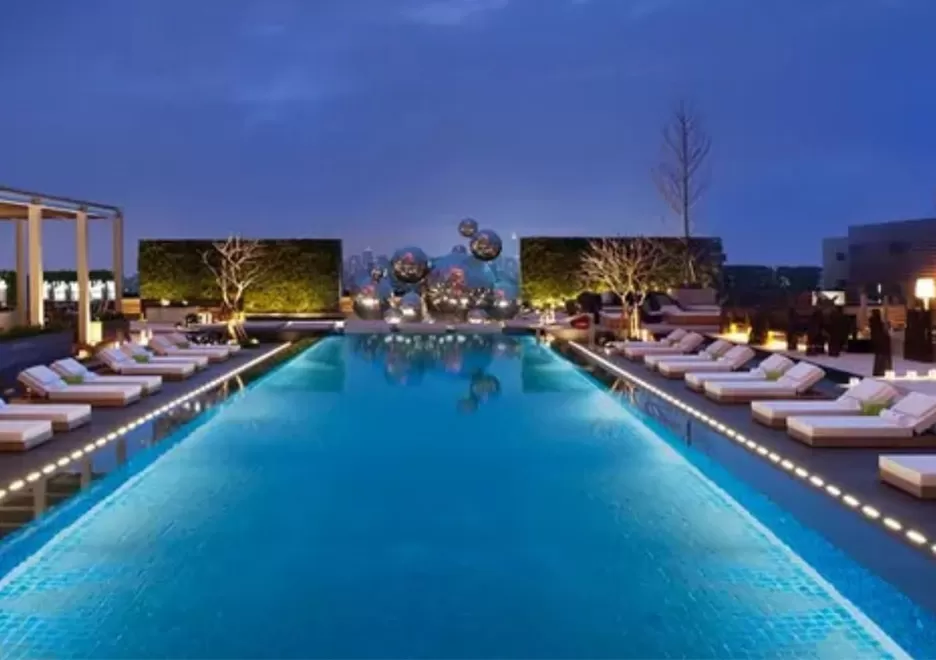

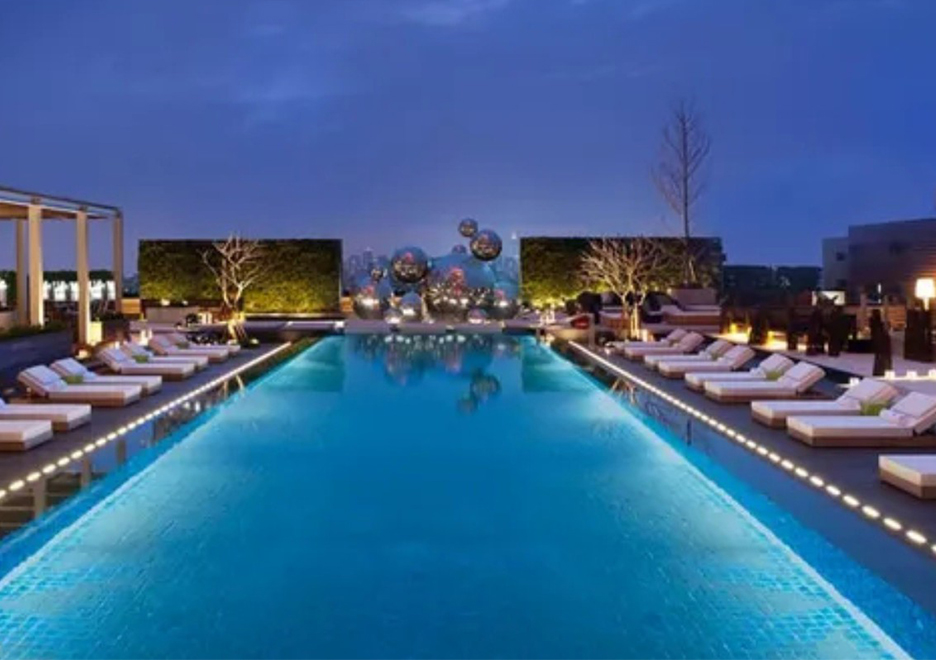

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

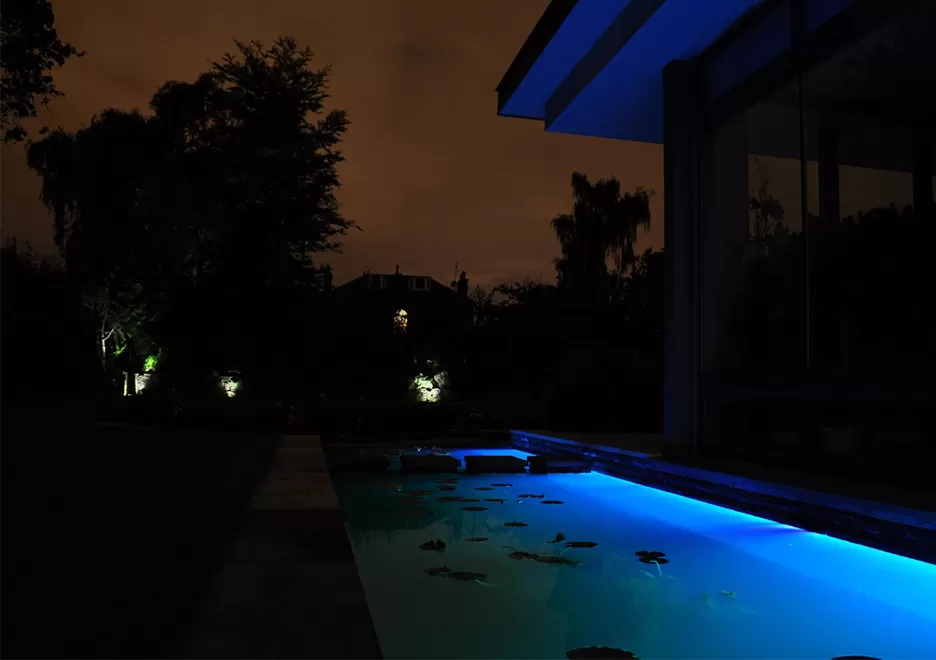

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

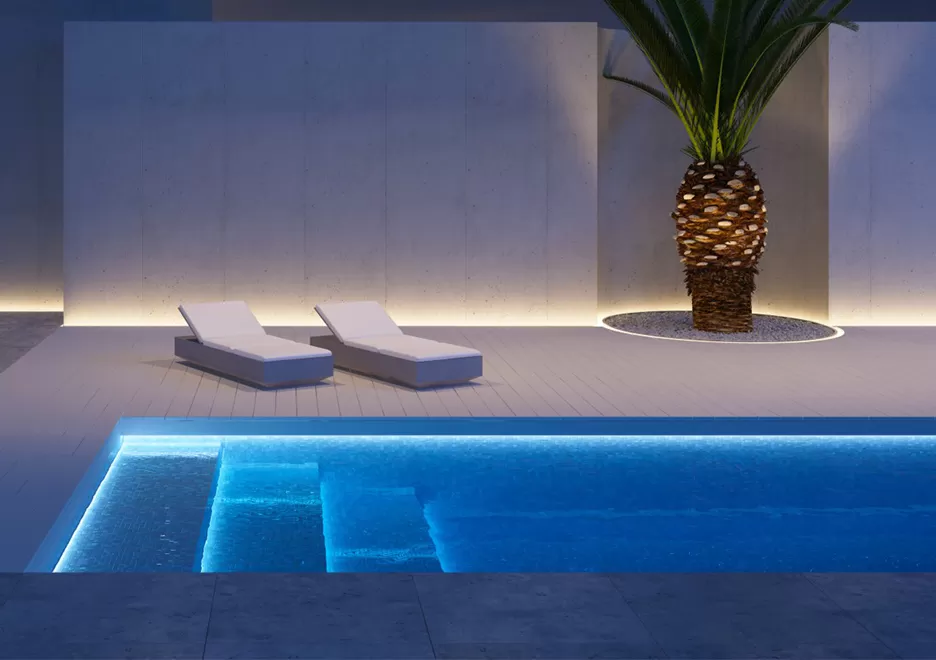

  • PROJECT REFERENCE

    PROJECT REFERENCE

    High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
