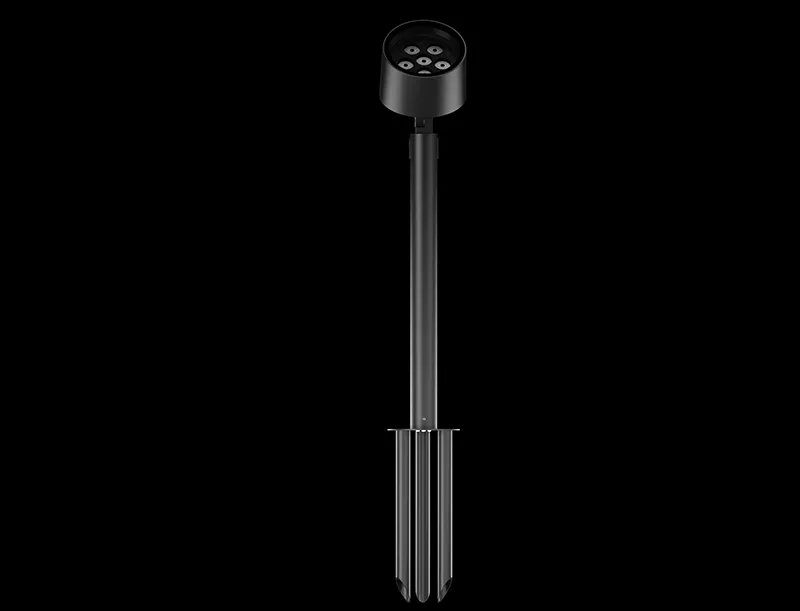

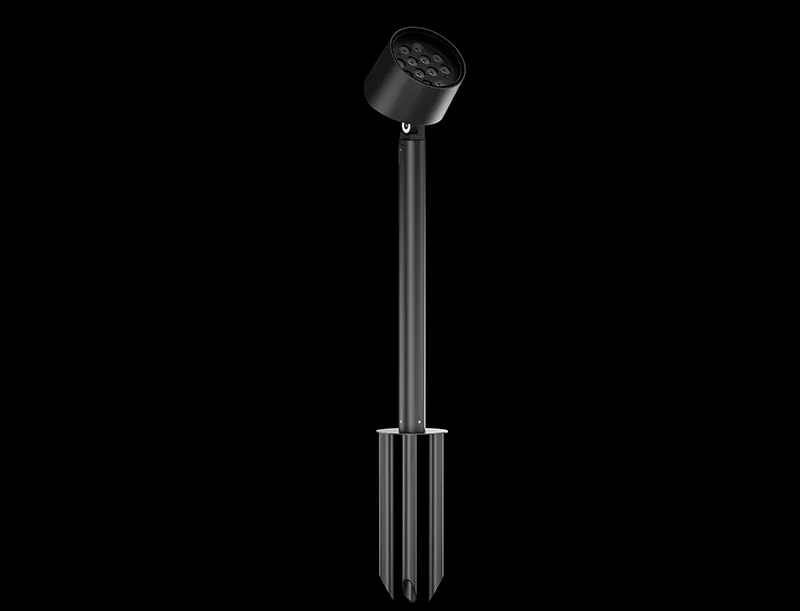

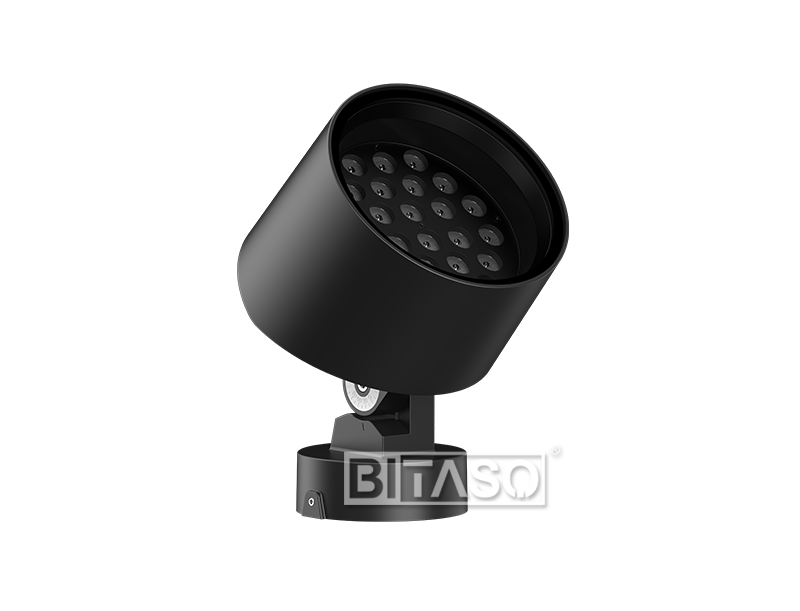

PHANTOM R180

PHANTOM R180

Inquiry Now Next Product
Download Spec Sheet

ELECTRONICS

Power(Luminaire)42W/48W 54W 60WPower Factor>0.9, CCS auto calibrating
Input VoltageDC24V DC48V AC110-130V AC110-240V AC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable , Junction boxConnector8 pin power+DMX integrated cable

OPTICS

Light Source18CS SMDLumen（Luminaire): 3780LM
LED BrandOSRAM/CREE/TYANSHINE SMDLuminaire Lminous Efficacy72LM/W, 90LM/W, 90LM-135LM/W
Full White LED(FW)2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50, 000hrsBeam Agle5°, 8°, 10°, 12°, 20°, 25°, 30°, 40°, 45°, 60°, 15°x55°, 20°x60° etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesDiffuser, Filter, Honeycomb Louver

CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS,  CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08，IP66，Class ICertificateIP66,CE, ETL, RoHS, CCC

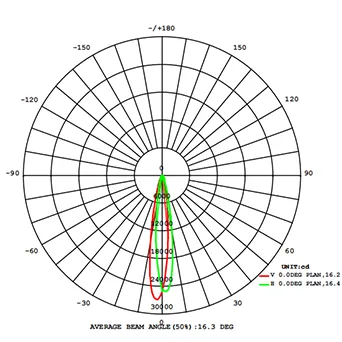

LIGHT DISTRIBUTION

  • 18Degree COB

    18Degree COB

  • 25Degree SMD

    25Degree SMD

MECHANICS

Dimension180x130x280mmWeight3KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishTIGER PODER gray(RAL9006), black(RAL9005)Mounting TypeFloor, ceiling or wall mounting (adjustable bracket)

OPTIONAL ACCESSORIES

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

  • Diffuser 1

    Diffuser 1

  • Diffuser 2

    Diffuser 2

  • EW-M2068 2_3PIN IP68 Connector

    EW-M2068 2_3PIN IP68 Connector

  • Extension Cable

    Extension Cable

  • Filter

    Filter

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • Input Cable 1

    Input Cable 1

  • Input Cable 2

    Input Cable 2

  • Input Cable 3

    Input Cable 3

  • Input Cable 4

    Input Cable 4

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • M20 3_4_5_6PIN IP68 Connector

    M20 3_4_5_6PIN IP68 Connector

  • M20X 2_3PIN IP68 Connector

    M20X 2_3PIN IP68 Connector

  • M25 3_4_5PIN IP68 Connector

    M25 3_4_5PIN IP68 Connector

  • M2068 2_3PIN IP68 Connector

    M2068 2_3PIN IP68 Connector

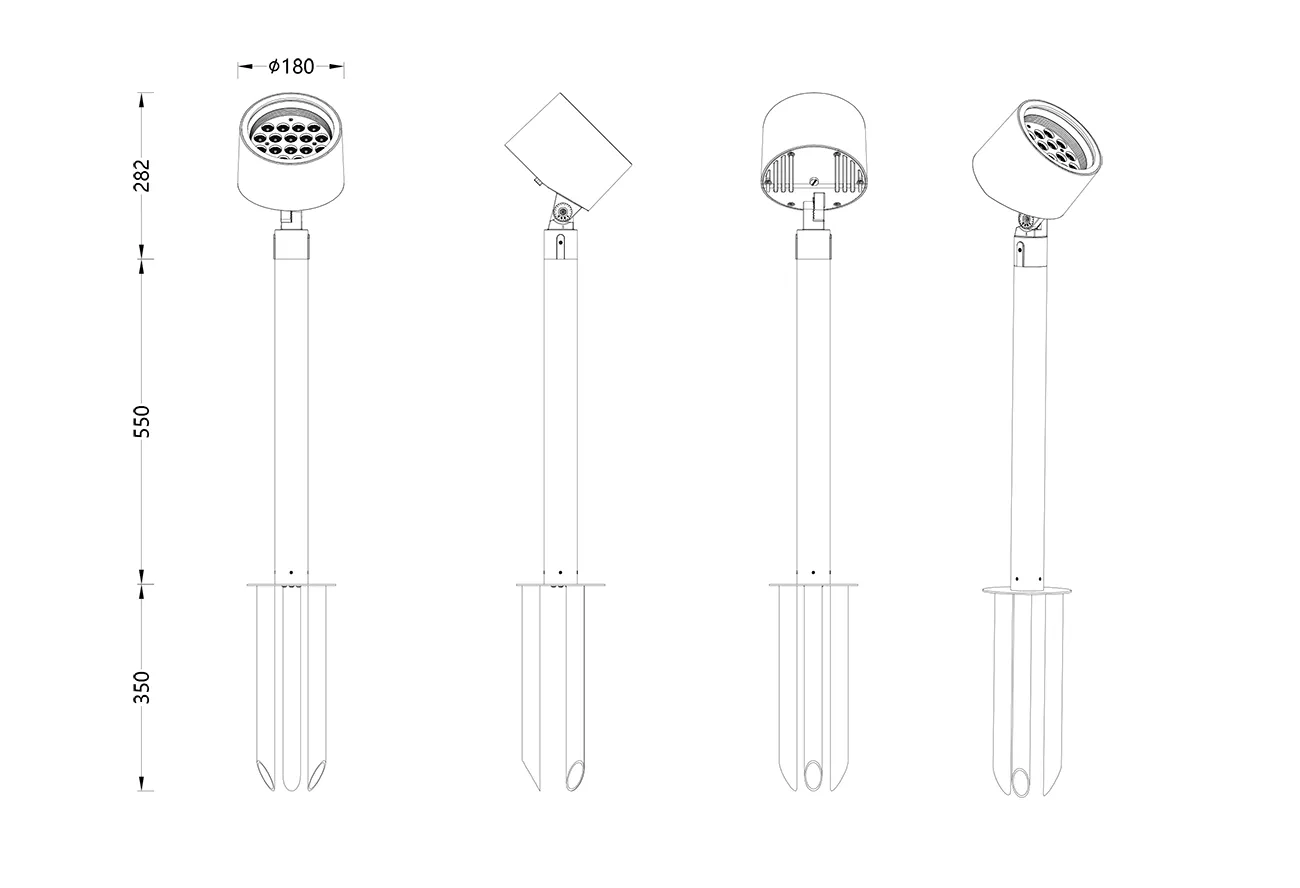

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
