Luminaures with CREE COB or XP-E/G LEDS provide excellent light quality with highly precise light distribution,free of colour shifts and dis-tortion,special PCB layouts ensure the led moudules are optimally matched to the optical system of the luminaires.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.
ELECTRONICS
| Power(Luminaire) | 36W/42W/48W/36-48W | Power Factor | >0.9 |
| Input Voltage | DC24V DC36V DC48V AC110-240V AC110-130V AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dimming Type | 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 pin |
OPTICS
| Light Source | 6 PCS SMD | Lumen（Luminaire): | 3240LM |
| LED Brand | OSRAM/CREE/TYANSHINE SMD | Luminaire Lminous Efficacy | 72LM/W,90LM/W,90-135LM/W |
| Full White LED(FW) | 2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K | Turnable White | 2700-6500K |
| Multi Color | RGB,RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 3°,5°,8°,10°,12°,20°,25°,30°,40°,45°,60°, 10*22°,15*55°,20*60° |
| MacAdam Ellipse | 3 SDCM, 5 SDCM | Optional Optical Acessories | Filter, Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512-RDM/DMX512/DALI/0-10V/1-10V/Triac | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 150×mm | Weight | 3.10KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |

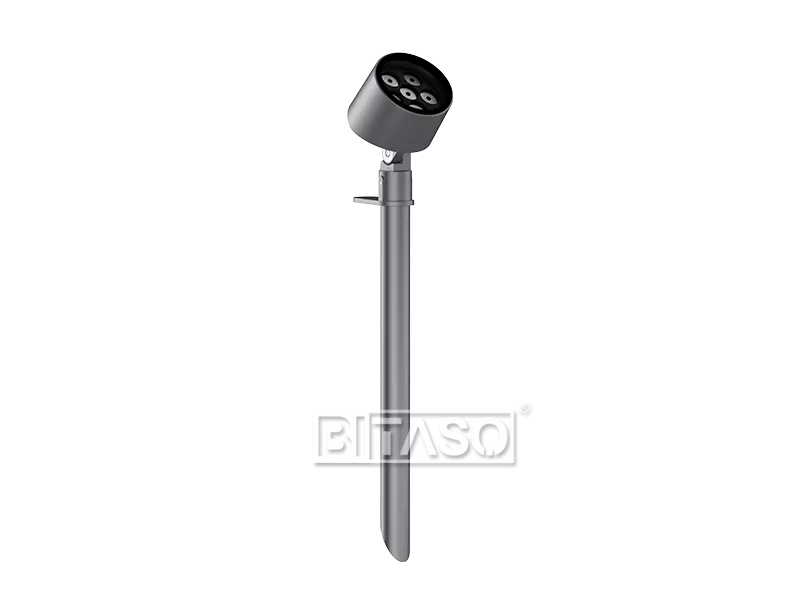

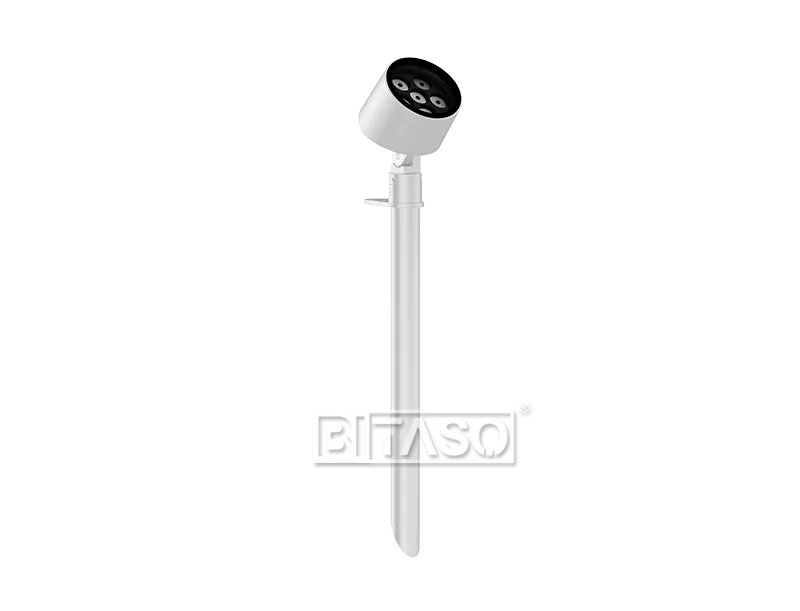

| Finish | Black/Grey/White/Customizable RAL | Mounting Type | Floor/Ground/Pole/Tree |
OPTIONAL ACCESSORIES

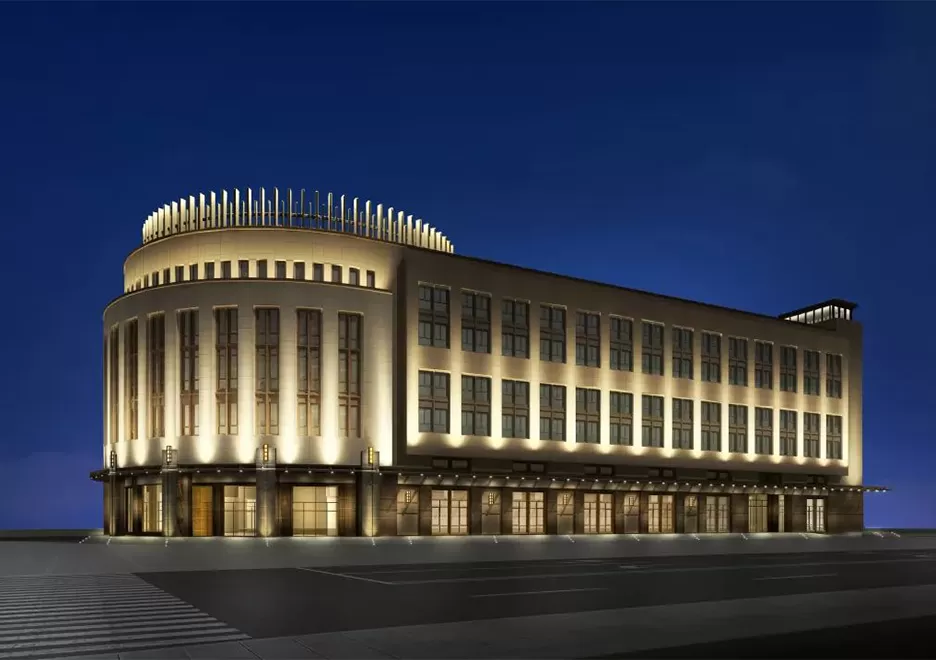

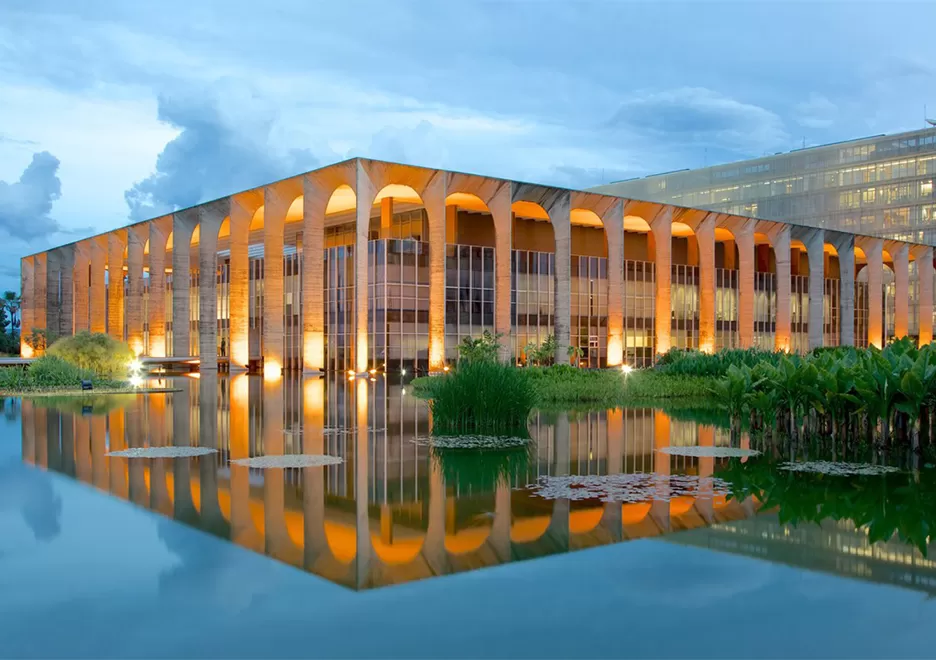

PROJECT REFERERNCE
PROJECT REFERERNCE
