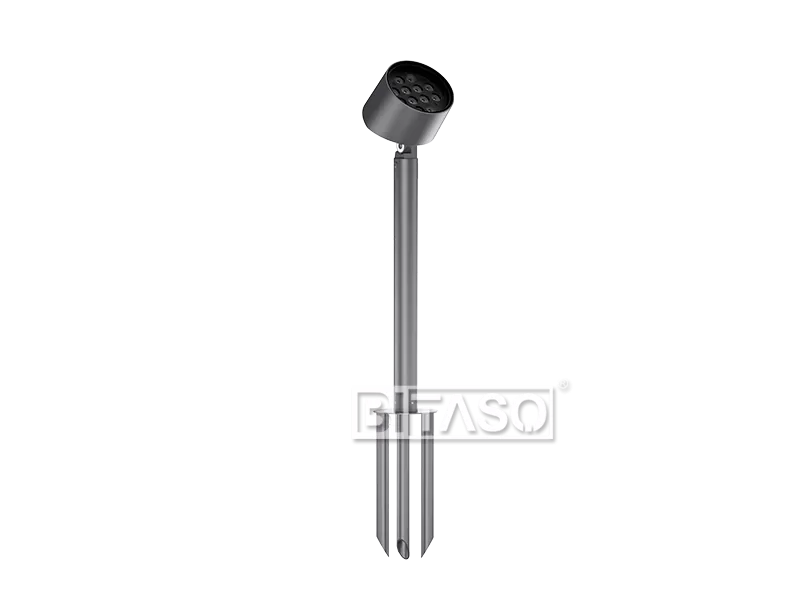

Phantom 2.0 R150 with pole and triangular spike

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort. Discreet and compact aesthetically designed architectural outdoor spotlight, ideal for glare-free accent lighting, floodlighting and wall washing in the outdoor area.

ELECTRONICS

Power(Luminaire)36W/42W/48W/36-48WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-240V AC110-130V AC220-240V 50/60HzDriver OptionIntegral control gear
Dimming Type0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 pin


OPTICS

Light Source12 PCS SMD
Lumen(Luminaire):3240LM
LED BrandOSRAM/CREE/TYANSHINE SMD
Luminaire Lminous Efficacy72LM/W,90LM/W,90-135LM/W
Full White LED(FW)2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500KTurnable White2700-6500K
Multi ColorRGB,RGBW
CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle

5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,

10*22°,15*55°,20*60°

MacAdam Ellipse3 SDCM, 5 SDCMOptional Optical Acessories Filter, Honeycomb Louver


CONTROL SYSTEM

ControlDMX512-RDM/DMX512/DALI/0-10V/1-10V/TriacDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension150×1148mmWeight3.65KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/Grey/White/Customizable RALMounting TypeFloor/Ground/Pole/Tree


OPTIONAL ACCESSORIES

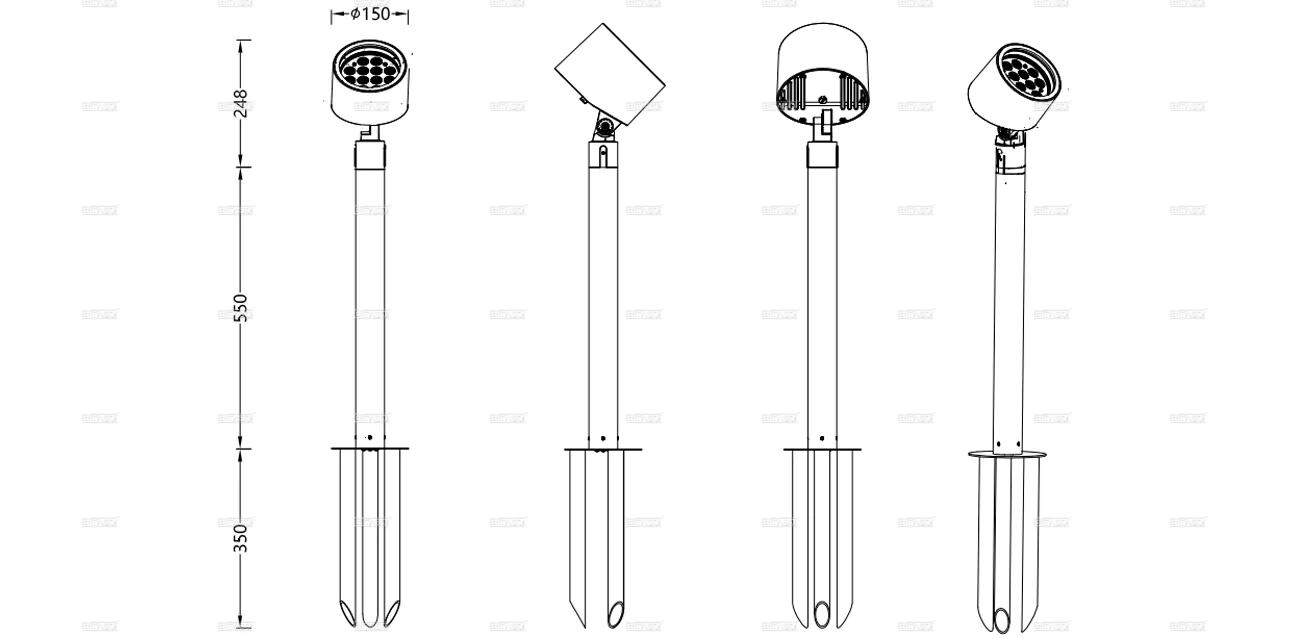

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

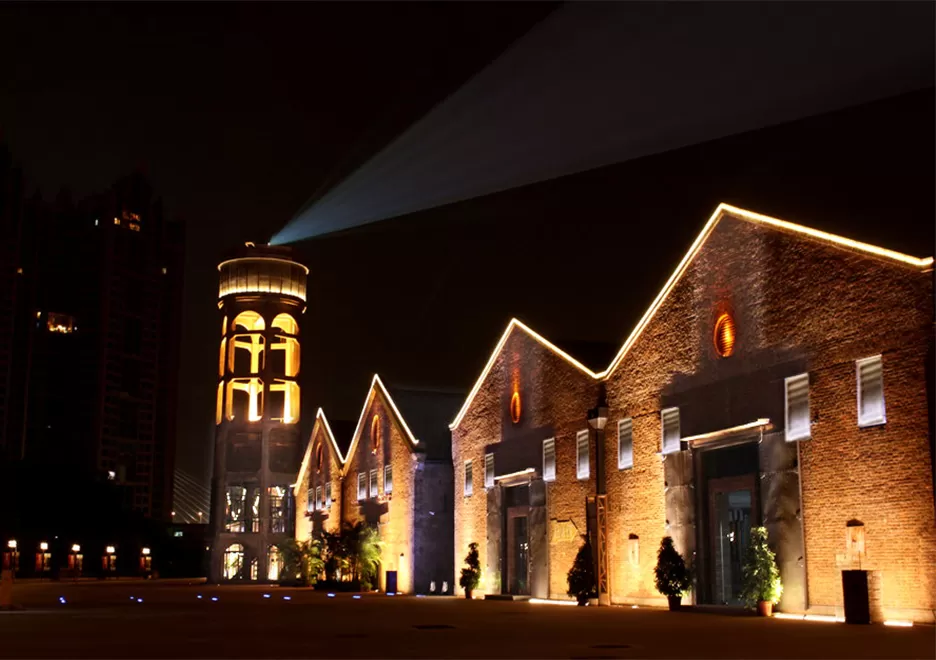

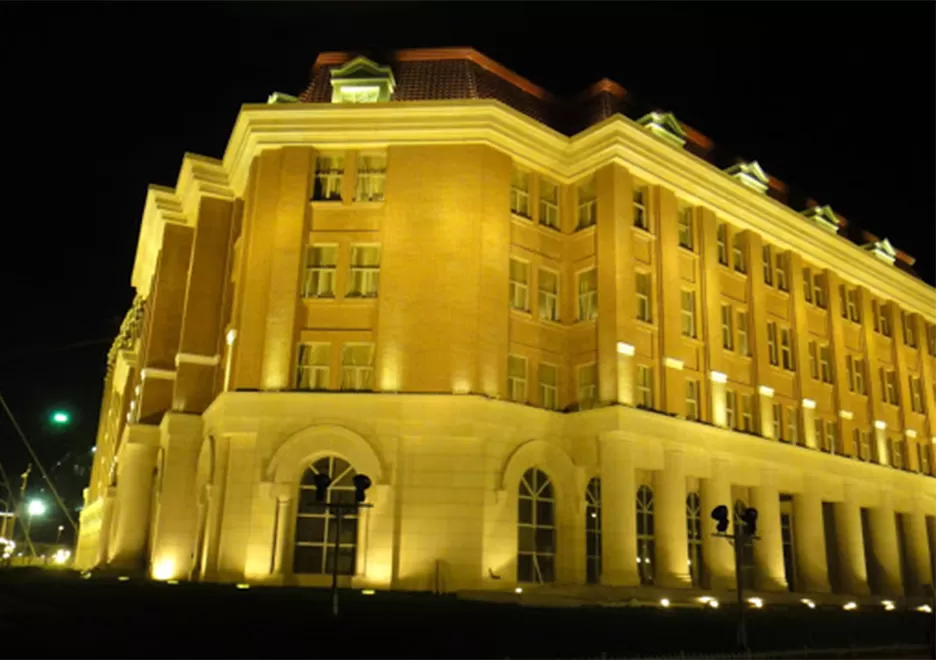

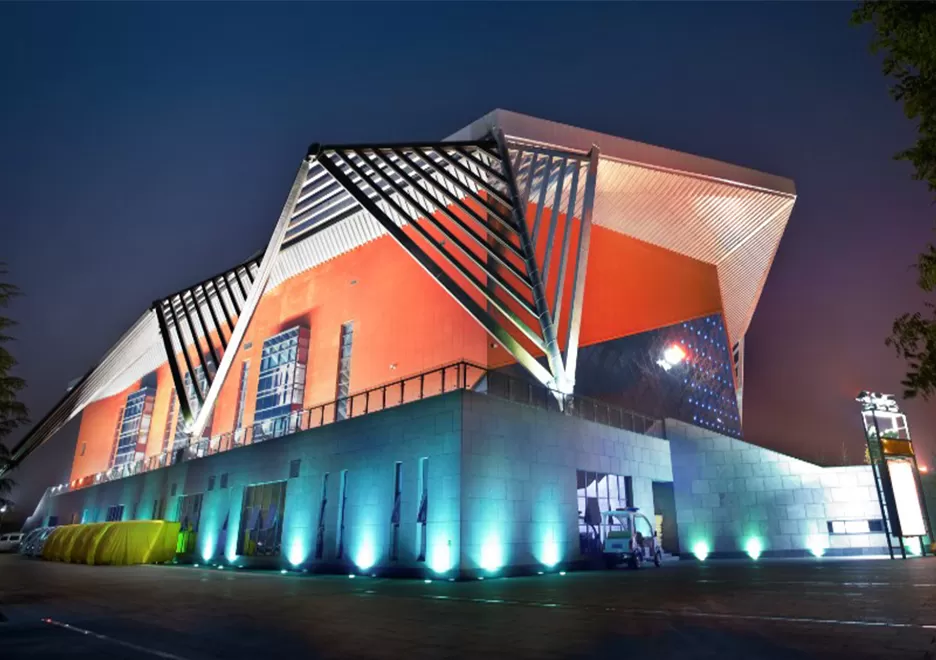

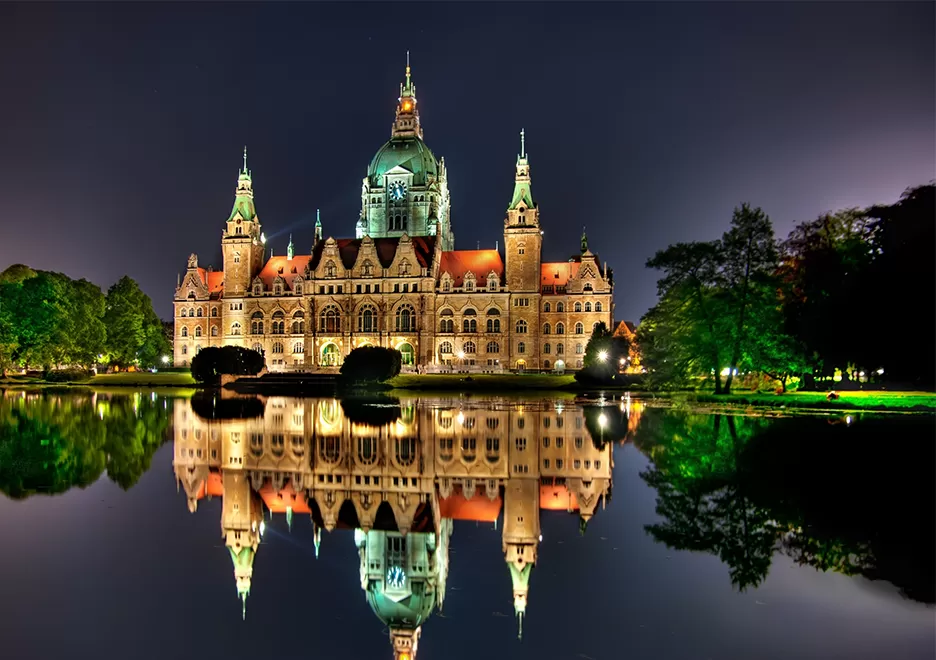

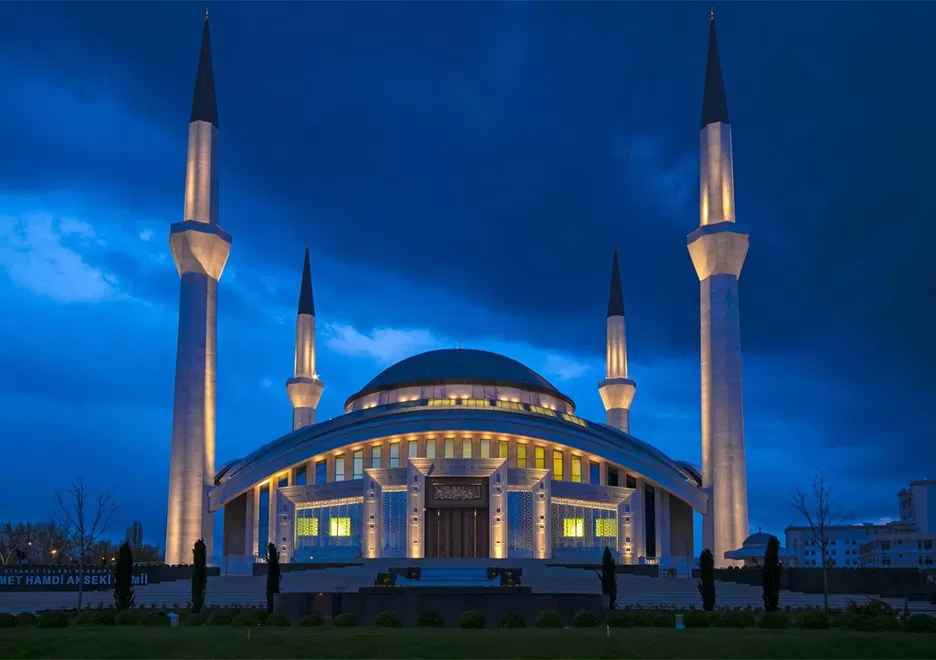

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

  • PROJECT REFERERNCE

    PROJECT REFERERNCE
