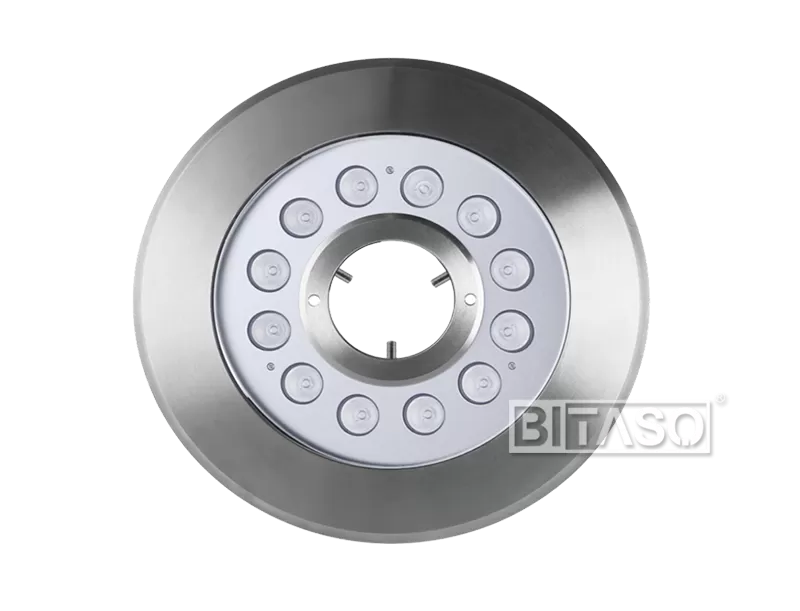

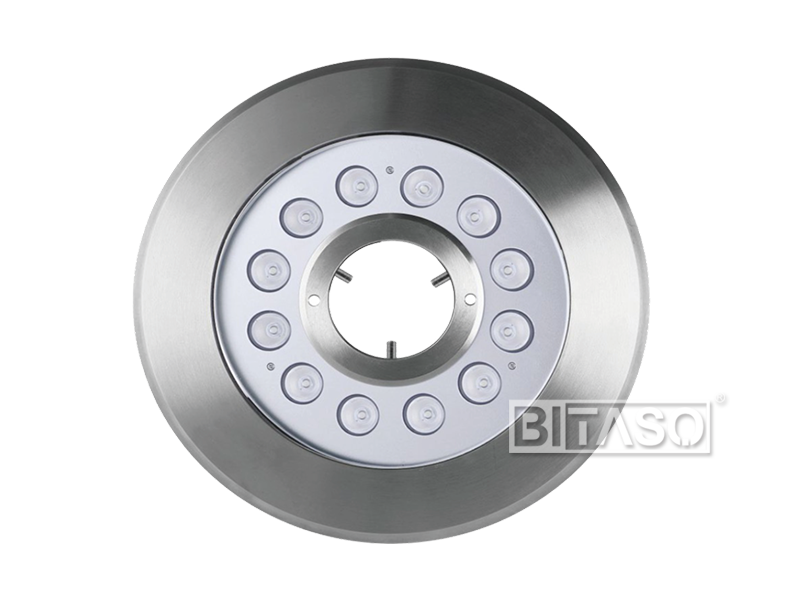

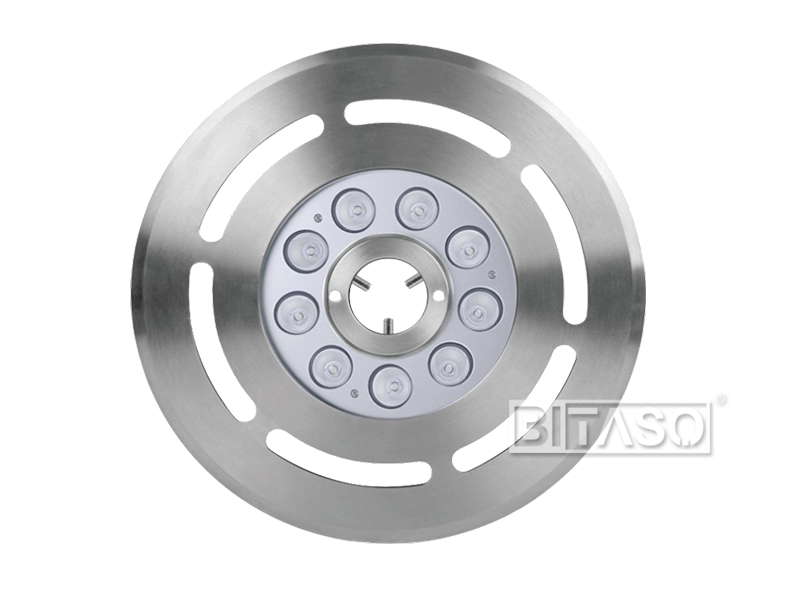

LED Fountain Light is widely used in the garden, hotel, square, lake, waterfalls etc. LED Fountain Light is with low power consumption, longer working life.
And installed in stainless steel light housing, the LED lights are filled with high quality waterproof material and covered with a clear Glass lens for underwater application; it gives great lighting effect for using in indoor or outdoor fountain, pond, lake, waterfalls or garden.
ELECTRONICS
| Power(Luminaire) | 12W/18W | Power Factor | >0.9 |
| Input Voltage | AC12V AC24V DC12V DC24V | Driver Option | External Power Supply Required |
| Dmming Type | ON/OFF, 1-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 12PCS SMD | Lumen（Luminaire): | 1080LM/1620LM |
| LED Brand | CREE/OSRAM | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K-6500K | Tunable White | |
| Multi Color | RGW,RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 15°,30°,45°,60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories |
CONTROL SYSTEM
| Control | ON/OFF, 1-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | Stainless steel SUS 316L# |
| Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |

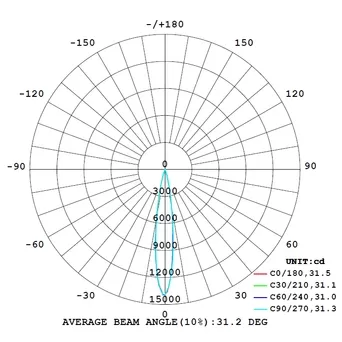

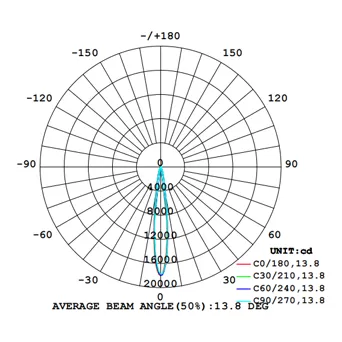

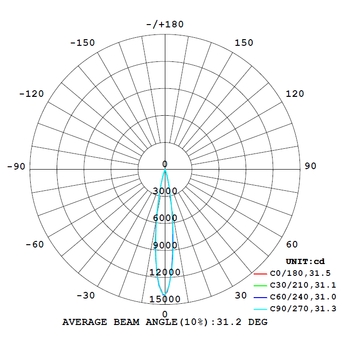

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 220x72mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | Stainless steel SUS 316L# |
| Finish | Stainless Steel | Mounting Type | Underwater/Wall/Ground |
OPTIONAL ACCESSORIES
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

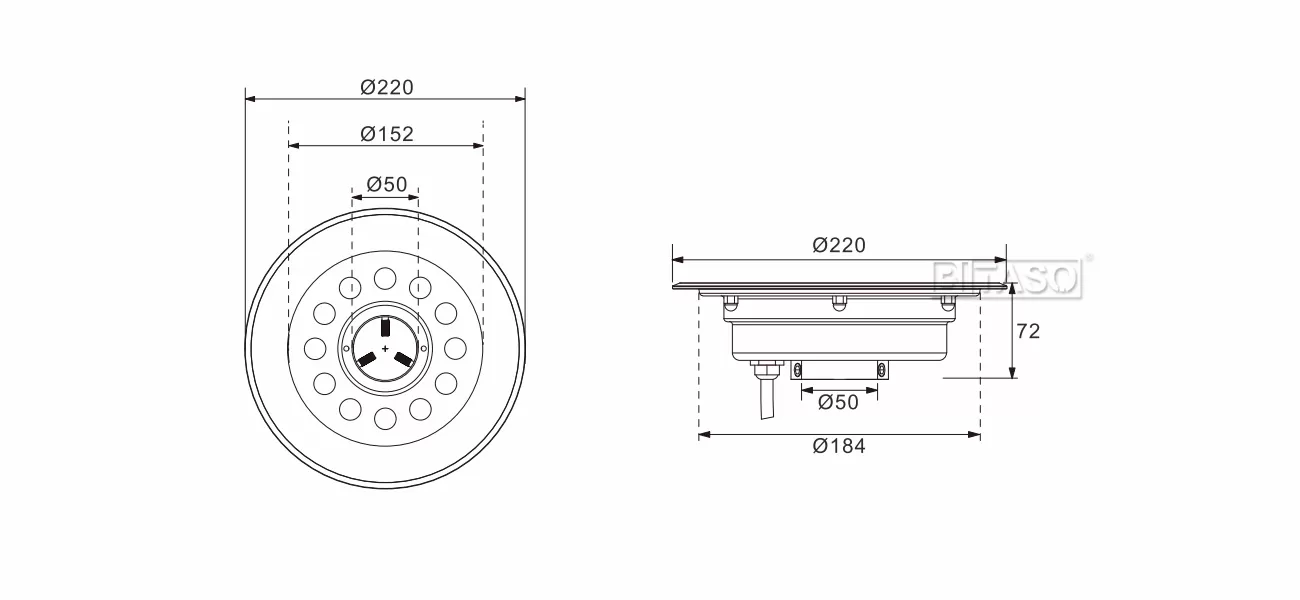

LUMINAIRE DIMENSION

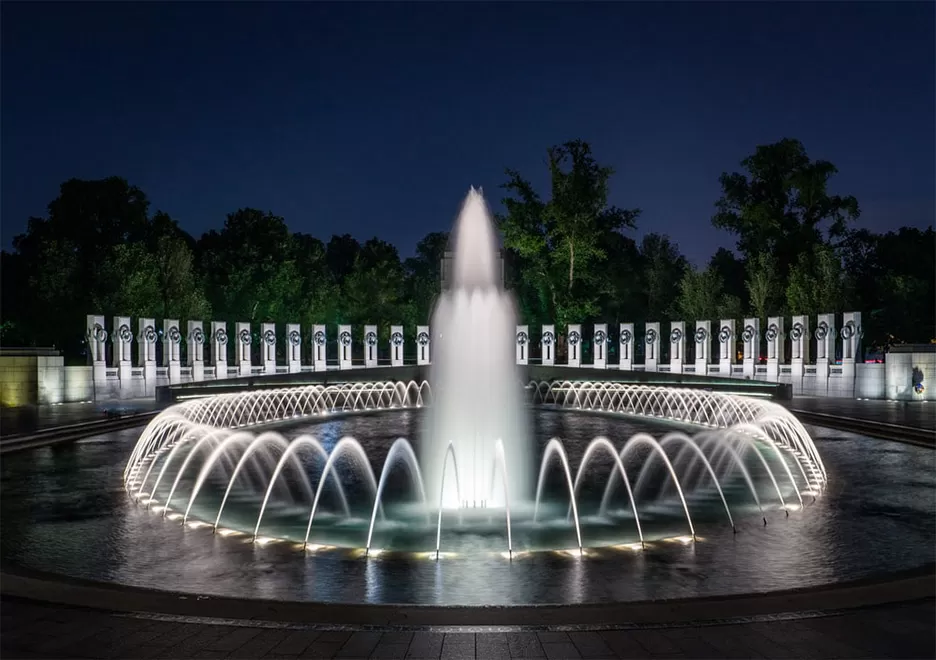

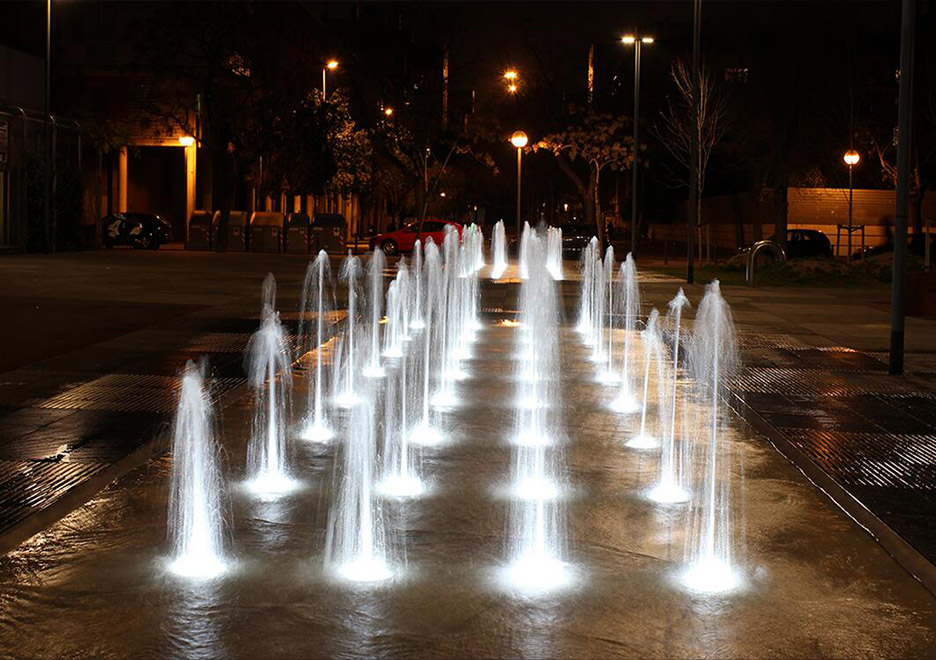

PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

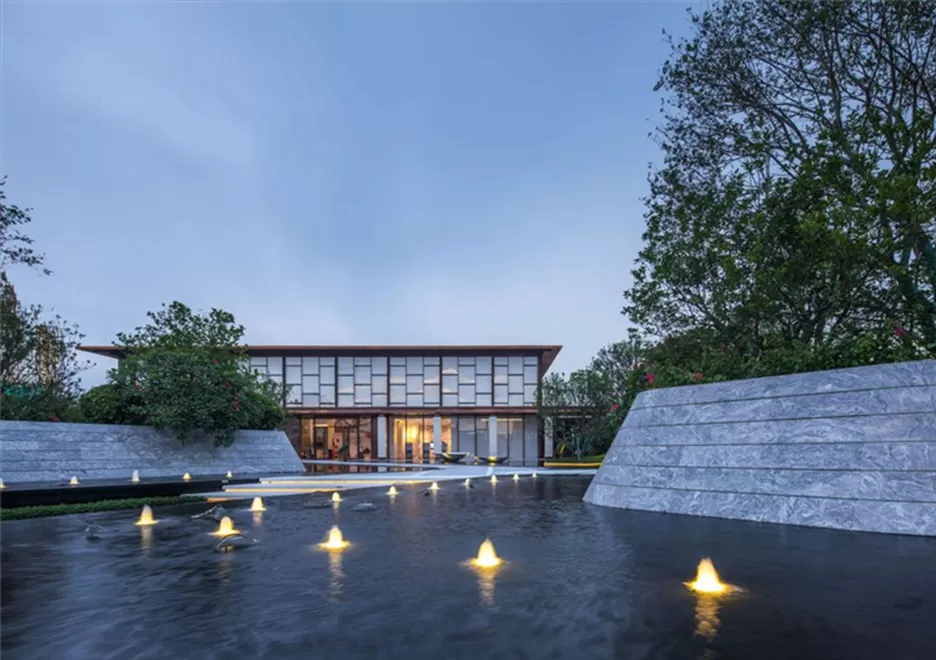

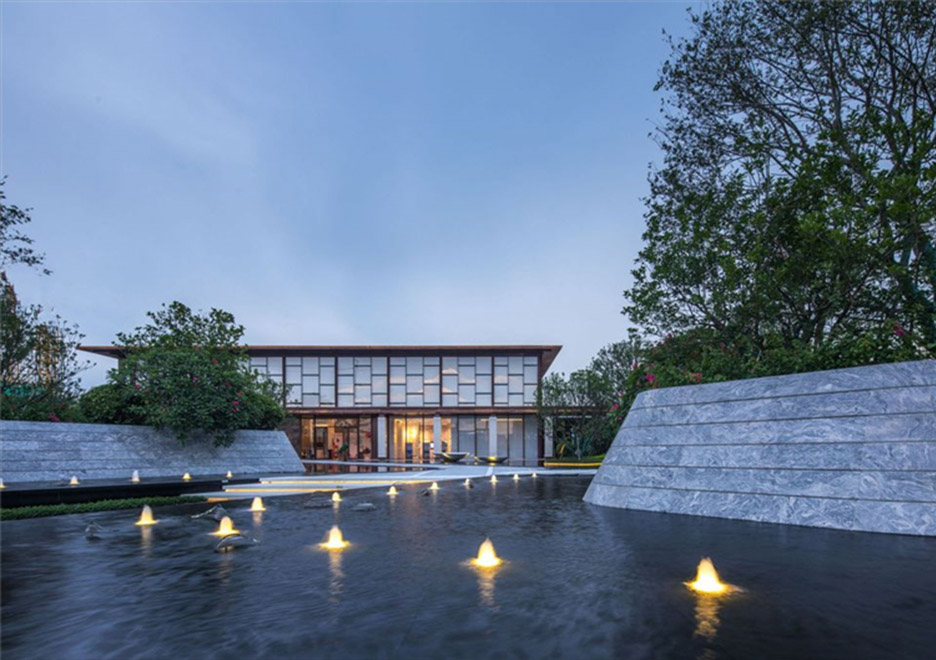

PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

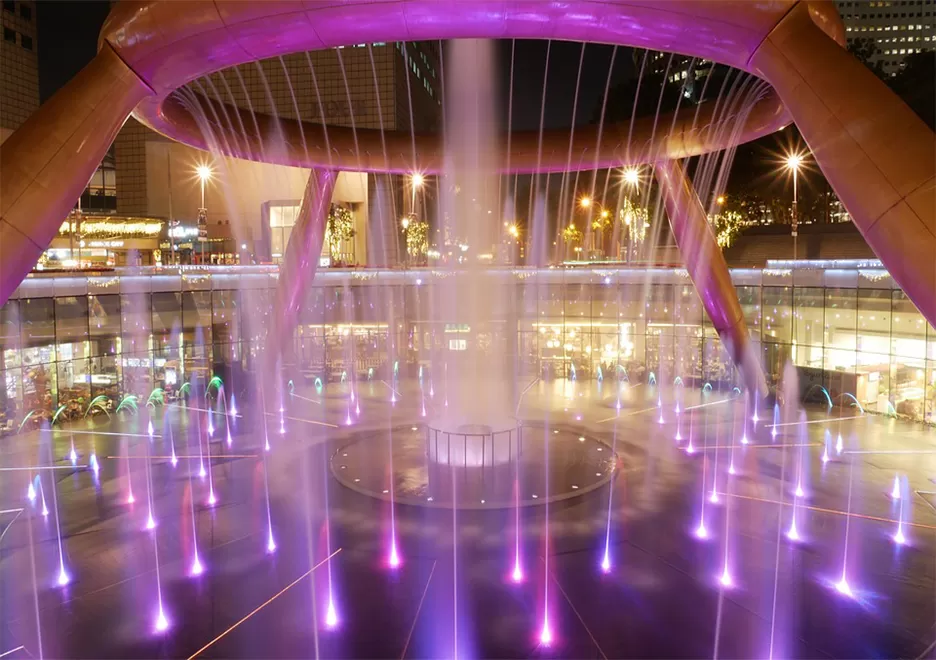

PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.

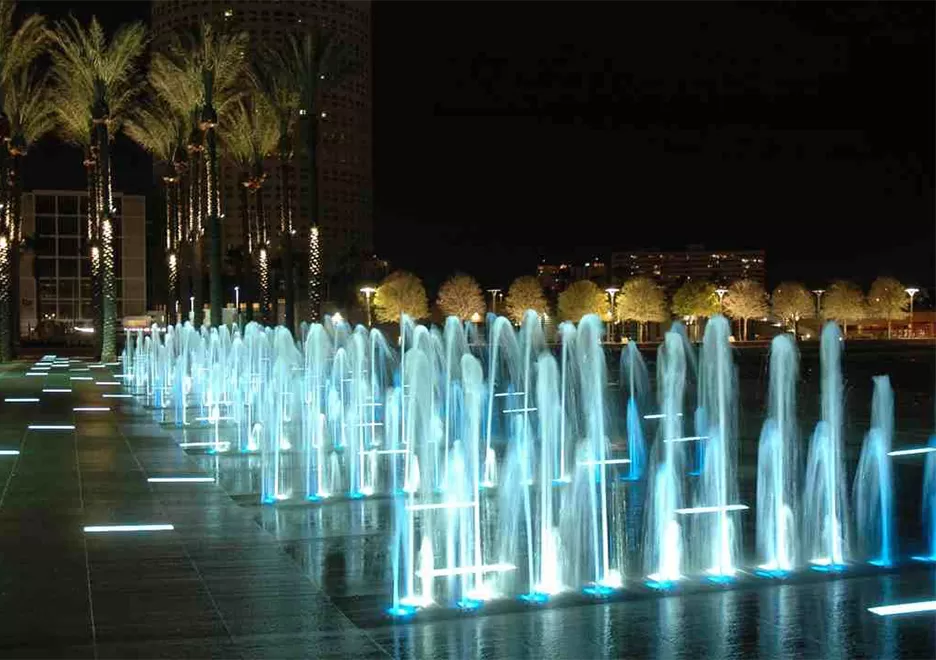

PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
