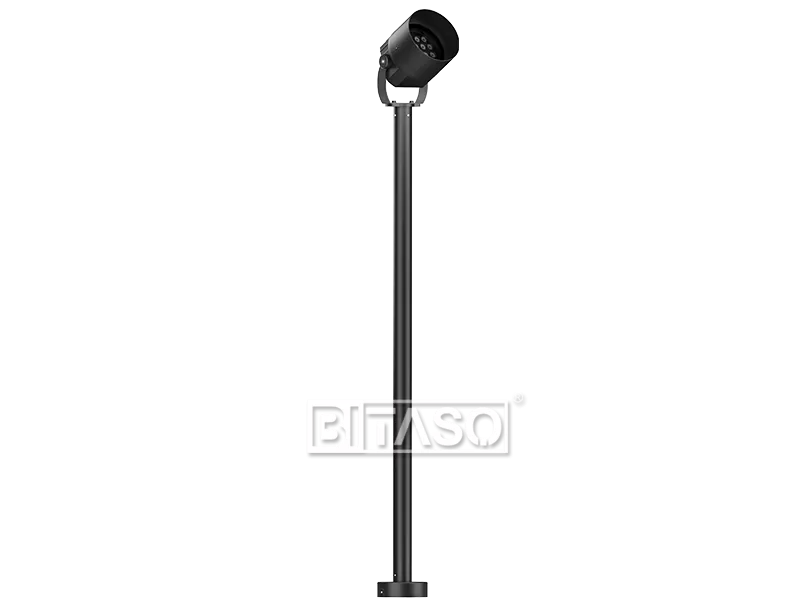

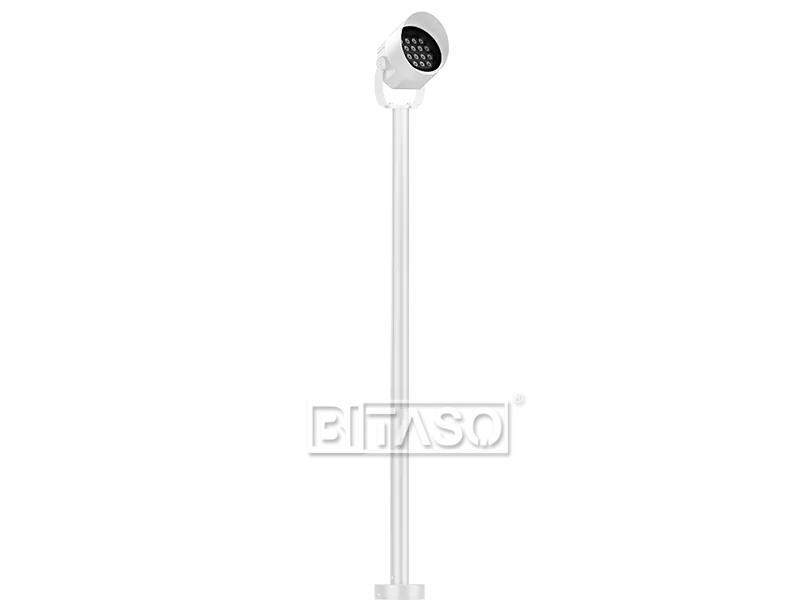

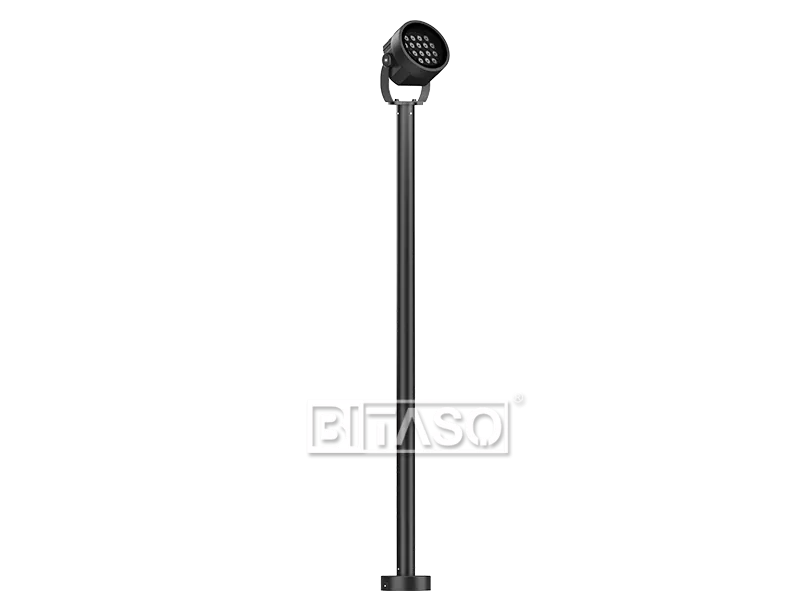

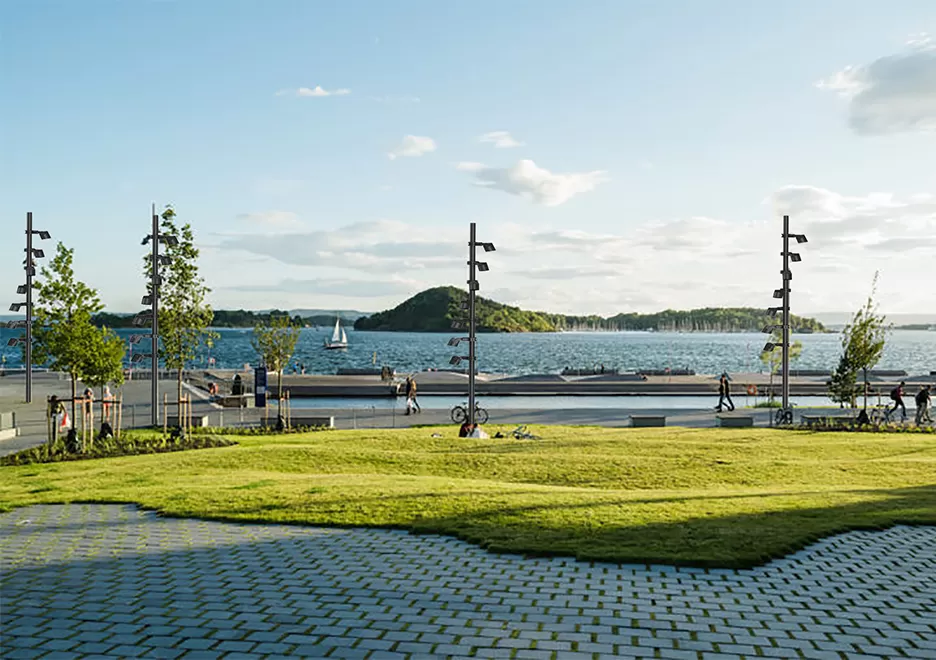

Special Housing Designs And High-Quality Optical Components Specifically For Demanding Visual Tasks To Provide Enhanced Visual Comfort. Discreet And Compact Aesthetically Designed Architectural Outdoor Spotlight Ideal For Glare-Free Accent Lighting,Floodlighting And Wall Washing In The Outdoor Area.
ELECTRONICS
Power(Luminaire) | 42W/48W/54W | Power Factor | >0.9 |
Input Voltage | DC12V DC24V DC36V DC48V AC110-130V AC220-240V 50/60Hz | Driver Option | Integral control gear |
Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |

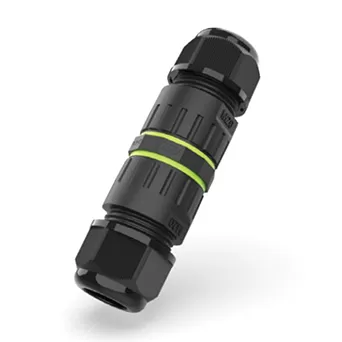

Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 18PCS SMD | Lumen (Luminaire): | 4500LM |
| LED Brand | OSRAM/CREE/TYANSHINE SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Tunable White | 3000K-6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 5°, 8°, 12°, 15°, 25°, 40°, 60°, 10°x22°, 15°x55° |

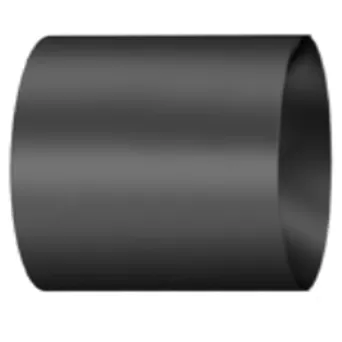

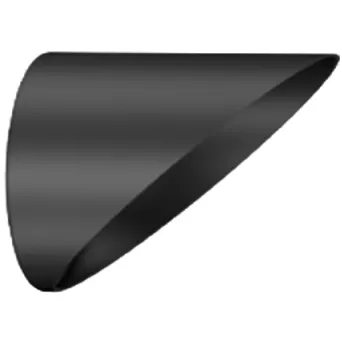

| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Cuboid hood Angle25°, Cuboid hood, Diffuser, Filter, Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 180x116x245mm | Weight | 2.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |

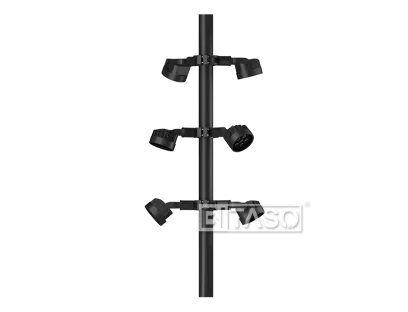

| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | Floor, ceiling or wall mounting (adjustable bracket) |
OPTIONAL ACCESSORIES

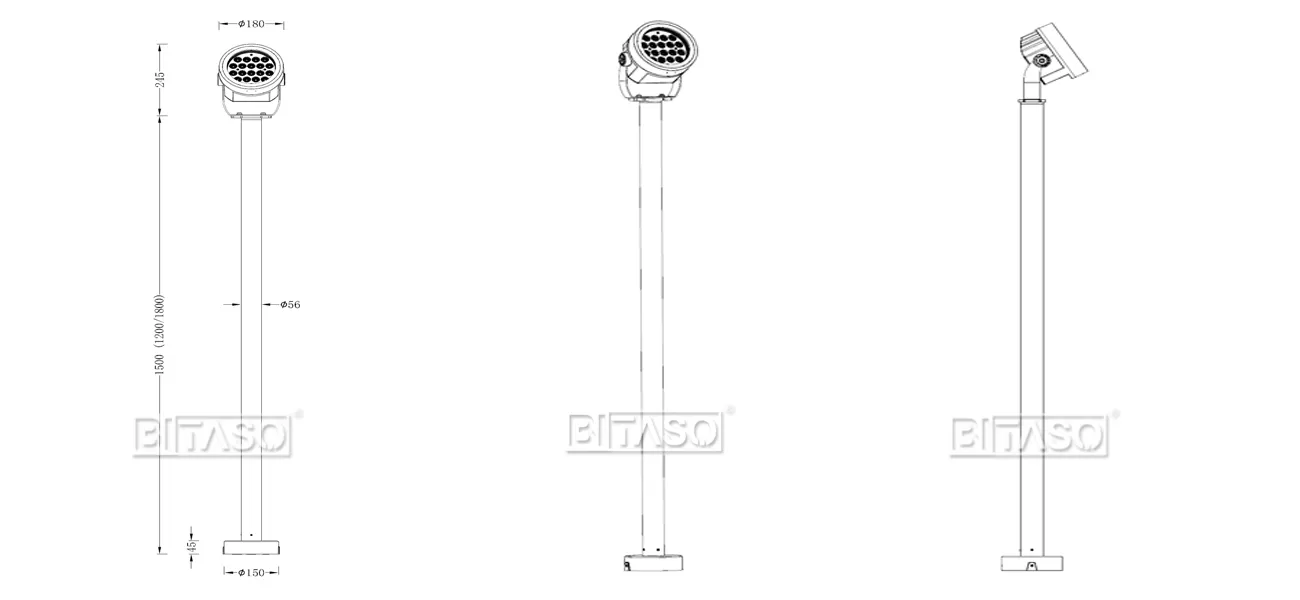

LUMINAIRE DIMENSION
DOWNLOAD
