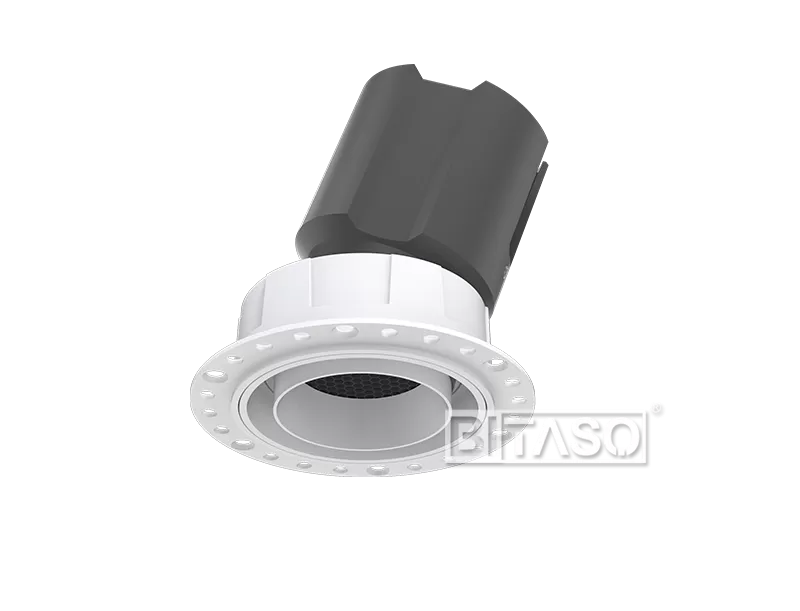

META C BT-S323N

META Downlight Series

ELECTRONICS

Power(Luminaire)7W/20W/35WPower Factor>0.9
Input VoltageAC220-240V 50/60HzDriver OptionRemote Driver
Dmming TypeON/OFF, 0-10V, DALI, TriacDriverRemote Driver
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light SourceCOBLumen (Luminaire):630LM/1800LM/3150LM
LED BrandCREE/ OSRAM/ Bridgelux/ PhillipsLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700KCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle10°, 15°, 24°, 38°,60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories


CONTROL SYSTEM

ControlDMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs), RGBW (4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22



ENVIRONMENT

Corrosion Resistanceoptional for marine environmentPassive CoolingAluminum housing
ComplianceIK08, IP20, Class ICertificateIP20, CE, ETL, RoHS, CCC



MECHANICS

DimensionD75/D95/D115mmWeight0.5KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialAluminum housing
FinishWhite/BlackMounting Typeceiling  mounting,surface mounting

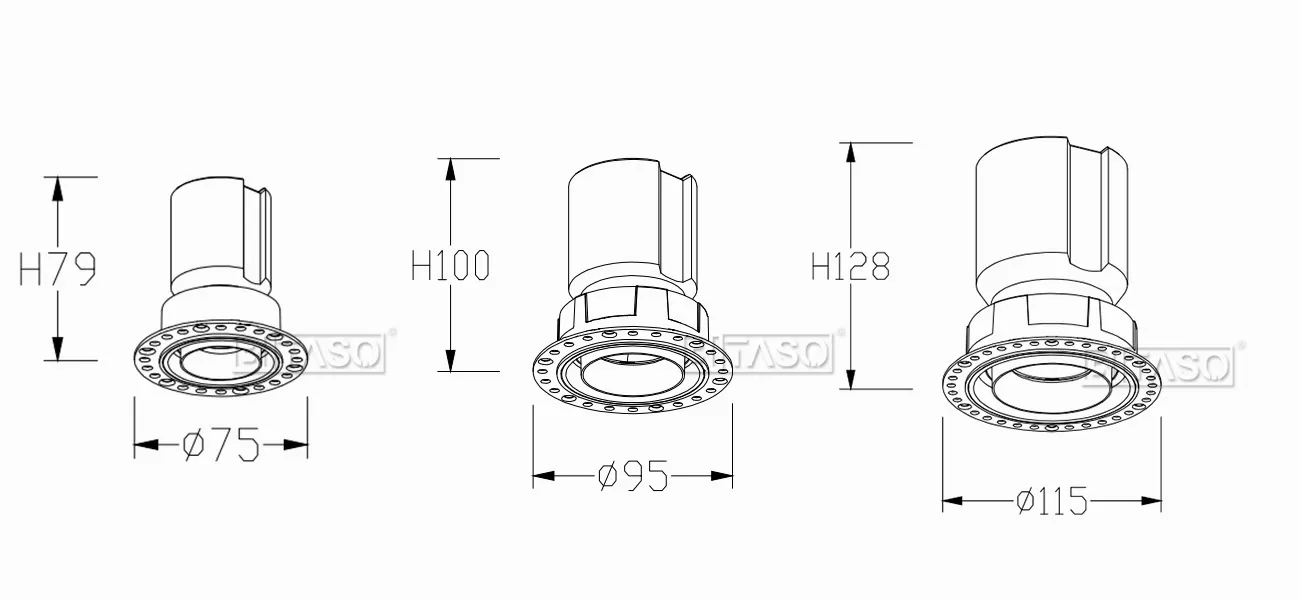

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
