ELECTRONICS
| Power(Luminaire) | 7W/12W/20W | Power Factor | >0.9 |
| Input Voltage | AC220-240V 50/60Hz | Driver Option | Remote Driver |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac | Driver | Remote Driver |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB | Lumen (Luminaire): | 630LM/1080LM/1800LM |
| LED Brand | CREE/ OSRAM/ Bridgelux/ Phillips | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 15°, 24°, 38°,60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Direct down,Adjustable,Square Reflector,Polarized Fliter,Frosted Fliter,Double Polarized Fliter ,Oval Fliter,Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | Aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20, CE, ETL, RoHS, CCC |
MECHANICS
| Dimension | D75/D95/D115mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | Aluminum housing |
| Finish | White/Black | Mounting Type | ceiling mounting,surface mounting |

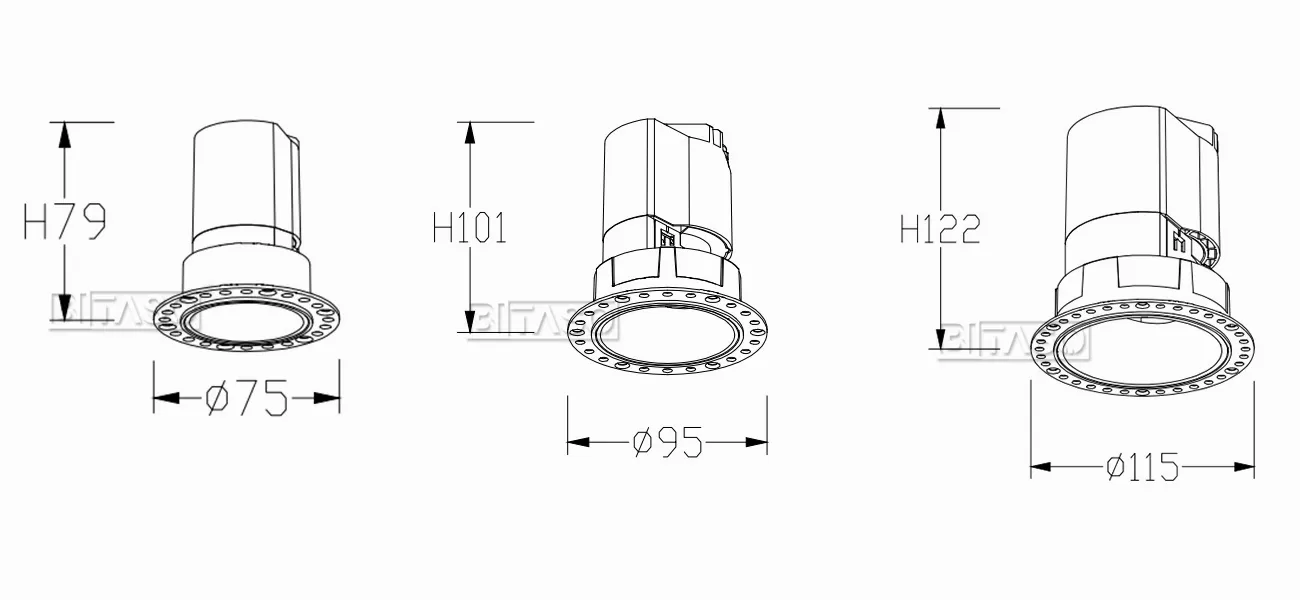

LUMINAIRE DIMENSION
