ELECTRONICS
| Power(Luminaire) | 2*7W/2*20W/2*35W | Power Factor | >0.9 |
| Input Voltage | AC220-240V 50/60Hz | Driver Option | Remote Driver |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac | Driver | Remote Driver |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB | Lumen (Luminaire): | 1260LM/3600LM/6300LM |
| LED Brand | CREE/ OSRAM/ Bridgelux/ Phillips | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 10°, 15°, 24°, 38°,60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories |
CONTROL SYSTEM
| Control | DMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Corrosion Resistance | optional for marine environment | Passive Cooling | Aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20, CE, ETL, RoHS, CCC |
MECHANICS
| Dimension | 129.5*68.5/180.5*90.5/223.5*109.5/mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | Aluminum housing |
| Finish | White/Black | Mounting Type | ceiling mounting,surface mounting |

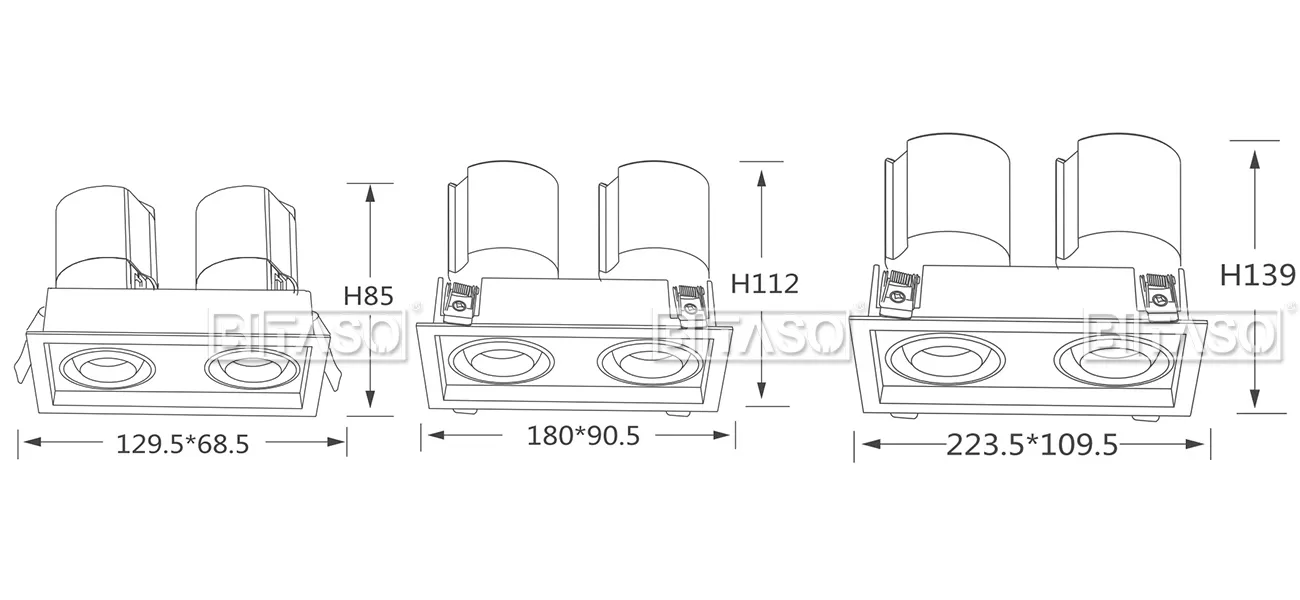

LUMINAIRE DIMENSION
