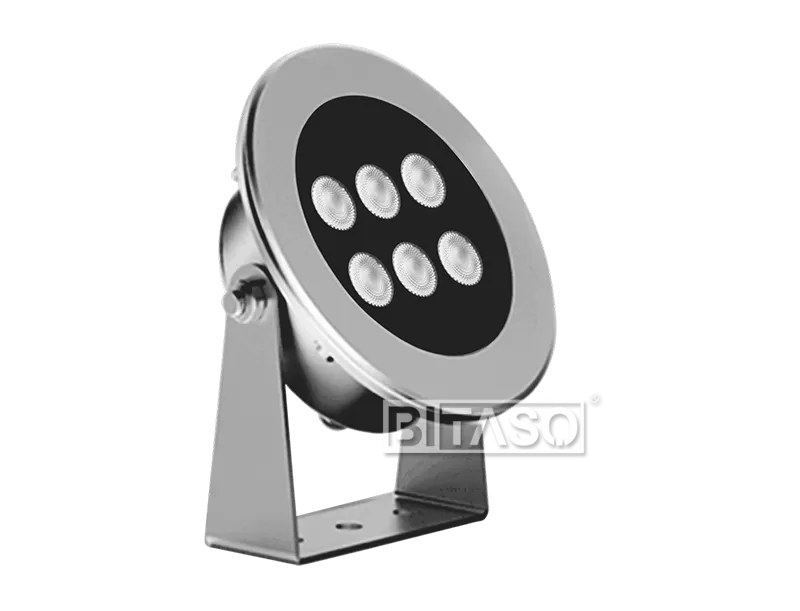

LED Pool Light come with an ingress protection of IP68. Offer Triac, PWM, 1-10V & Dali dimming options. Swimming pool lights can also be provided with RGB/W color changing LEDs with DMX control systems. These lights make the pool more attractive and help in highlighting the shape and texture of the pool. Swimming pool light illuminates the pool area and also covers dark areas.
ELECTRONICS
| Power(Luminaire) | 12W/15W | Power Factor | >0.9 |
| Input Voltage | DC12V,DC24V | Driver Option | External Power Supply Required |
| Dmming Type | ON/OFF, 1-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 6PCS SMD | Lumen（Luminaire): | 1080LM/1200LM |
| LED Brand | CREE/OSRAM/BRIDGELUX | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2700K-6500K | Tunable White | |
| Multi Color | RGW,RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 20*40°,15°,25°,45°,60°,15*45° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories |
CONTROL SYSTEM
| Control | ON/OFF, 1-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | Stainless steel SUS 316L# |
| Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 160x55mm | Weight | 0.75KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | Stainless steel SUS 316L# |
| Finish | Stainless Steel | Mounting Type | Underwater/Ground |
OPTIONAL ACCESSORIES
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector
Mounting sleeve
PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
PROJECT REFERENCE
High efficiency LED underwater luminaire for illumination of medium and large swimming pools, water features and fountains, revealing underwater architecture. Recessed and Surface mounted version is available in different CCT options including RGB, creating special lighting effects.
