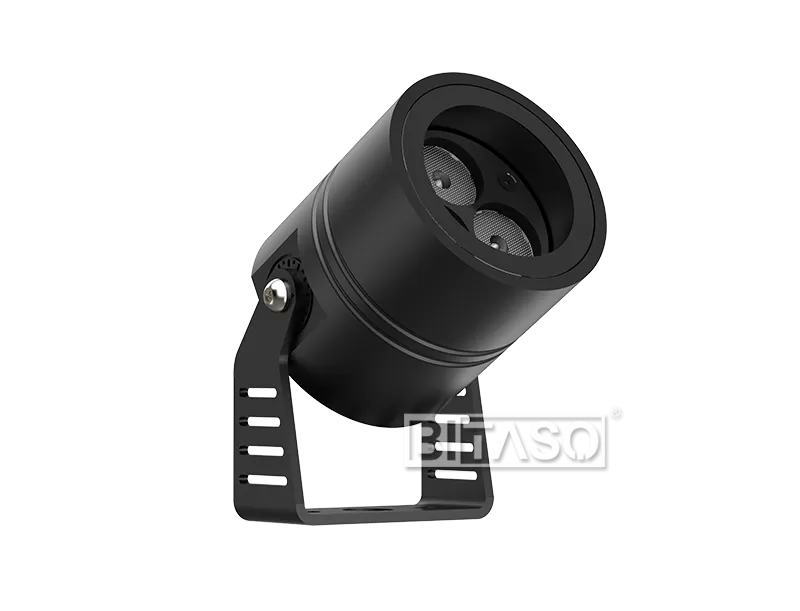

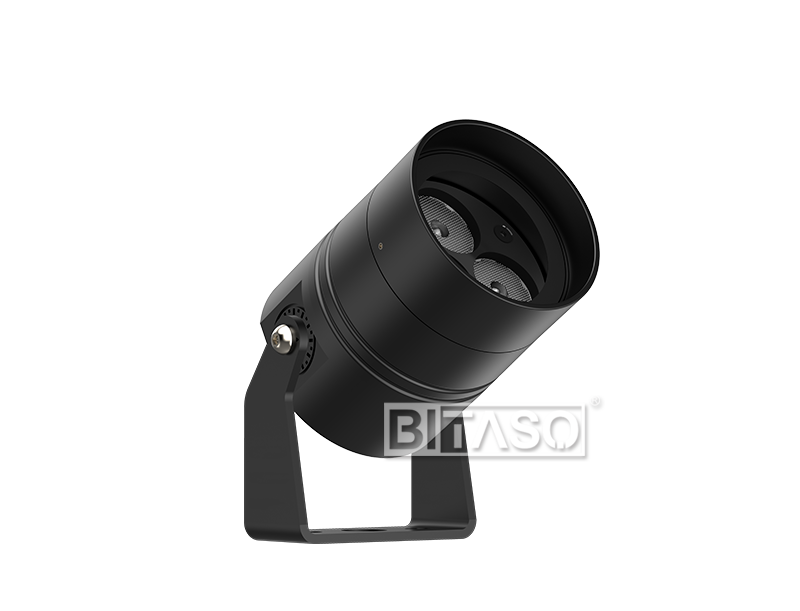

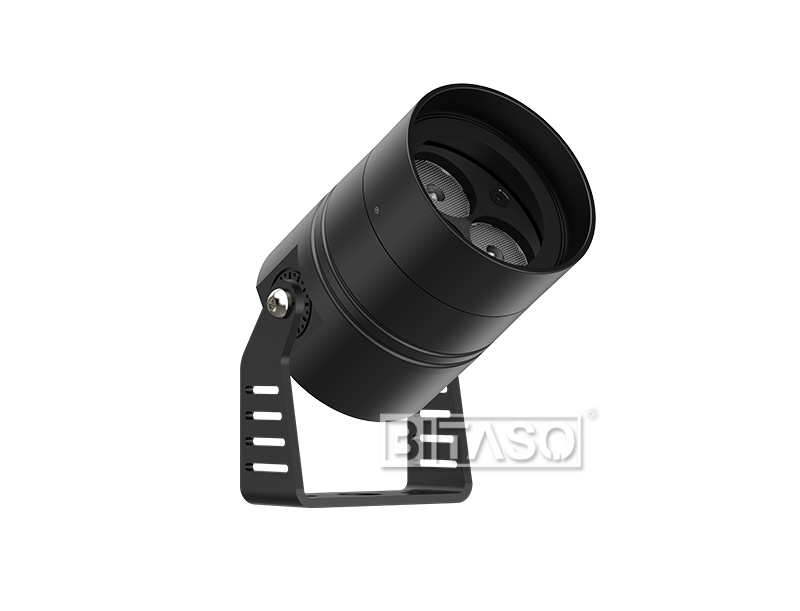

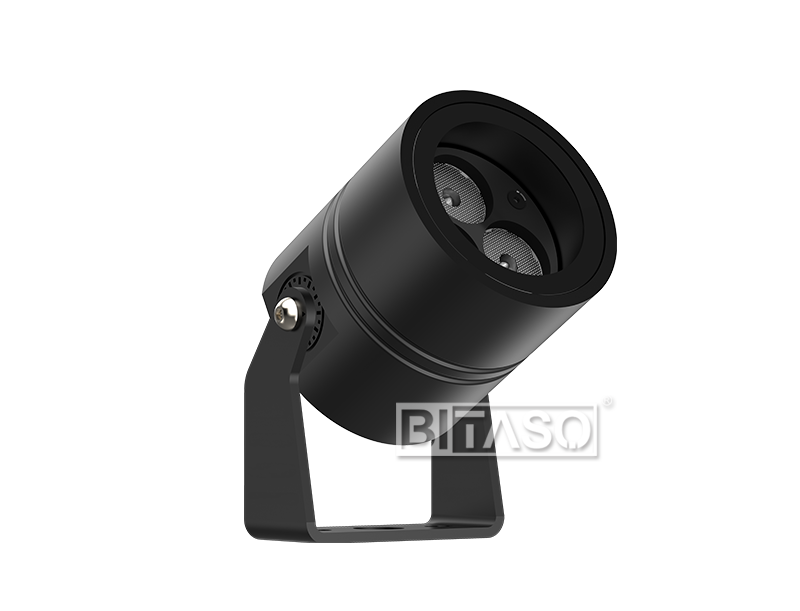

LYNMO D69 SMD

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	6-10W	Power Factor	>0.9
Input Voltage	DC12V DC24 DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	0-10V, DALI,Triac,DXM512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	3PCS SMD	Lumen（Luminaire):	480-800LM
LED Brand	CREE/OSRAM/Luminus/TYANSHINE SMD	Luminaire Lminous Efficacy	80LM/W
Full White LED(FW)	2200K,2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K	Turnable White	2700K/6500K
Multi Color	RGB, RGBW	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Agle	5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,1022,1555,20*60°
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Crylindrical Hood Angle 45°, Crylindrical Hood,Honeycomb Louver

CONTROL SYSTEM

Control	0-10V, DALI,Triac,DMX512	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	CNC 6063#aluminum housing
Compliance	IK08, IP66, Class I	Certificate	IP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

LYMO D69 SMD AVERAGE BEAM ANGLE(50%).12°
LYMO D69 SMD AVERAGE BEAM ANGLE(50%).25°
LYMO D69 SMD AVERAGE BEAM ANGLE(50%).30°
LYMO D69 SMD AVERAGE BEAM ANGLE(50%).40°

MECHANICS

Dimension	6999123mm	Weight	0.7KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	CNC 6063#aluminum housing
Finish	Matt silver/black anodized Finsh or powder coated	Mounting Type	U brackert&mounting plate for solid ground, prike for soft ground

OPTIONAL ACCESSORIES

20T-2_3_4PIN IP68 Connector
Honeycomb Louver
M16 2_3PIN IP68 Connector
Crylindrical Hood Angle 45°
Crylindrical Hood Angle 45°

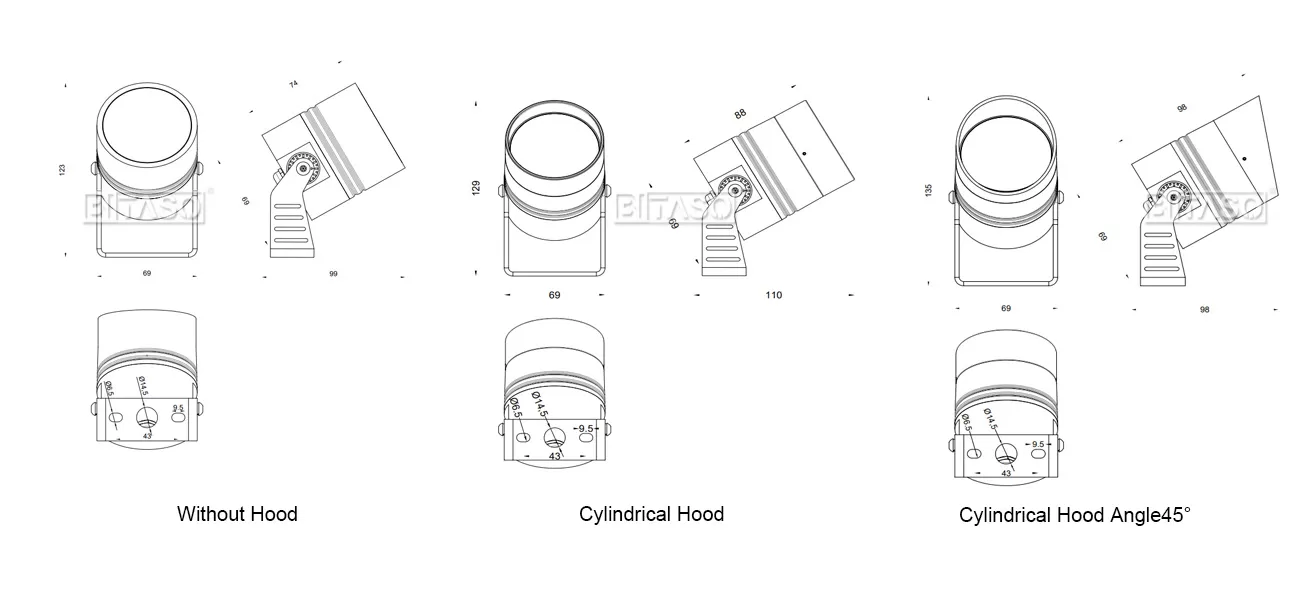

LUMINAIRE DIMENSION
