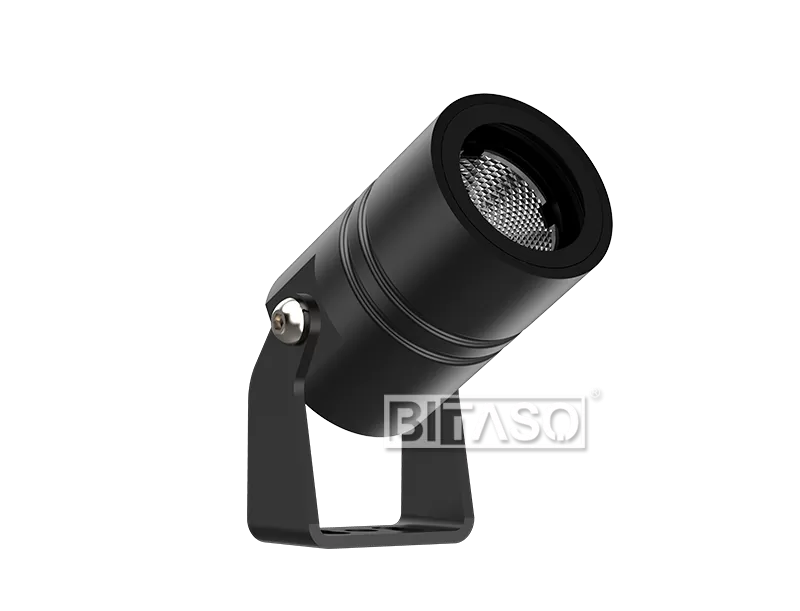

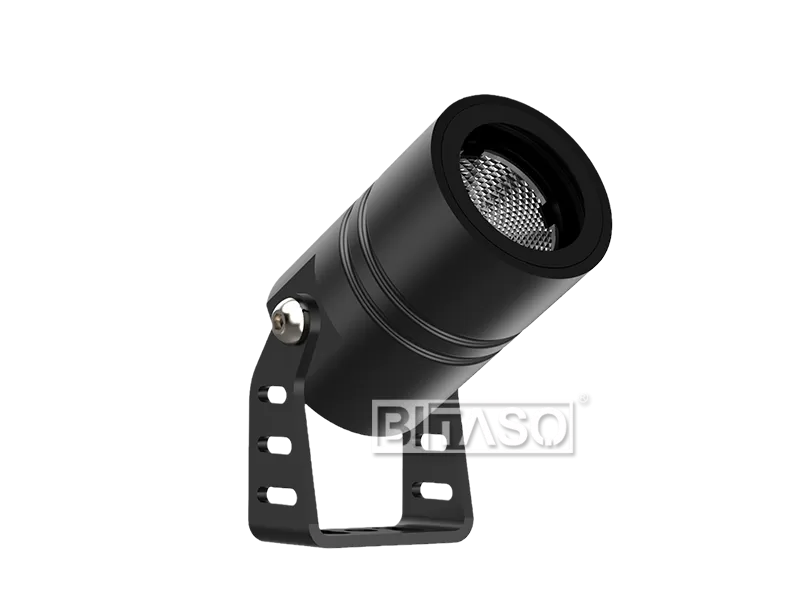

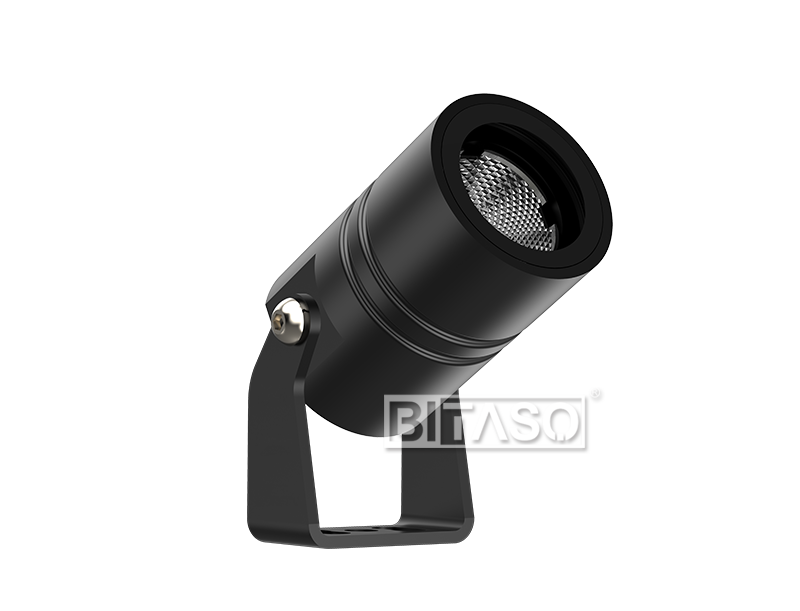

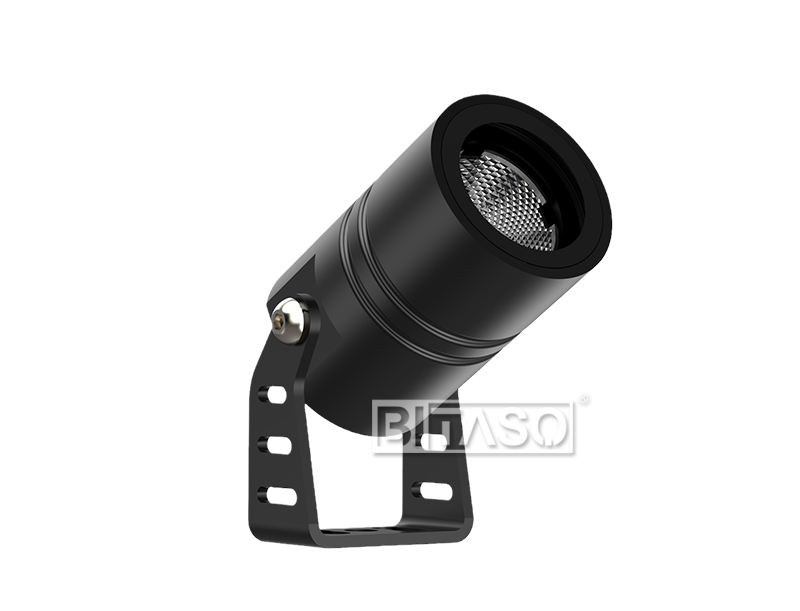

LYNMO D33 SMD

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.

ELECTRONICS

Power(Luminaire)1-2WPower Factor>0.9
Input VoltageDC12V DC24 DC36V DC48VDriver OptionIntegral control gear
Dmming Type0-10V, DALI,TriacDriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin

OPTICS

Light Source1PCS SMDLumen(Luminaire): 80-160LM
LED BrandCREE/OSRAM/Luminus SMDLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White2700K/6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10*22,15*55,20*60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesHoneycomb Louver

CONTROL SYSTEM

Control0-10V, DALI,TriacDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingCNC 6063#aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

  • LYMO D33 SMD AVERAGE BEAM ANGLE(50%).12°

    LYMO D33 SMD AVERAGE BEAM ANGLE(50%).12°

  • LYMO D33 SMD AVERAGE BEAM ANGLE(50%).25°

    LYMO D33 SMD AVERAGE BEAM ANGLE(50%).25°

  • LYMO D33 SMD AVERAGE BEAM ANGLE(50%).30°

    LYMO D33 SMD AVERAGE BEAM ANGLE(50%).30°

  • LYMO D33 SMD AVERAGE BEAM ANGLE(50%).40°

    LYMO D33 SMD AVERAGE BEAM ANGLE(50%).40°

MECHANICS

Dimension33*60*71mmWeight0.5KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialCNC 6063#aluminum housing
FinishMatt silver/black anodized Finsh or powder coatedMounting TypeU brackert&mounting plate for solid ground

OPTIONAL ACCESSORIES

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

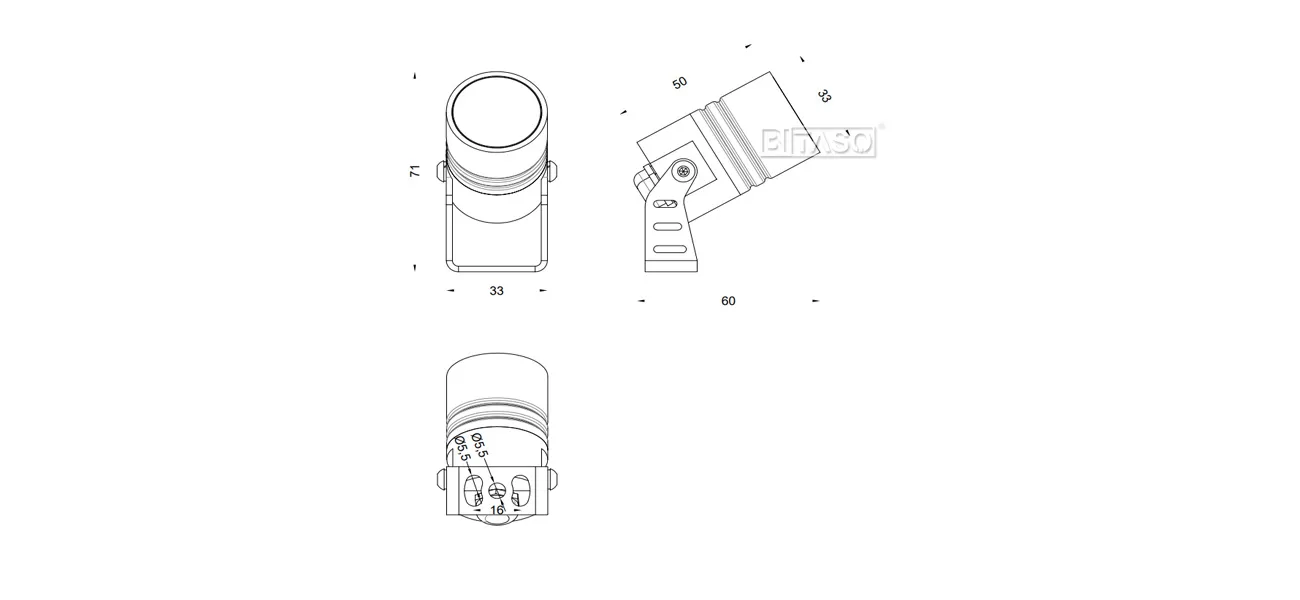

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE
