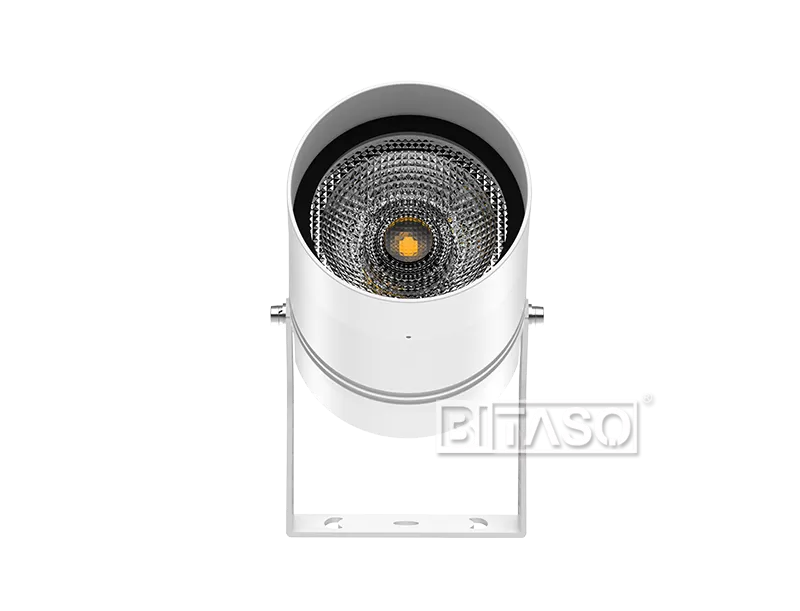

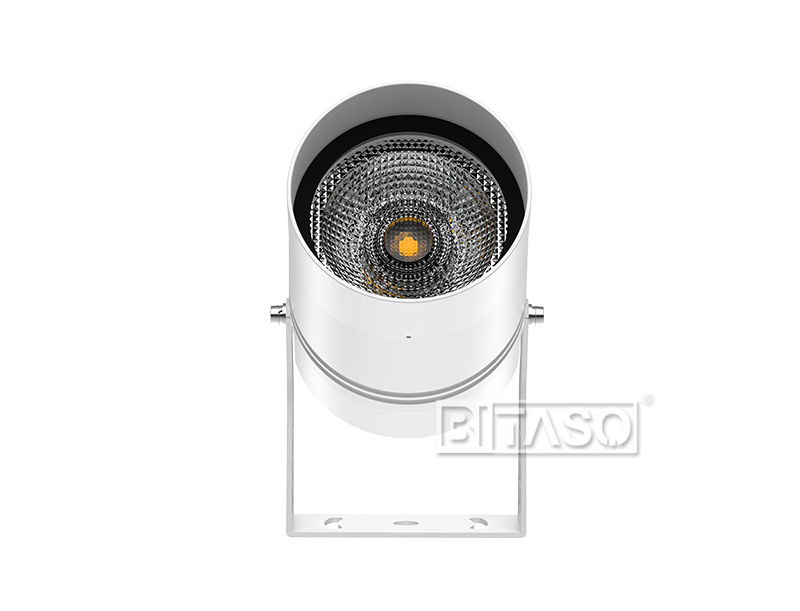

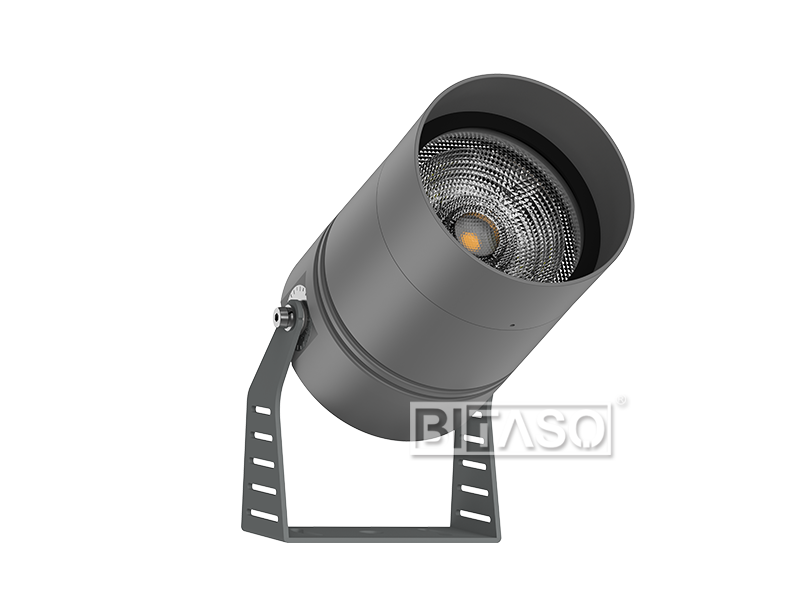

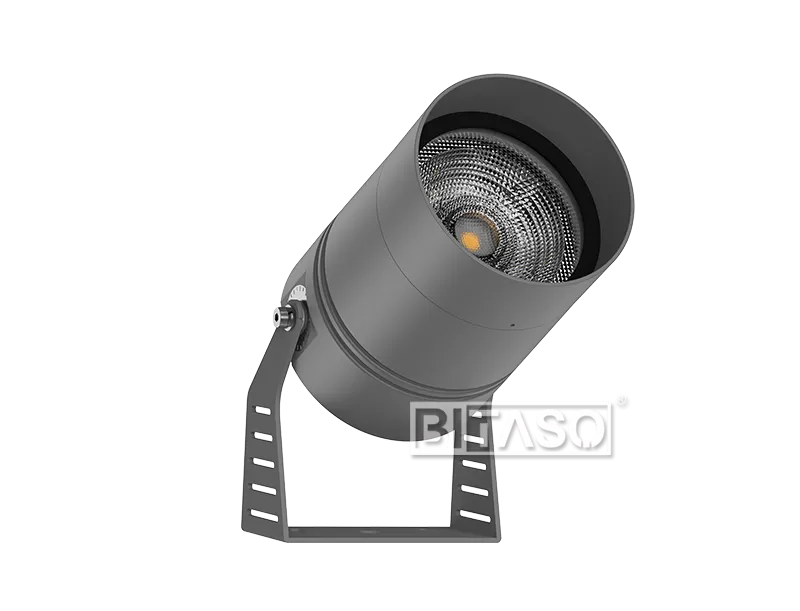

LYNMO D108 COB

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.

ELECTRONICS

Power(Luminaire)18-24WPower Factor>0.9
Input VoltageDC12V DC24 DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dmming Type0-10V, DALI,Triac,DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin

OPTICS

Light Source1PCS COBLumen(Luminaire): 1620-2160LM
LED BrandCREE/TYANSHINE COBLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White2700K/6500K
Multi ColorRGB,RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle15°,24°,36°,60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCrylindrical Hood Angle 45°, Crylindrical Hood,Honeycomb Louver

CONTROL SYSTEM

Control0-10V, DALI,Triac,DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingCNC 6063#aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

  • LYMO D108 COB AVERAGE BEAM ANGLE(50%).15°

    LYMO D108 COB AVERAGE BEAM ANGLE(50%).15°

  • LYMO D108 COB AVERAGE BEAM ANGLE(50%).24°

    LYMO D108 COB AVERAGE BEAM ANGLE(50%).24°

  • LYMO D108 COB AVERAGE BEAM ANGLE(50%).36°

    LYMO D108 COB AVERAGE BEAM ANGLE(50%).36°

  • LYMO D108 COB AVERAGE BEAM ANGLE(50%).60°

    LYMO D108 COB AVERAGE BEAM ANGLE(50%).60°

MECHANICS

Dimension108*202*166mmWeight0.8KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialCNC 6063#aluminum housing
FinishMatt silver/black anodized Finsh or powder coatedMounting TypeU brackert&mounting plate for solid ground, prike for soft ground

OPTIONAL ACCESSORIES

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • Crylindrical Hood Angle 45°

    Crylindrical Hood Angle 45°

  • Crylindrical Hood Angle 45°

    Crylindrical Hood Angle 45°

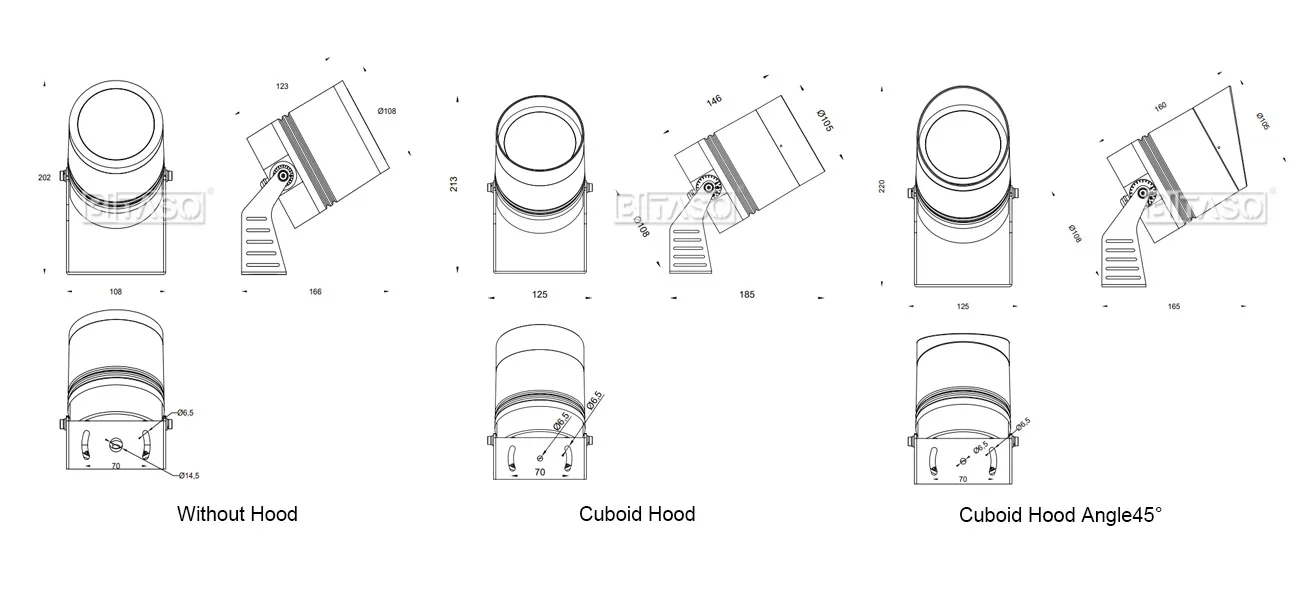

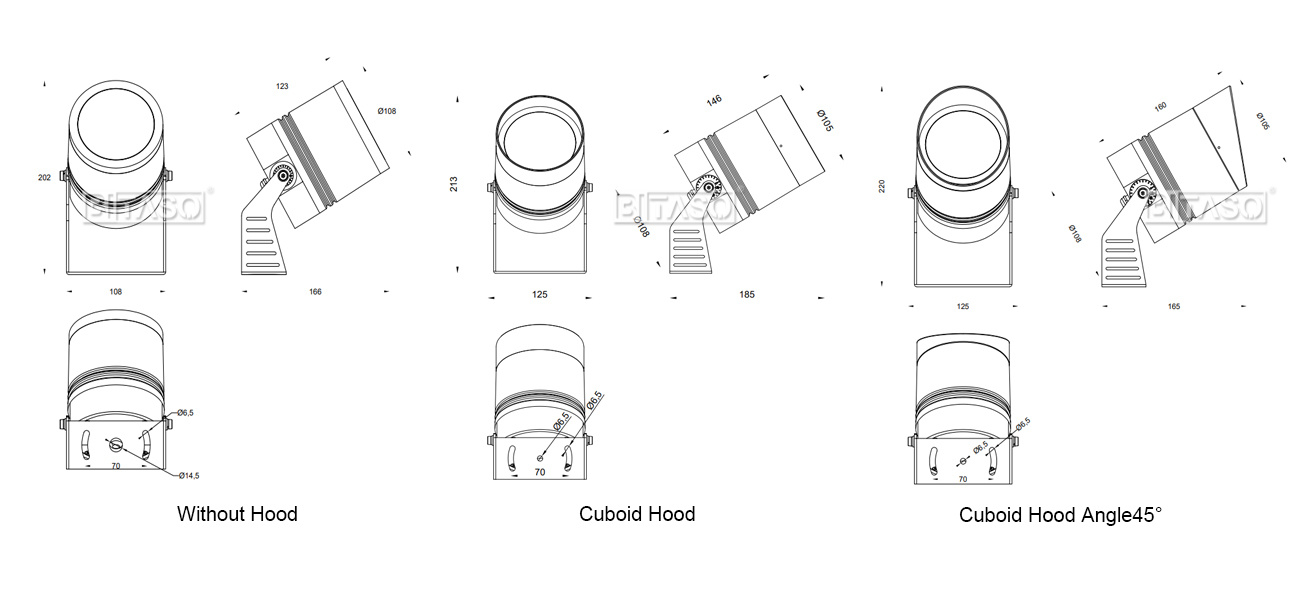

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
