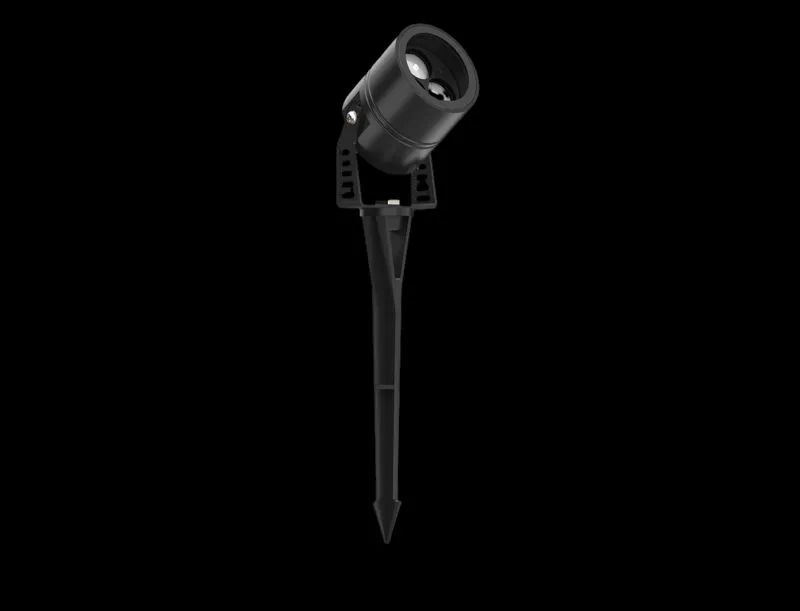

ELECTRONICS

Power(Luminaire)8W/10W/10-15W/12W/14WPower Factor>0.9, CCS auto calibrating
Input VoltageDC12V DC24V DC36V DC48V AC110-130V AC110-240V AC220-240VDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512, PWMDriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable

OPTICS

Light Source4PCS SMDLumen(Luminaire): 1200LM
LED BrandCREE, OSRAM, Luminus, TYANSHINELuminaire Lminous Efficacy72LM/W, 90LM/W, 90LM-135LM/W
Full White LED(FW)2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle5°,8°,10°,12°,20°,25°30°,40°,45°,60°,10°x22°,15°x55°,20°x60°,etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCylindrical hood Angle45°, Cylindrical hood, Honeycomb Louver

CONTROL SYSTEM

ControlDMX512 /DALI/ /Triac/0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingCNC 6063#aluminum housing
ComplianceIK08, IP66, Class ICertificateIP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

  • AVERAGE BEAM ANGLE(50%). 10°

    AVERAGE BEAM ANGLE(50%). 10°

  • AVERAGE BEAM ANGLE(50%). 25°

    AVERAGE BEAM ANGLE(50%). 25°

  • AVERAGE BEAM ANGLE(50%). 38°

    AVERAGE BEAM ANGLE(50%). 38°

  • AVERAGE BEAM ANGLE(50%). 40°

    AVERAGE BEAM ANGLE(50%). 40°

MECHANICS

Dimension85*120*145mmWeight1.55KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialCNC 6063#aluminum housing
FinishMatt silver/black anodized Finsh or powder coatedMounting TypeU brackert&mounting plate for solid ground, prike for soft ground

OPTIONAL ACCESSORIES

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

  • Crylindrical Hood

    Crylindrical Hood

  • Crylindrical Hood Angle45°

    Crylindrical Hood Angle45°

  • Diffuser 1

    Diffuser 1

  • Diffuser 2

    Diffuser 2

  • EW-M2068 2_3PIN IP68 Connector

    EW-M2068 2_3PIN IP68 Connector

  • Extension Cable

    Extension Cable

  • Filter

    Filter

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • Input Cable 1

    Input Cable 1

  • Input Cable 2

    Input Cable 2

  • Input Cable 3

    Input Cable 3

  • Input Cable 4

    Input Cable 4

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • M20 3_4_5_6PIN IP68 Connector

    M20 3_4_5_6PIN IP68 Connector

  • M20X 2_3PIN IP68 Connector

    M20X 2_3PIN IP68 Connector

  • M25 3_4_5PIN IP68 Connector

    M25 3_4_5PIN IP68 Connector

  • M2068 2_3PIN IP68 Connector

    M2068 2_3PIN IP68 Connector

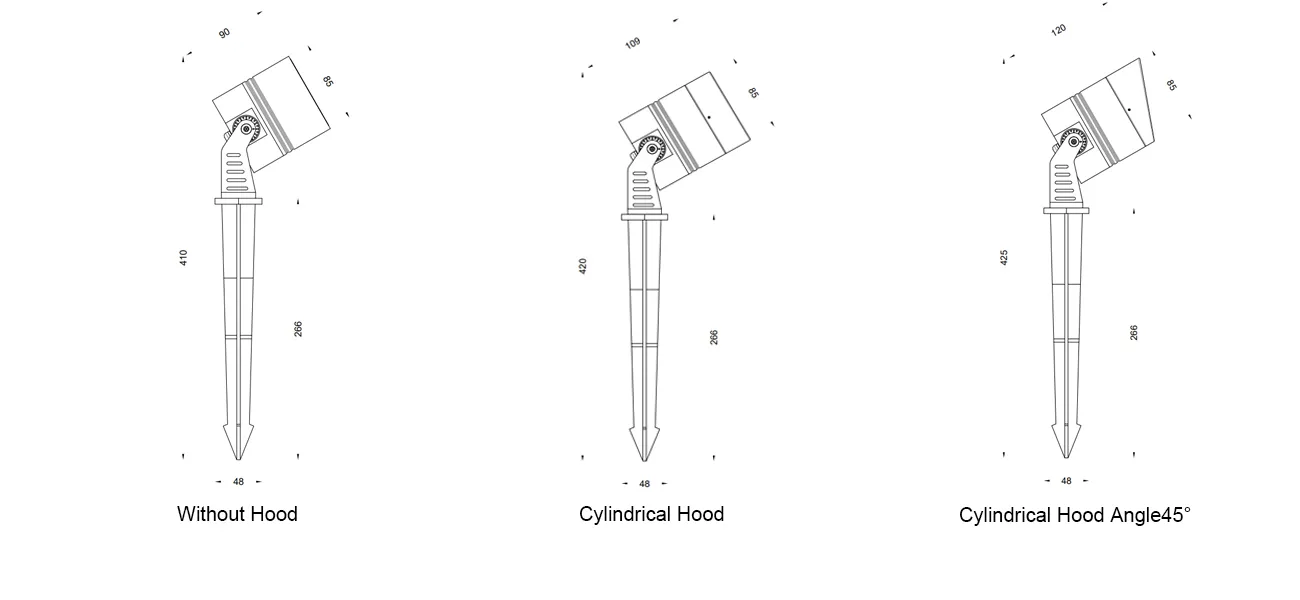

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

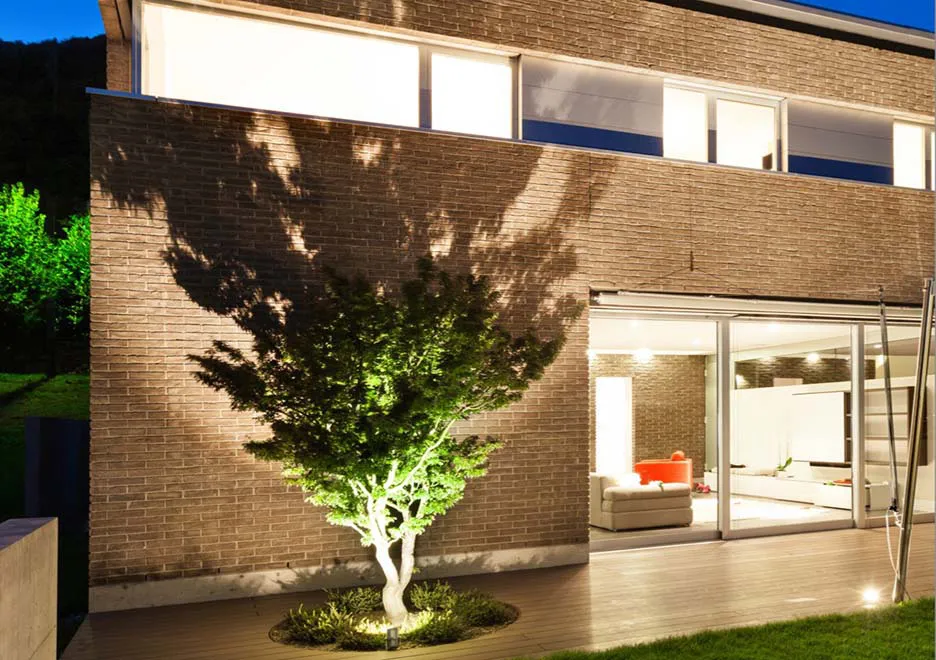

  • PROJECT REFERENCE

    PROJECT REFERENCE

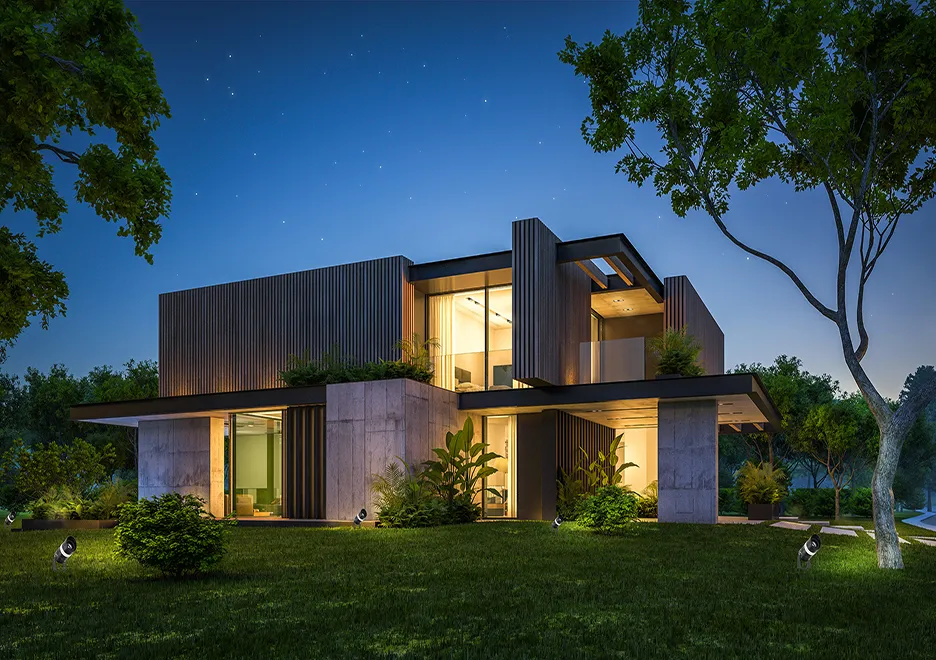

  • PROJECT REFERENCE

    PROJECT REFERENCE

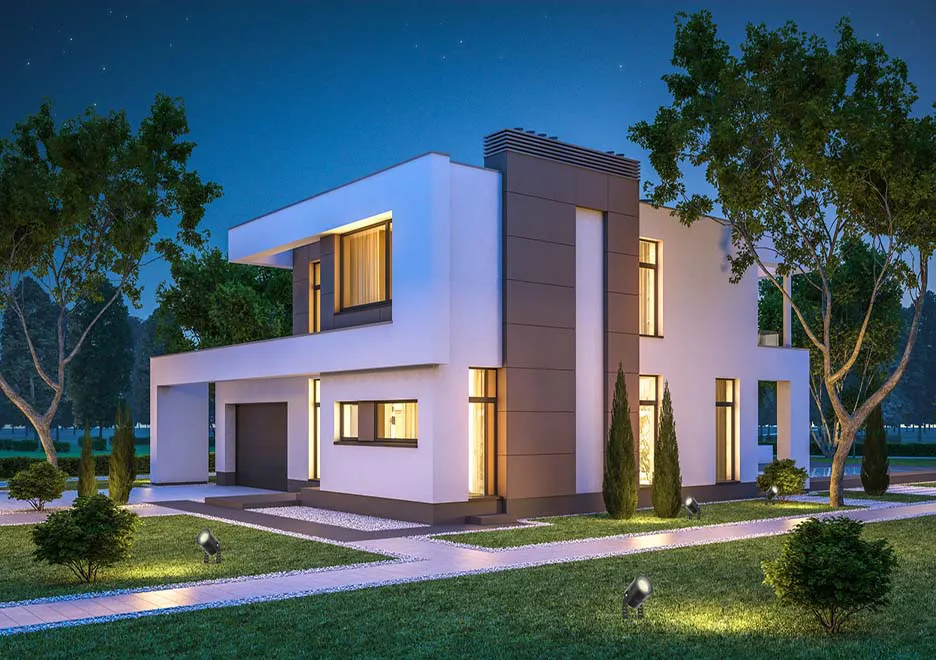

  • PROJECT REFERENCE
