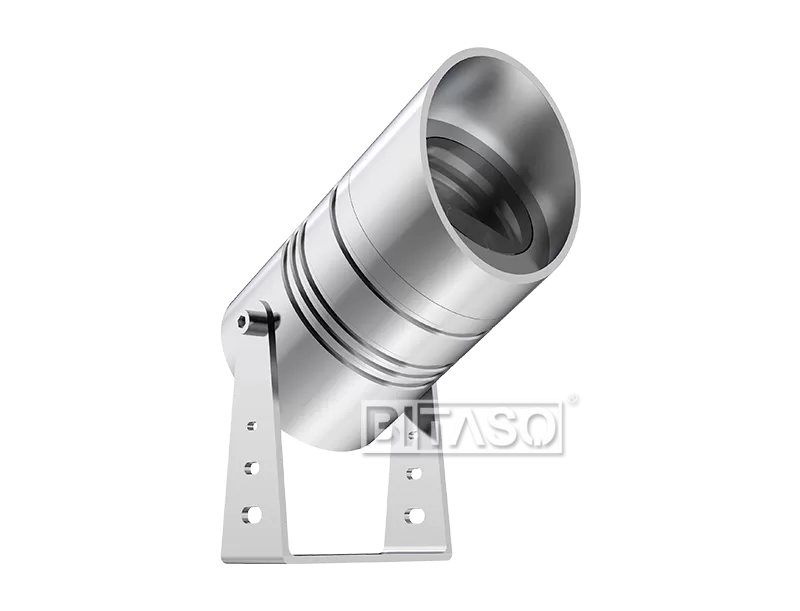

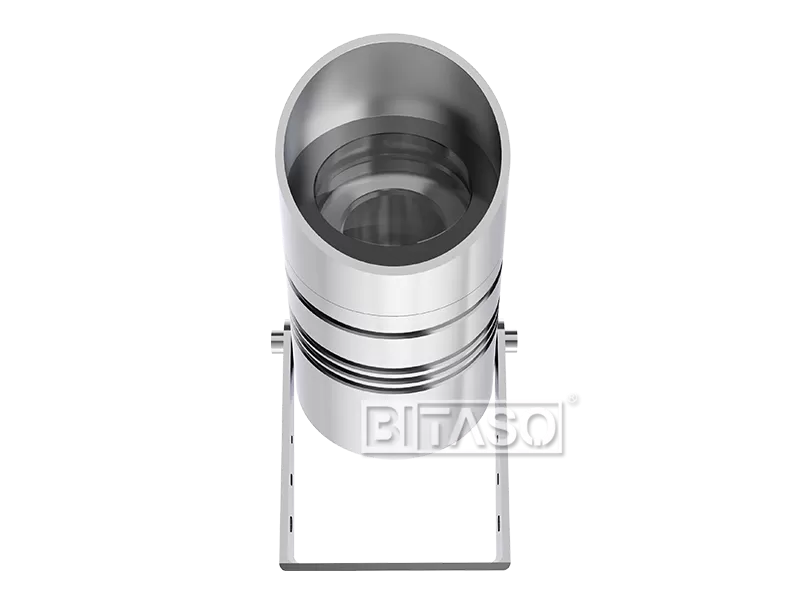

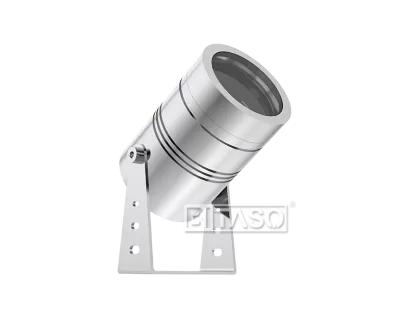

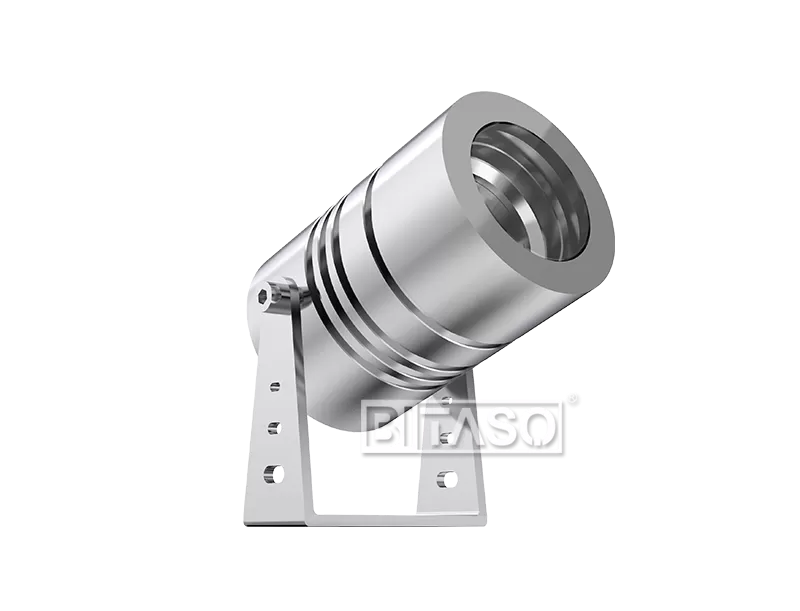

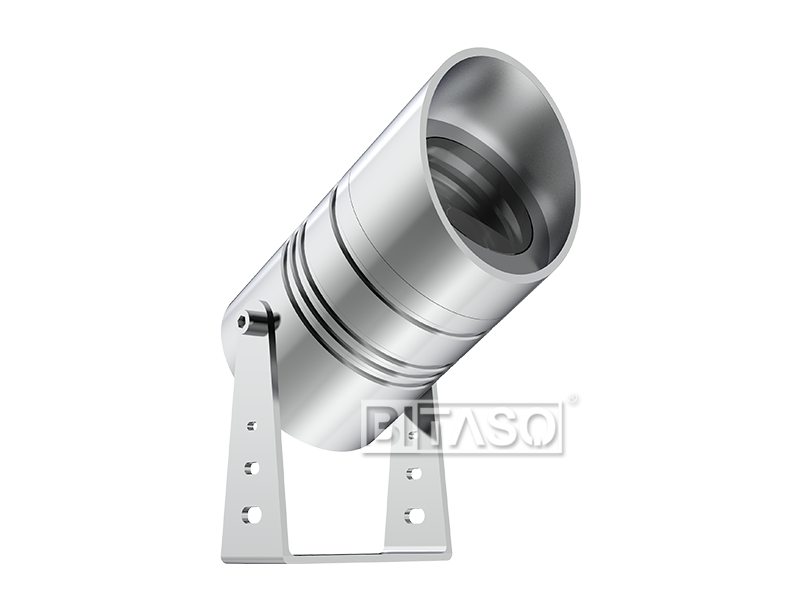

LOTUS underwater light series, using DC24V power supply, is a safe voltage, can be used with confidence.
3000-5700K, RGBW, various color changes, whether in water or on land, a variety of color changes will always create a romantic atmosphere, especially on rippled water surface, the effect will be better.
Waterproof rating IP68, LOTUS underwater spotlight suitable for fountains, waterfalls, swimming pools, gardens, fish ponds, aquariums, etc.

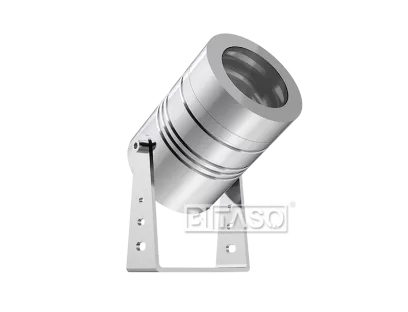

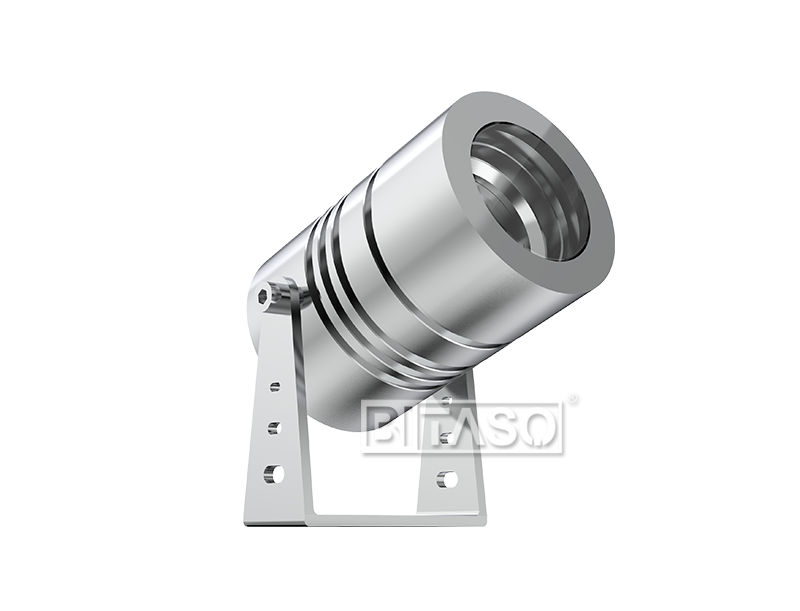

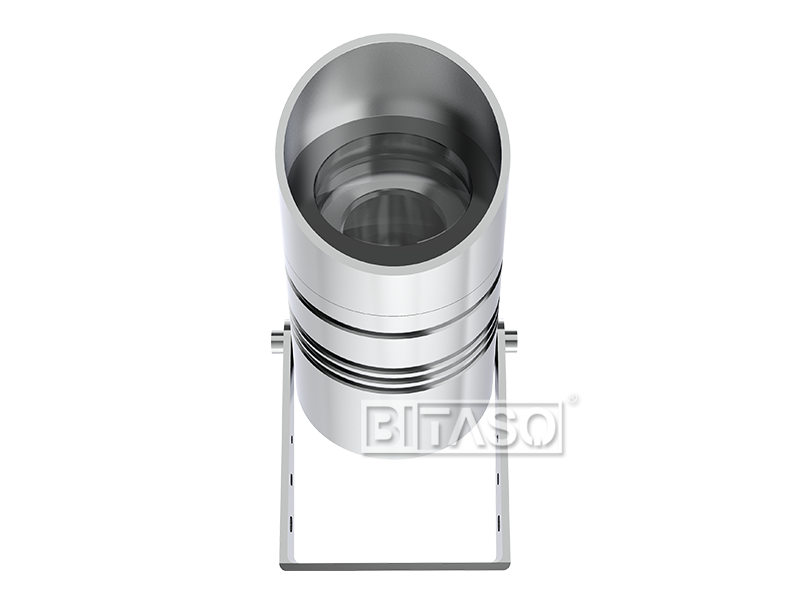

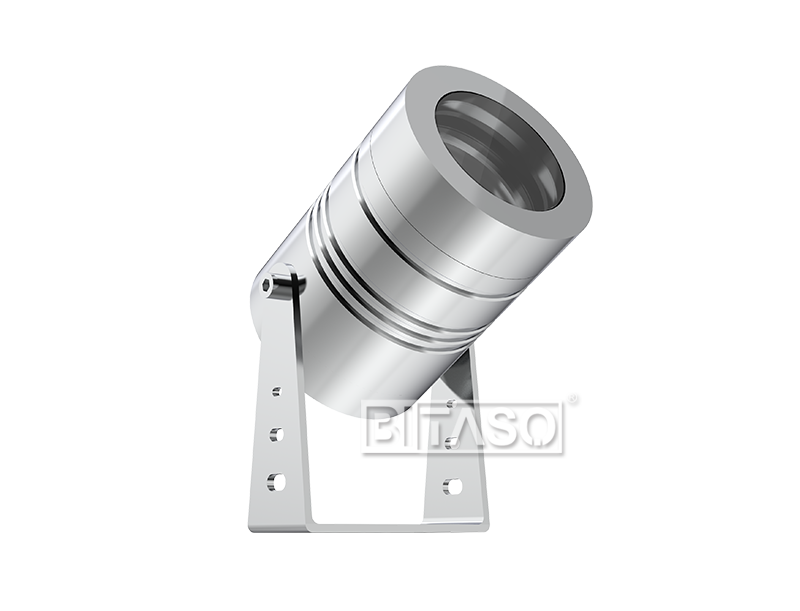

LOTUS underwater spot light adopts 316 stainless steel & step tempered glass lens have good pressure resistance and corrosion resistance, and can adapt well to underwater working environment.
ELECTRONICS
| Power(Luminaire) | 6-8W | Power Factor | >0.9 |
| Input Voltage | DC24V | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 1-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 3PCS SMD/1PCS COB | Lumen（Luminaire): | 540LM-720LM |
| LED Brand | OSRAM/CREE/TYANSHINE | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 3000K-5700K | Tunable White | |
| Multi Color | RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 8°,12°,20°,30°,45°,60°,15*30°,20*60°(Lens); 10°,23°,38°(Reflector Cup) |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Cylindrical Hood Angle 45°, Honeycomb Louver |
CONTROL SYSTEM
| Control | ON/OFF, 1-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | CNC Stainless steel SUS 316L# |
| Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |

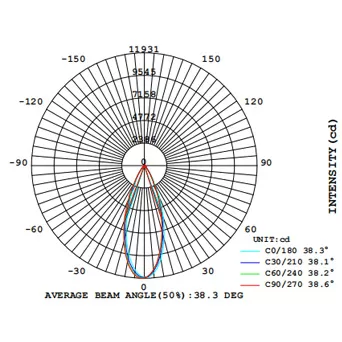

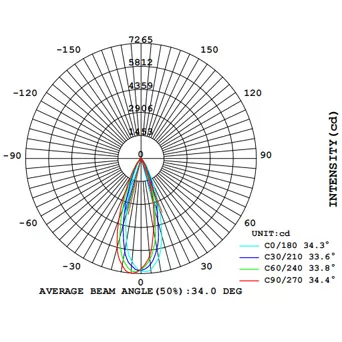

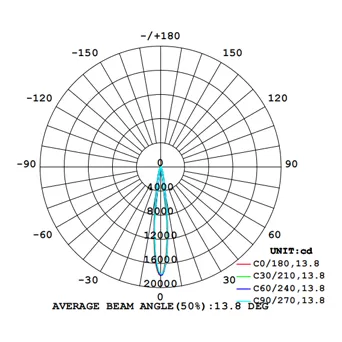

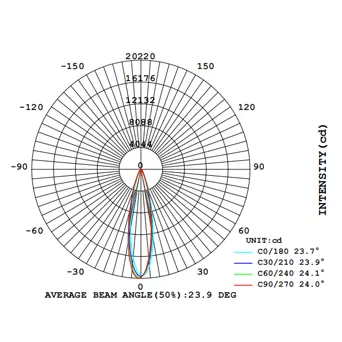

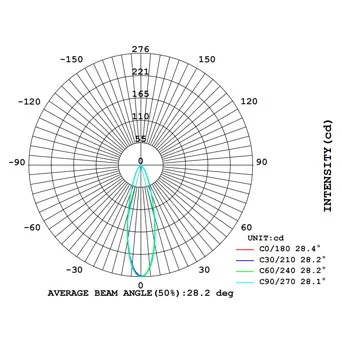

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 66x96x141mm | Weight | 0.75KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | CNC Stainless steel SUS 316L# |
| Finish | Stainless Steel | Mounting Type | Underwater/Wall/Ground |
OPTIONAL ACCESSORIES
CylindricalHood Angle45°
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

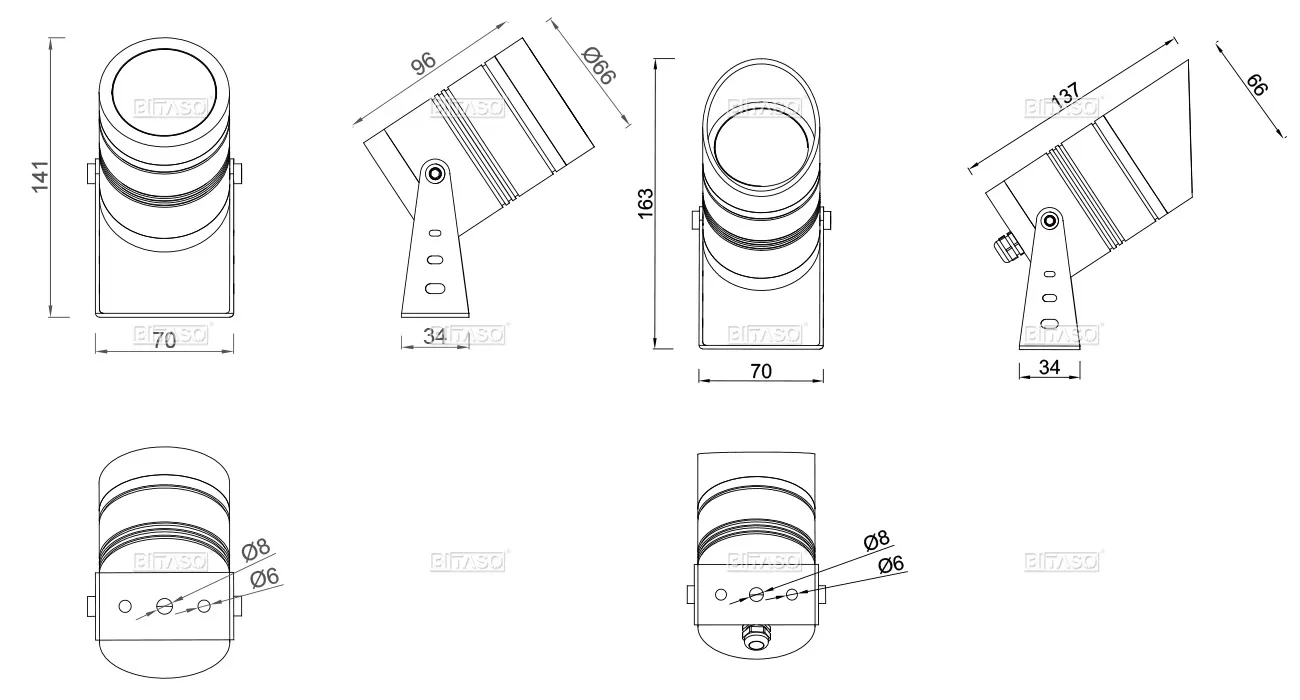

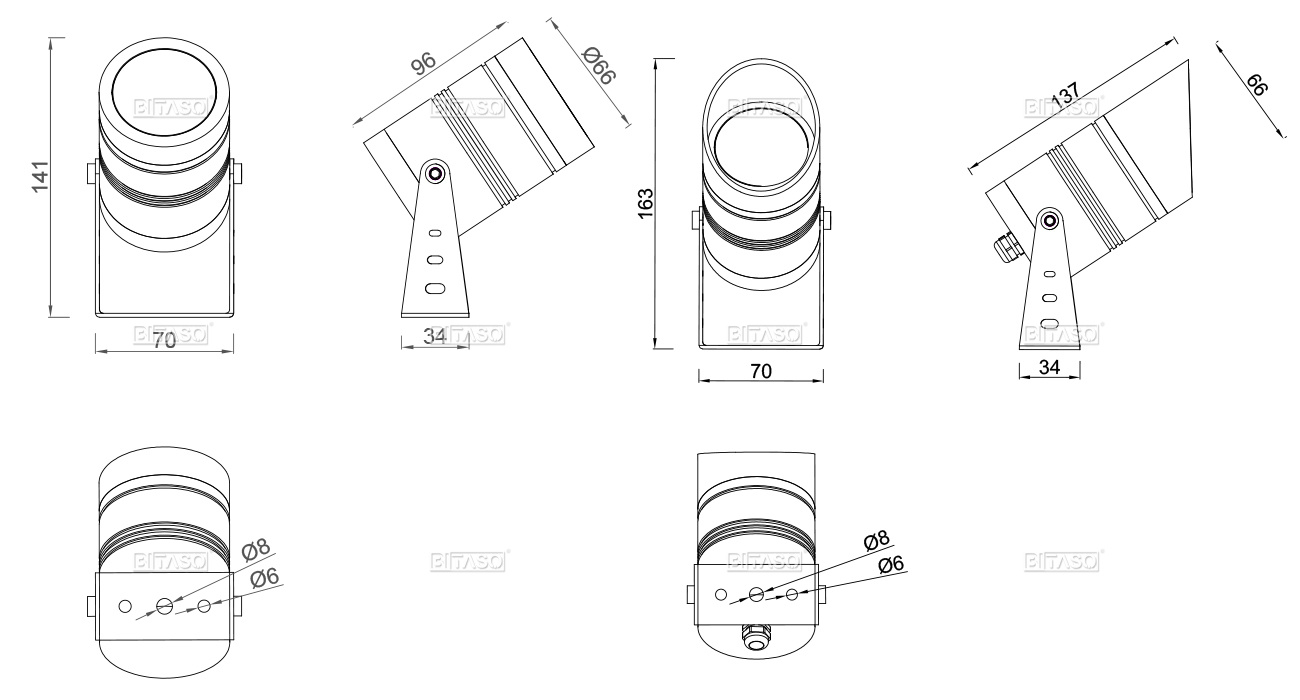

LUMINAIRE DIMENSION

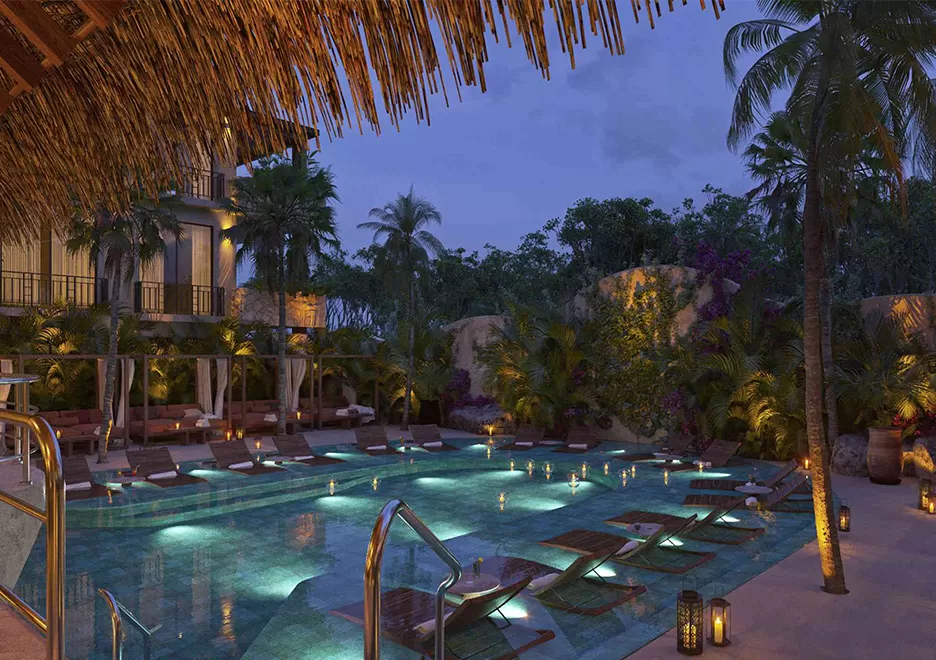

PROJECT REFERENCE

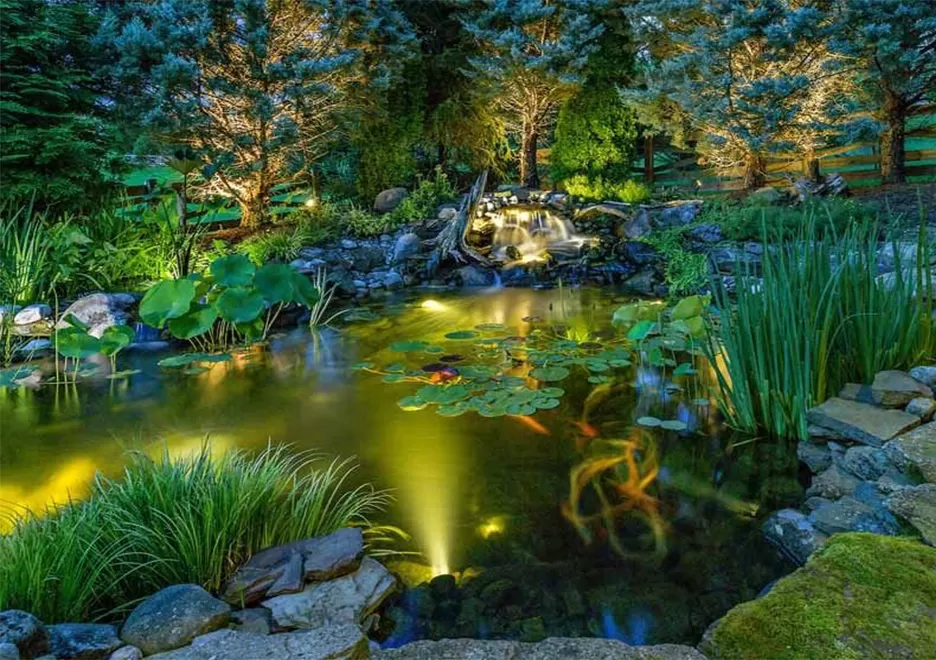

LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.

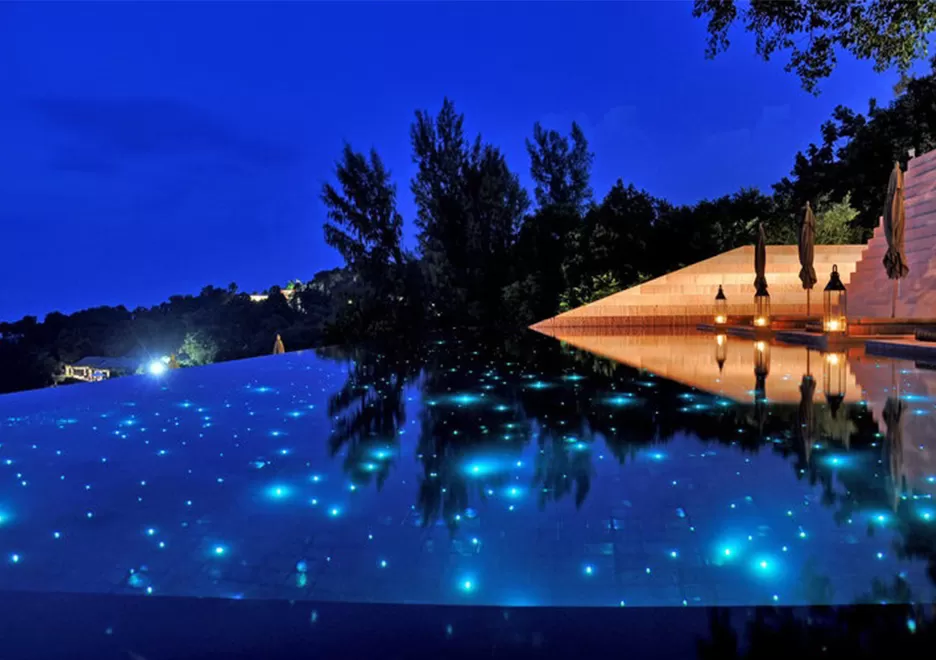

PROJECT REFERENCE

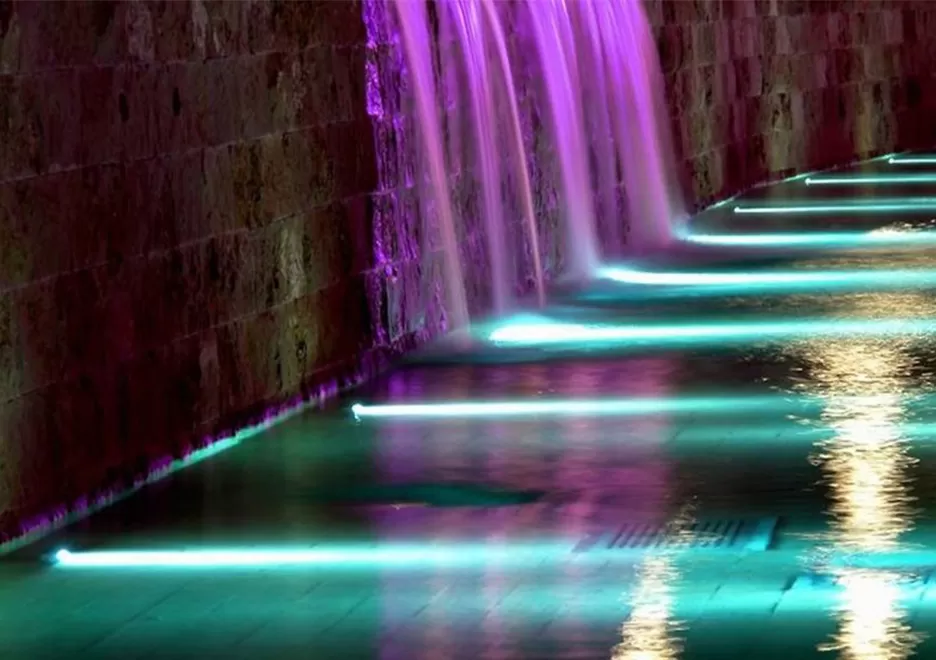

LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.
PROJECT REFERENCE
LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.
PROJECT REFERENCE
LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.
