LOTUS underwater light series, using DC24V power supply, is a safe voltage, can be used with confidence.
3000-5700K, RGBW, various color changes, whether in water or on land, a variety of color changes will always create a romantic atmosphere, especially on rippled water surface, the effect will be better.

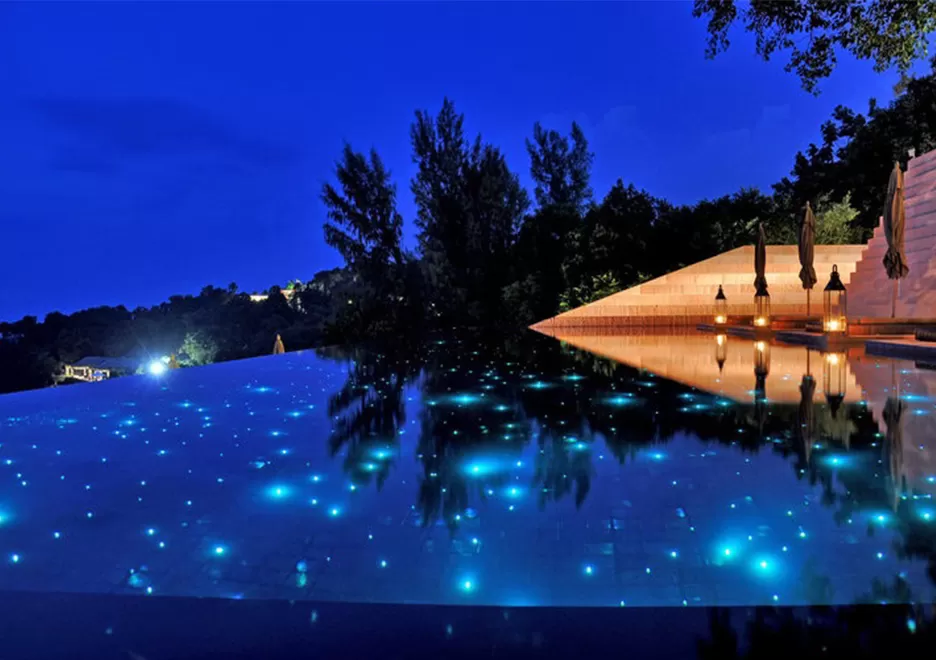

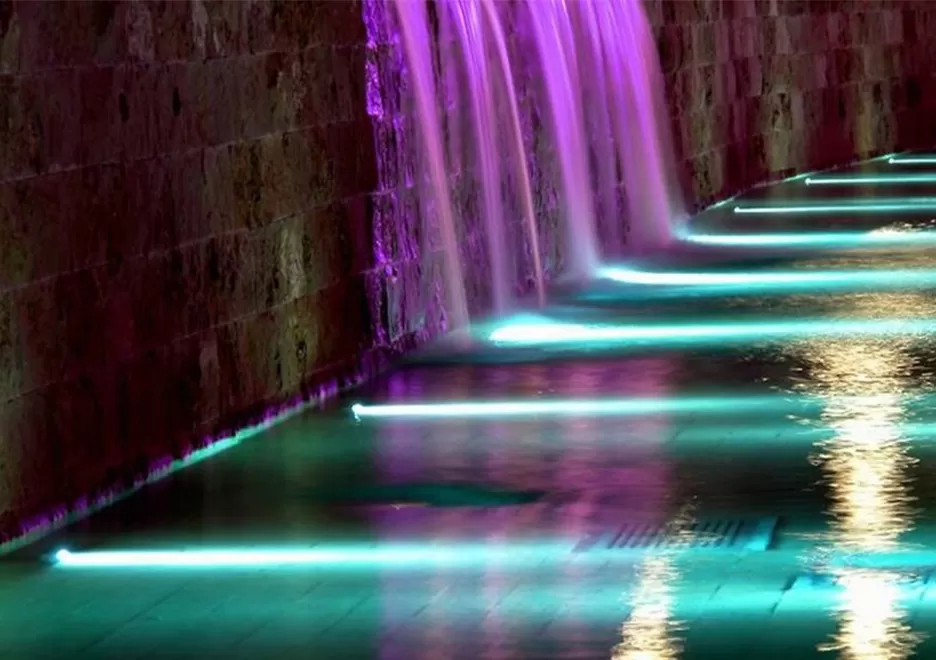

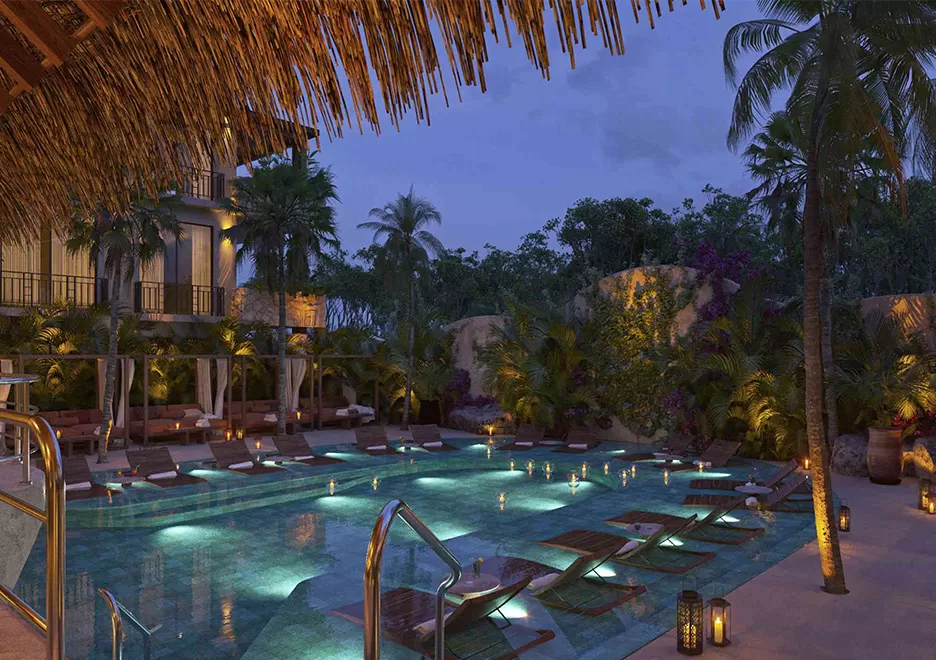

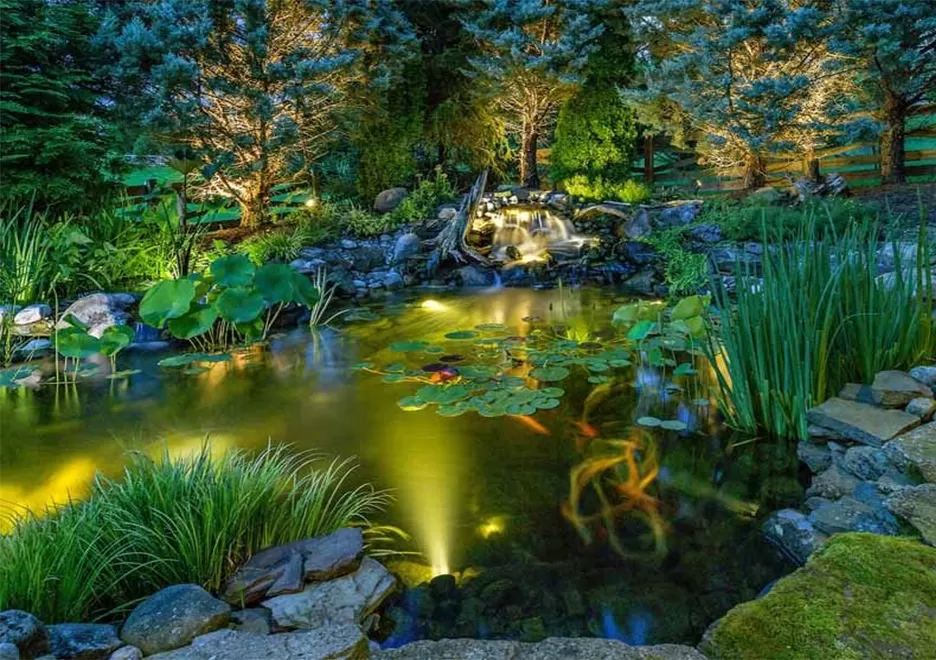

Waterproof rating IP68, LOTUS underwater spotlight suitable for fountains, waterfalls, swimming pools, gardens, fish ponds, aquariums, etc.

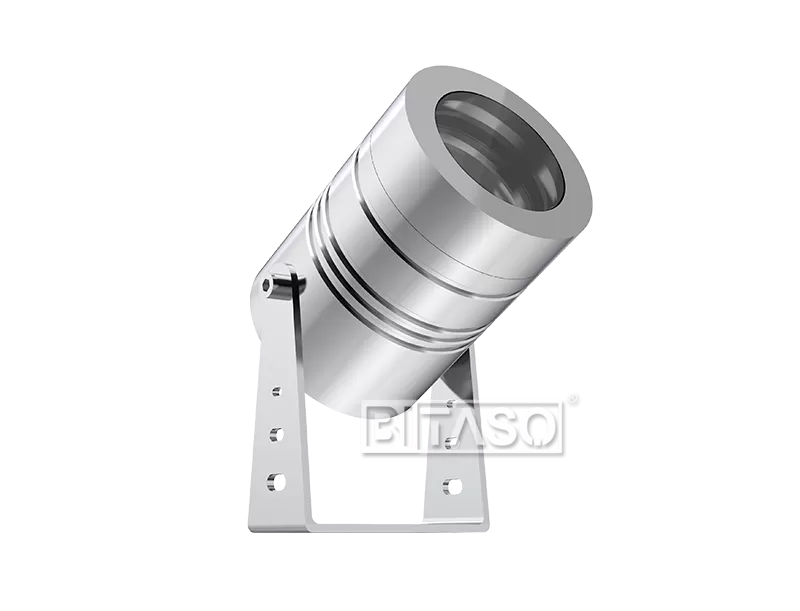

LOTUS underwater spot light adopts 316 stainless steel & step tempered glass lens have good pressure resistance and corrosion resistance, and can adapt well to underwater working environment.
ELECTRONICS
Power(Luminaire) | 3-5W | Power Factor | >0.9 |
Input Voltage | DC24V | Driver Option | Integral control gear |
Dmming Type | ON/OFF, 1-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
Light Source | 1PCS SMD | Lumen(Luminaire): | 270LM-450LM |
LED Brand | OSRAM/CREE SMD | Luminaire Lminous Efficacy | 90LM/W |
Full White LED(FW) | 3000K-5700K | Tunable White | |
Multi Color | CRI | Ra>85, Ra>90 | |
LED Life Span | ≥50,000hrs | Beam Angle | 12°,15°,20°,25°,35°,60°(Lens); 18°,25°,35°(Reflector Cup) |
MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Cylindrical Hood Angle 45°, Honeycomb Louver |
CONTROL SYSTEM
Control | ON/OFF, 1-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
Corrosion Resistance | optional for marine environment | Passive Cooling | CNC Stainless steel SUS 316L# |
Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |

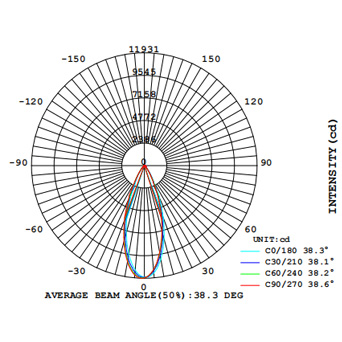

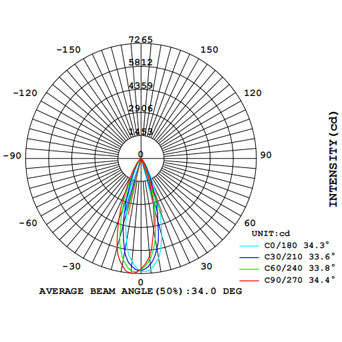

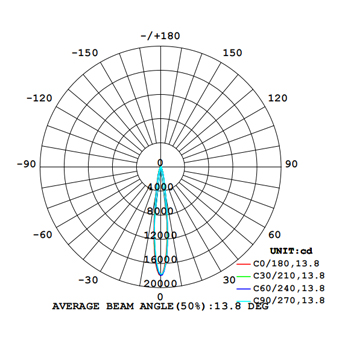

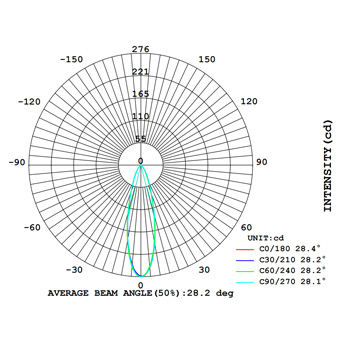

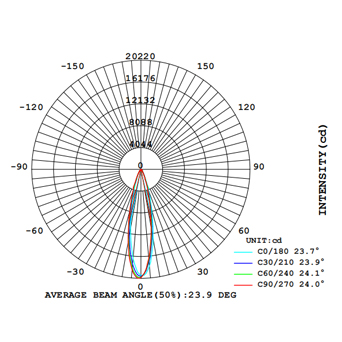

LIGHT DISTRIBUTION
MECHANICS
Dimension | 54x74x112mm | Weight | 0.55KGS |
Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | CNC Stainless steel SUS 316L# |
Finish | Stainless Steel | Mounting Type | Underwater/Wall/Ground |

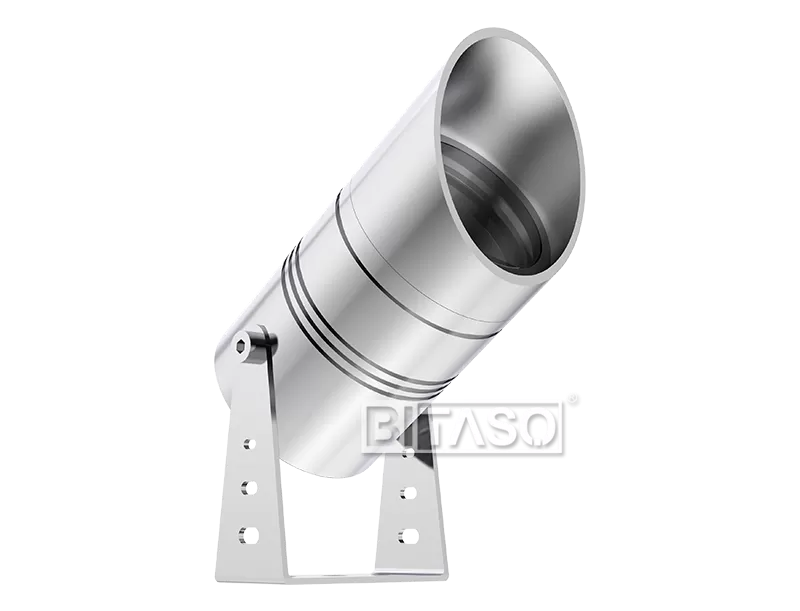

OPTIONAL ACCESSORIES

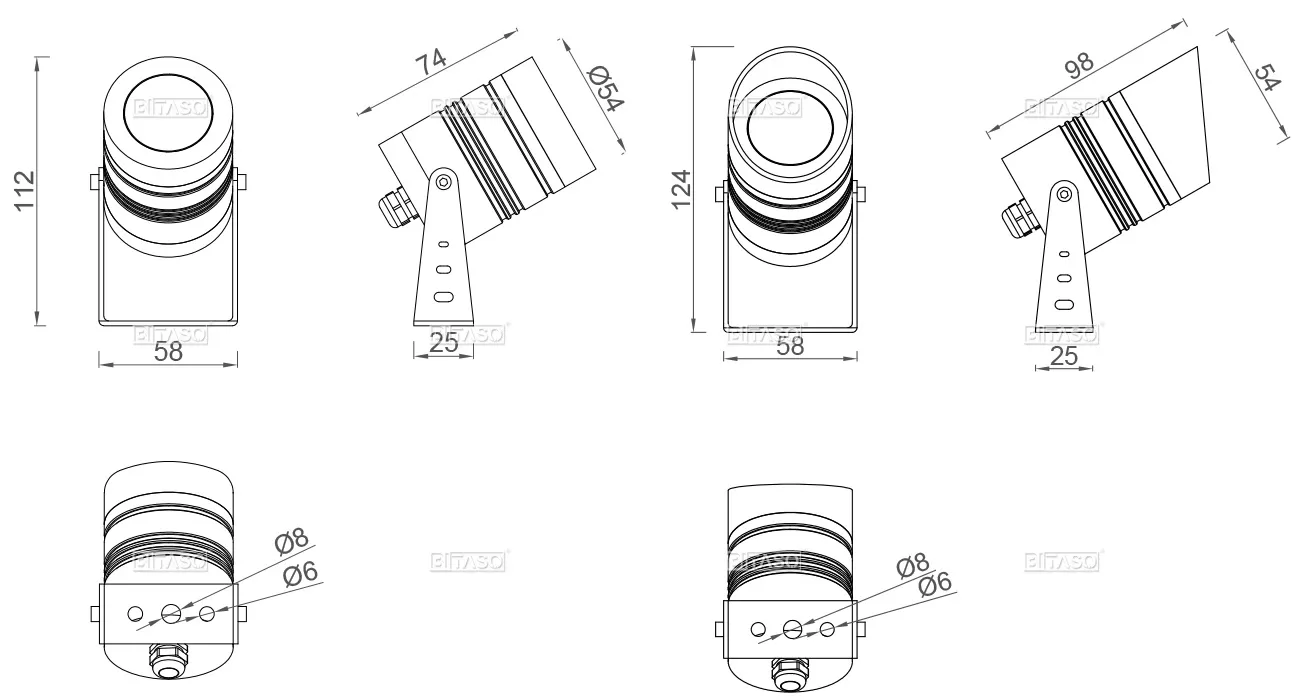

LUMINAIRE DIMENSION
