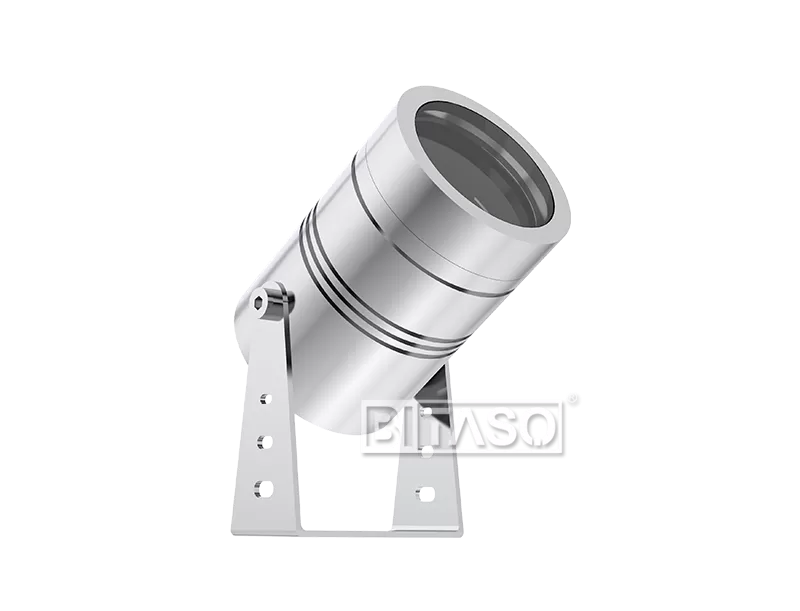

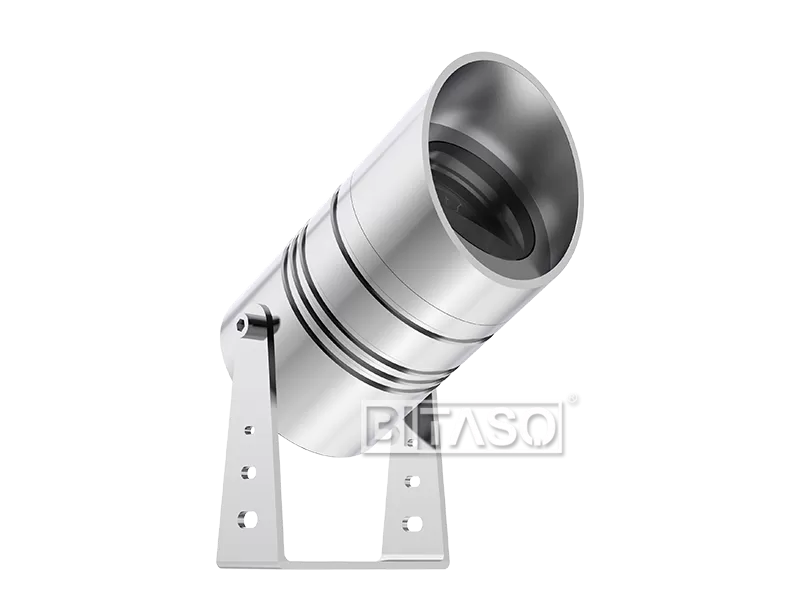

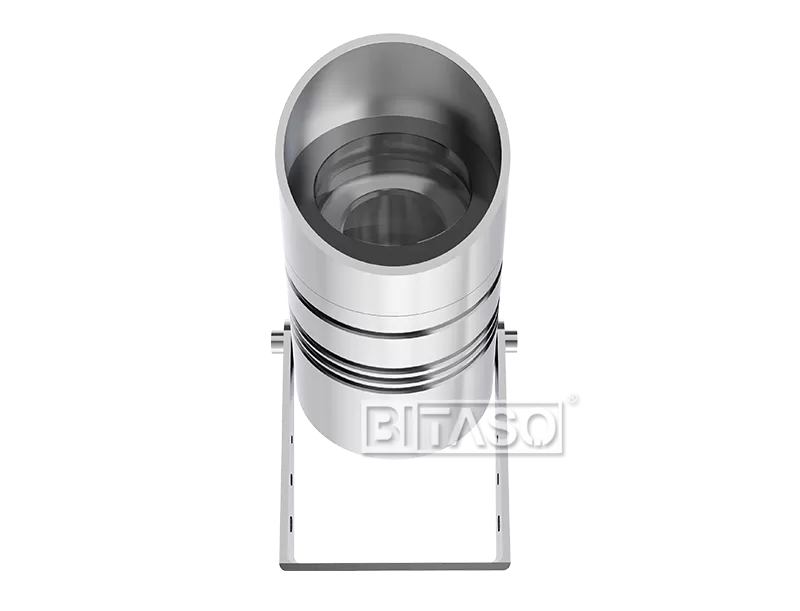

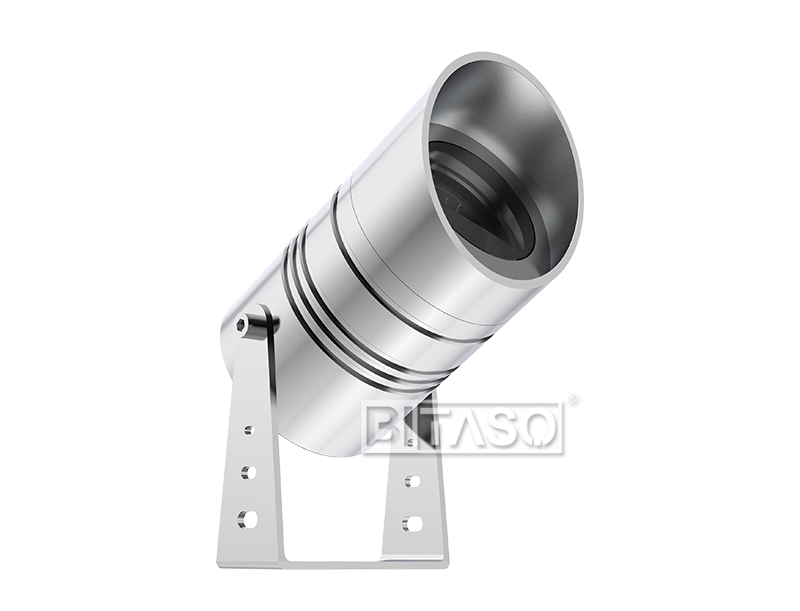

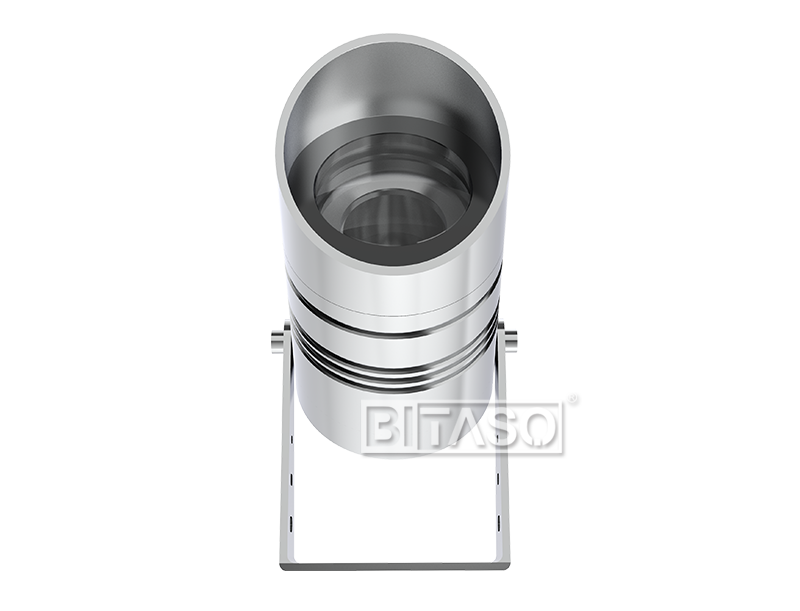

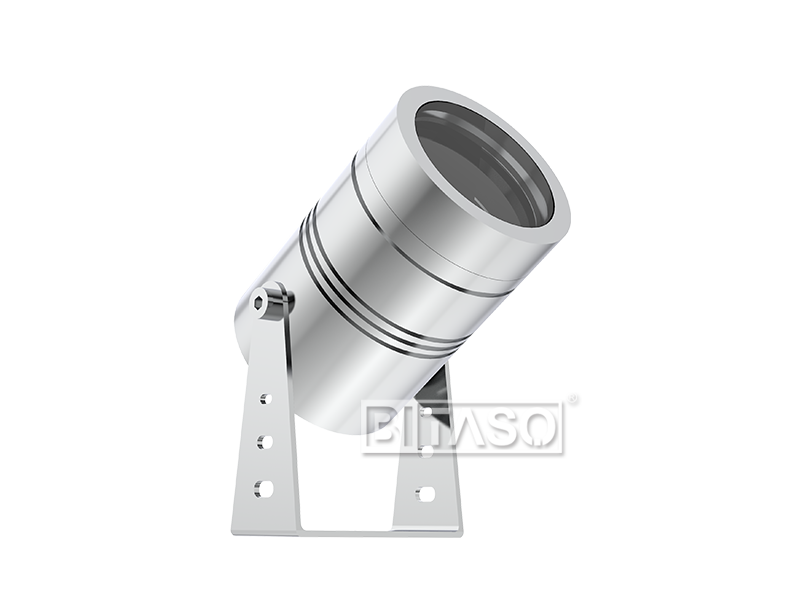

LOTUS D39

LOTUS underwater light series, using DC24V power supply, is a safe voltage, can be used with confidence.

3000-5700K, RGBW, various color changes, whether in water or on land, a variety of color changes will always create a romantic atmosphere, especially on rippled water surface, the effect will be better.

Waterproof rating IP68, LOTUS underwater spotlight suitable for fountains, waterfalls, swimming pools, gardens, fish ponds, aquariums, etc.

LOTUS underwater spot light adopts 316 stainless steel & step tempered glass lens have good pressure resistance and corrosion resistance, and can adapt well to underwater working environment.

ELECTRONICS

Power(Luminaire)1-2WPower Factor>0.9
Input VoltageDC24VDriver OptionIntegral control gear
Dmming TypeON/OFF, 1-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light Source1PCS SMDLumen(Luminaire):90LM-180LM
LED BrandOSRAM/CREE SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)3000K-5700KTunable White
Multi Color
CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle5°,8°,10°,12°,17°,30°,40°,60°,10°x22°,15°x55°,etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesCylindrical Hood Angle 45°, Honeycomb Louver


CONTROL SYSTEM

ControlON/OFF, 1-10V, DALI, Triac, DMX512DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive Cooling

CNC Stainless steel SUS 316L#

ComplianceIK08, IP68, Class ICertificateIP68, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

MECHANICS

Dimension39x57x78mmWeight0.35KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialCNC Stainless steel SUS 316L#
FinishStainless SteelMounting TypeUnderwater/Wall/Ground


OPTIONAL ACCESSORIES

  • CylindricalHood Angle45°

    CylindricalHood Angle45°

  • Honeycomb Grille

    Honeycomb Grille

  • Honeycomb Louver

    Honeycomb Louver

  • M16 2_3PIN IP68 Connector

    M16 2_3PIN IP68 Connector

  • 20T-2_3_4PIN IP68 Connector

    20T-2_3_4PIN IP68 Connector

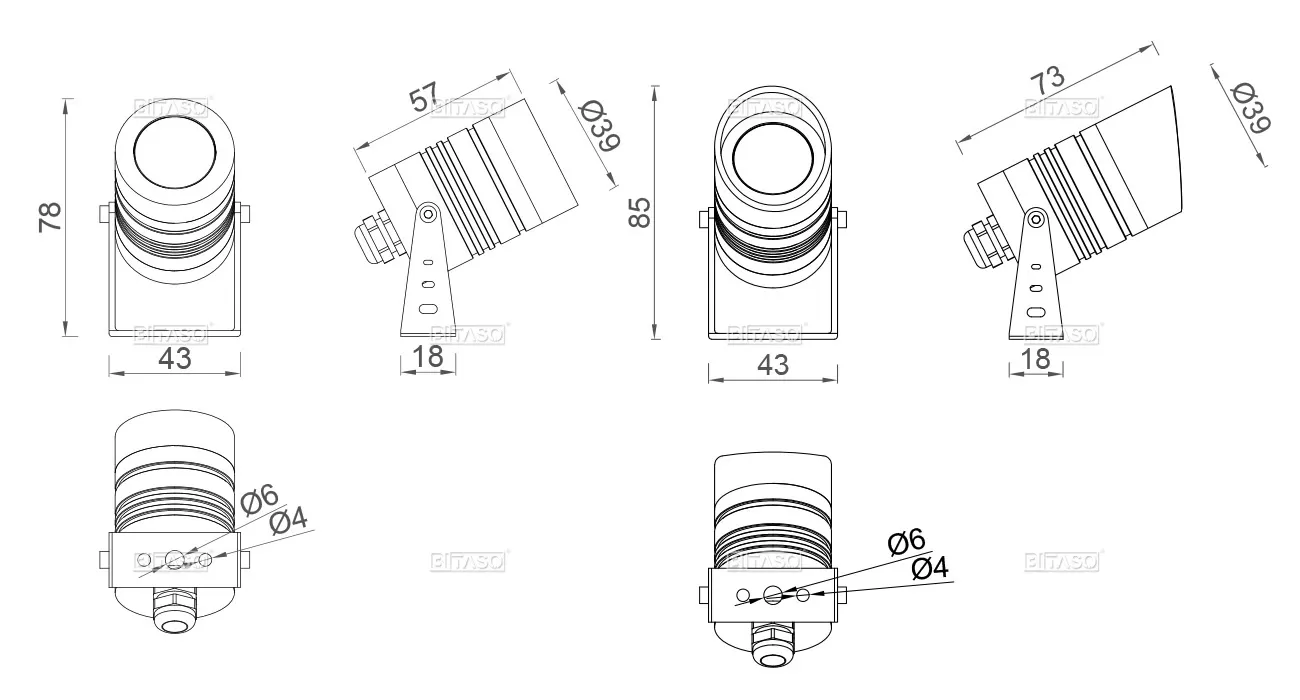

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

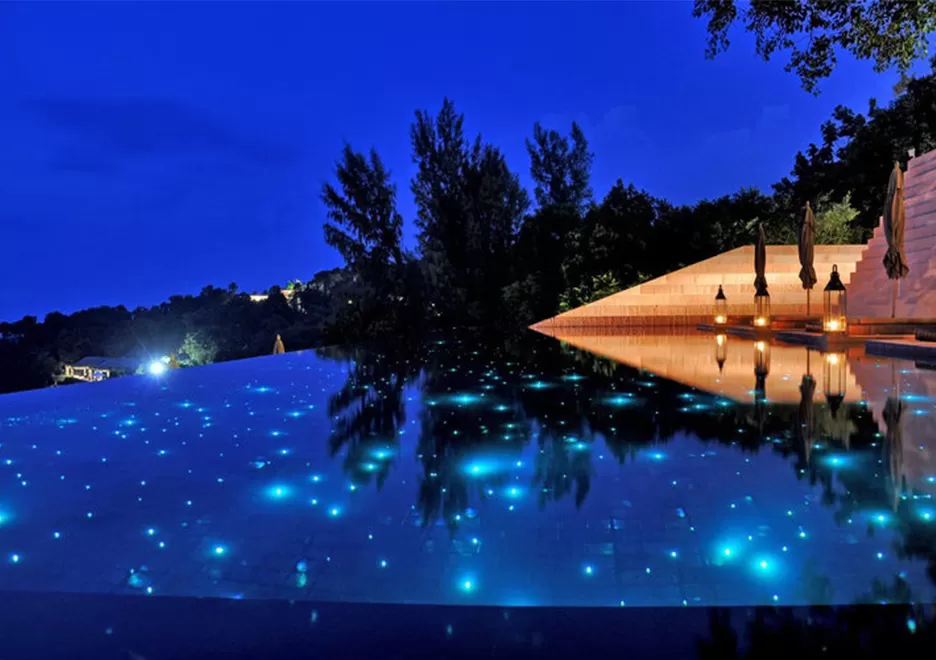

  • PROJECT REFERENCE

    PROJECT REFERENCE

    LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.

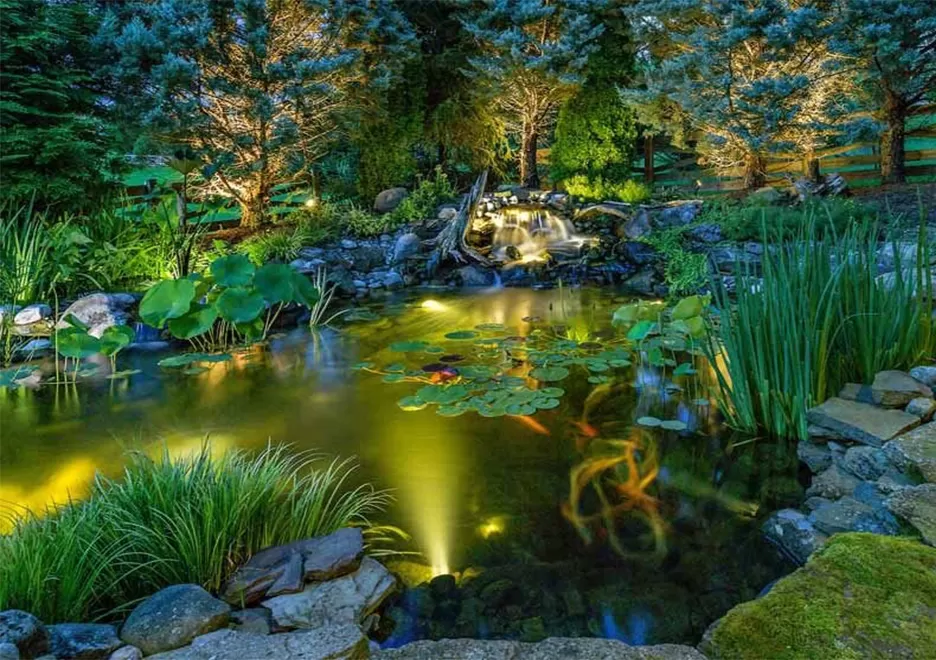

  • PROJECT REFERENCE

    PROJECT REFERENCE

    LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.

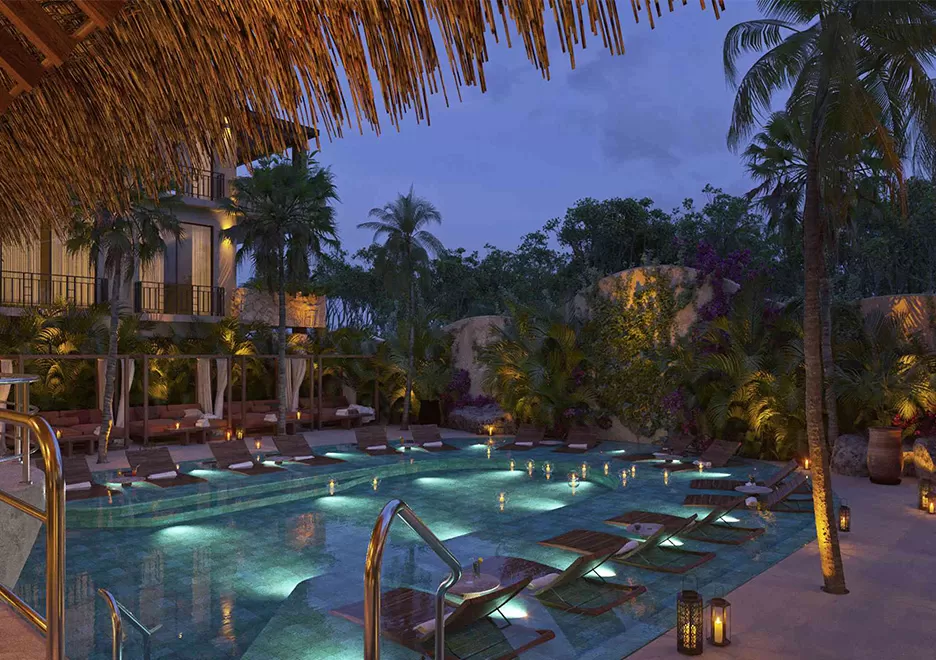

  • PROJECT REFERENCE

    PROJECT REFERENCE

    LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.

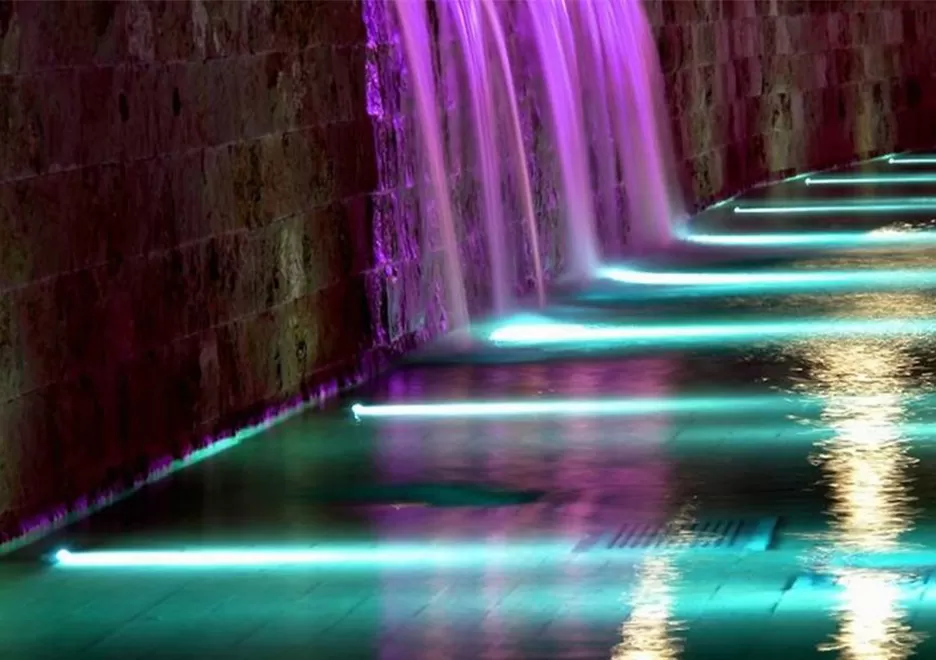

  • PROJECT REFERENCE

    PROJECT REFERENCE

    LOTUS led pond light is made by 316 Stainless Steel material, which can use long time under the water. LOTUS bright underwater led light does a good job lighting up the area it is directed to. Suitable for outdoor landscape, such as Party, Swimming Pool, Garden, Waterfall, Fountain Water, Rockery Grass Land.
