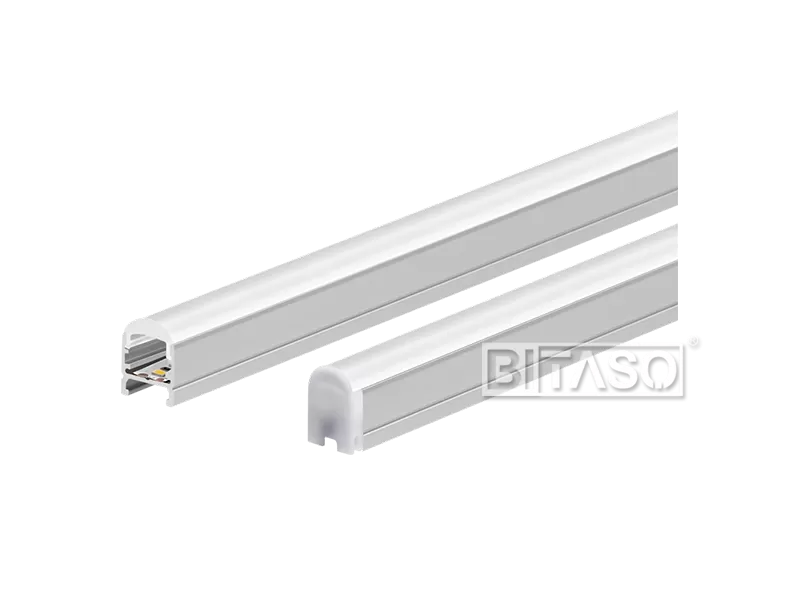

Impressive array of sophisticated workplace ambient panels. Beautiful retro-contemporary interior lighting from BITASO.The optical module fits into the track and transforms it from a support structure into a light system, both for general light , thus also suitable in work and office environments, as well as retail and hospitality&living. Single modules or continuous light, integrating Opti Diamond in both transparent white and transparent black finishes to match the white profile colors.
ELECTRONICS
| Power(Luminaire) | 15W/M | Power Factor | >0.9 |
| Input Voltage | DC24V | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac,DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | SMD | Lumen (Luminaire): | 1000lm |
| LED Brand | CREE/BRIDGELUX/PHILLIP SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2400K, 3000K, 3500K, 4000K, 4500K, 5000K,6500K | Tunable White | 2400K-6500K |
| Multi Color | RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 45° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Aluminum Profile,PMMA milky surface, Black PMMA cover,plastic end cap,aluminum plate |
CONTROL SYSTEM
| Control | DMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20, CE, ETL, RoHS, CCC |

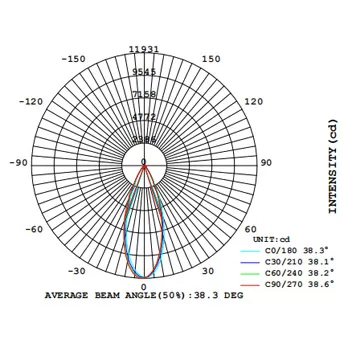

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 15.5*23mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | ceiling mounting |

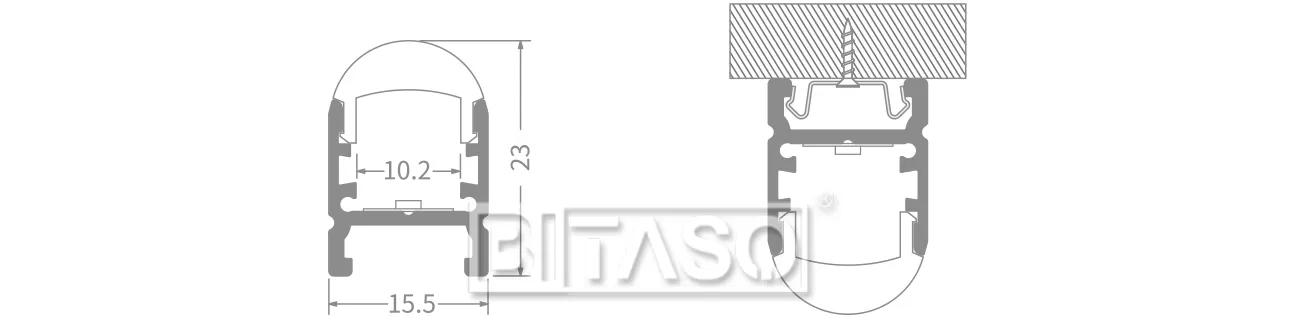

LUMINAIRE DIMENSION
