Once installed, the profiles disappear, blending completely with the surrounding architecture; the integrated light concept allows spaces to be customised with new and precious light details.Linear lighting is lighting that has an elongated shape, as opposed to being round or square. They often come in the form of light channels and tubes or strip lights. They are a good option for illuminating large spaces due to their wide light spread and their ability to be connected and extended indefinitely. Linear light fixtures can be installed in three main ways—mounted on surfaces, suspended in air, or built into, or ‘recessed’ in, surfaces. Regardless, they are a popular choice in many spaces, such as offices, gas stations, elevators, and more.
ELECTRONICS
| Power(Luminaire) | 60W/M | Power Factor | >0.9 |
| Input Voltage | DC24V | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac,DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | SMD | Lumen (Luminaire): | 1000lm |
| LED Brand | CREE/BRIDGELUX/PHILLIP SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2400K, 3000K, 3500K, 4000K, 4500K, 5000K,6500K | Tunable White | 2400K-6500K |
| Multi Color | / | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 170° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Aluminum Profile,PC milky surface ,Aluminum end cap |
CONTROL SYSTEM
| Control | DMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20, CE, ETL, RoHS, CCC |

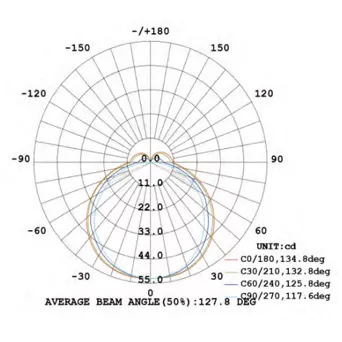

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 55*100mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | ceiling mounting,surface mounting |

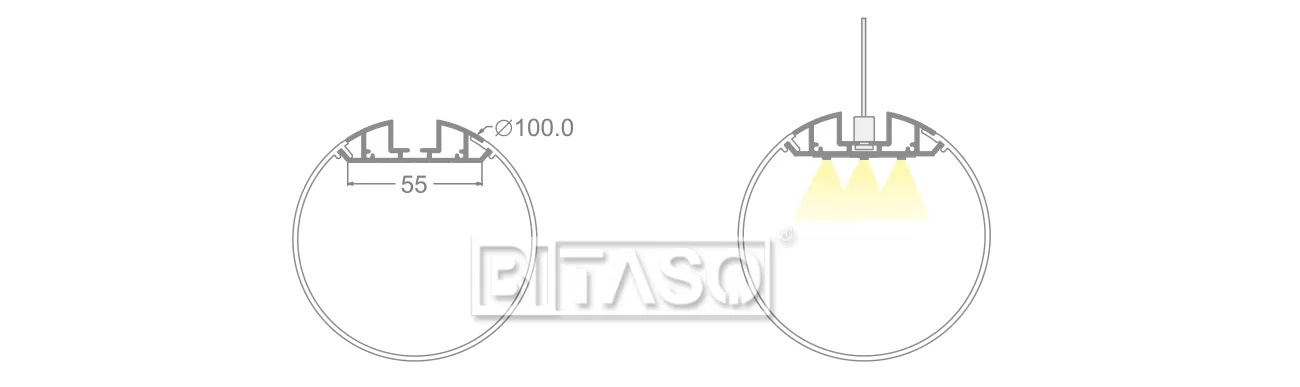

LUMINAIRE DIMENSION
