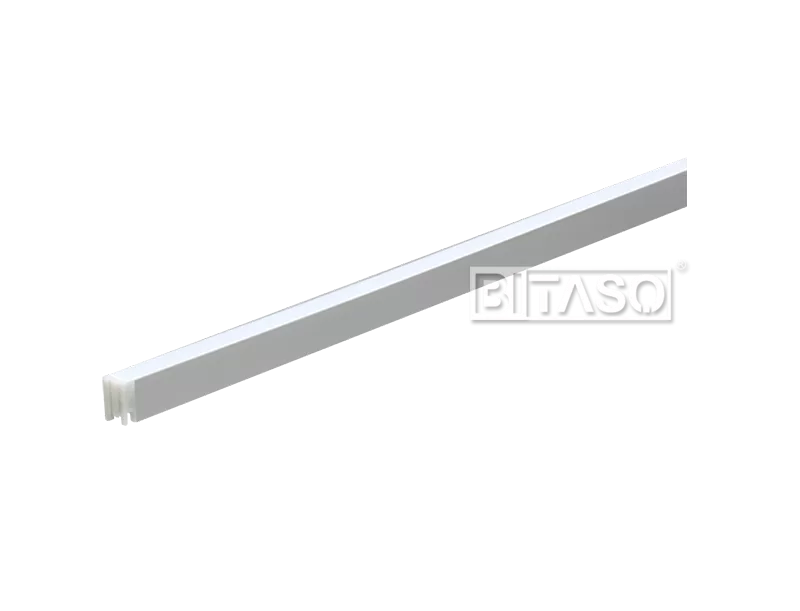

BT-AP4106

Impressive array of sophisticated workplace ambient panels. Beautiful retro-contemporary interior lighting from BITASO.Once installed, the profiles disappear, blending completely with the surrounding architecture; the integrated light concept allows spaces to be customised with new and precious light details.Linear lighting is lighting that has an elongated shape, as opposed to being round or square. They often come in the form of light channels and tubes or strip lights. They are a good option for illuminating large spaces due to their wide light spread and their ability to be connected and extended indefinitely. Linear light fixtures can be installed in three main ways—mounted on surfaces, suspended in air, or built into, or ‘recessed’ in, surfaces. Regardless, they are a popular choice in many spaces, such as offices, gas stations, elevators, and more.

ELECTRONICS

Power(Luminaire)10W/MPower Factor>0.9
Input VoltageDC24VDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac,DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light SourceSMDLumen (Luminaire):1000lm
LED BrandCREE/BRIDGELUX/PHILLIP SMDLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2400K, 3000K, 3500K, 4000K, 4500K, 5000K,6500KTunable White2400K-6500K
Multi ColorRGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle120°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories

Aluminum Profile,PC surface,

Metal mounting clip,Interlock end cap


CONTROL SYSTEM

ControlDMX512/RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs), RGBW (4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP20, Class ICertificateIP20, CE, ETL, RoHS, CCC

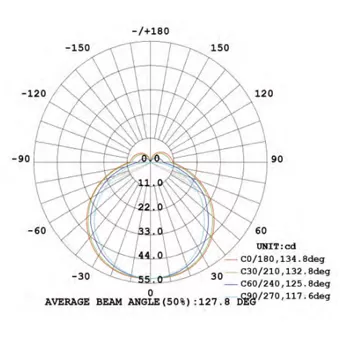

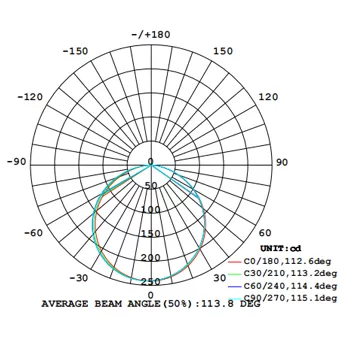

LIGHT DISTRIBUTION

MECHANICS

Dimension8*16.5mmWeight0.2KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishWhiteMounting Typerecessed,floor mounting

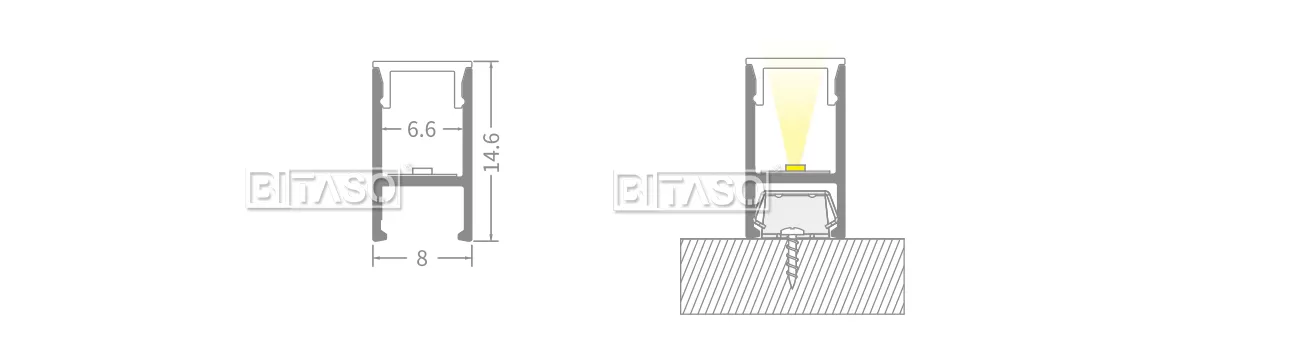

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
