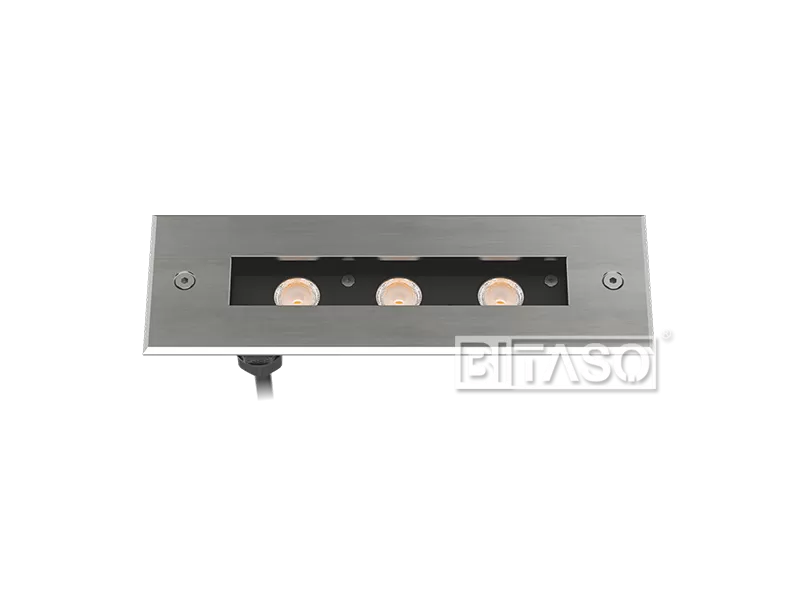

BL-LIGL0302 Linear Inground Wall Washer Light

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,excellent heat dissipation,requires constant voltage remote driver,also available in Noncolor/RGB versions,delivered with male/female connectors.Ultra clear and highly strengthen 8mm tempered glass cover,ensure high luminous efficacy(90-95%),outstanding accuracy of color temperature,and excellent impact resistance and rub resistance.

ELECTRONICS

Power(Luminaire)2W/6W/9WPower Factor>0.9, CCS auto calibrating
Input VoltageDC24V,AC220-240V 50/60HZDriver OptionIntegral control gear
Dimming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable


OPTICS

Light SourceSMDLumen (Luminaire):100LM
LED BrandCREE /OSRAM/EPISTAR LEDLuminaire Lminous Efficacy90-100LM/W
Full White LED(FW)2700K/3000K/3500K/4000K/5000K/5700K/6500KTurnable White2700K-6500K
Multi ColorRGB 3in1, RGBW 4in1CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle

10°,25°,30°,45°,60°,18*55°,20*45°,10*60° etc.

MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesDiffuser, Filter, Honeycomb Louver


CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP67, Class ICertificateIP67, CE, ETL, RoHS, CCC

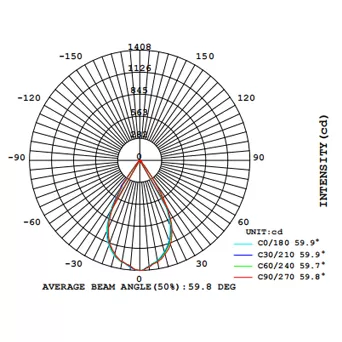

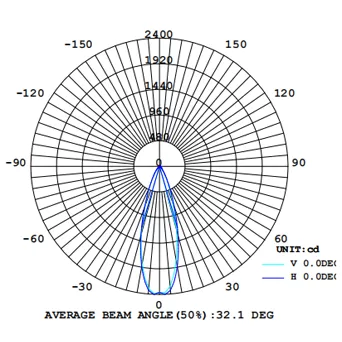

LIGHT DISTRIBUTION

MECHANICS

Dimension180*58mmWeight1.0KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishStainless steel SUS316Mounting TypeOutdoor lighting for squares, outdoor parks, leisure places, etc


OPTIONAL ACCESSORIES

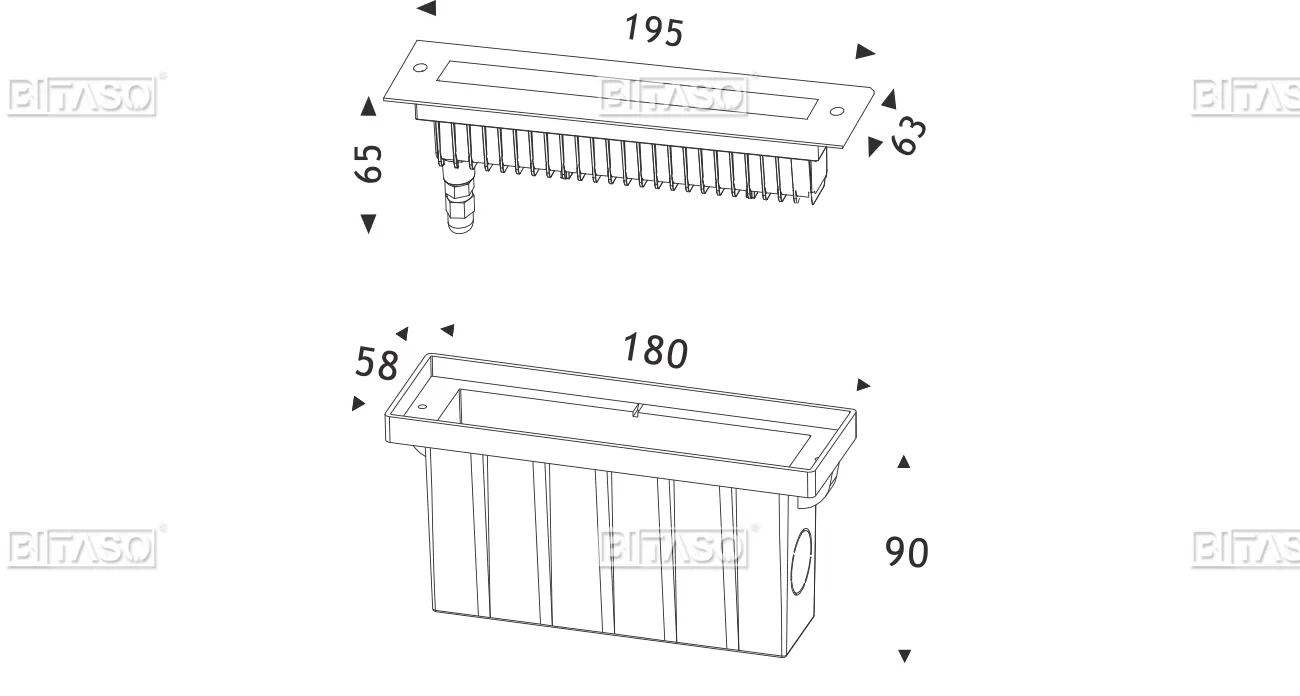

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

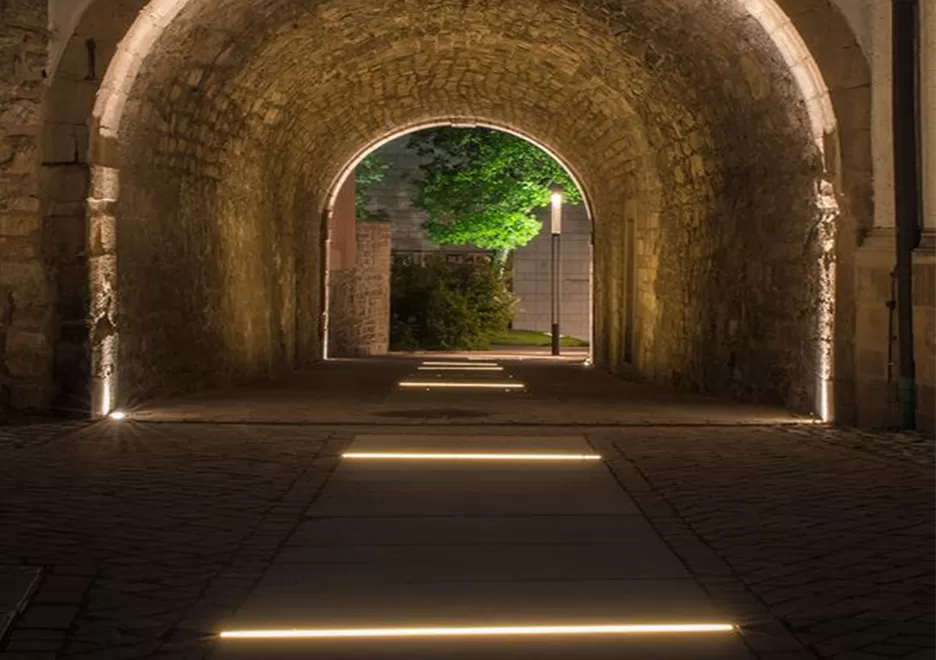

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.

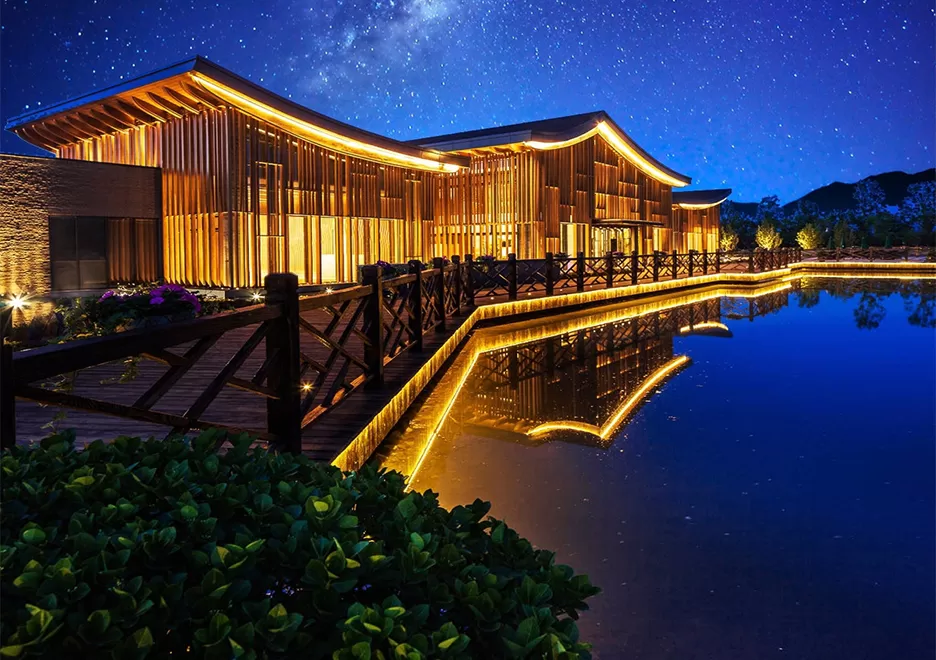

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.

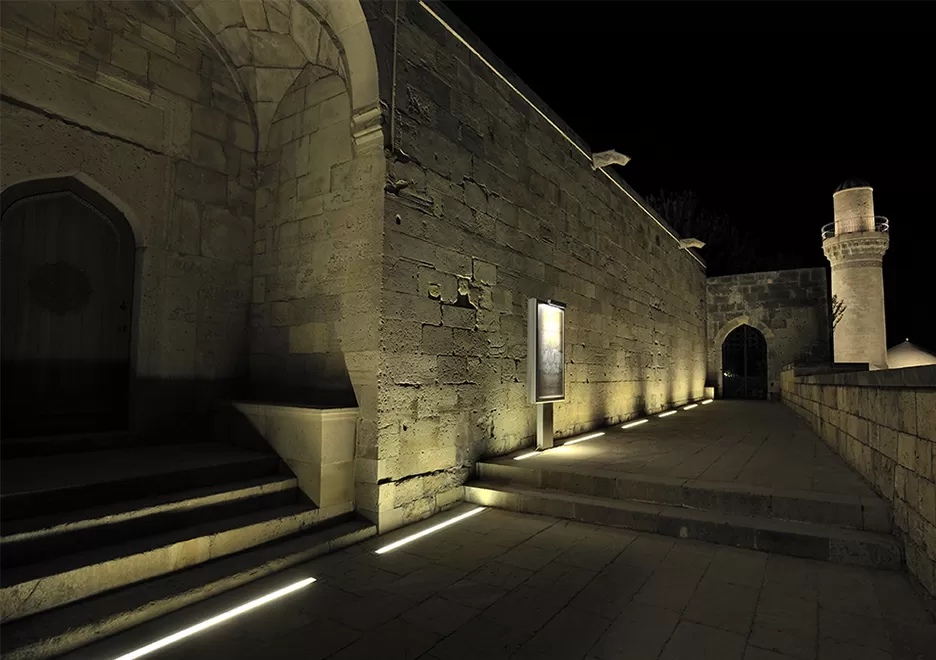

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.
