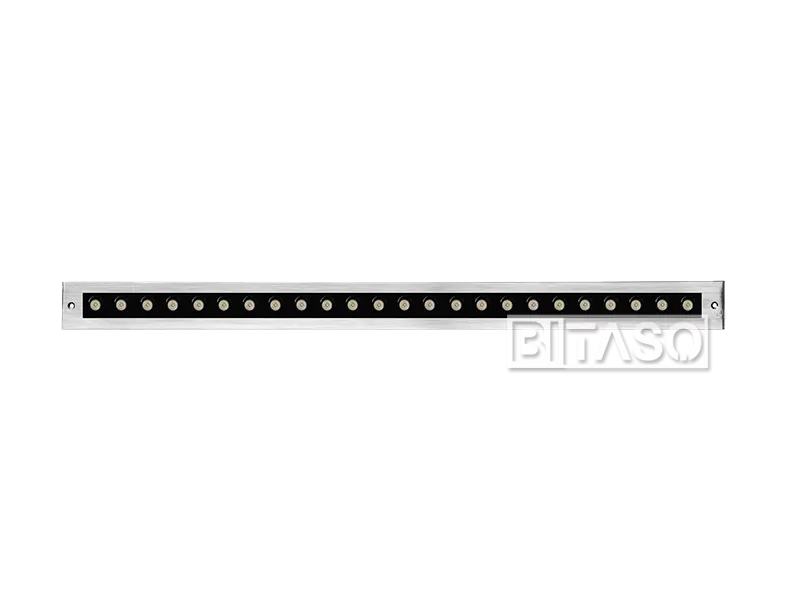

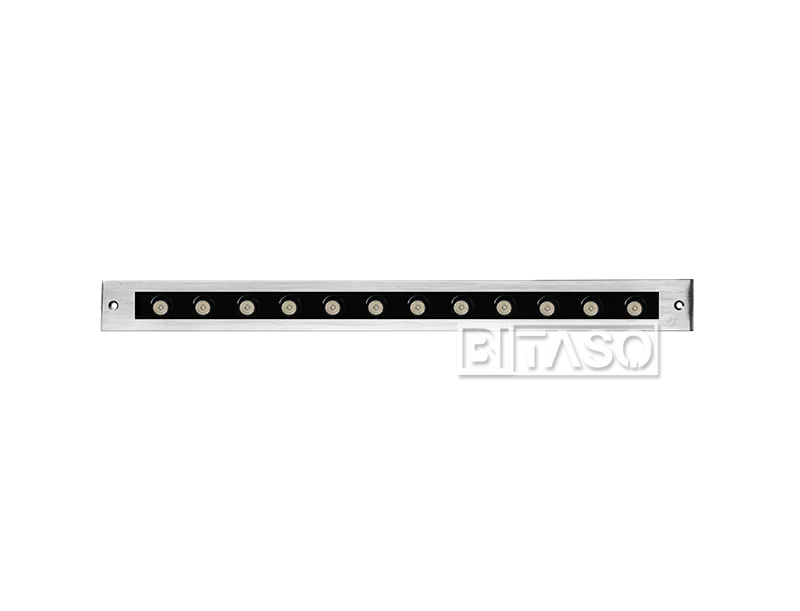

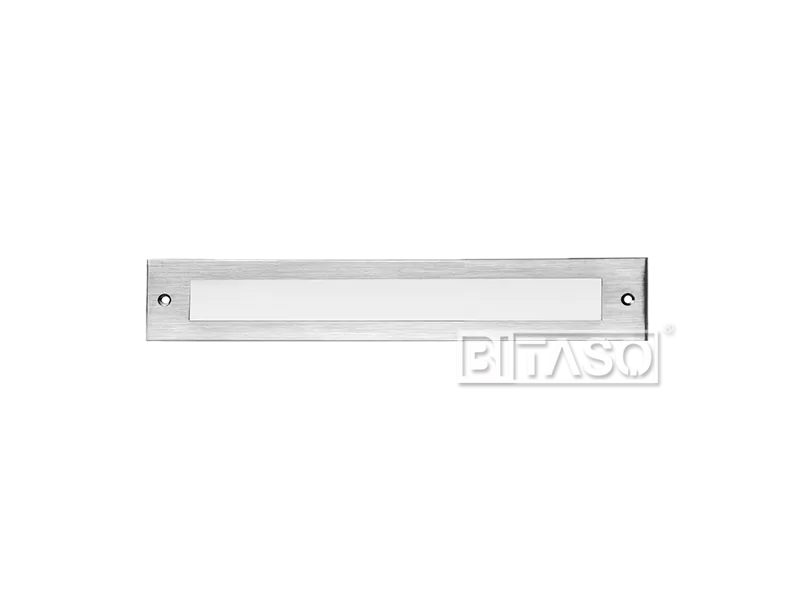

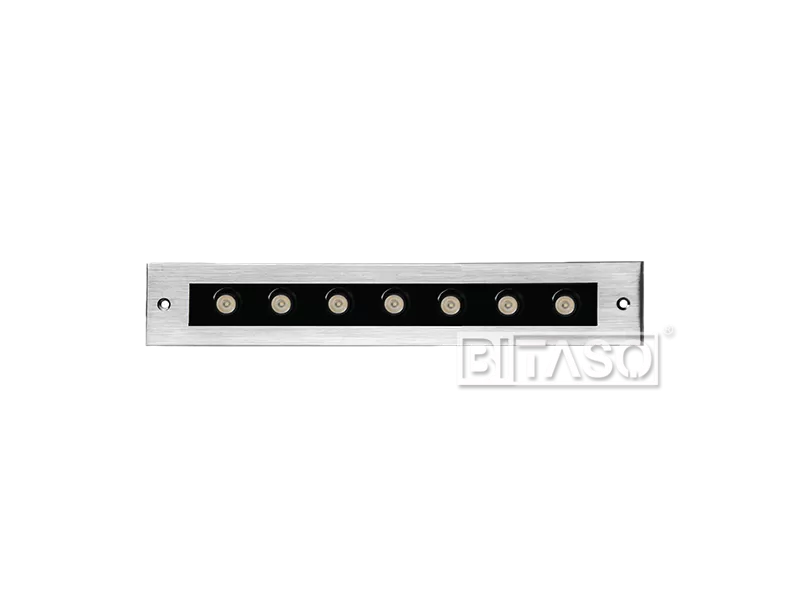

BL-LIGL582436 Linear Inground Light

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,aluminium barckets,excellent heat dissipation,adjustable angle bracket,requires constant voltage remote driver,also available in noncolor/RGB versions,delivered with male/female connectors.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	181W/241W/361W/182W/24*2W	Power Factor	>0.9, CCS auto calibrating
Input Voltage	DC24V,AC220-240V 50/60HZ	Driver Option	Integral control gear
Dimming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	8 pin power+DMX integrated cable

OPTICS

Light Source	SMD	Lumen (Luminaire):	100LM
LED Brand	CREE /OSRAM/EPISTAR LED	Luminaire Lminous Efficacy	90-100LM/W
Full White LED(FW)	2700K/3000K/3500K/4000K/5000K/5700K/6500K	Turnable White	2700K-6500K
Multi Color	RGB 3in1, RGBW 4in1	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Agle	10°,15°,30°,45°,60°,1855°,2045°,10*60° etc.
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Diffuser, Filter, Honeycomb Louver

CONTROL SYSTEM

Control	DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP67, Class I	Certificate	IP67, CE, ETL, RoHS, CCC

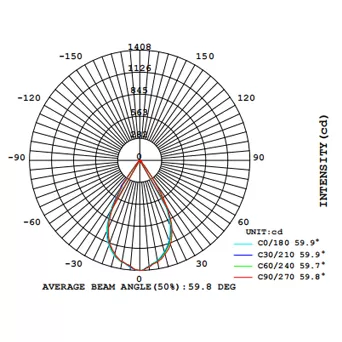

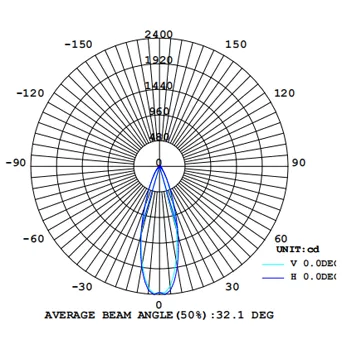

LIGHT DISTRIBUTION

MECHANICS

Dimension	L1045/545/345W58H80mm	Weight	1.5KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Stainless steel SUS316	Mounting Type	Outdoor lighting for squares, outdoor parks, leisure places, etc

OPTIONAL ACCESSORIES

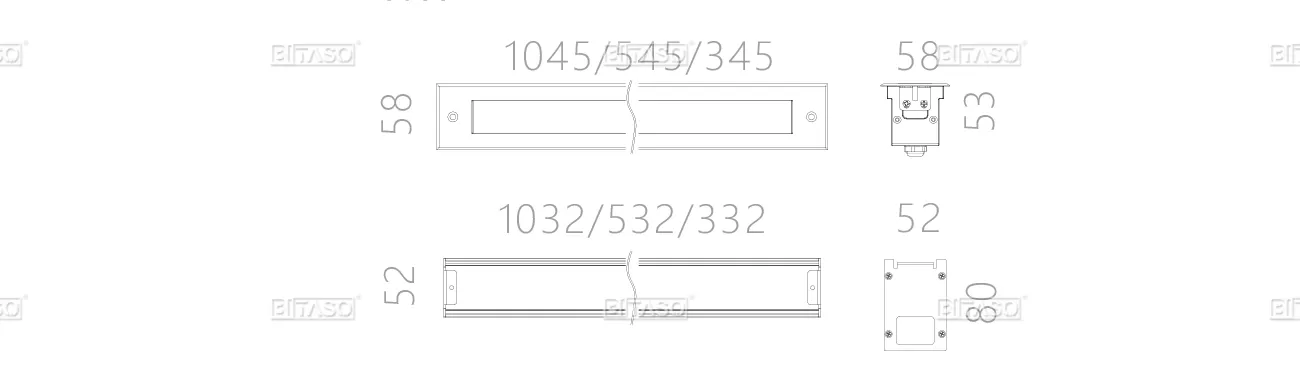

LUMINAIRE DIMENSION

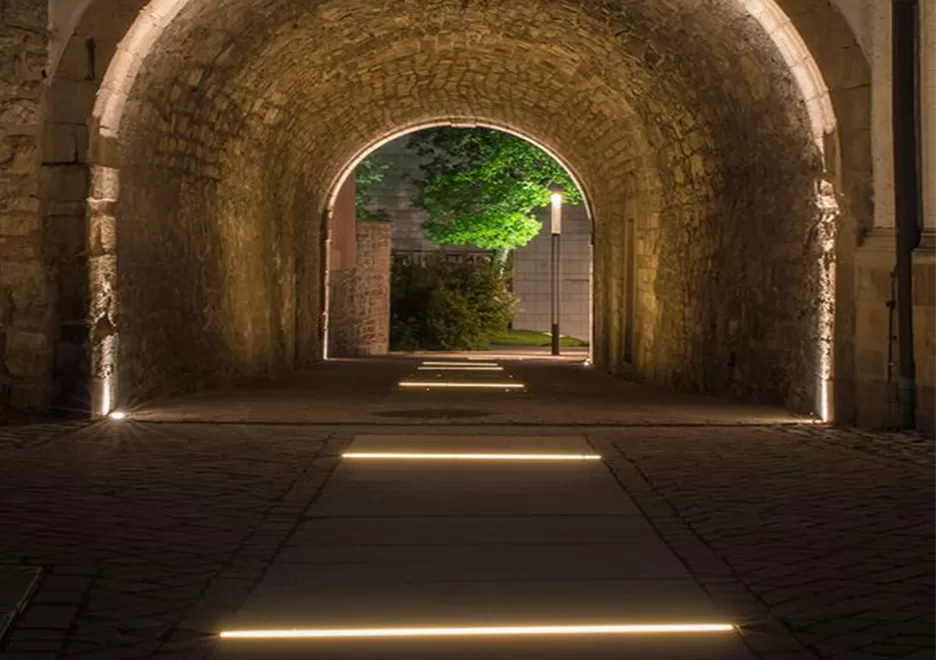

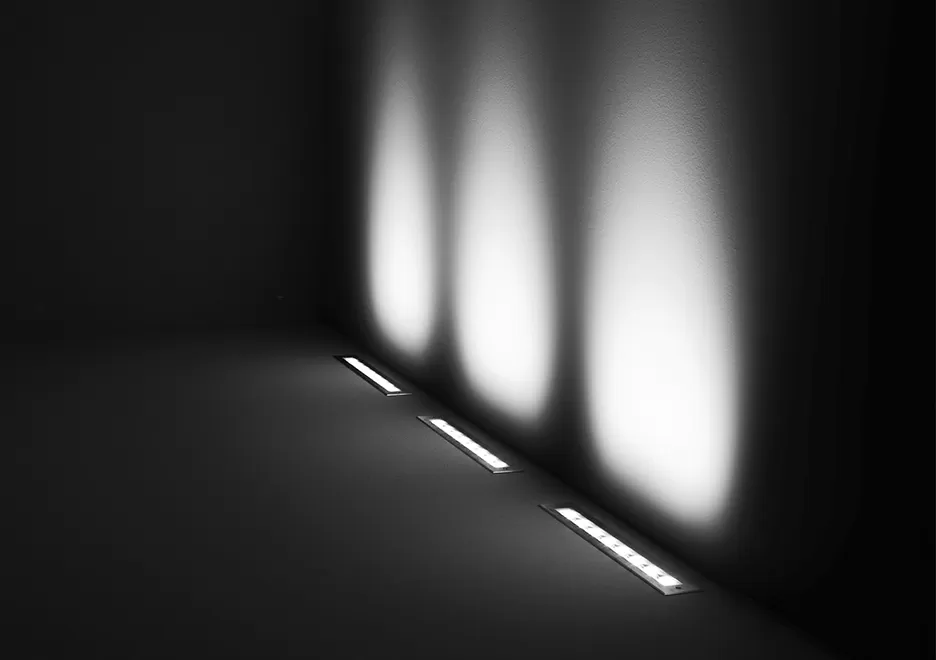

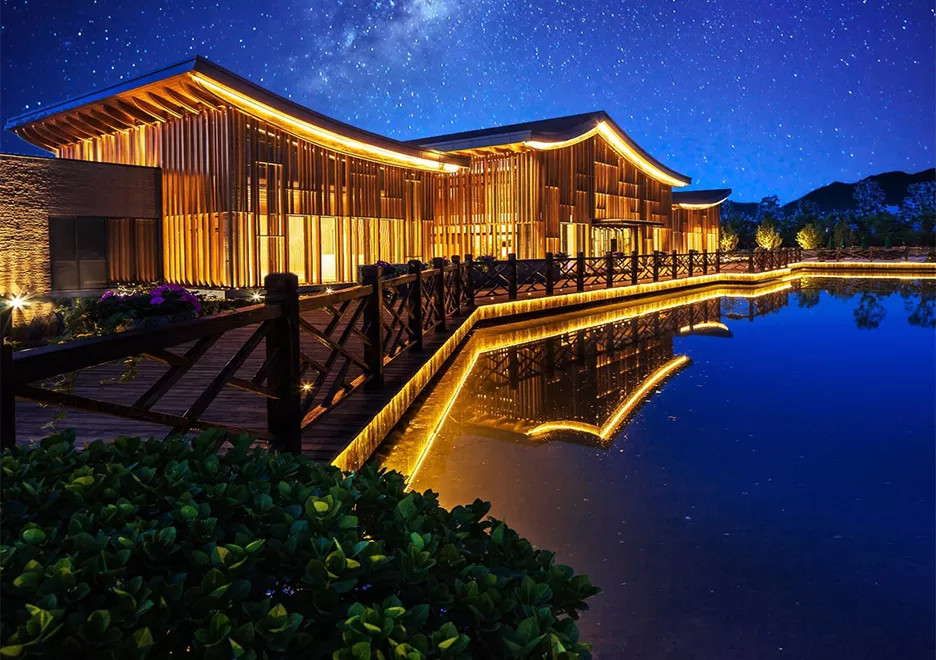

PROJECT REFERERNCE

Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.

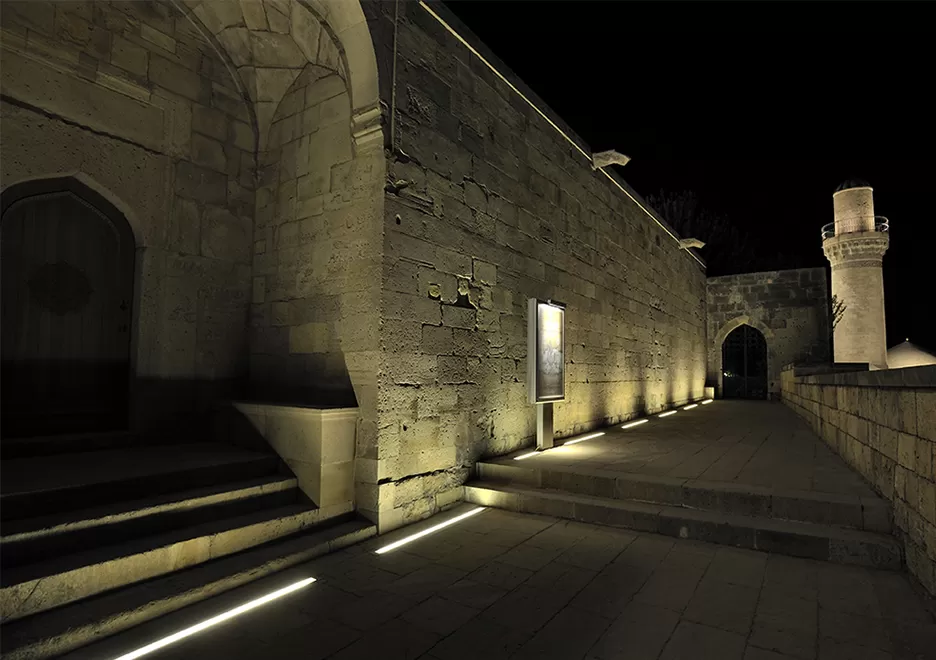

PROJECT REFERERNCE

Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.
PROJECT REFERERNCE

Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.
PROJECT REFERERNCE

Special housing design and high-quality optical components specificaly for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor sotlight,ideal for glare-free accent ligthing,floodlighting and wall washing in the outdoor area.Corrosion-resistant ADC12#die-casting luminium body gives the luminare good thermal conductivity,and large area connections between the rear of the housing and the led S PCB ensure good heat conduction.
