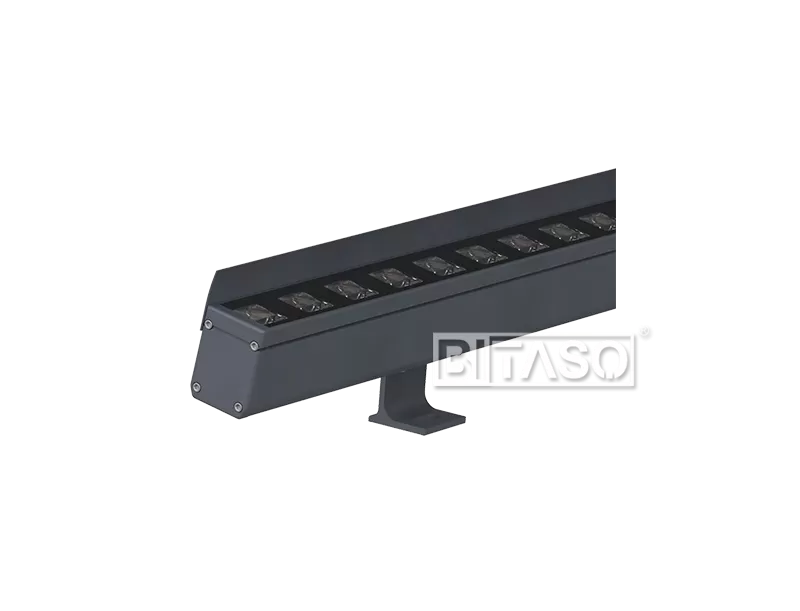

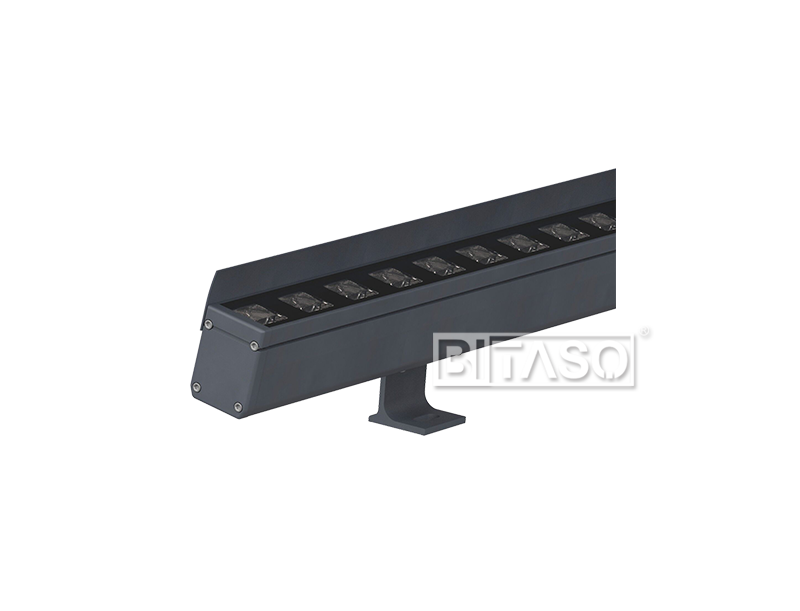

Linear Wall Washer Light with Antiglare board

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,aluminium barckets,excellent heat dissipation,adjustable angle bracket,requires constant voltage remote driver,also available in noncolor/RGB versions,delivered with male/female connectors.

ELECTRONICS

Power(Luminaire)18WPower Factor>0.9, CCS auto calibrating
Input VoltageDC24V ,AC220V,50/60HZDriver OptionIntegral control gear
Dimming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable


OPTICS

Light SourceSMDLumen (Luminaire):100LM
LED BrandCREE /OSRAM/TUANSHINELuminaire Lminous Efficacy90-100LM/W
Full White LED(FW)2200K/2700K/3000K/3500K/4000K/5000K/5700K/6500KTurnable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle12°,25°,40°,60° etc.
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesDiffuser, Filter, Honeycomb Louver,


CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP67, Class ICertificateIP67, CE, ETL, RoHS, CCC

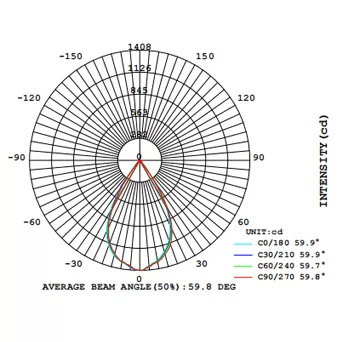

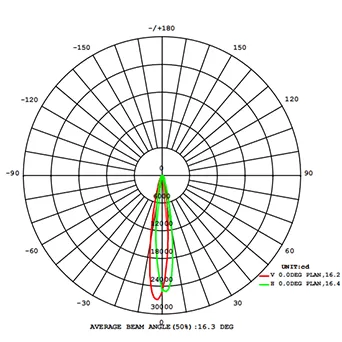

LIGHT DISTRIBUTION

MECHANICS

Dimension350/510/1000*H82mmWeight1.15KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishStainless steel SUS316Mounting TypeOutdoor lighting for squares, outdoor parks, leisure places, etc

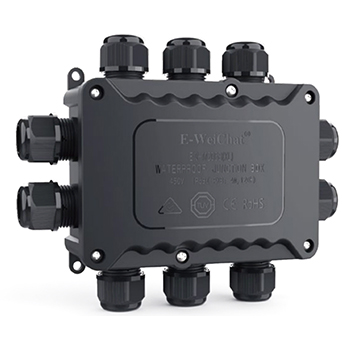

OPTIONAL ACCESSORIES

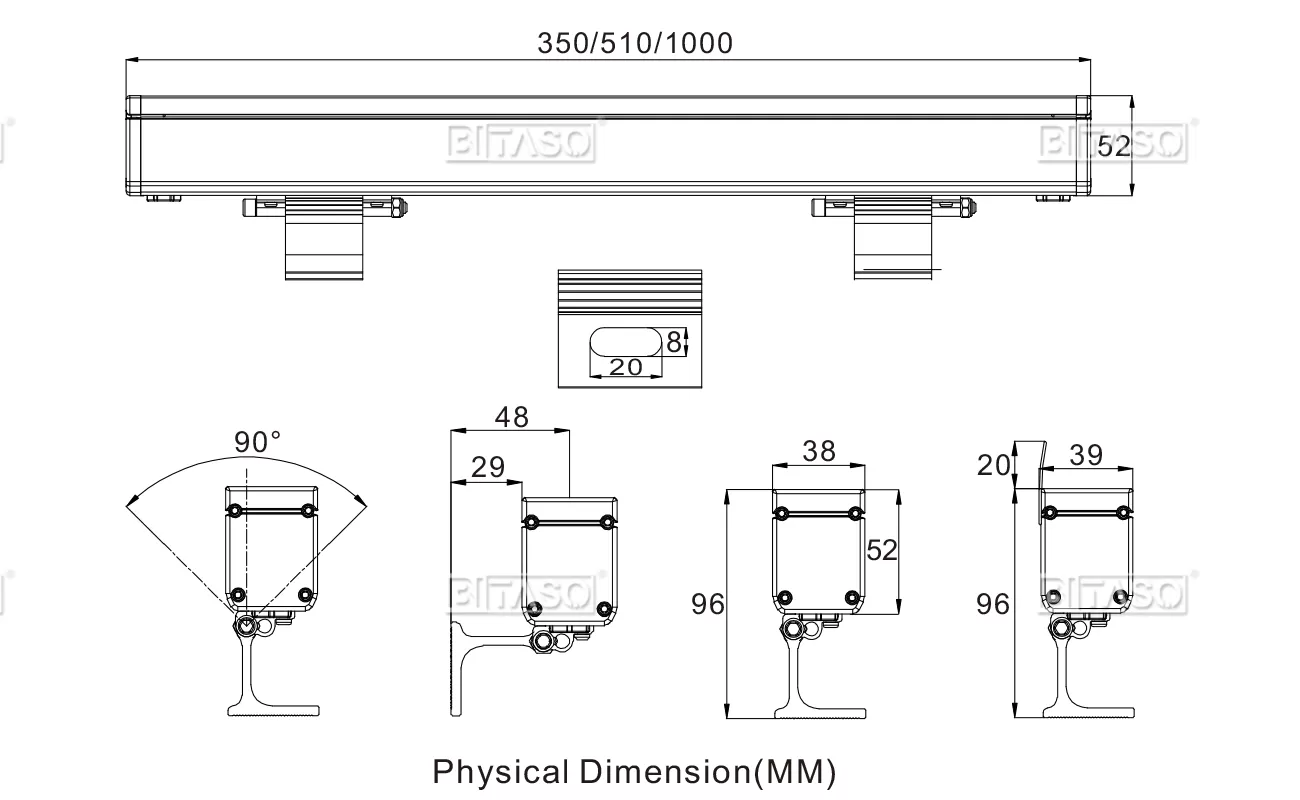

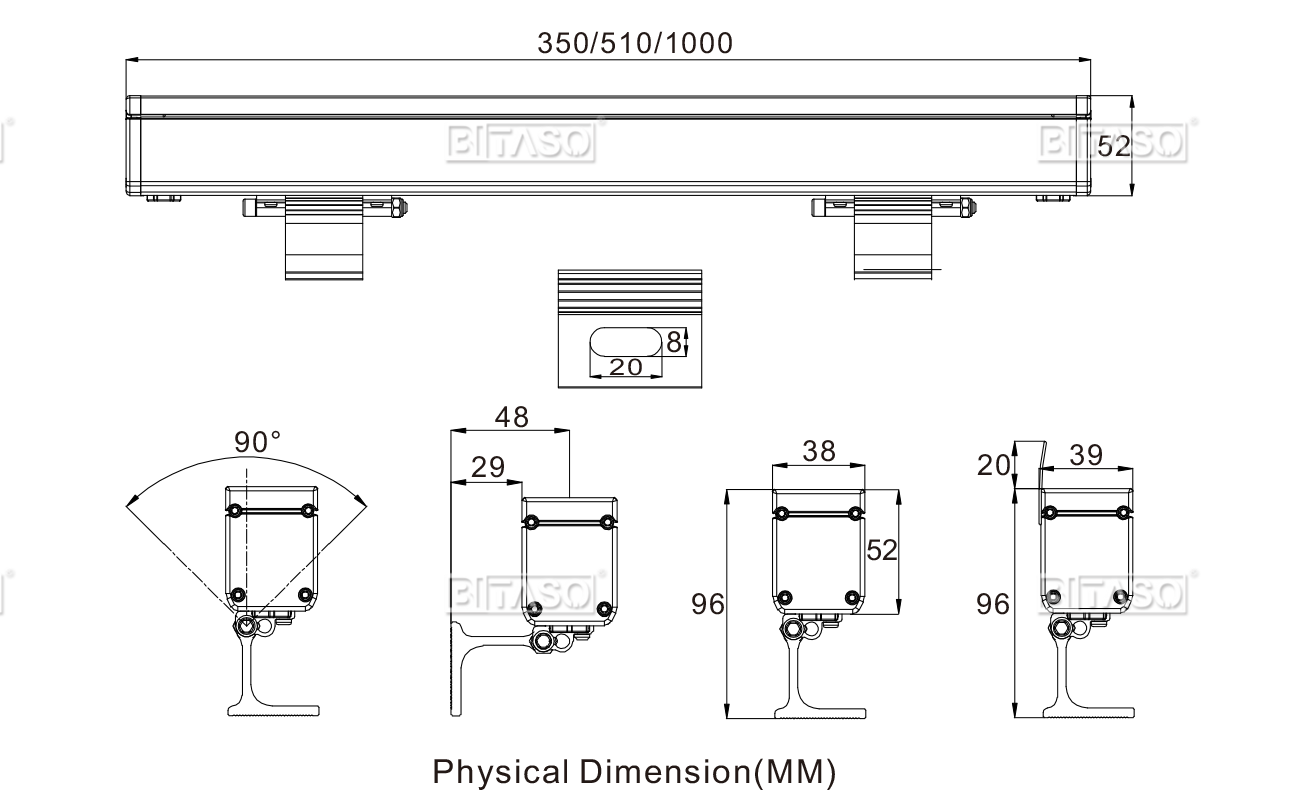

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

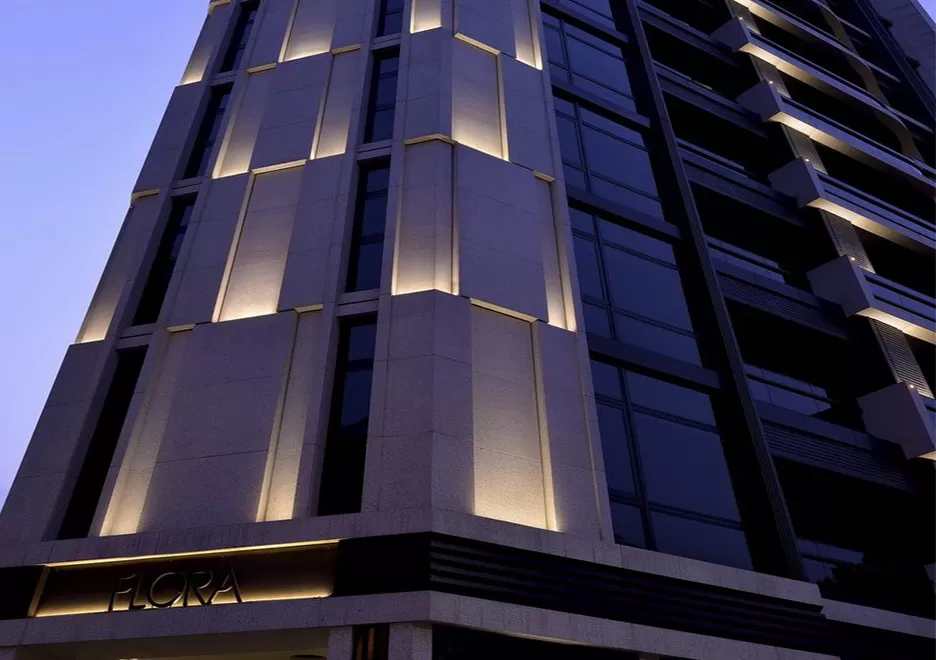

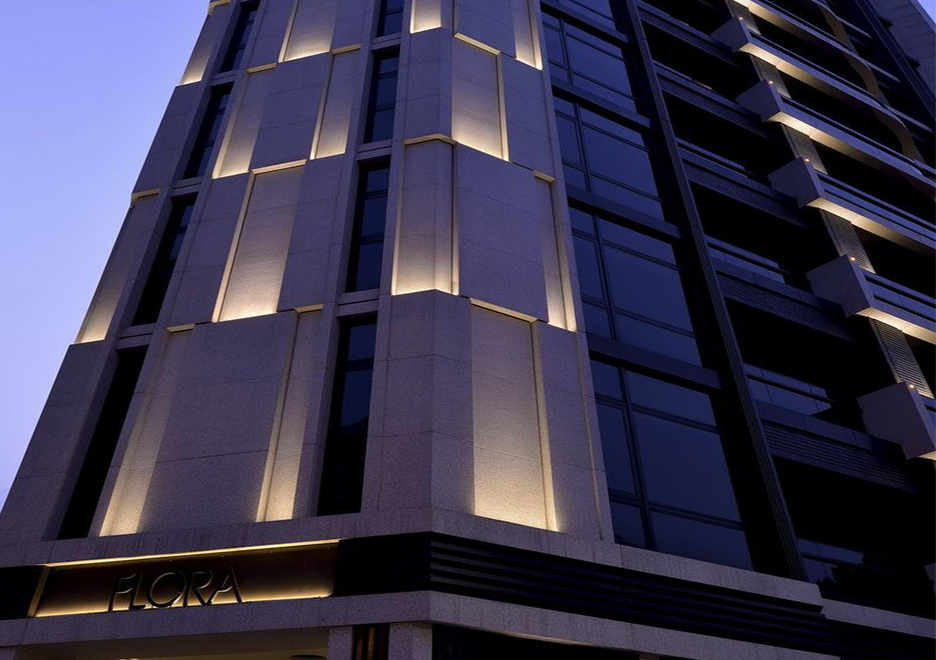

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

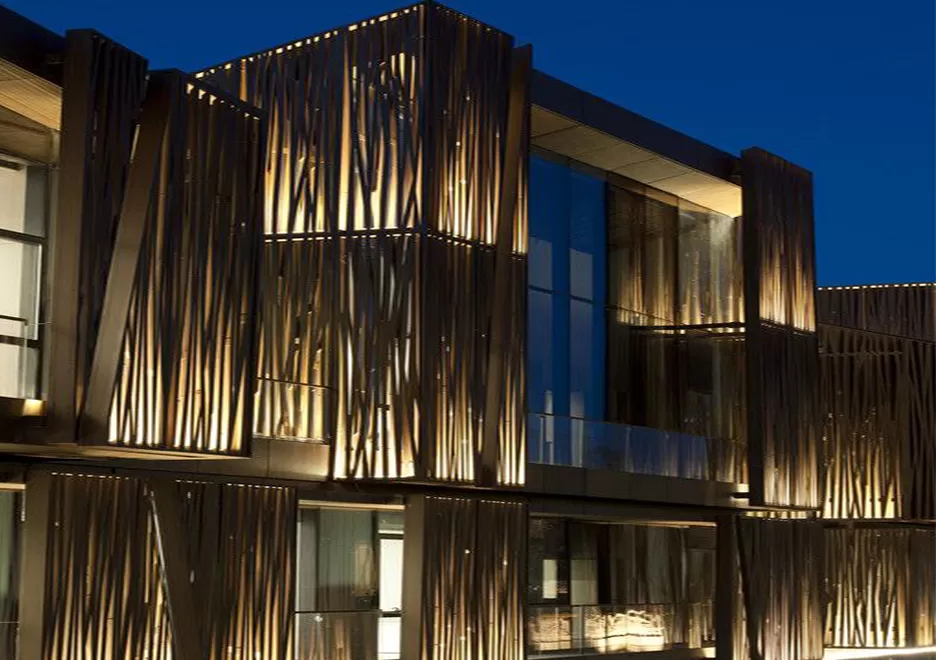

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.

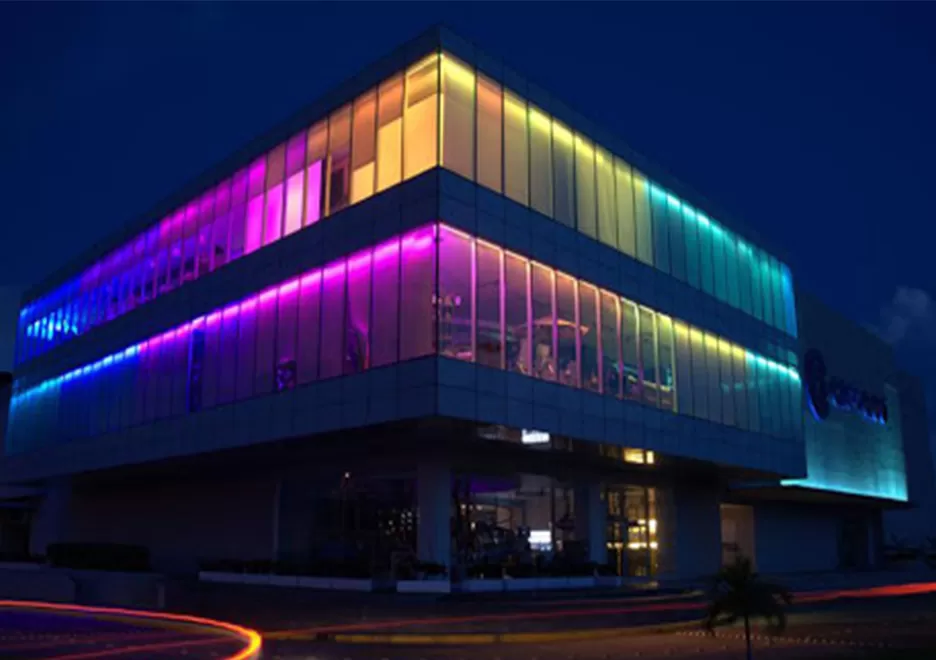

  • PROJECT REFERERNCE

    PROJECT REFERERNCE

    BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on  independent technology innovation of new models design.
