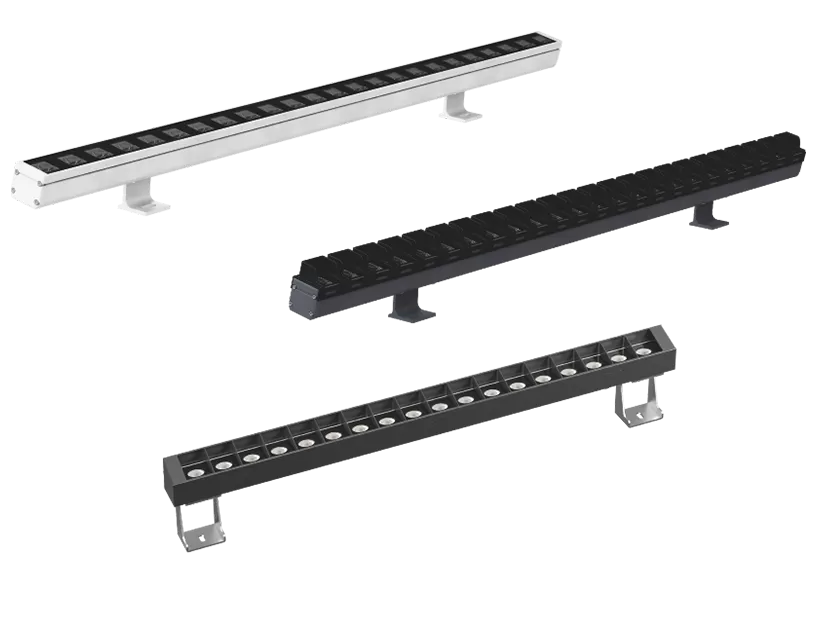

LED Linear Washer Light
LED Linear Washer Light
Higher performance linear wall washing solution with extended range of selection,novel structure without epoxy sealing,extruded aluminium body,tempered glass diffuser,stainless steel support,high heat dissipation and prolonged life span,multi-angle and polarized lens design to maximize utilization of light,flexible and adjustable bracket makes the beam angle more accurate and brings a more extraordinary grazing effect,optional baffle/visor,structure for reduced glare and optimized lighting control,24VDC model and RGB/RGBW versions are also available.
01Technical Specifications
Housing: Extruded 6063 aluminum alloy profile,Electrostatic powder coated
LED: CREE，OSRAM，EPISTAR LED
Glass Cover: Step tempered glass.T=4mm
Lens: Optical Lens,efficiency >85%
Bracket: 12#Die-casting aluminum,powder coated
Power Cabel: H05RN-F 2*1.0mm²L=0.3M(Low voltage)
H05RN-F 3*0.75mm²L=0.3M(High voltage)
H05RN-F 2*0.75mm² power cable+H05RN-F 3*0.5mm² signal cable L=0.3M (DC24V RGB/RGBW, DMX512)
Operating Temperature: -20°C~40°C
LED Wall Washer Light Linear light
Small size design, suitable for vertical installation, side installation, inverted installation and other applications: landscape architecture, contour modeling, bridge railings, indoor lighting, etc.
Compared with the flexible strip lights, LED linear light carries the merits of better heat dissipation, large power options, as it is with aluminum material. BITASO this LED Linear is much easier for installation, and is widely used in hotel rooms and public areas. BITASO not only designed a full series of LED linear bar/ batten/ light fixture, but also wide option accessories, like fixed clips, adjustable bracket, honey comb louver and so on to suit for the different applications.
Feature
Light
02 Products
03 Application
