LAMBER D105 COB Round Adjustable Pendant Light

LAMBER D105 COB Round Adjustable Pendant Light

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)18W 26W 30W 32W 36WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-240V AC220-240V 50/60HzDriver OptionIntegral control gear
Dimming Type0-10V, DALI, Triac, DMX512, PWMDriverIntegral control gear
Optional Eectronic AccessoriesIntegralConnector2/3/4/5 Pin


OPTICS

Light Source1PCS COBLumen（Luminaire):1620-3240LM/W
LED BrandCREE/BRIDGELUX/CITILED/TYANSHINE COBLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700K,3000K,3500K,4000K,4500K,5000K,5700KTunable White2700/6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle15°,24°,38°(Reflector Cup)/15°,24°,36°,60°(Lens)
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesFilter, Honeycomb Louver


CONTROL SYSTEM

ControlDMX512-RDM/DMX512/DALI/ 0-10V/1-10V/TriacDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingDC12# Die-casting aluminum housing
ComplianceIK08, IP65, Class ICertificateIP65, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

  • LAMBER D105 COB AVERAGE BEAM ANGLE(50%).15°

    LAMBER D105 COB AVERAGE BEAM ANGLE(50%).15°

  • LAMBER D105 COB AVERAGE BEAM ANGLE(50%).24°

    LAMBER D105 COB AVERAGE BEAM ANGLE(50%).24°

  • LAMBER D105 COB AVERAGE BEAM ANGLE(50%).36°

    LAMBER D105 COB AVERAGE BEAM ANGLE(50%).36°

  • LAMBER D105 COB AVERAGE BEAM ANGLE(50%).38°

    LAMBER D105 COB AVERAGE BEAM ANGLE(50%).38°

MECHANICS

Dimension105x150x500/800/1200mmWeight2.6KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialDC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypePendant mounting


OPTIONAL ACCESSORIES

  • Diffuser 1

    Diffuser 1

  • Diffuser 2

    Diffuser 2

  • Filter

    Filter

  • Honeycomb Louver

    Honeycomb Louver

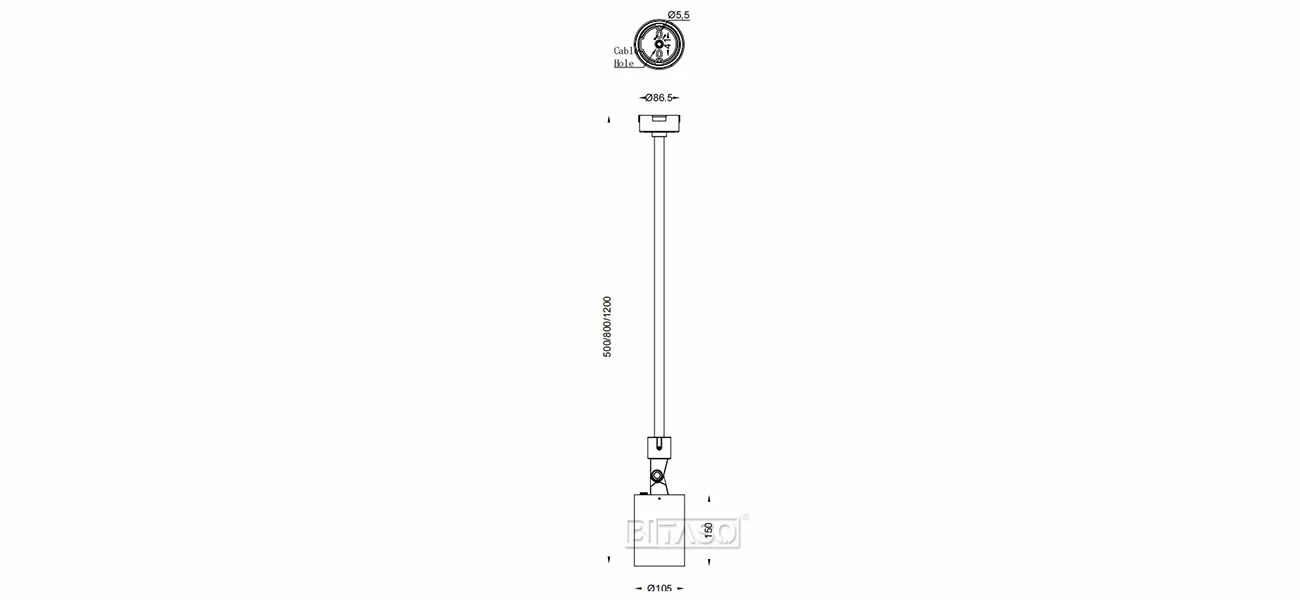

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.
