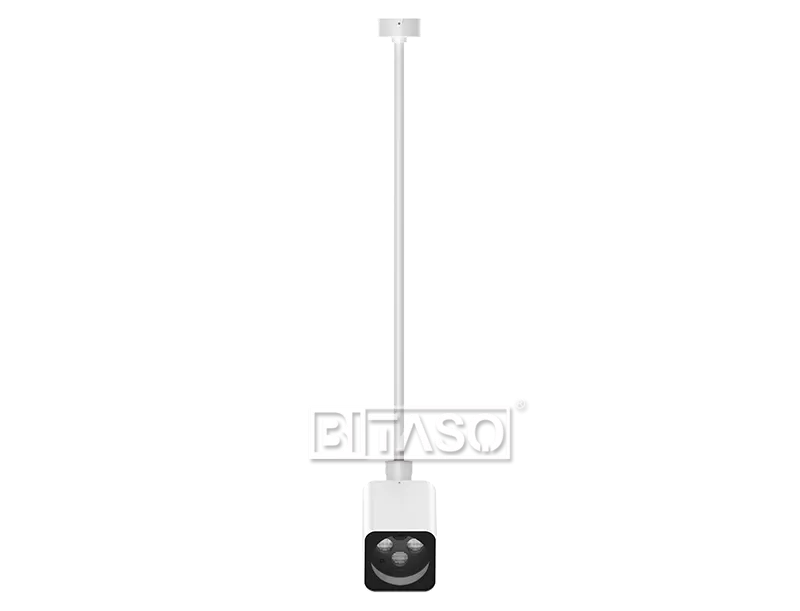

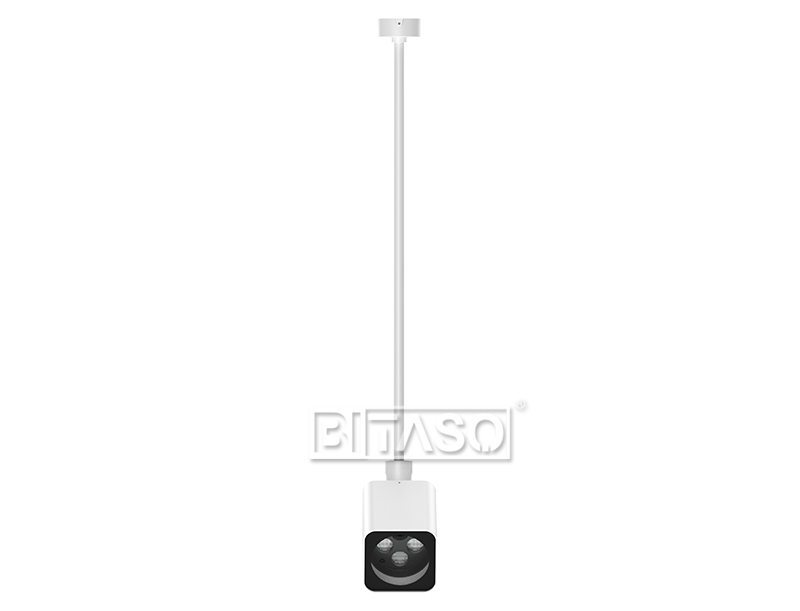

LAMBER D105 SMD Square Adjustable Pendant Light

LAMBER D105 SMD Square Adjustable Pendant Light

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.

Inquiry Now

ELECTRONICS

Power(Luminaire)15W 18W 20W 24W 26W 30WPower Factor>0.9
Input VoltageDC24V DC36V DC48V AC110-240V AC220-240V 50/60HzDriver OptionIntegral control gear
Dimming Type0-10V, DALI, Triac, DMX512, PWMDriverIntegral control gear
Optional Eectronic AccessoriesIntegralConnector2/3/4/5 Pin


OPTICS

Light Source6/7PCS SMDLumen（Luminaire):1200-2400LM/W
LED BrandCREE/LUMINUS/OSRAM/TYANSHINE SMDLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2700K,3000K,3500K,4000K,4500K,5000K,5700KTunable White2700/6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10*22,10*55,20*60°
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesFilter, Honeycomb Louver,Grille


CONTROL SYSTEM

ControlDMX512-RDM/DMX512/DALI/ 0-10V/1-10V/TriacDMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingDC12# Die-casting aluminum housing
ComplianceIK08, IP65, Class ICertificateIP65, CE, ETL, RoHS, CCC


LIGHT DISTRIBUTION

  • LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).12°

    LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).12°

  • LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).25°

    LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).25°

  • LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).30°

    LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).30°

  • LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).40°

    LAMBER D105 SMD AVERAGE BEAM ANGLE(50%).40°

MECHANICS

Dimension

105x150x500/800/1200mm

Weight1.85KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialDC12# Die-casting aluminum housing
FinishBlack/Grey/WhiteMounting TypeCeiling mounting


OPTIONAL ACCESSORIES

  • Diffuser 1

    Diffuser 1

  • Diffuser 2

    Diffuser 2

  • Filter

    Filter

  • Honeycomb Louver

    Honeycomb Louver

  • Grille

    Grille

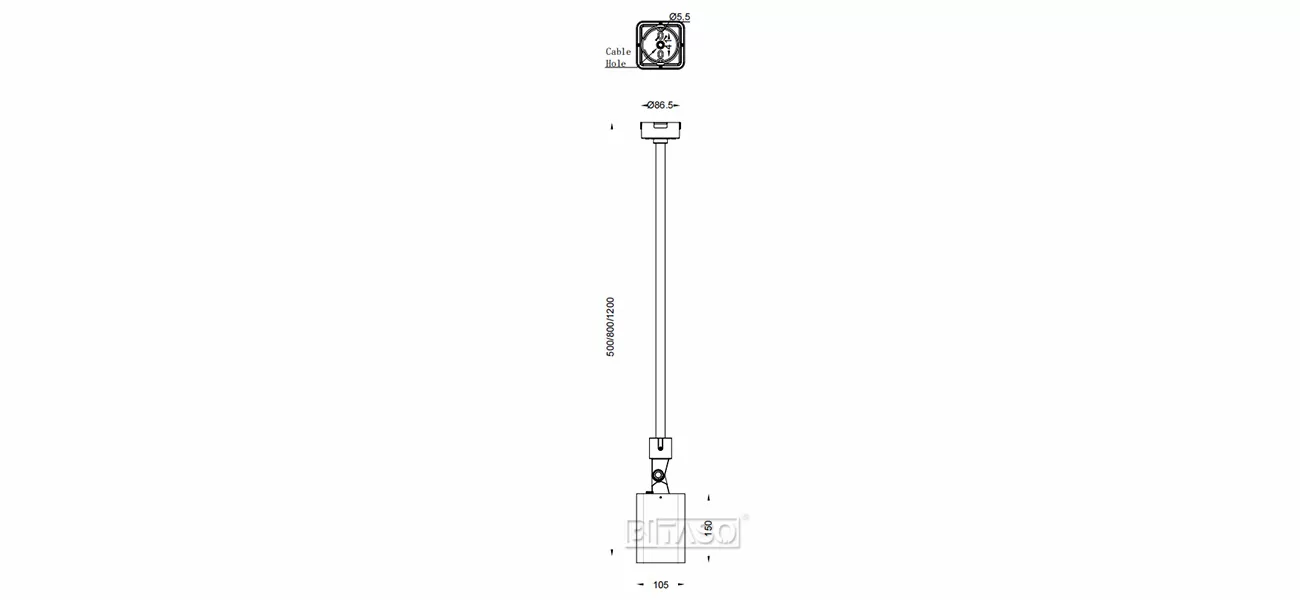

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.

  • PROJECT REFERENCE

    PROJECT REFERENCE

    BITASO lighting is committed to be a world-class professional lighting brand, All BITASO’s luminaries designed in families to ensure that they are simple to specify and configure.
