Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.
ELECTRONICS
Power(Luminaire) | 8W 10W 12W 15W 24W | Power Factor | >0.9 |
Input Voltage | DC24V DC36V DC48V AC110-240V AC220-240V 50/60Hz | Driver Option | Integral control gear |
Dimming Type | 0-10V, DALI, Triac, DMX512, PWM | Driver | Integral control gear |
Optional Eectronic Accessories | Integral | Connector | 2/3/4/5 Pin |
OPTICS
Light Source | 4PCS SMD | Lumen(Luminaire): | 640-1920LM/W |
LED Brand | CREE/LUMINUS/OSRAM/TYANSHINE SMD | Luminaire Lminous Efficacy | 80LM/W |
Full White LED(FW) | 2700K,3000K,3500K,4000K,4500K,5000K,5700K | Tunable White | 2700/6500K |
Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
LED Life Span | ≥50,000hrs | Beam Angle | 5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10*22,10*55,20*60° |
MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Filter, Honeycomb Louver,Grille |
CONTROL SYSTEM
Control | DMX512-RDM/DMX512/DALI/ 0-10V/1-10V/Triac | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
Corrosion Resistance | optional for marine environment | Passive Cooling | DC12# Die-casting aluminum housing |
Compliance | IK08, IP65, Class I | Certificate | IP65, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
Dimension | 86x140x500/800/1200mm | Weight | 1.85KGS |
Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | DC12# Die-casting aluminum housing |
Finish | Black/Grey/White | Mounting Type | Pendant mounting |
OPTIONAL ACCESSORIES

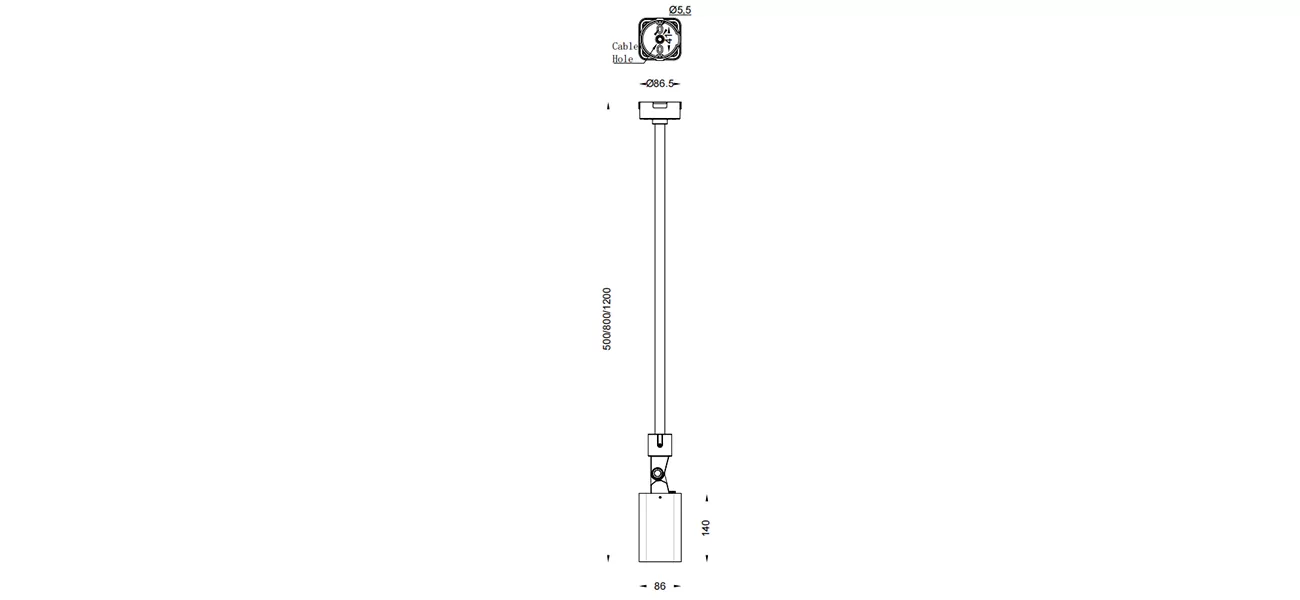

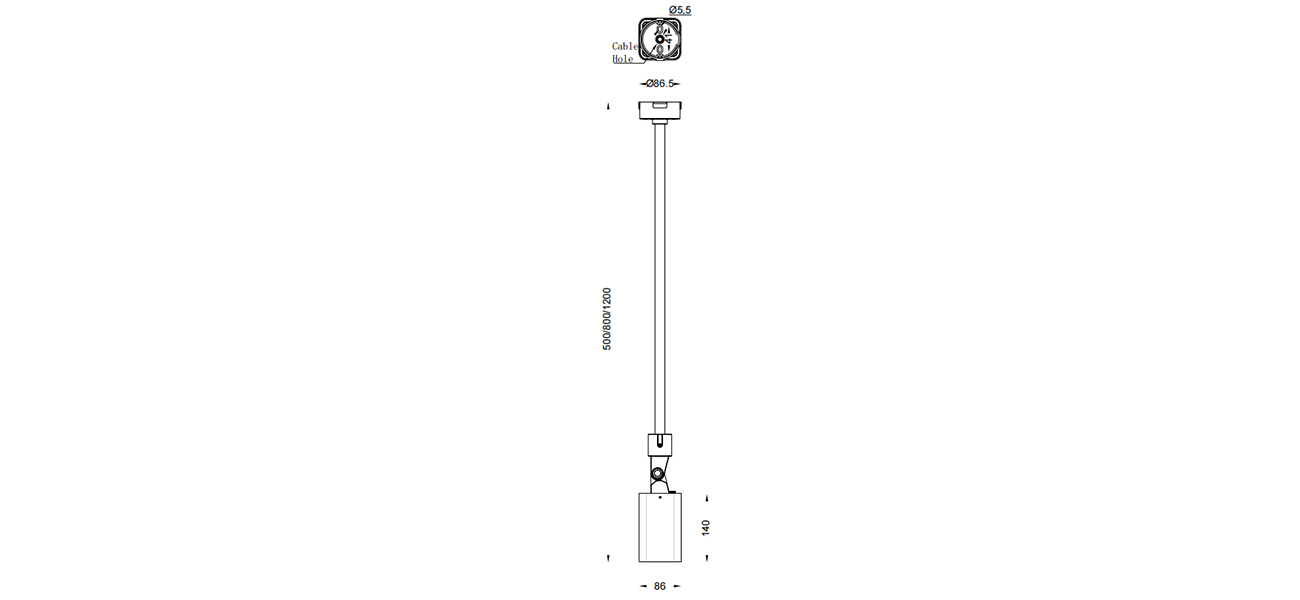

LUMINAIRE DIMENSION
