The essential, linear form combines with an impressive aesthetic finish where light creates a magical play of reflections - even when switched off. Crystal gives preciousness to ceilings and spaces. It was created as a linear solution providing high comfort and efficiency, designed for Office environments but also ideal for Retail, Hospitality and Infrastructures. The light is soft, with broad perception of space, by distributing luminance over all levels. The frame gathers the light emitted by the reflector and spreads it over the ceiling, thereby combining decor and function for even better spatial perception. The rounded corner refines the outline and makes it more harmonious.
ELECTRONICS
| Power(Luminaire) | 5W/7W/12W/15W | Power Factor | >0.9 |
| Input Voltage | AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | COB | Lumen (Luminaire): | 1350LM |
| LED Brand | CREE/BRIDGELUX/PHILLIPS | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 2700K, 3000K, 3500K, 4000K, 4500K, 5000K | Tunable White | 2700K-5000K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 15°, 30°, 45° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Honeycomb Louver |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs), RGBW (4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP20, Class I | Certificate | IP20 CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 55*55*H80/55*55*H120/75*75*H95/75*75*H140mm | Weight | 0.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | ceiling or wall mounting |
OPTIONAL ACCESSORIES

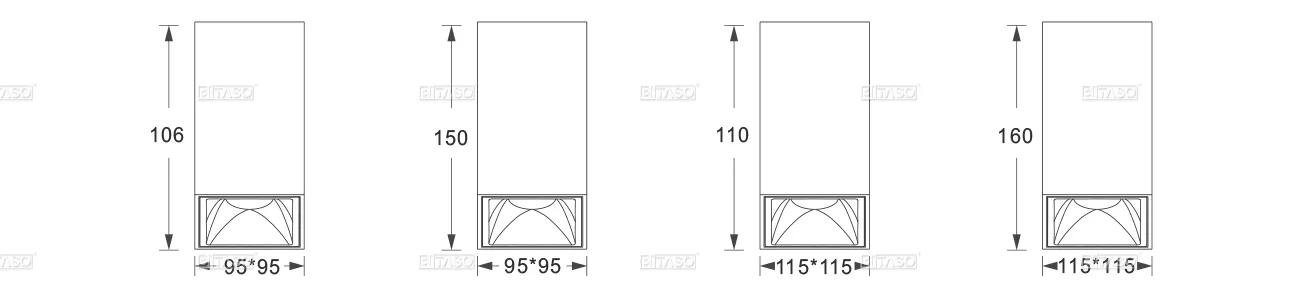

LUMINAIRE DIMENSION
