BT-SMCOB040-05/07/12/15

The essential, linear form combines with an impressive aesthetic finish where light creates a magical play of reflections - even when switched off. Crystal gives preciousness to ceilings and spaces. It was created as a linear solution providing high comfort and efficiency, designed for Office environments but also ideal for Retail, Hospitality and Infrastructures. The light is soft, with broad perception of space, by distributing luminance over all levels. The frame gathers the light emitted by the reflector and spreads it over the ceiling, thereby combining decor and function for even better spatial perception. The rounded corner refines the outline and makes it more harmonious.

ELECTRONICS

Power(Luminaire)5W/7W/12W/15WPower Factor>0.9
Input VoltageAC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, TriacDriverIntegral control gear
Optional Eectronic AccessoriesLeading Cable, Connection Cable, Junction boxConnector2/3/4/5 Pin


OPTICS

Light SourceCOBLumen (Luminaire):1350LM
LED BrandCREE/BRIDGELUX/PHILLIPSLuminaire Lminous Efficacy80LM/W
Full White LED(FW)2700K, 3000K, 3500K, 4000K, 4500K, 5000KTunable White2700K-5000K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Angle15°, 30°, 45°

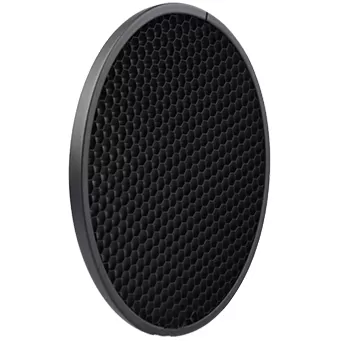

MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories Honeycomb Louver



CONTROL SYSTEM

ControlRDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22



ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP20, Class ICertificateIP20 CE, ETL, RoHS, CCC

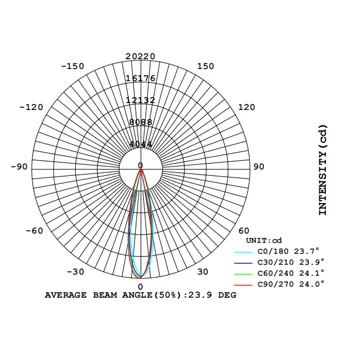

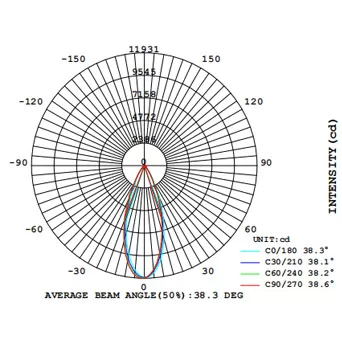

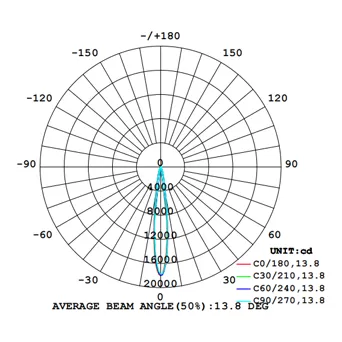

LIGHT DISTRIBUTION

MECHANICS

Dimension55*55*H80/55*55*H120/75*75*H95/75*75*H140mmWeight0.5KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishTIGER PODER gray(RAL9006), black(RAL9005)Mounting Typeceiling or wall mounting


OPTIONAL ACCESSORIES

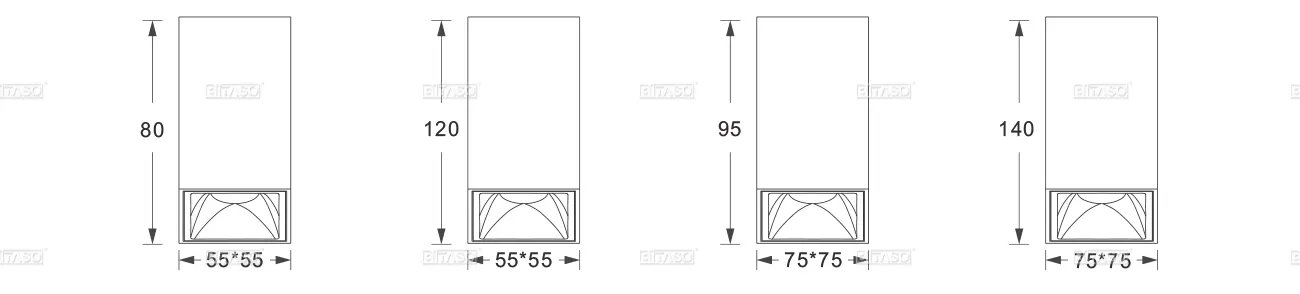

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
