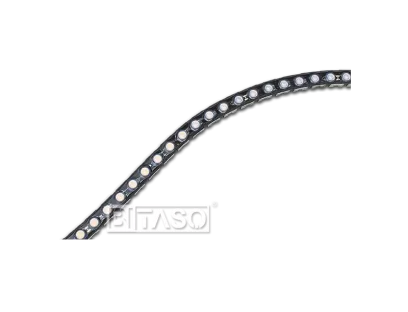

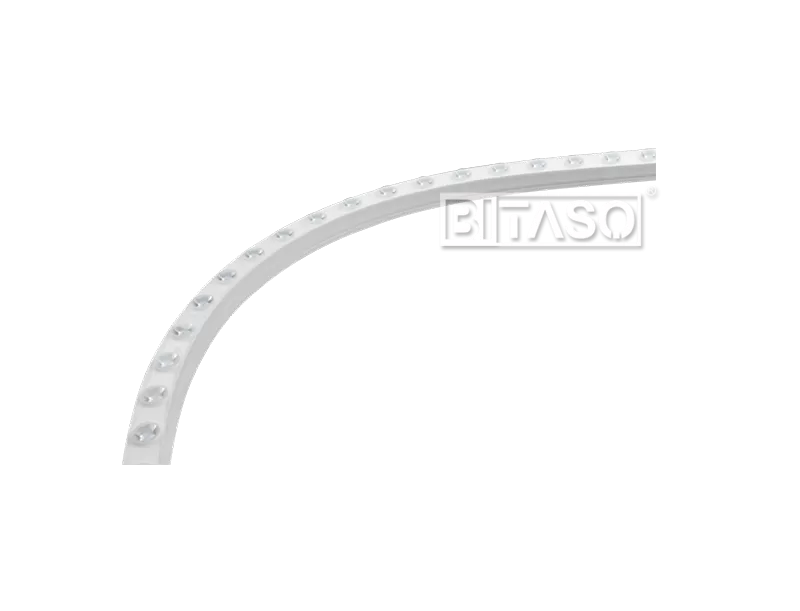

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,excellent heat dissipation,adjustable stainless steel holder can be turned around 180°,requires constant voltage remote driver,also available in noncolor/RGB versions,delivered with male/female connectors.
ELECTRONICS
| Power(Luminaire) | 11.5W/23W/46W/92W | Power Factor | >0.9, CCS auto calibrating |
| Input Voltage | DC24V | Driver Option | Integral control gear |
| Dimming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 8 pin power+DMX integrated cable |
OPTICS
| Light Source | SMD | Lumen (Luminaire): | 100LM |
| LED Brand | CREE/LUMINUS LED | Luminaire Lminous Efficacy | 90-100LM/W |
| Full White LED(FW) | 2700K/3000K/3500K/4000K/5000K/5700K/6500K | Turnable White | 2700K-6500K |
| Multi Color | RGB 3in1, RGBW 4in1 | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Agle | 15°,20°,30°,20°*40°,20*50°etc. |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Diffuser, Filter, Honeycomb Louver, |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP67, Class I | Certificate | IP67, CE, ETL, RoHS, CCC |

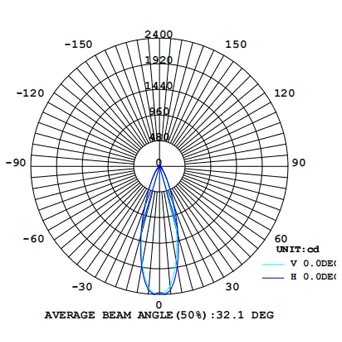

LIGHT DISTRIBUTION
MECHANICS
| Dimension | L1000mm | Weight | 1.0KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Stainless steel SUS316 | Mounting Type | Outdoor lighting for squares, outdoor parks, leisure places, etc |
OPTIONAL ACCESSORIES

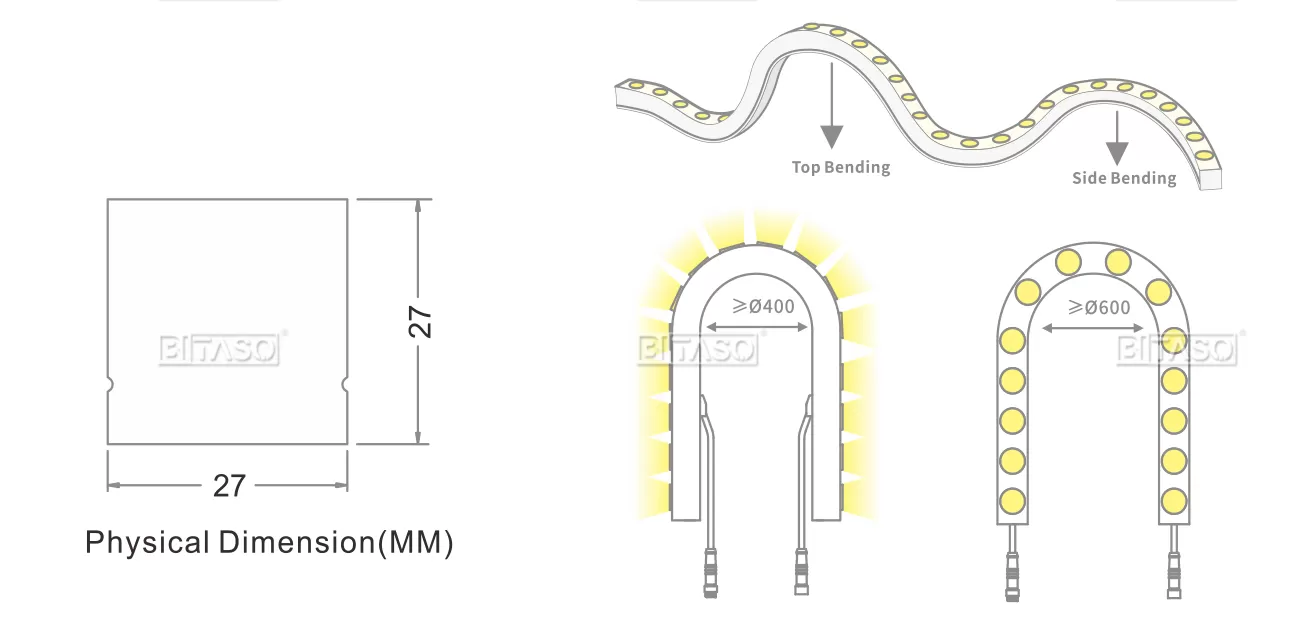

LUMINAIRE DIMENSION

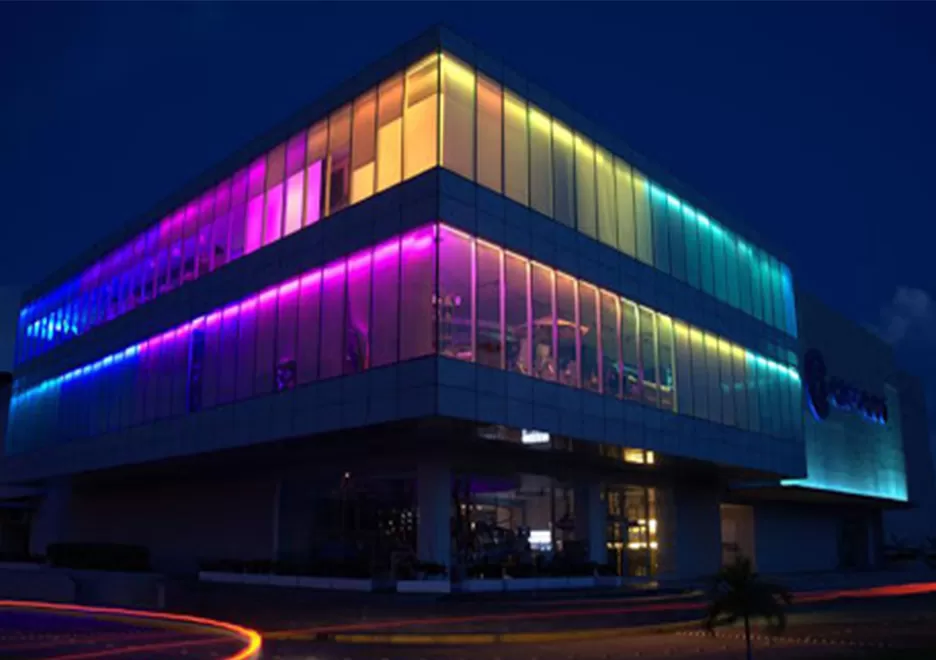

PROJECT REFERERNCE
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,aluminium barckets,excellent heat dissipation,adjustable angle bracket,requires constant voltage remote driver,also available in noncolor/RGB versions,delivered with male/female connectors.

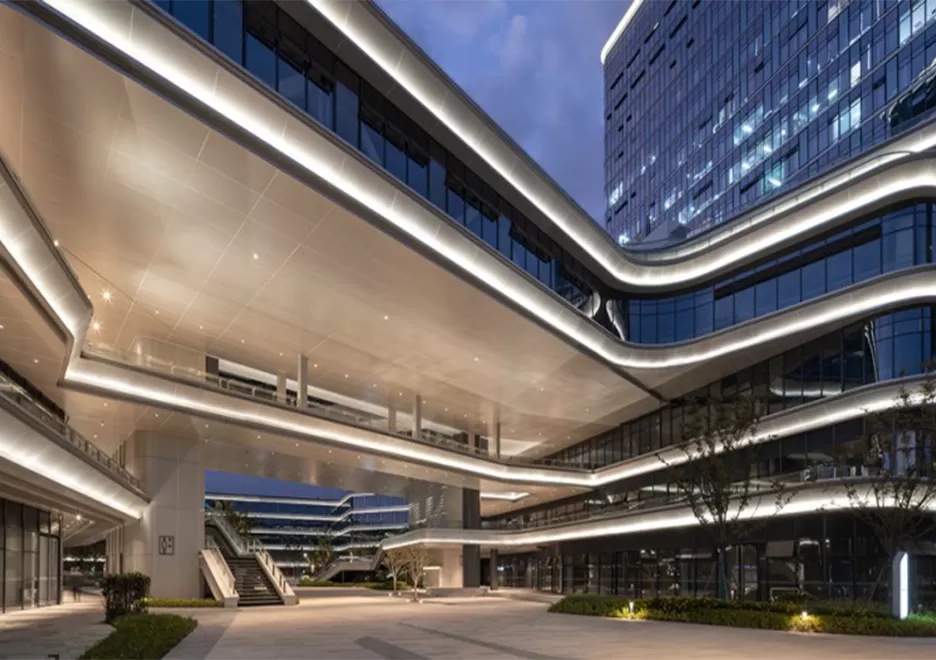

PROJECT REFERERNCE
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,aluminium barckets,excellent heat dissipation,adjustable angle bracket,requires constant voltage remote driver,also available in noncolor/RGB versions,delivered with male/female connectors.

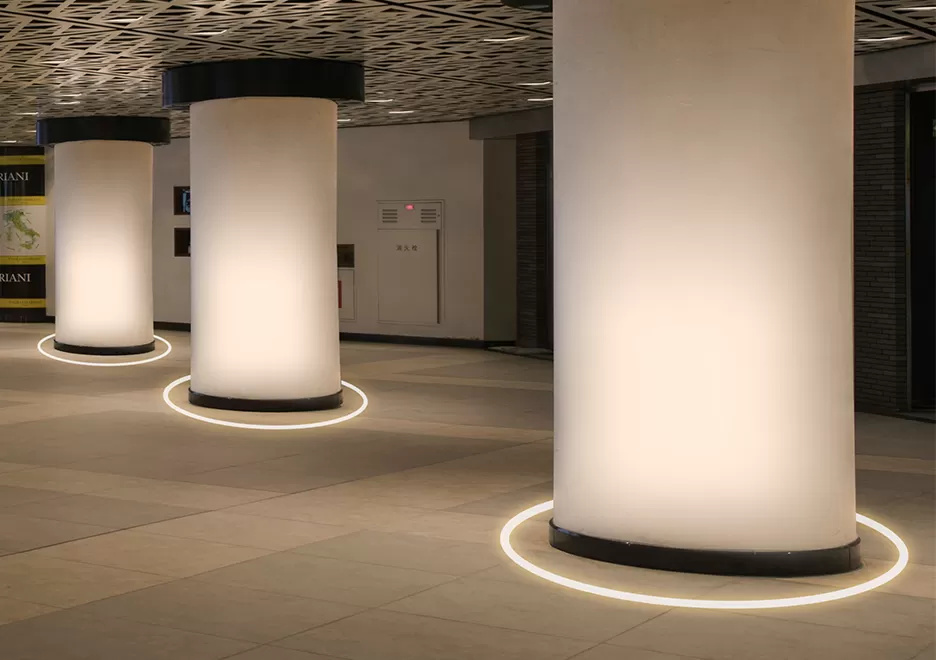

PROJECT REFERERNCE
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact,Sleek and discreet linear system to enhance riverside sights,museums,galleries,bridges.architectural facades,rigid construction,anode oxidation treatment for extreme outdoor environments,extruded aluminum alloy body,high-performamce optical lens makes light transmittance up to 90%,aluminium barckets,excellent heat dissipation,adjustable angle bracket,requires constant voltage remote driver,also available in noncolor/RGB versions,delivered with male/female connectors.
