ELECTRONICS

Power(Luminaire)
15W/25W/40WPower Factor>0.9,CCS auto calibrating
Input VoltageAC220-240V 50/60HZDriver OptionIntegral control gear
Diming TypeON/OFF,0-10V,DALI,TraicDriverIntegral control gear
Optional Eectronic Accessories/Connector/


OPTICS

Light Source1PC COBLumen(Luminaire):3600LM
LED BrandBridgeluxLuminaire Lminous Efficacy90LM/W
Full White LED(FW)2700-6000KTurnable White/
Multi Color/CRIRa>80, Ra>90
LED Life Span≥50,000hrsBeam Angle22°/36°/48°/60°
MacAdam Ellipse3 SDCM,5SDCMOptional Optical Acessories/


CONTROL SYSTEM

ControlDALI/ 0-10V/TriacDMX Channel/
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIP20,Class ICertificateIP20,CE, ETL, RoHS, CCC


MECHANICS

DimensionD72x88xH160mm/D92x113xH170mm/D114x135xH170mmWeight1.55KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishBlack/WhiteMounting TypeTrack

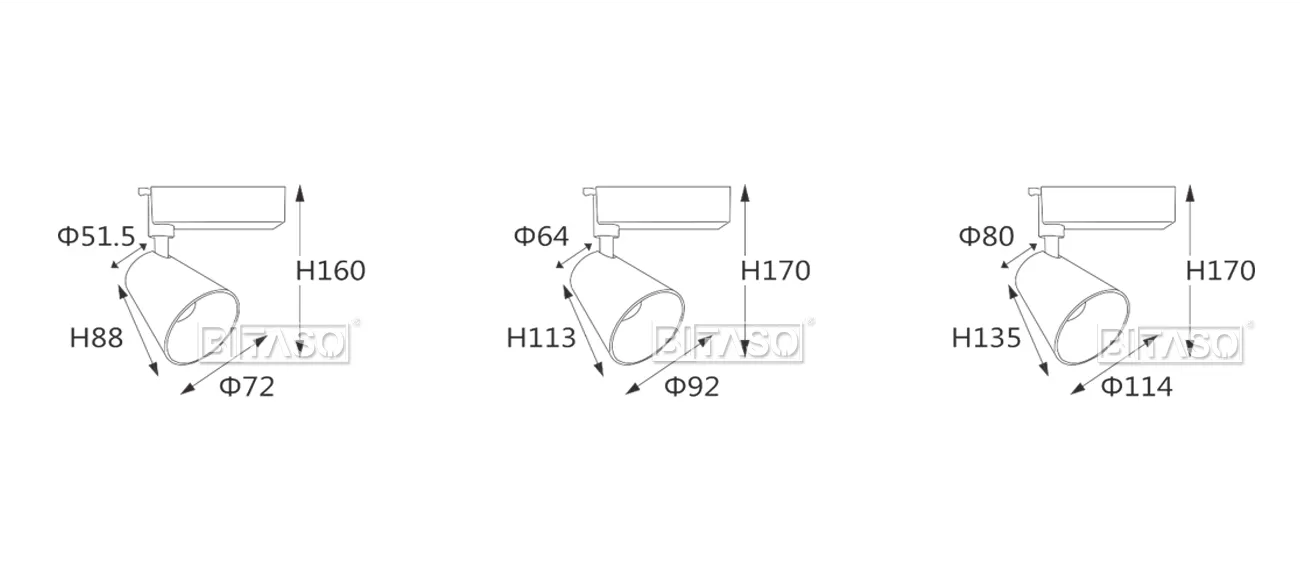

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION
