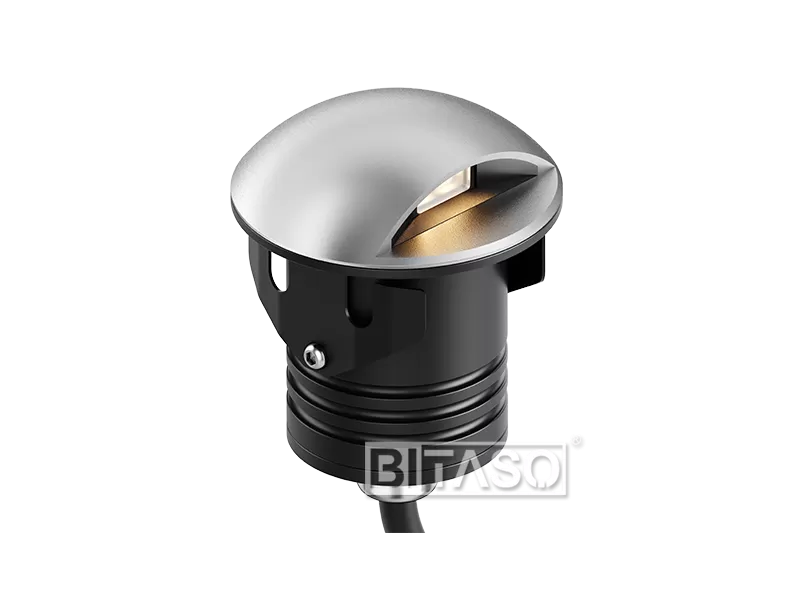

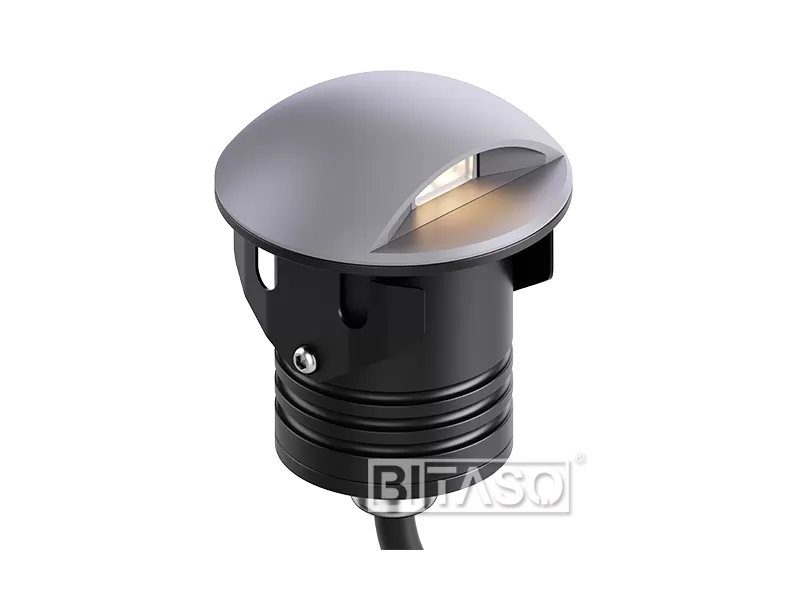

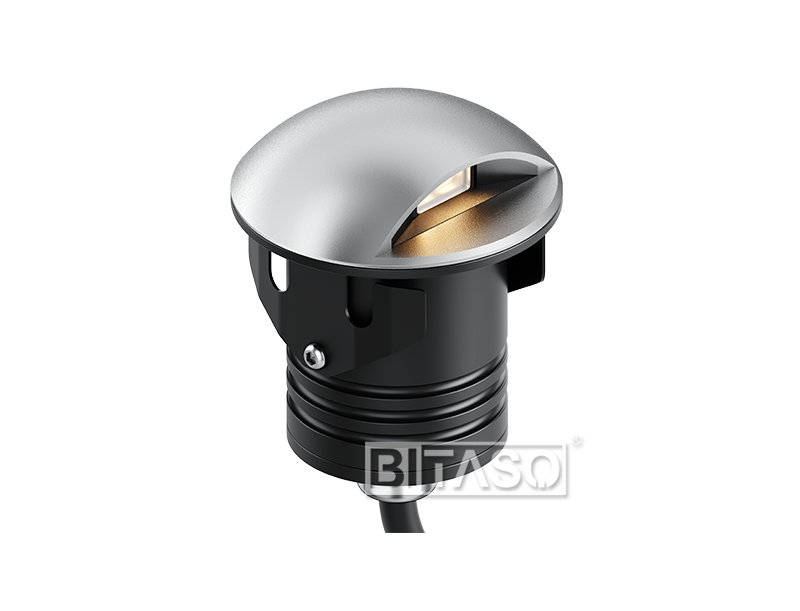

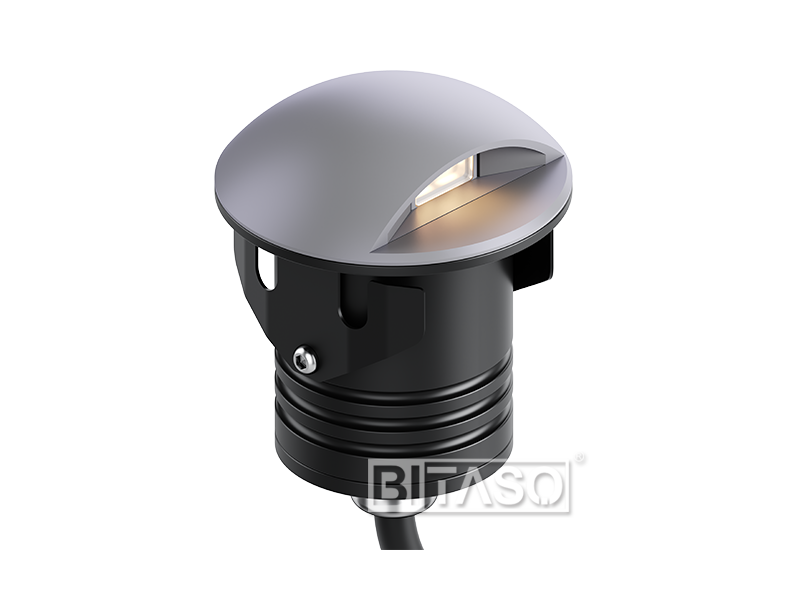

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).
ELECTRONICS
| Power(Luminaire) | 1W/1-3W | Power Factor | >0.9, CCS auto calibrating |
| Input Voltage | DC12V DC24V DC36V DC48V AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |

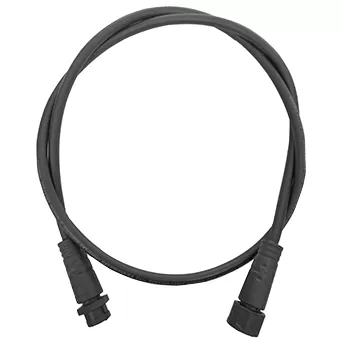

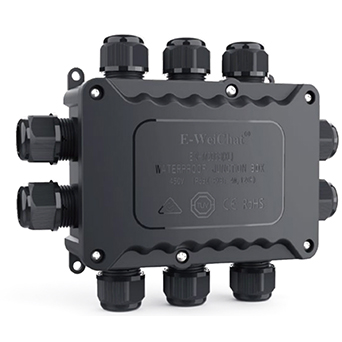

| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 8 pin power+DMX integrated cable |
OPTICS
| Light Source | Single hole/Double hole/Three holes/Four holes | Lumen（Luminaire): | 1200LM |
| LED Brand | CREE/TYANSHINE | Luminaire Lminous Efficacy | 72LM/W, 90LM/W, 90LM-135LM/W |
| Full White LED(FW) | 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Turnable White | 3000K-5700K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Agle | One-sided/two-sided/three-sided/four-sided |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Diffuser, Filter |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP67, Class I, II | Certificate | IP67, CE, ETL, RoHS, CCC |

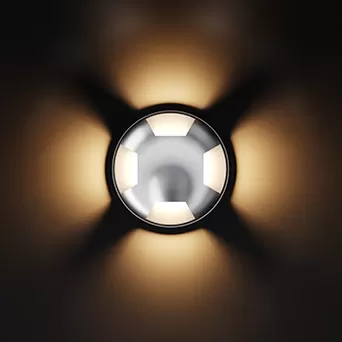

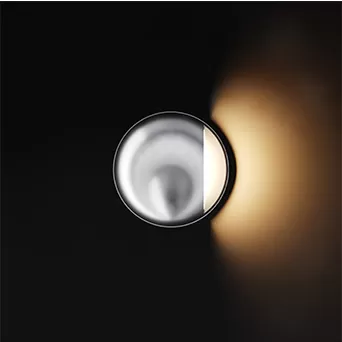

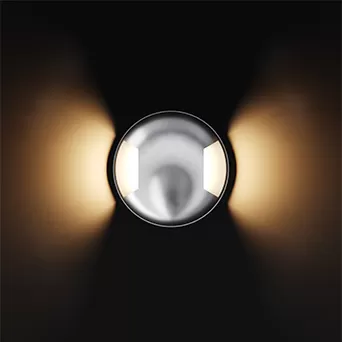

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 48x59mm | Weight | 1.5KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | Floor mounting |

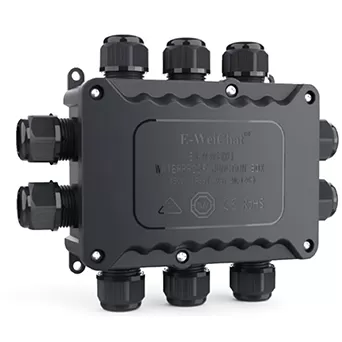

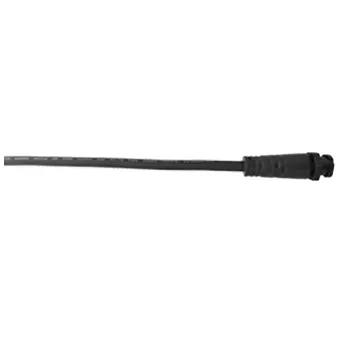

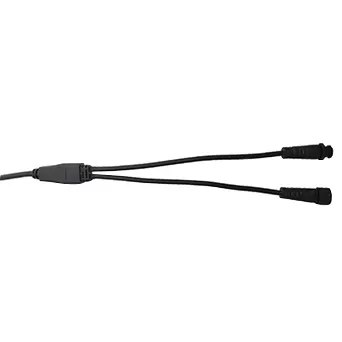

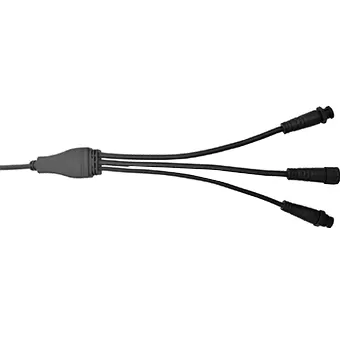

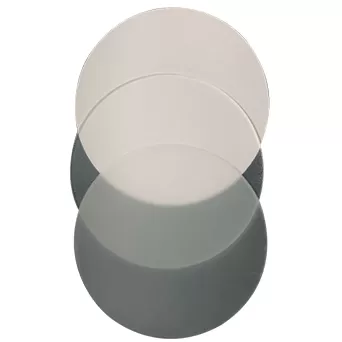

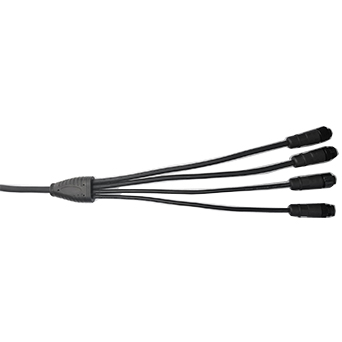

OPTIONAL ACCESSORIES

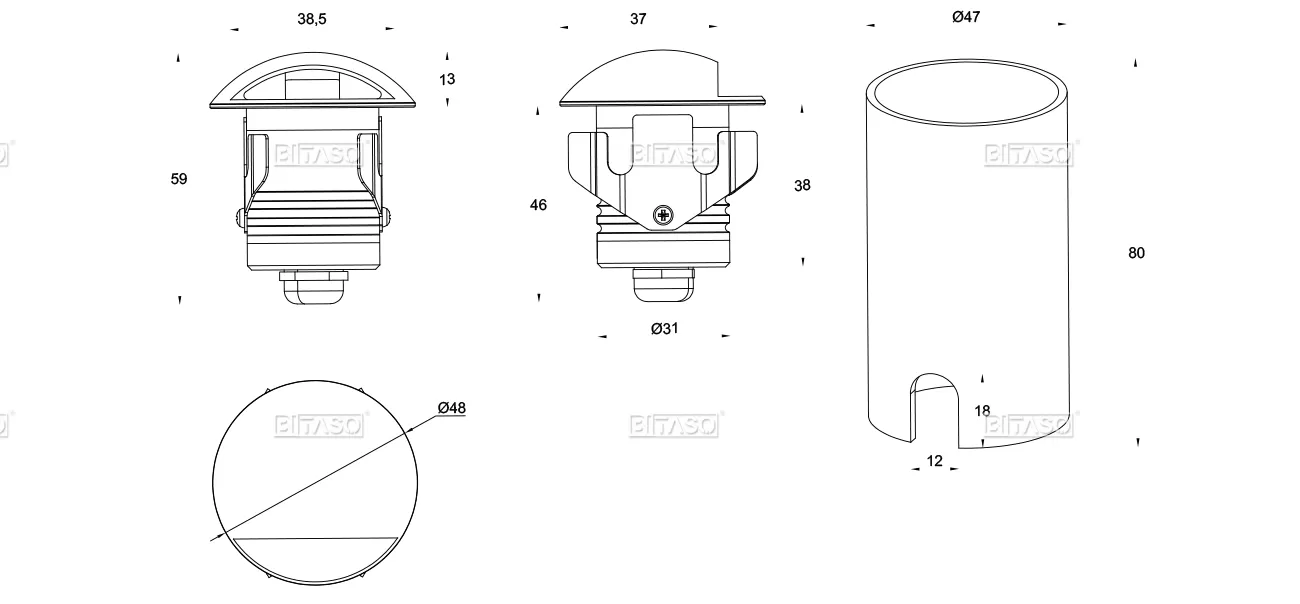

LUMINAIRE DIMENSION

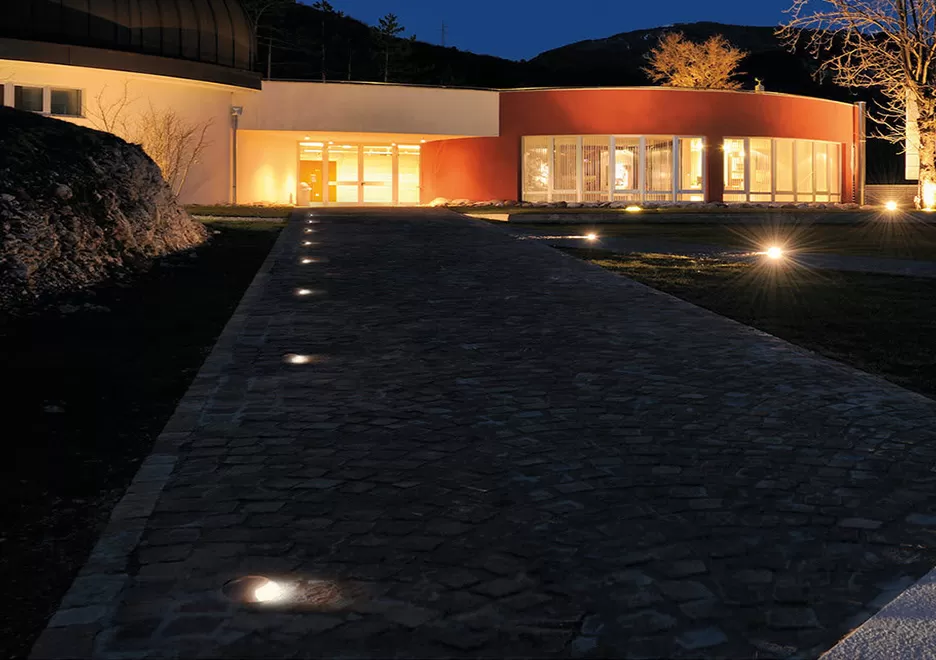

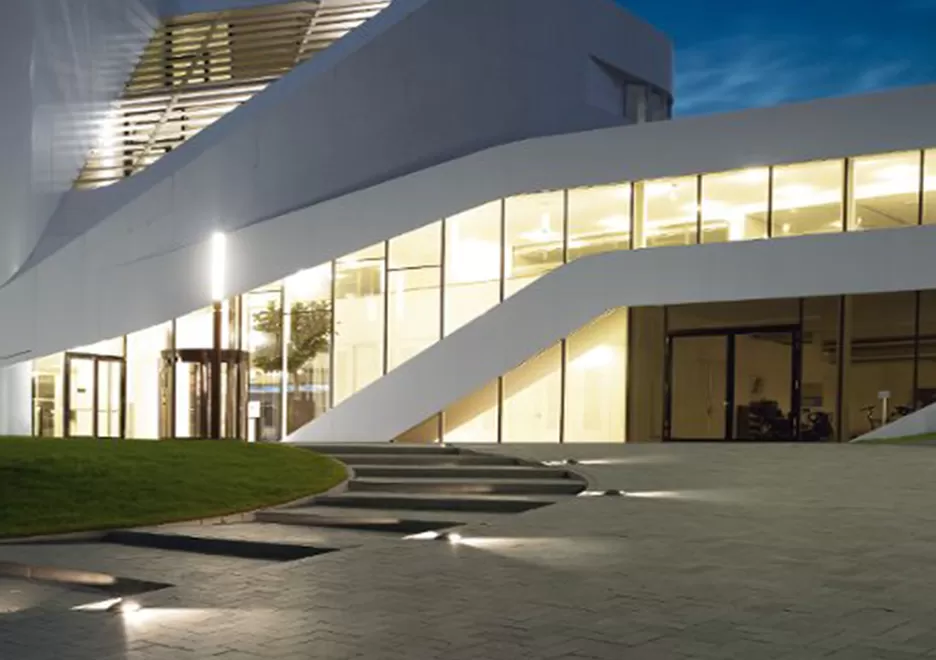

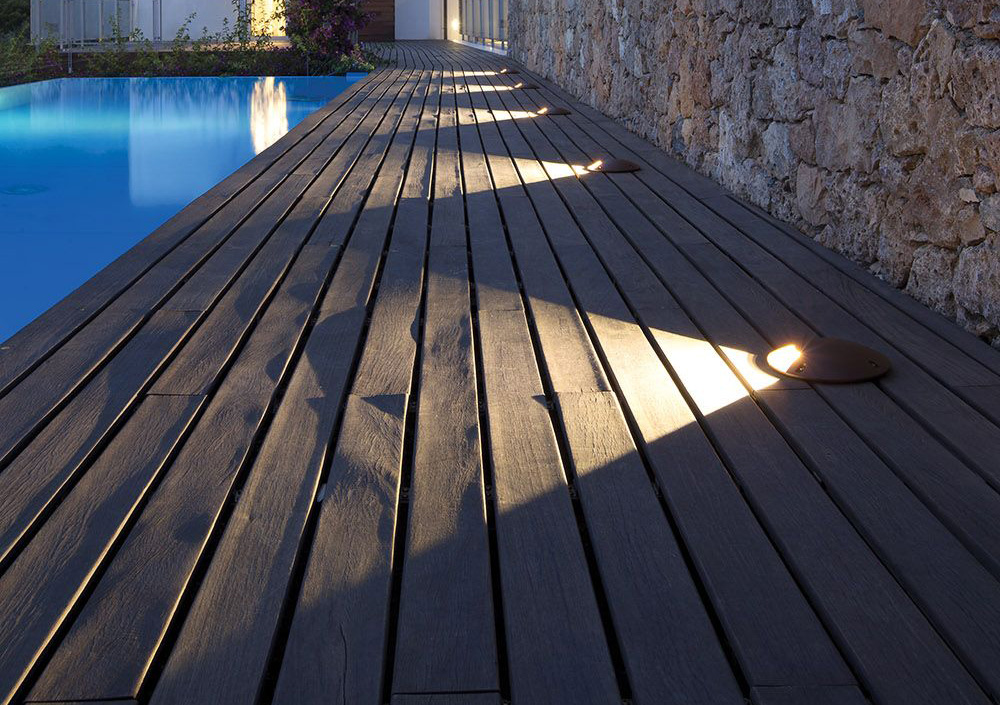

PROJECT REFERERNCE
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).
PROJECT REFERERNCE
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).
PROJECT REFERERNCE
Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).
