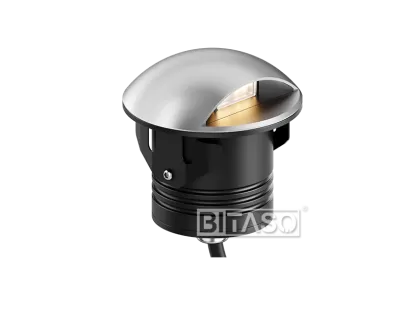

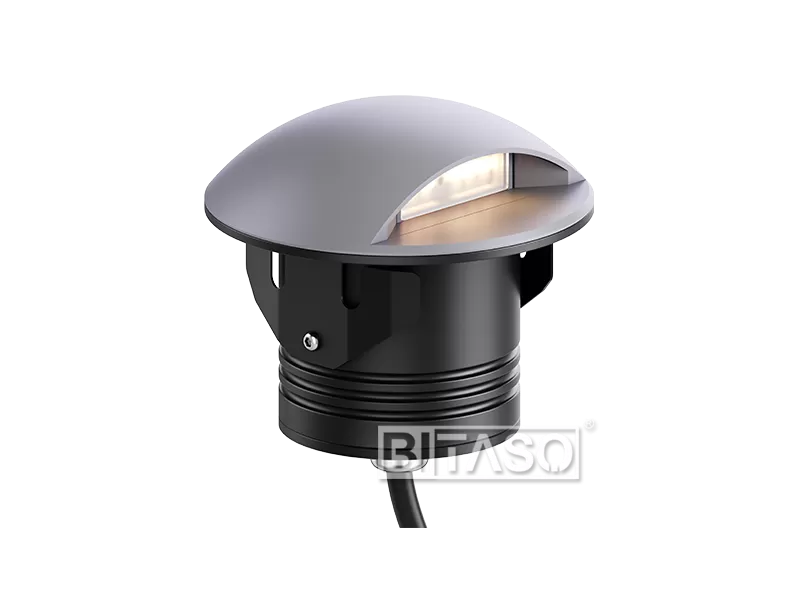

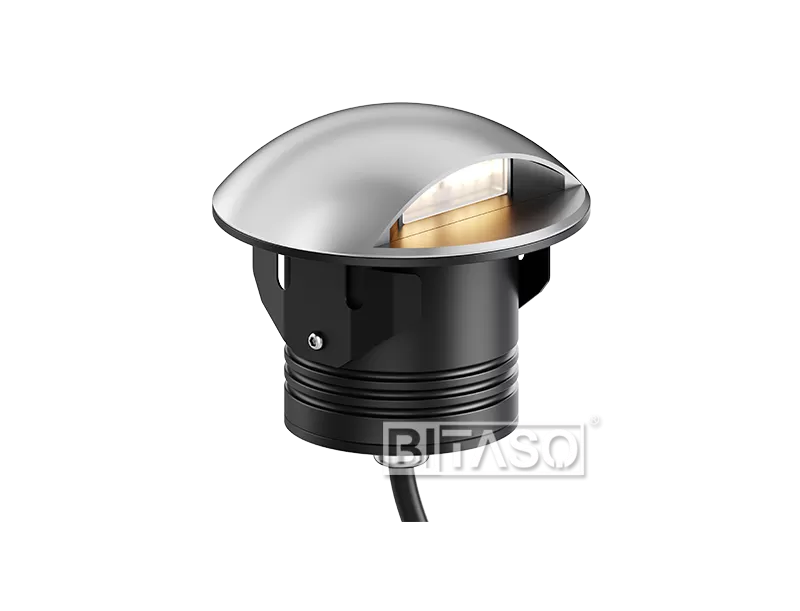

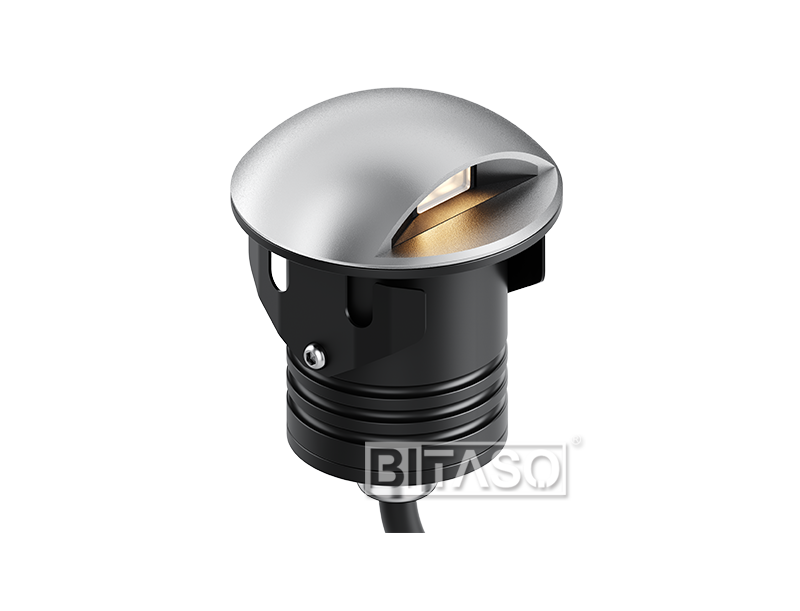

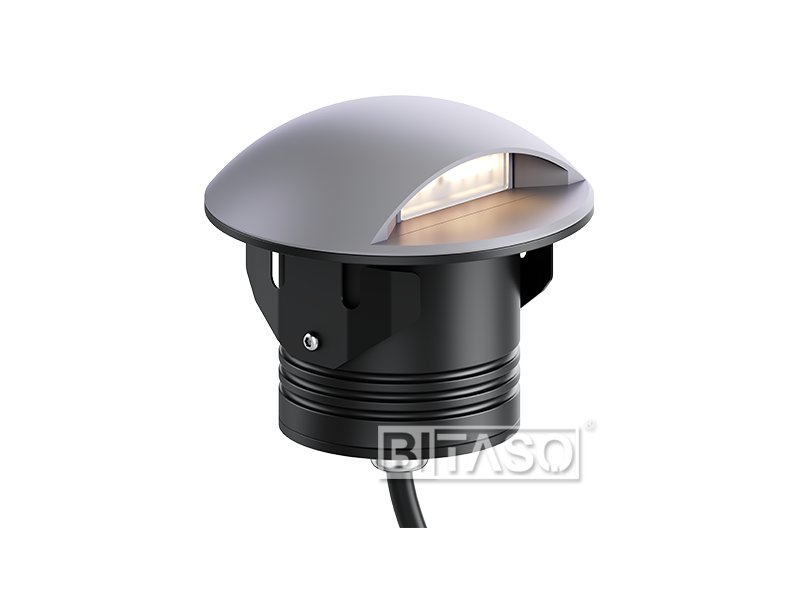

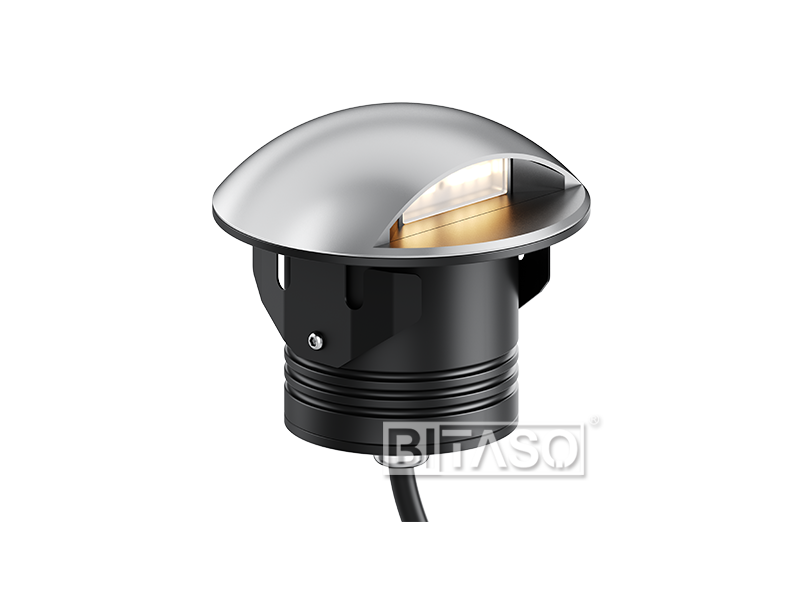

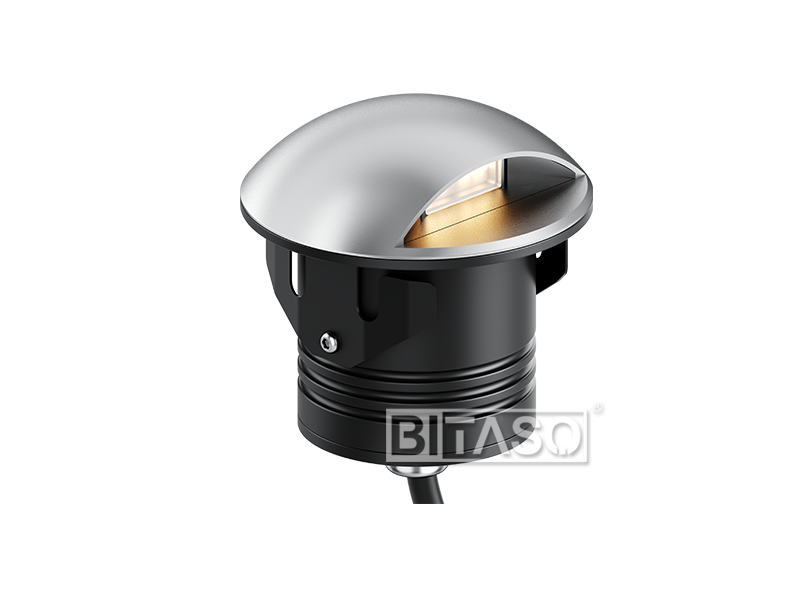

DOMOLITE D100

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).

ELECTRONICS

Power(Luminaire)3W/4W/7W/8W/10WPower Factor>0.9, CCS auto calibrating
Input VoltageDC12V DC24V DC36V DC48V AC110-130V AC220-240V 50/60HzDriver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear

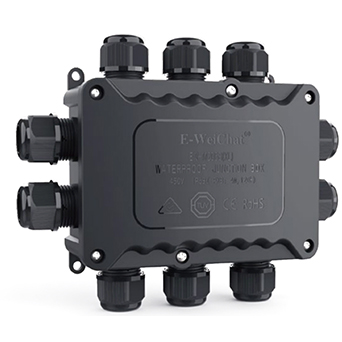

Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable

OPTICS

Light SourceSingle hole/Double hole/Three holes/Four holesLumen(Luminaire):1200LM
LED BrandCREE/TYANSHINELuminaire Lminous Efficacy72LM/W, 90LM/W, 90LM-135LM/W
Full White LED(FW)2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White3000K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam AgleOne-sided/two-sided/three-sided/four-sided
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesDiffuser, Filter, Honeycomb Louver

CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP67, Class I, IICertificateIP67, CE, ETL, RoHS, CCC

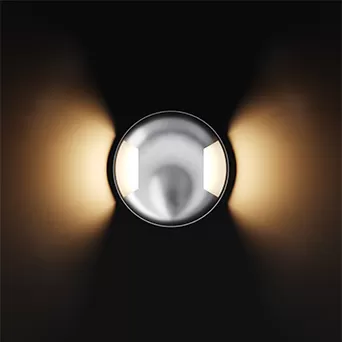

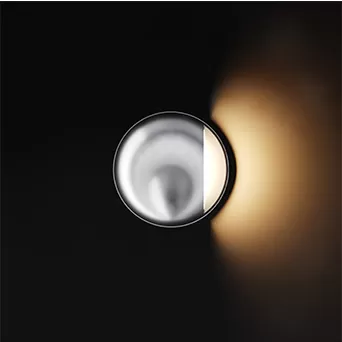

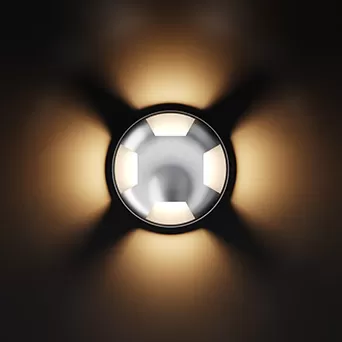

LIGHT DISTRIBUTION

MECHANICS

DimensionΦ100*100mmWeight1.6KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishTIGER PODER gray(RAL9006), black(RAL9005)Mounting TypeFloor, or wall mounting

OPTIONAL ACCESSORIES

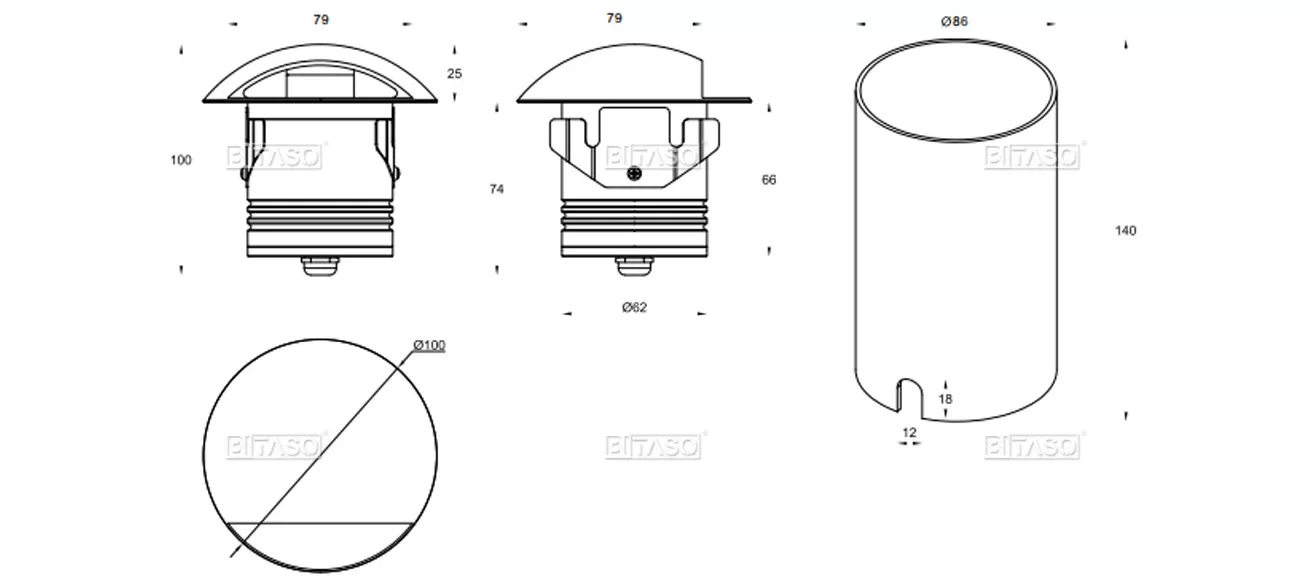

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

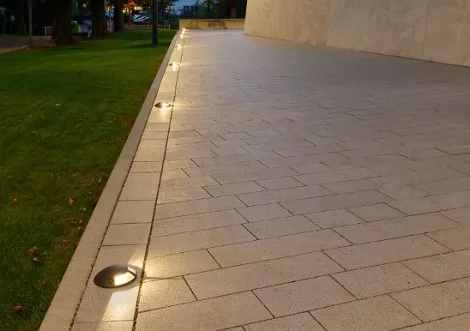

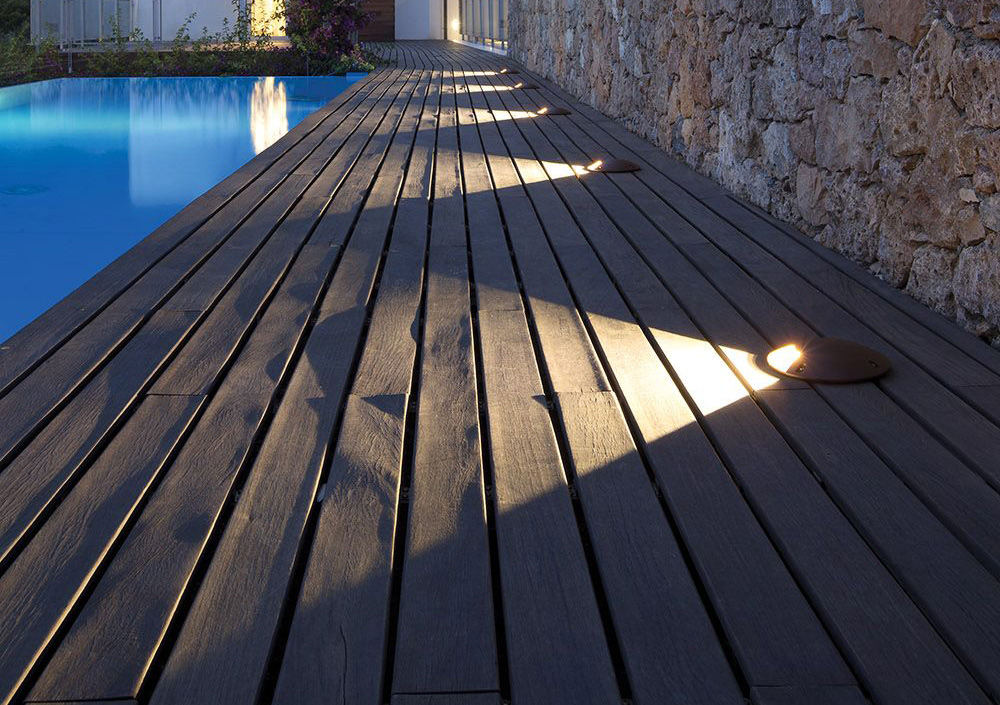

  • PROJECT REFERENCE

    PROJECT REFERENCE

    Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).

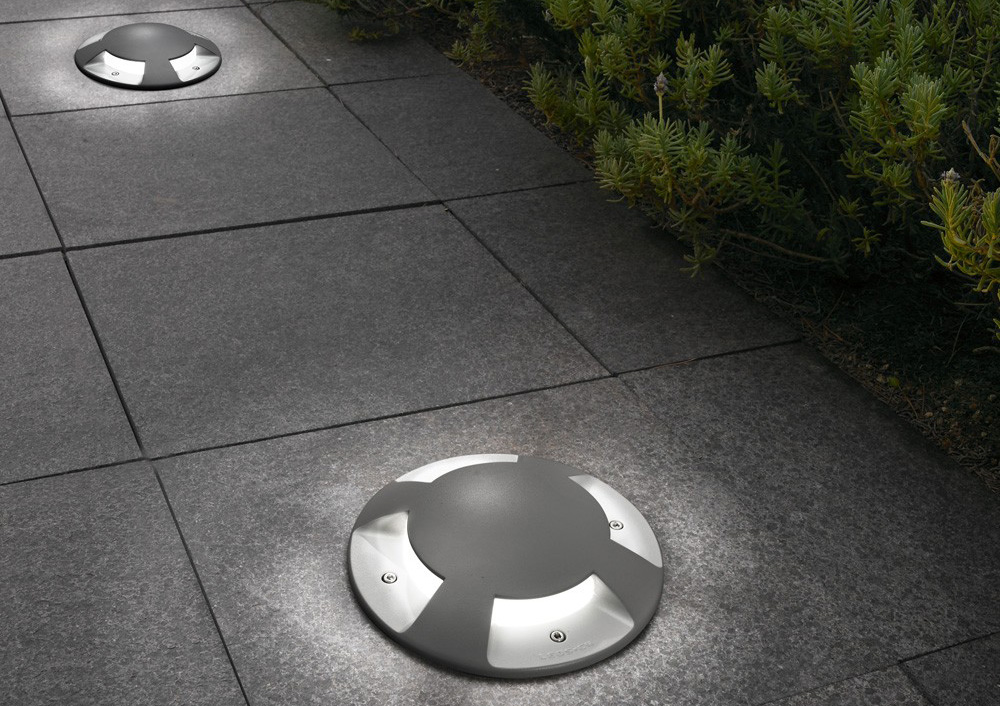

  • PROJECT REFERENCE

    PROJECT REFERENCE

    Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).

  • PROJECT REFERENCE

    PROJECT REFERENCE

    Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).
