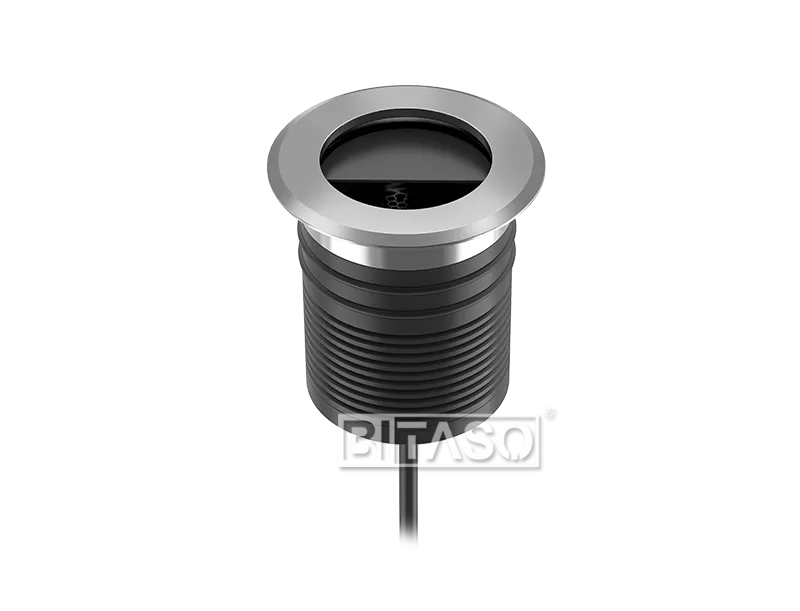

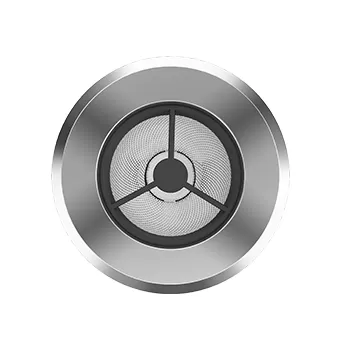

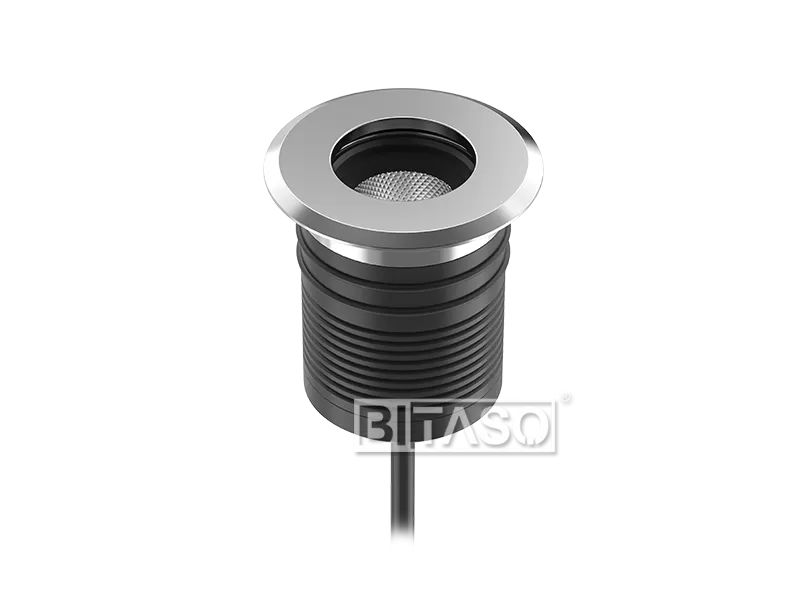

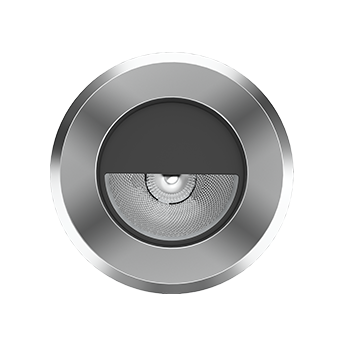

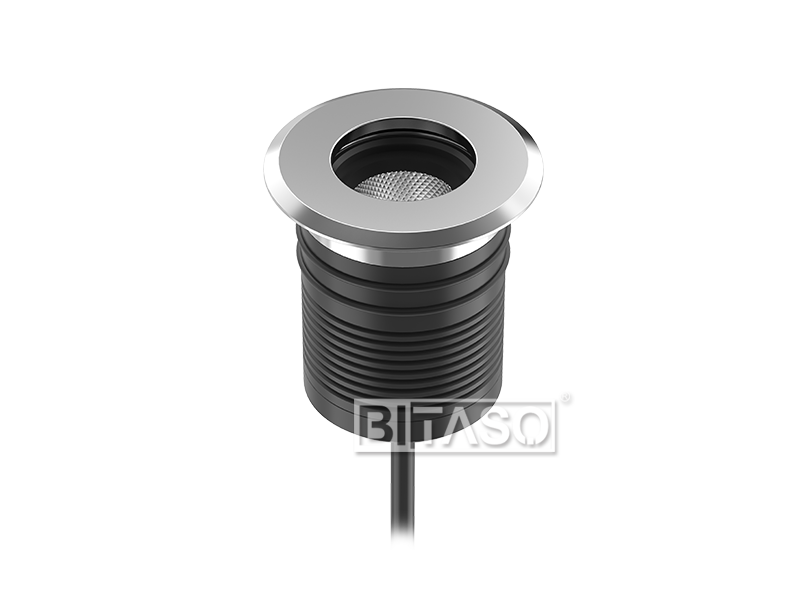

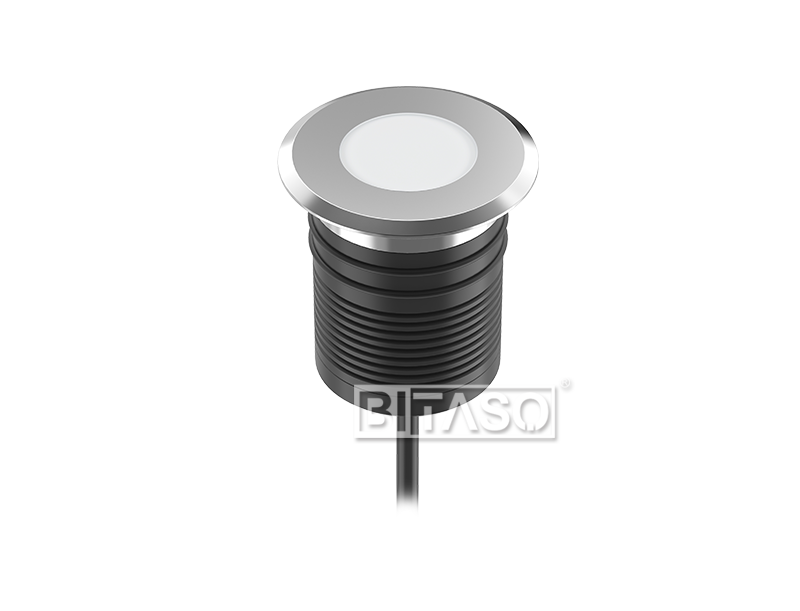

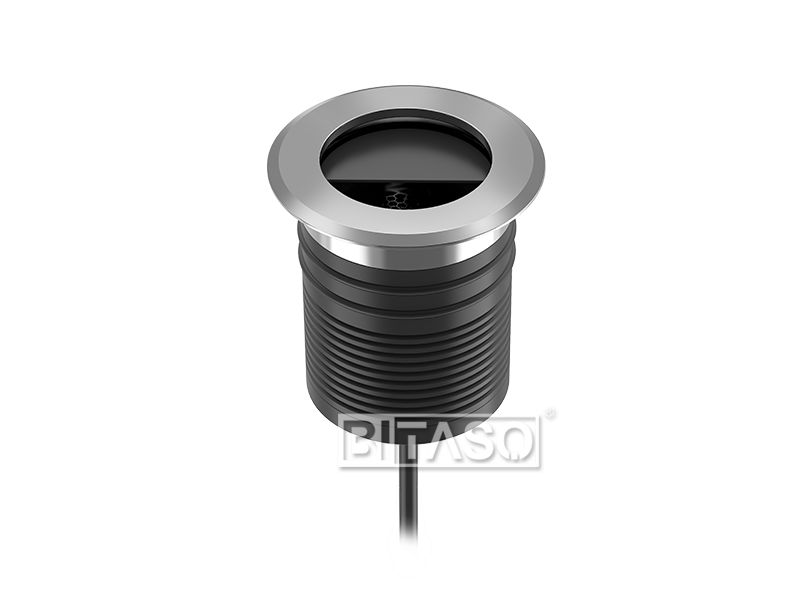

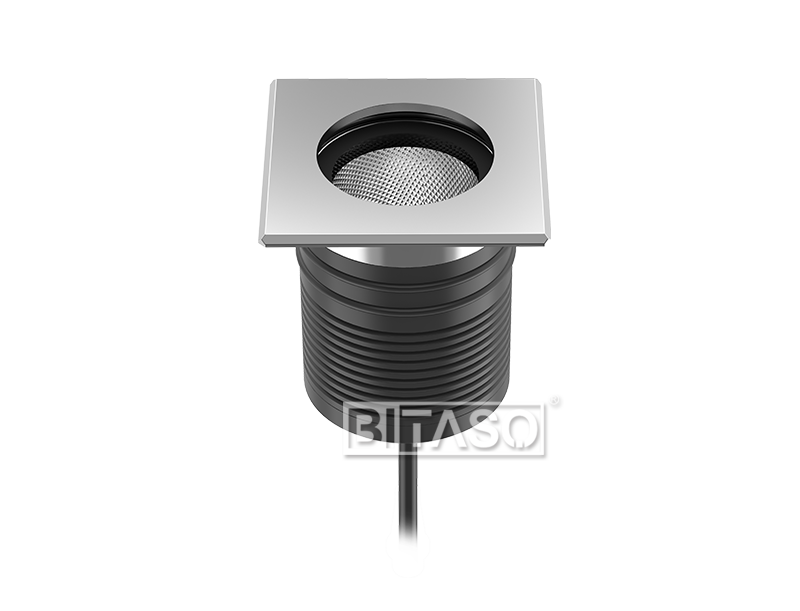

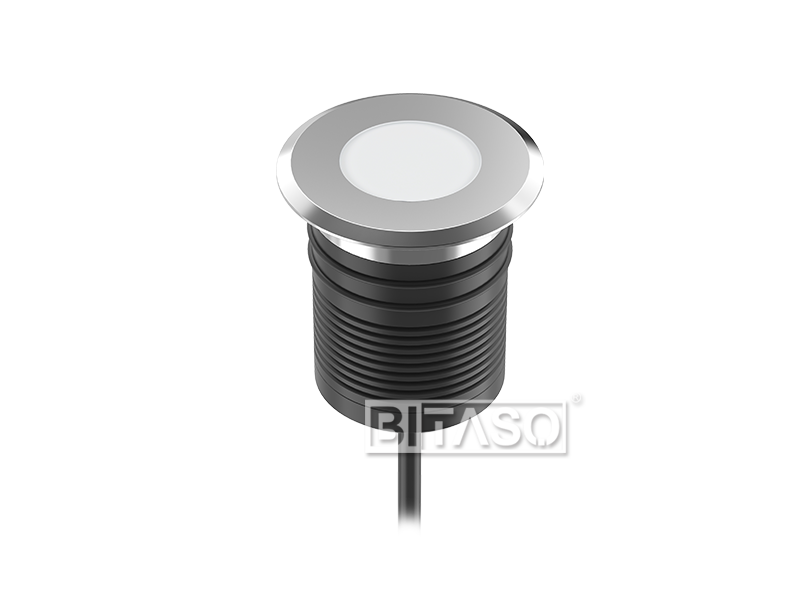

DIAMOND D64 COB LENS

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	3-5W/3W	Power Factor	>0.9, CCS auto calibrating
Input Voltage	DC12V DC24V DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	8 pin power+DMX integrated cable

OPTICS

Light Source	1PCS COB LENS	Lumen (Luminaire):	300-500LM
LED Brand	CREE /LUMINUS	Luminaire Lminous Efficacy	90-100LM/W
Full White LED(FW)	2200K/2400K/2700K/3000K/3500K/4000K/5000K/5700K/6500K	Turnable White	/
Multi Color	/	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Agle	15°, 24°, 38°,60°

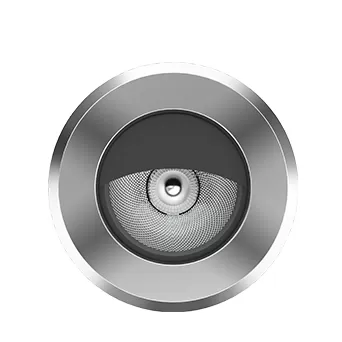

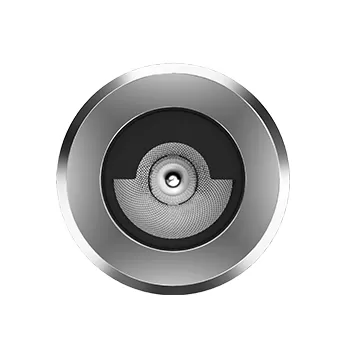

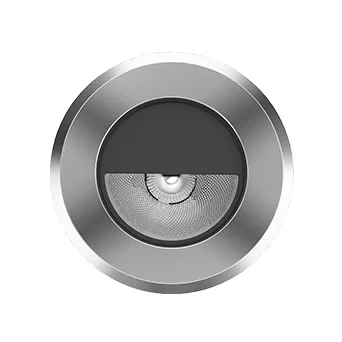

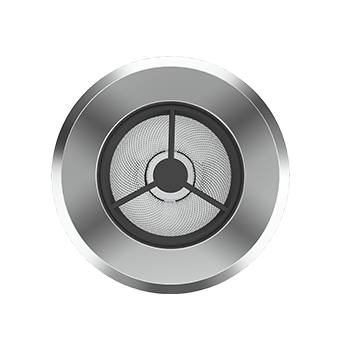

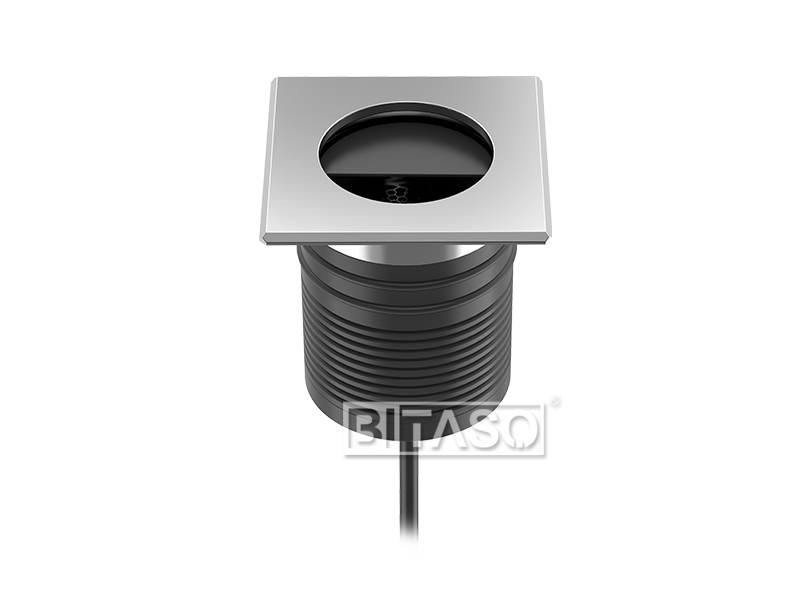

MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Diffuser, Filter, Honeycomb Louver, Three Fork Light Baffle Plate, Crescent Baffle Plate, Double Crescent Baffle Plate, Half Moonbaffle Plate,

CONTROL SYSTEM

Control	DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP67, Class I	Certificate	IP67, CE, ETL, RoHS, CCC

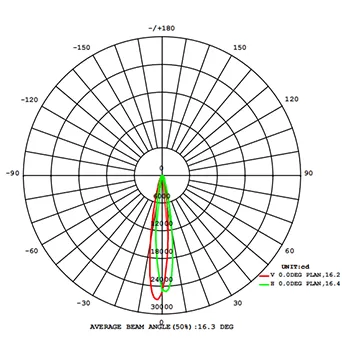

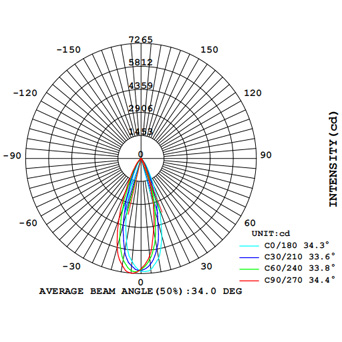

LIGHT DISTRIBUTION

MECHANICS

Dimension	Φ64*H74mm	Weight	1.65KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Stainless steel SUS316	Mounting Type	Outdoor lighting for squares, outdoor parks, leisure places, etc

OPTIONAL ACCESSORIES

20T-2_3_4PIN IP68 Connector
Diffuser 1
Diffuser 2
EW-M2068 2_3PIN IP68 Connector
Extension Cable
Filter
Honeycomb Grille
Honeycomb Louver
Input Cable 1
Input Cable 2
Input Cable 3
Input Cable 4
M16 2_3PIN IP68 Connector
M20 3_4_5_6PIN IP68 Connector
M20X 2_3PIN IP68 Connector
M25 3_4_5PIN IP68 Connector
M2068 2_3PIN IP68 Connector

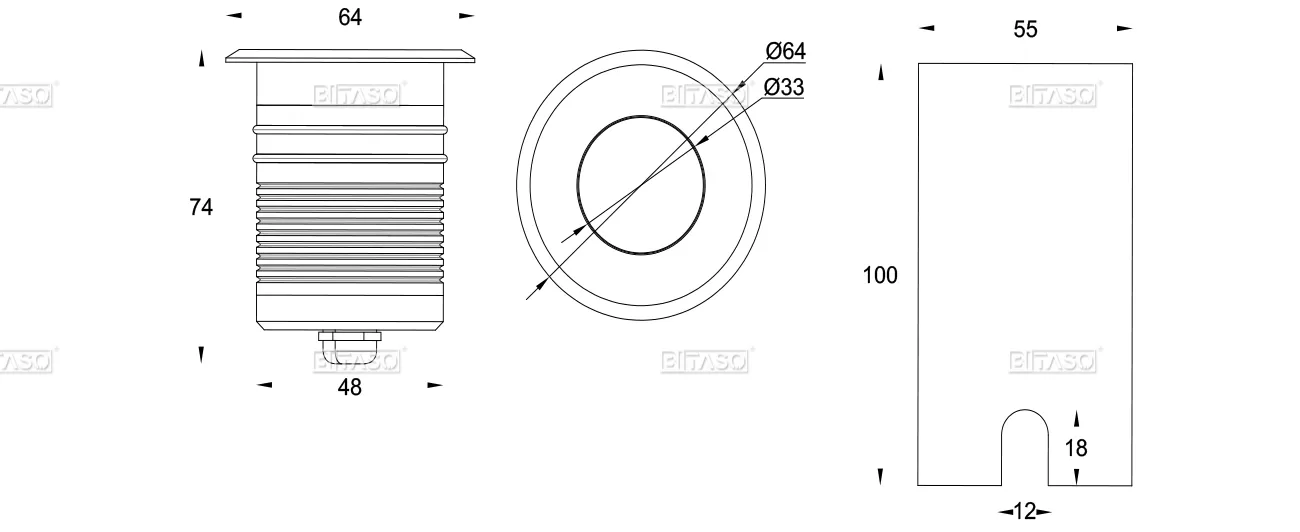

LUMINAIRE DIMENSION
