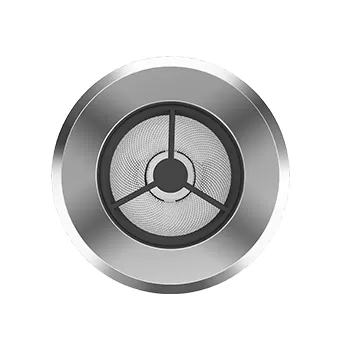

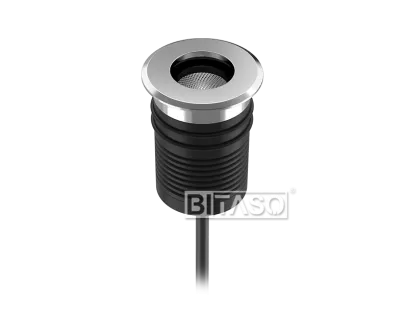

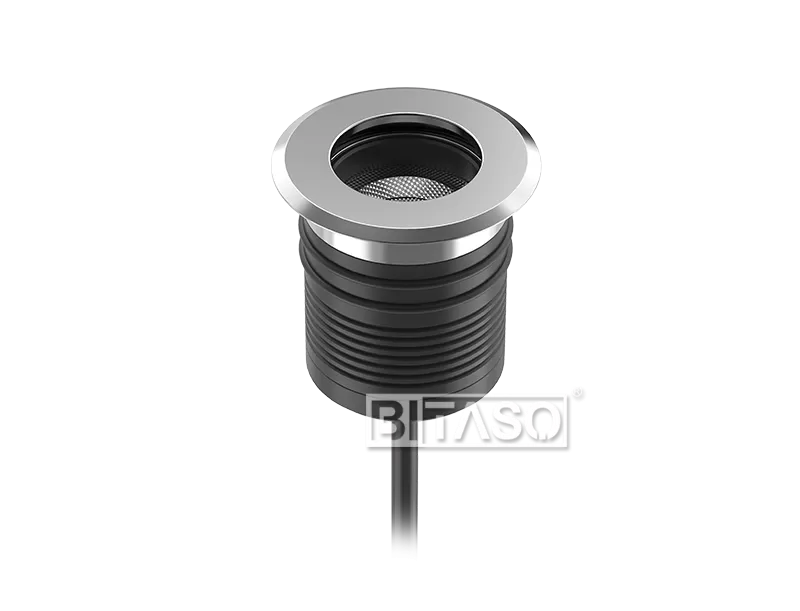

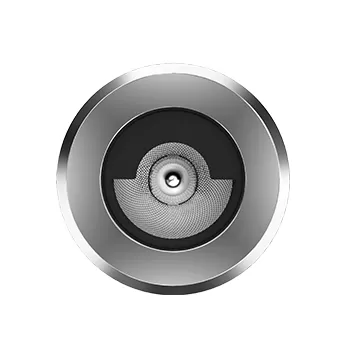

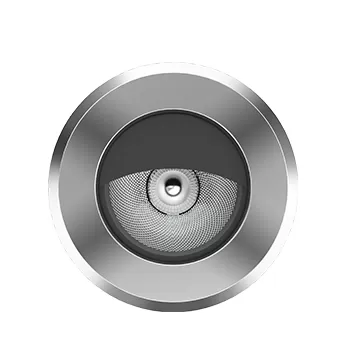

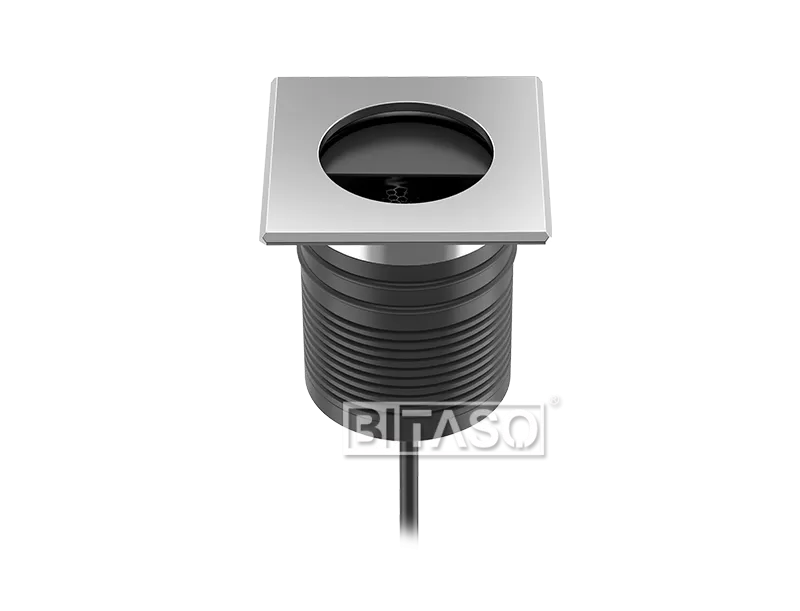

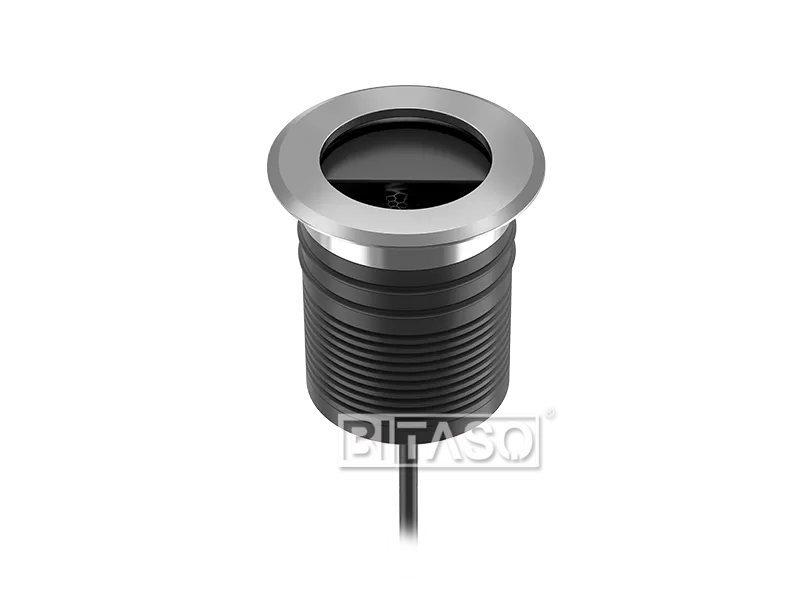

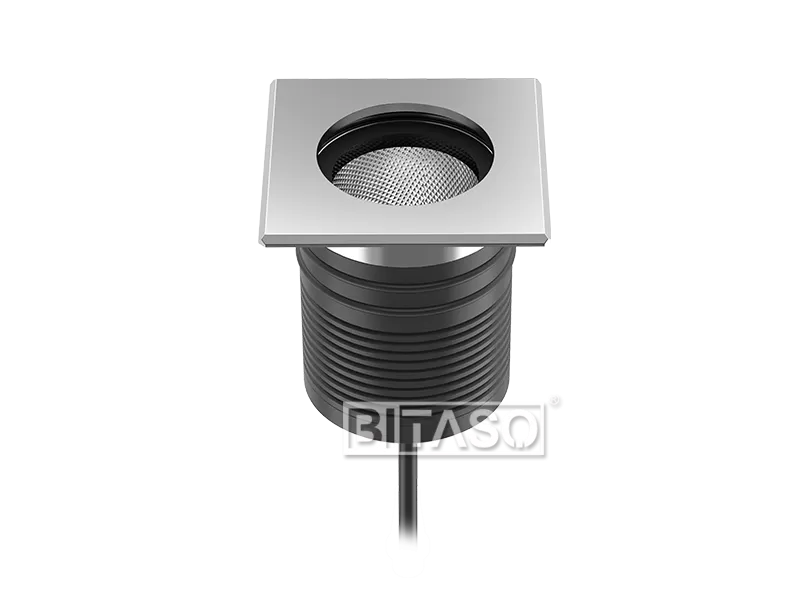

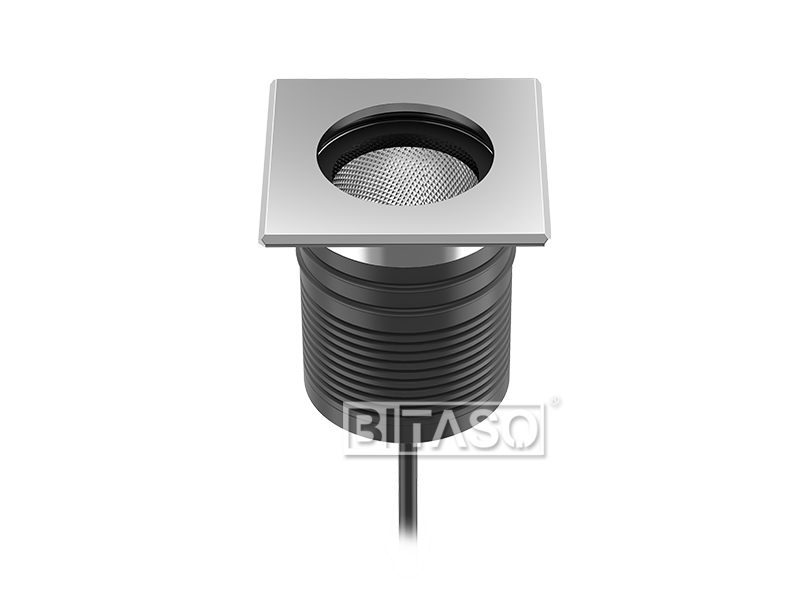

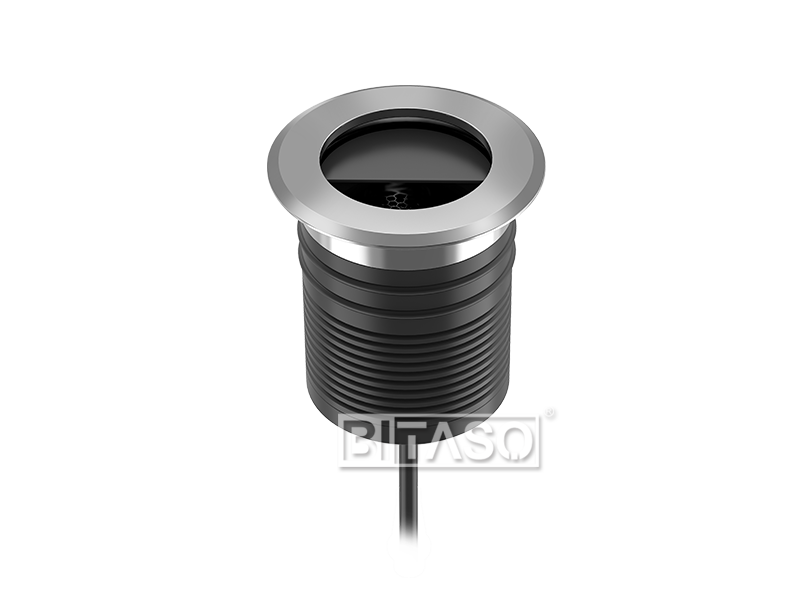

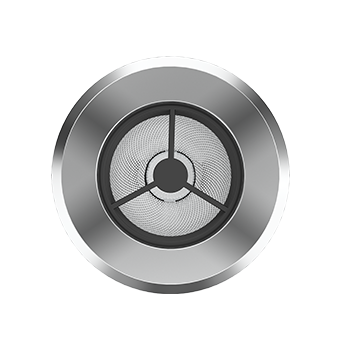

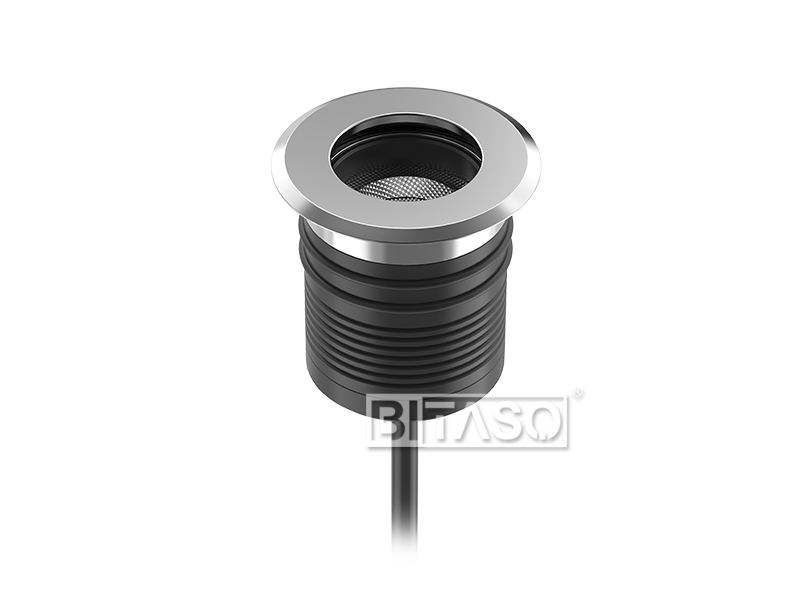

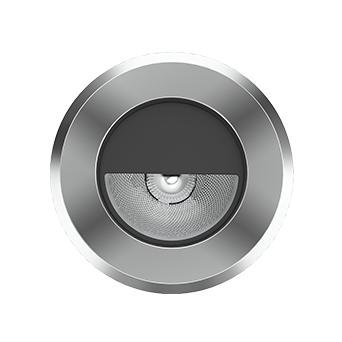

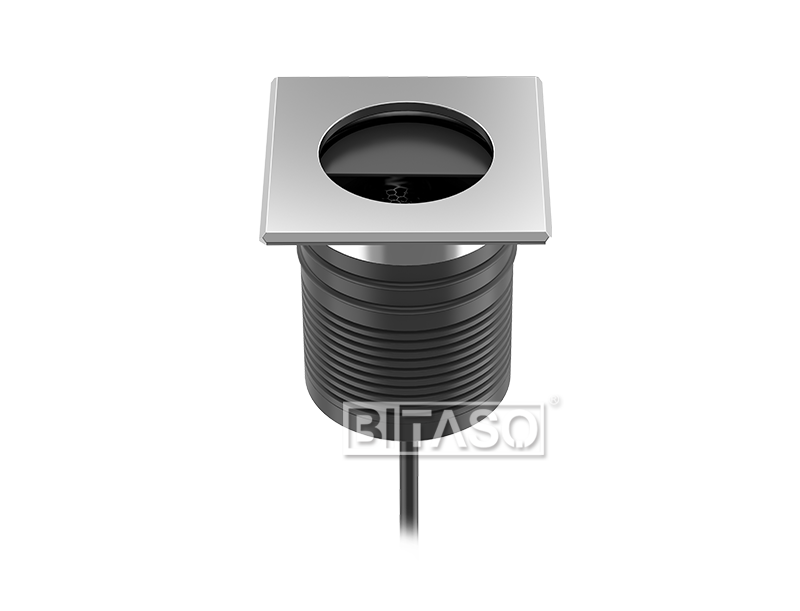

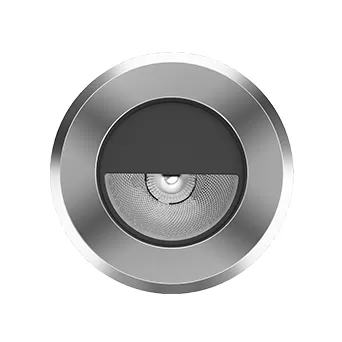

DIAMOND D52 SMD

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	2-3W/2.5W/3W	Power Factor	>0.9, CCS auto calibrating
Input Voltage	DC12V DC24V DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dimming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear

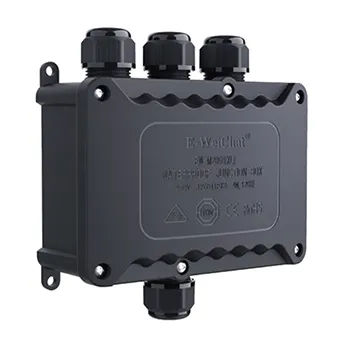

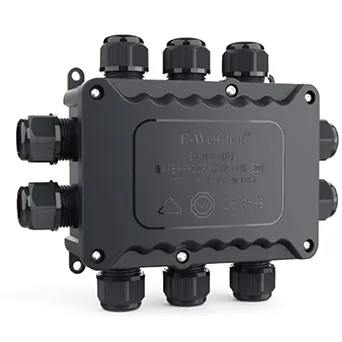

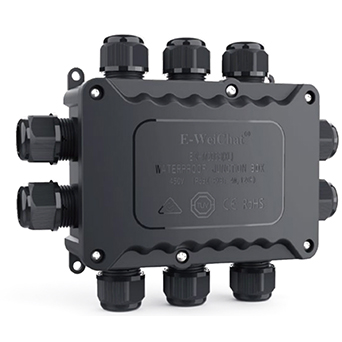

Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	8 pin power+DMX integrated cable

OPTICS

Light Source	1PCS SMD	Lumen (Luminaire):	100LM
LED Brand	CREE /LUMINUS/OSRAM	Luminaire Lminous Efficacy	90-100LM/W
Full White LED(FW)	2200K/2400K/2700K/3000K/3500K/4000K/5000K/5700K/6500K	Turnable White	2700K-6500K
Multi Color		CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Agle	5°,8°,10°,12°,25°, 40°,60°
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Diffuser, Filter, Honeycomb Louver, Three Fork Light Baffle Plate, Crescent Baffle Plate, Double Crescent Baffle Plate, Half Moonbaffle Plate,

CONTROL SYSTEM

Control	DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP67, Class I	Certificate	IP67, CE, ETL, RoHS, CCC

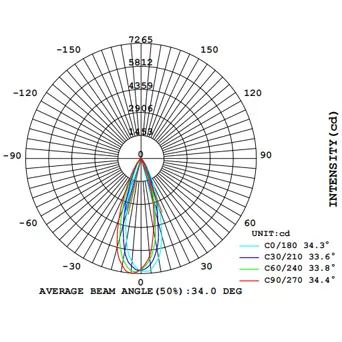

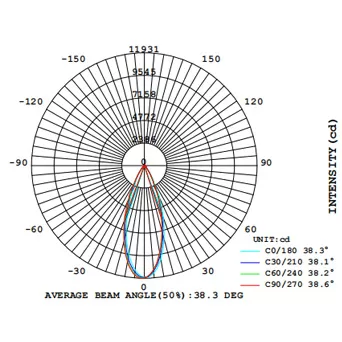

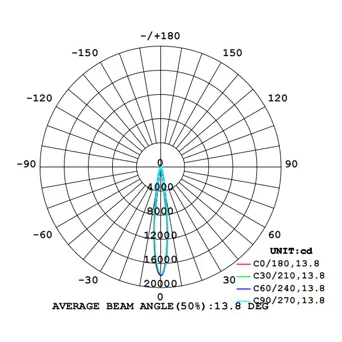

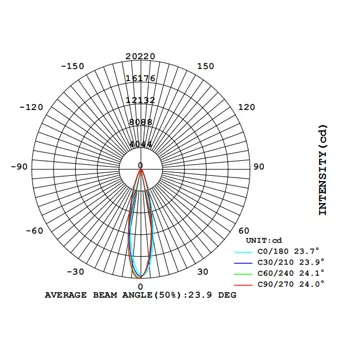

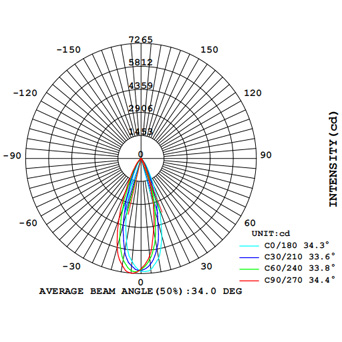

LIGHT DISTRIBUTION

MECHANICS

Dimension	Φ52*H75mm	Weight	1.55KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Stainless steel SUS316	Mounting Type	Outdoor lighting for squares, outdoor parks, leisure places, etc

OPTIONAL ACCESSORIES

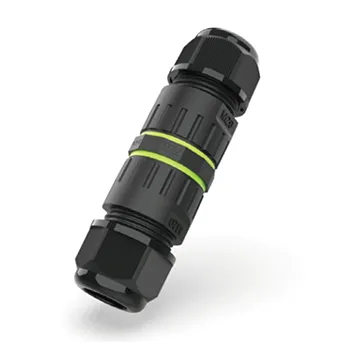

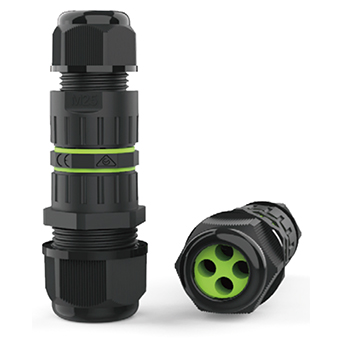

20T-2_3_4PIN IP68 Connector

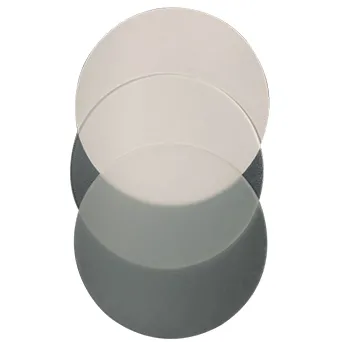

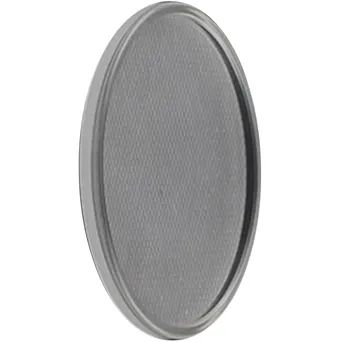

Diffuser 1
Diffuser 2
EW-M2068 2_3PIN IP68 Connector

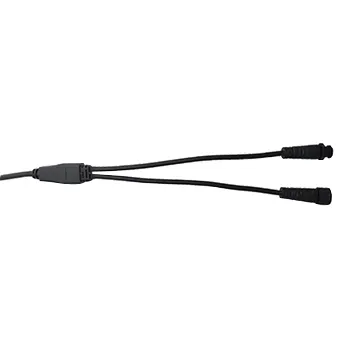

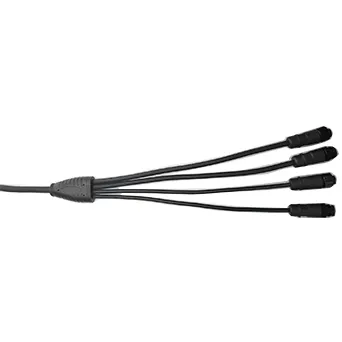

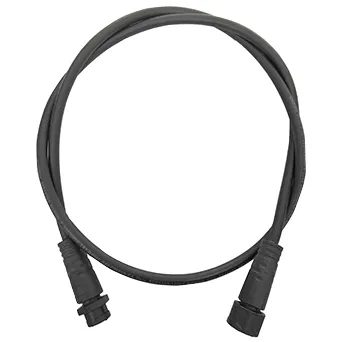

Extension Cable

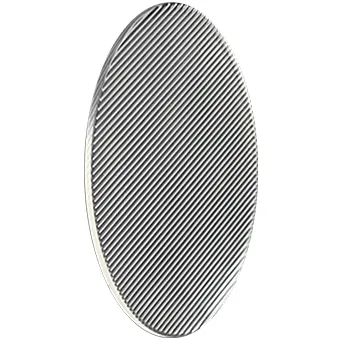

Filter

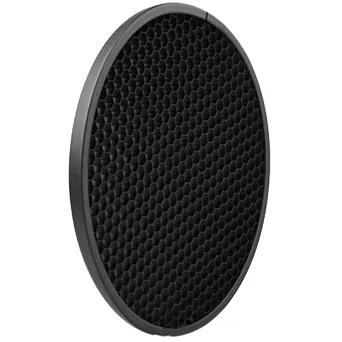

Honeycomb Grille

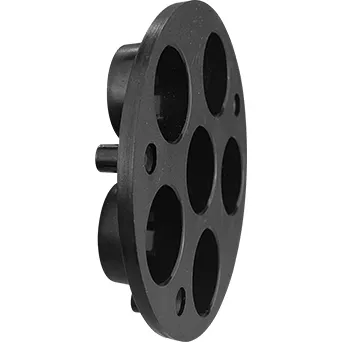

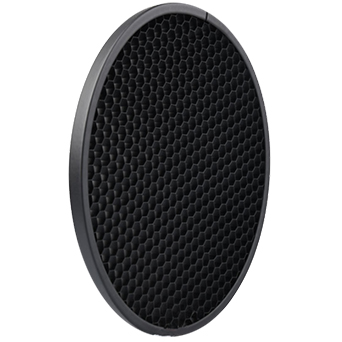

Honeycomb Louver

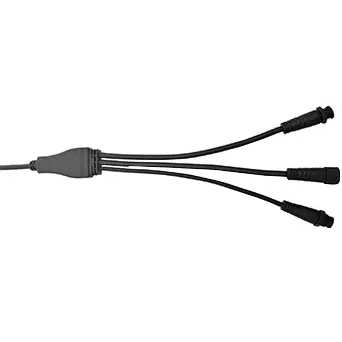

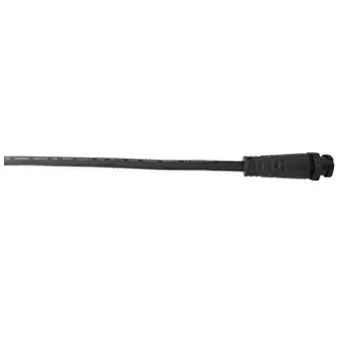

Input Cable 1
Input Cable 2
Input Cable 3
Input Cable 4

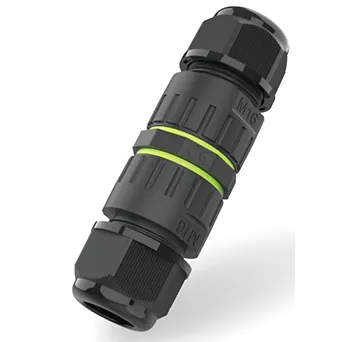

M16 2_3PIN IP68 Connector

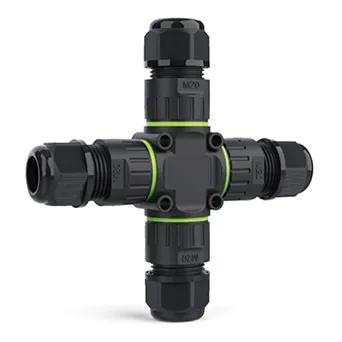

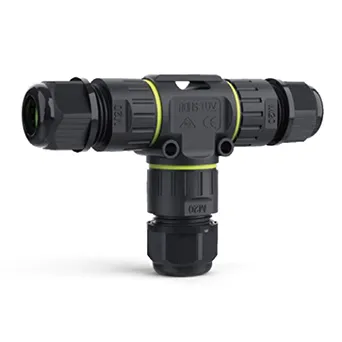

M20 3_4_5_6PIN IP68 Connector
M20X 2_3PIN IP68 Connector
M25 3_4_5PIN IP68 Connector
M2068 2_3PIN IP68 Connector

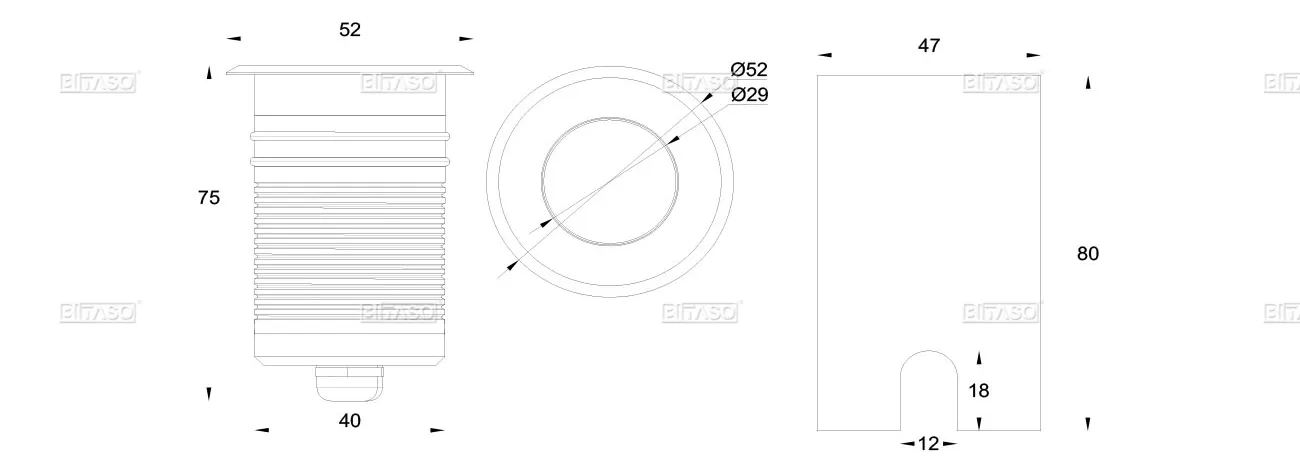

LUMINAIRE DIMENSION

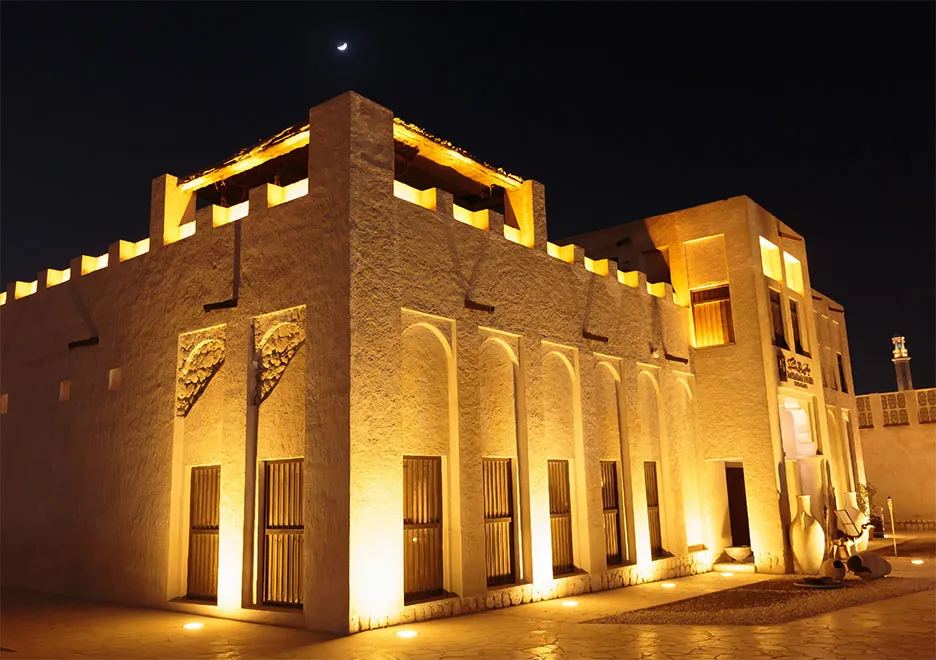

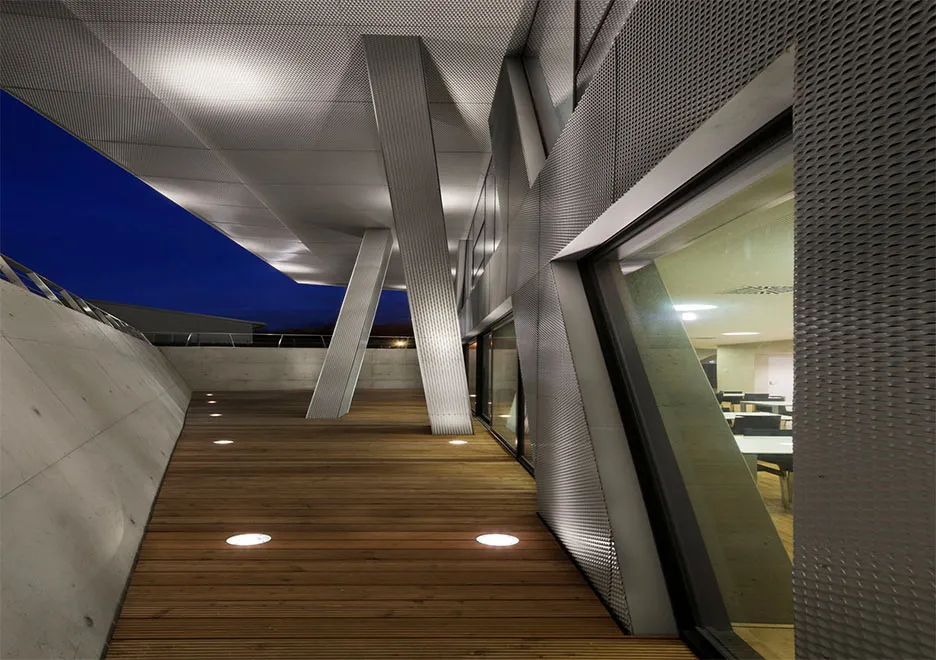

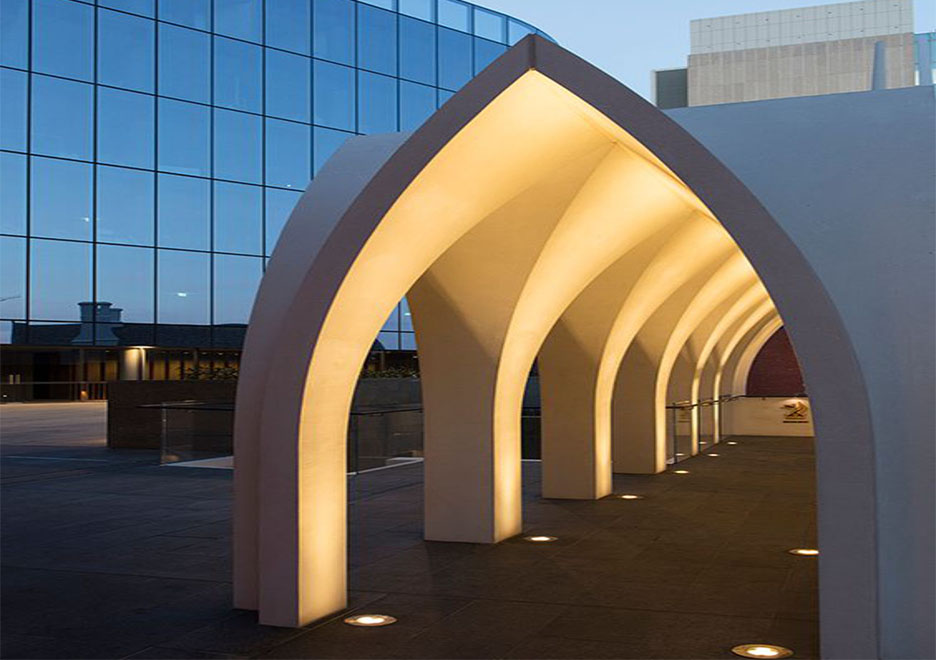

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

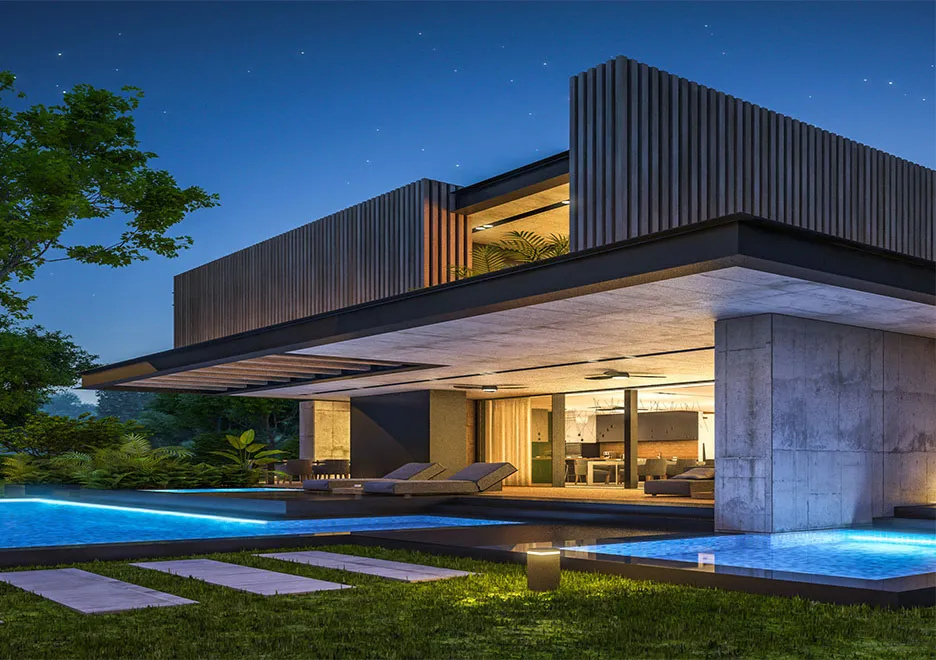

PROJECT REFERENCE
