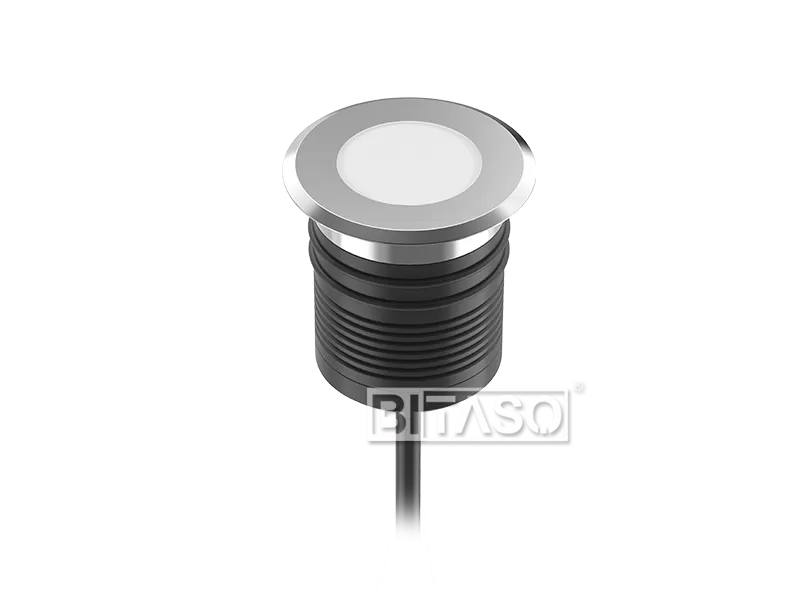

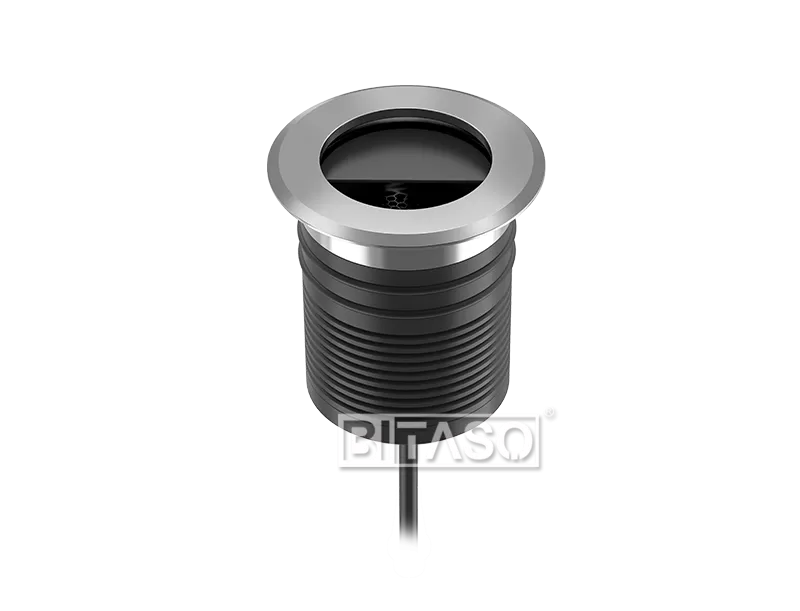

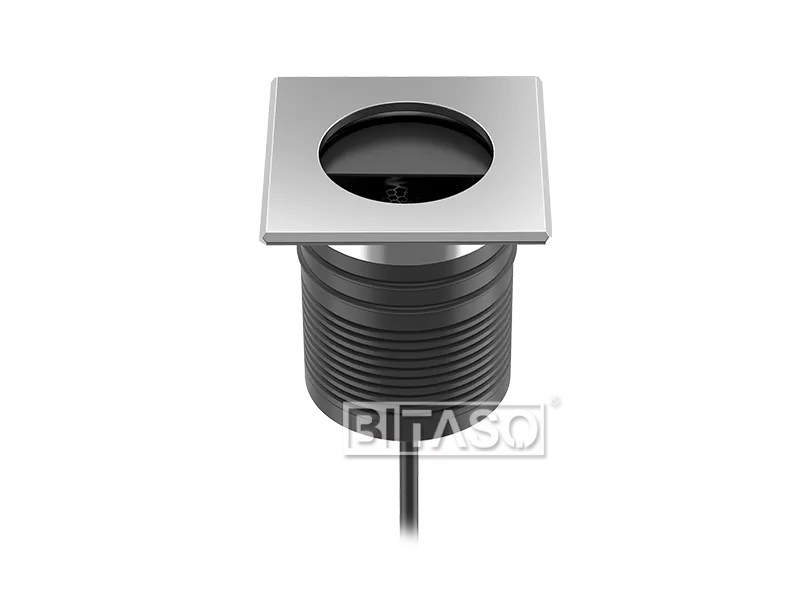

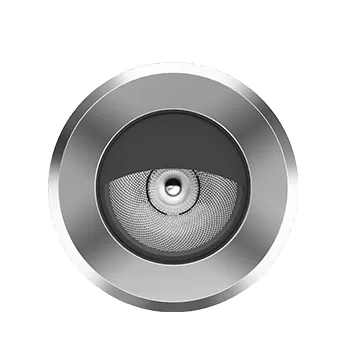

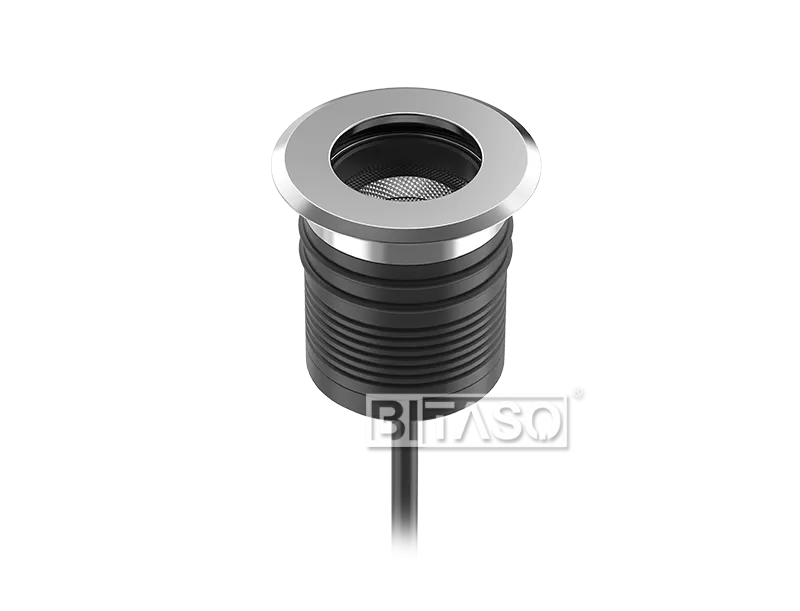

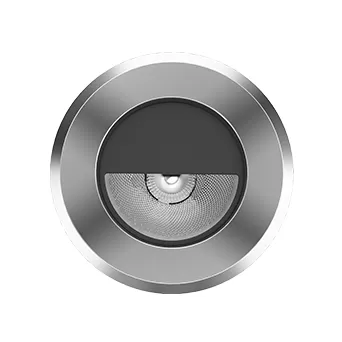

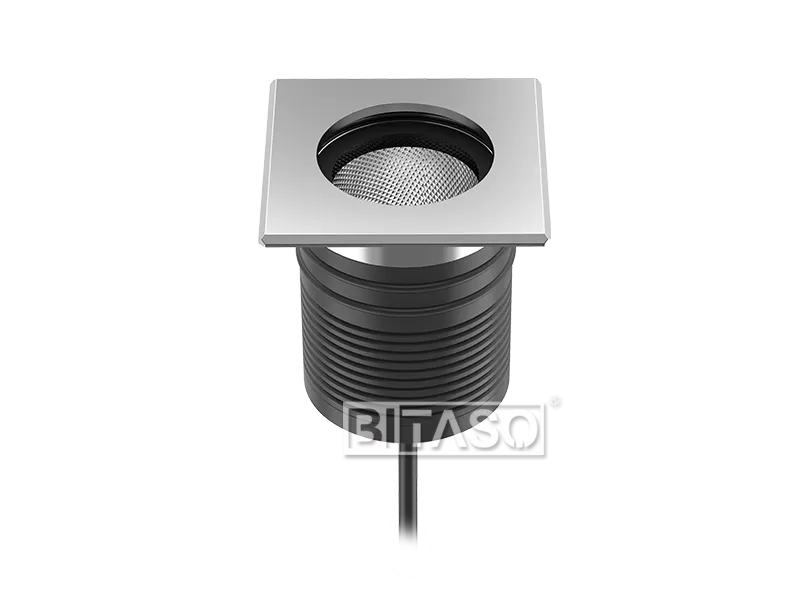

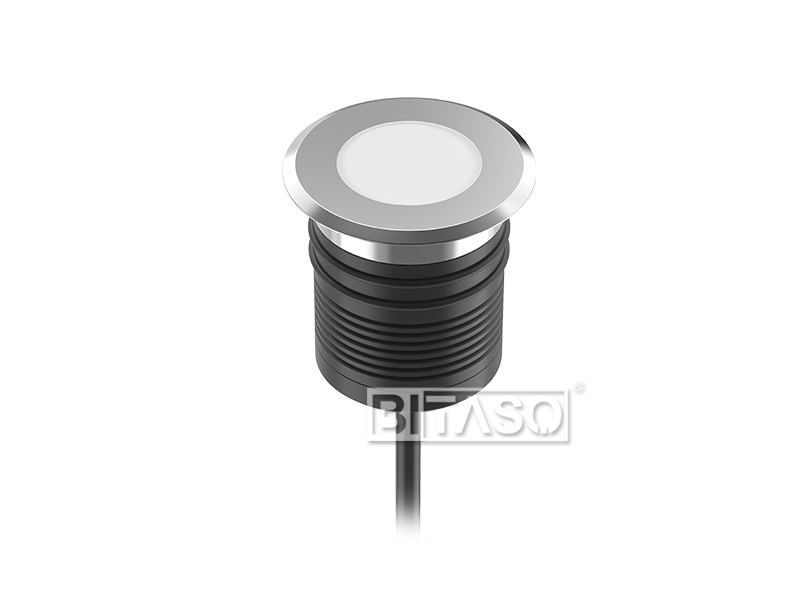

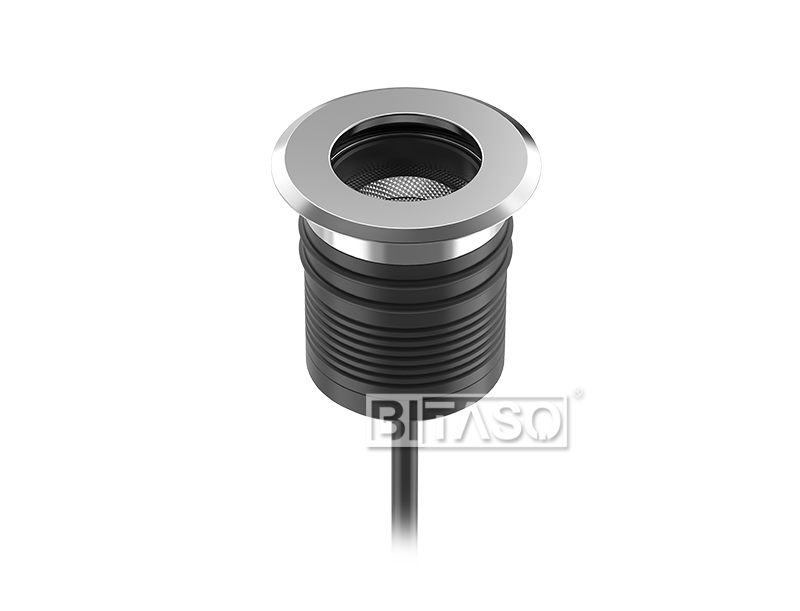

DIAMOND D52 COB

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	2-3W/2.5W/3W	Power Factor	>0.9, CCS auto calibrating
Input Voltage	DC12V DC24V DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dimming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear

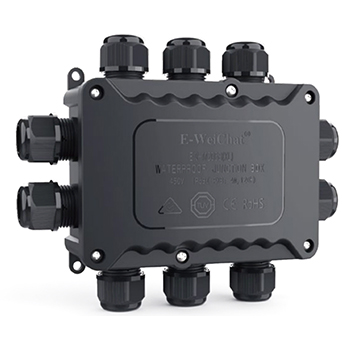

Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	8 pin power+DMX integrated cable

OPTICS

Light Source	1PCS COB	Lumen (Luminaire):	100LM
LED Brand	CREE /LUMINUS/OSRAM	Luminaire Lminous Efficacy	90-100LM/W
Full White LED(FW)	2200K/2400K/2700K/3000K/3500K/4000K/5000K/5700K/6500K	Turnable White	2700K-6500K
Multi Color		CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Agle	5°,8°,10°,12°,25°, 40°,60°

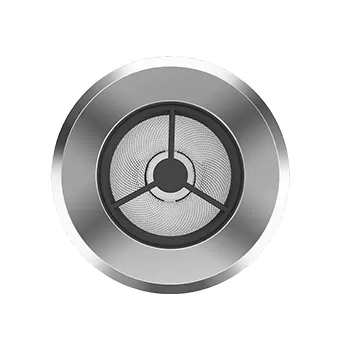

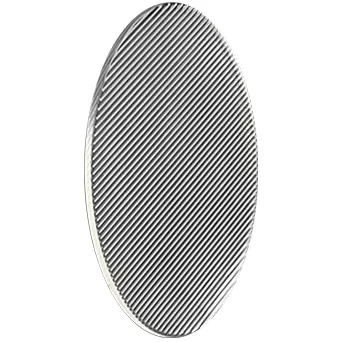

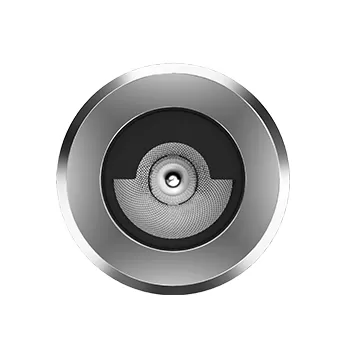

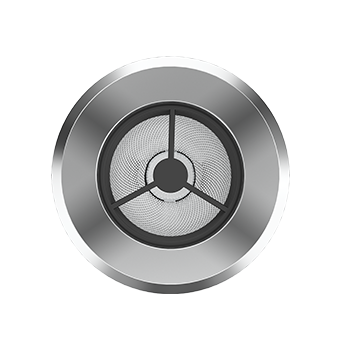

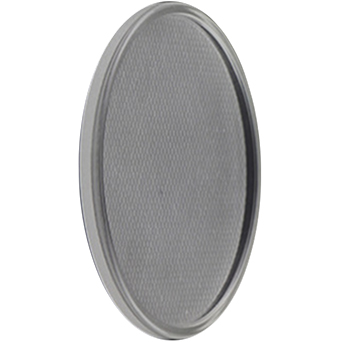

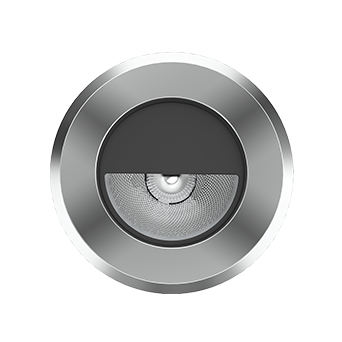

MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Diffuser, Filter, Honeycomb Louver, Three Fork Light Baffle Plate, Crescent Baffle Plate, Double Crescent Baffle Plate, Half Moonbaffle Plate,

CONTROL SYSTEM

Control	DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP67, Class I	Certificate	IP67, CE, ETL, RoHS, CCC

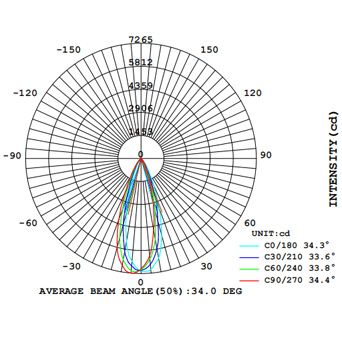

LIGHT DISTRIBUTION

MECHANICS

Dimension	Φ52*H75mm	Weight	1.55KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Stainless steel SUS316	Mounting Type	Outdoor lighting for squares, outdoor parks, leisure places, etc

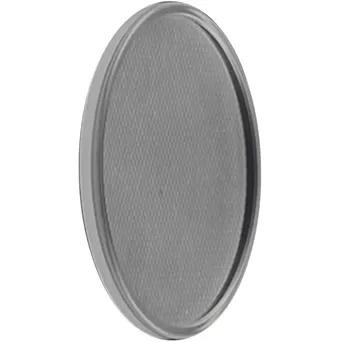

OPTIONAL ACCESSORIES

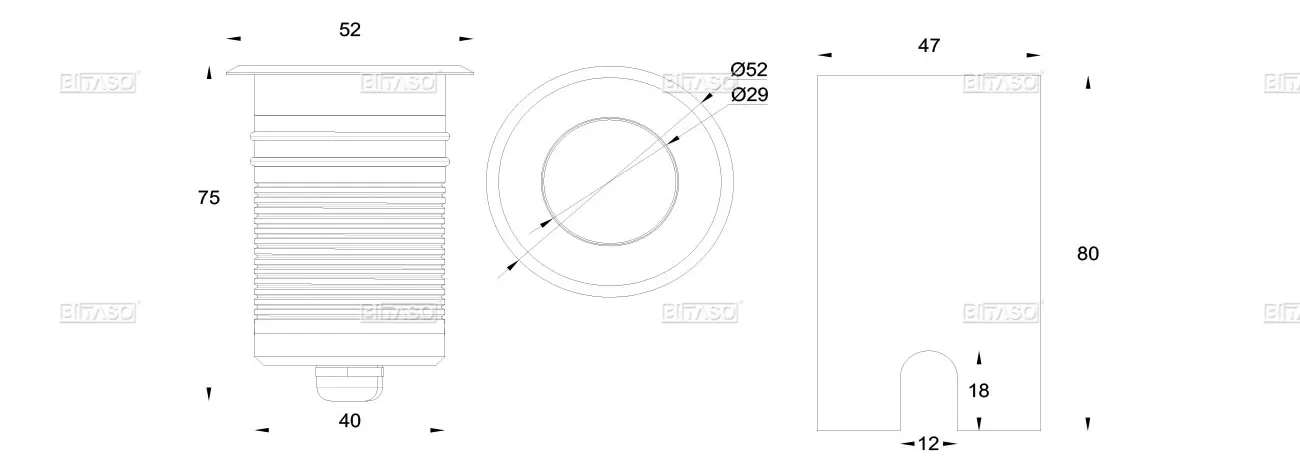

LUMINAIRE DIMENSION

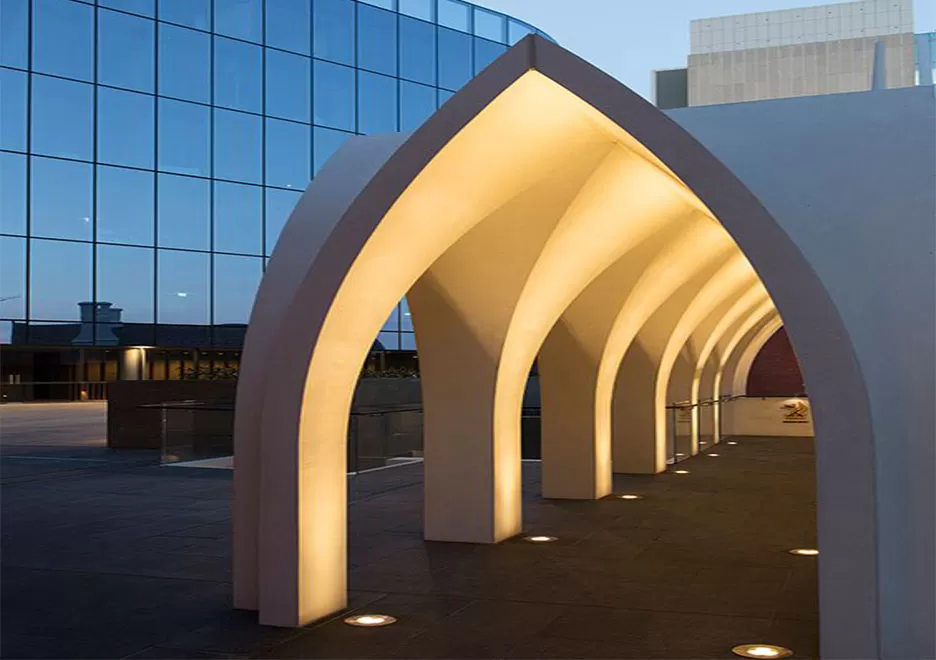

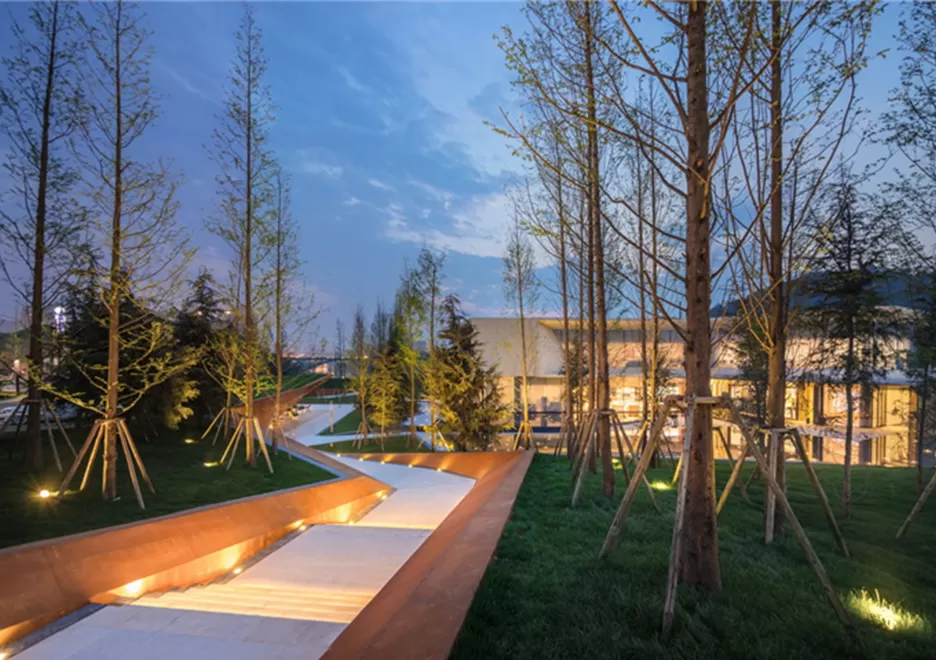

PROJECT REFERERNCE

BITASO has been aiming at becoming top rate outdoor LED lighting brand worldwide with the spirit of craftsman and persist in enhancing the ability of innovation,supplying reliable lighitngs and professional after-sales services for customers at home and abroad.We have been always make our effort to create value for the customers and suppliers so that we can grow together.

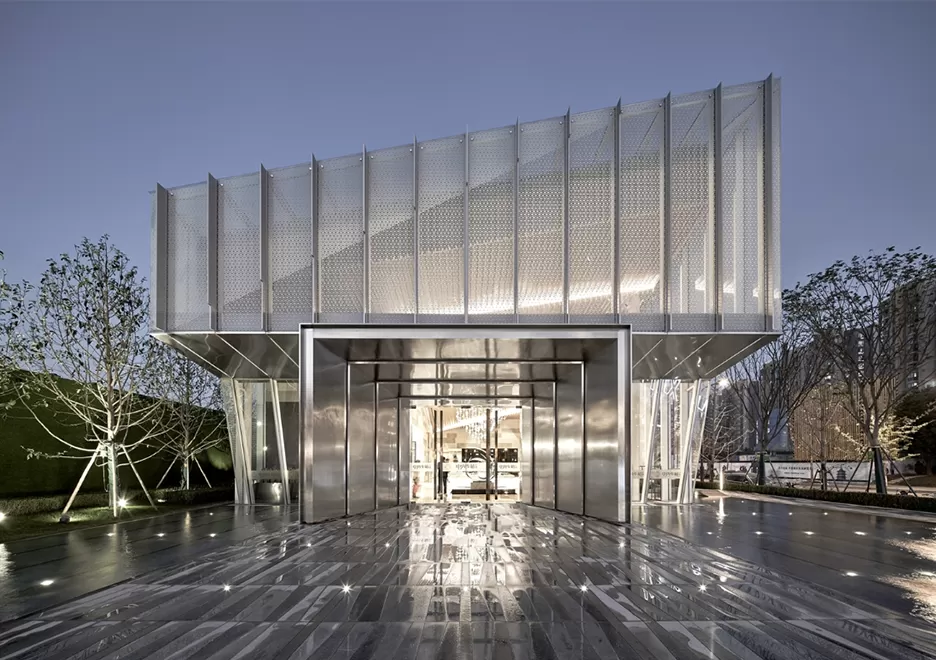

PROJECT REFERERNCE
