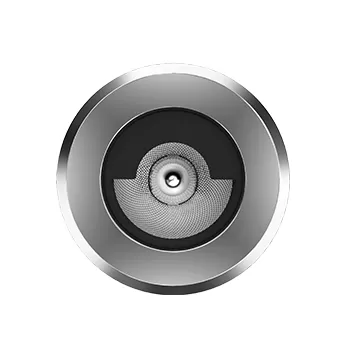

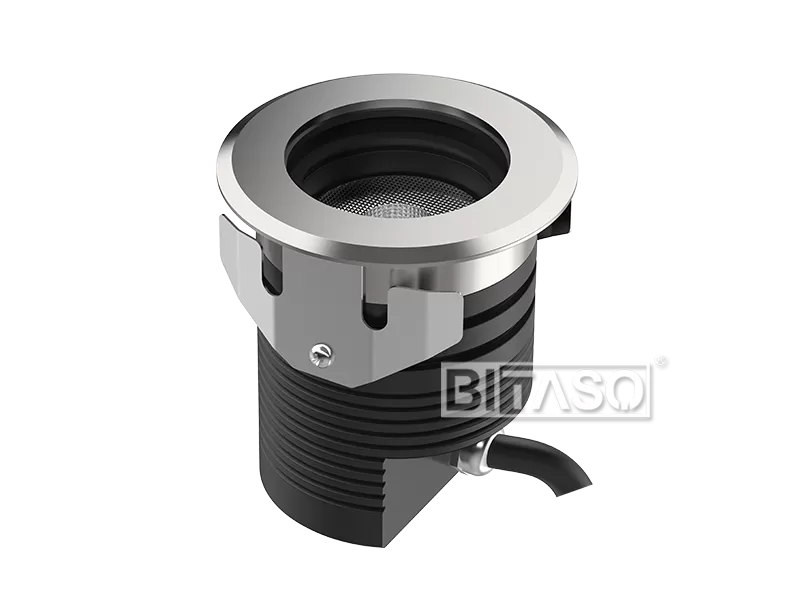

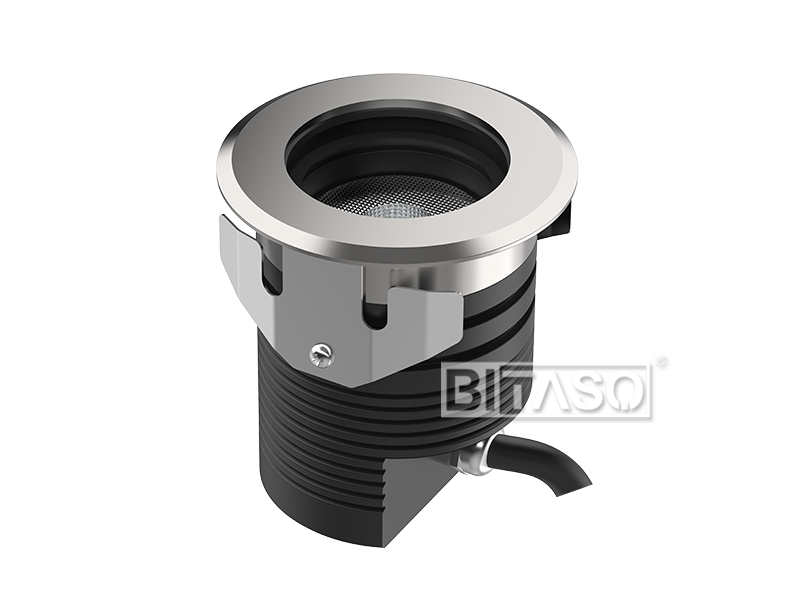

DIAMOND D80 Side outlet

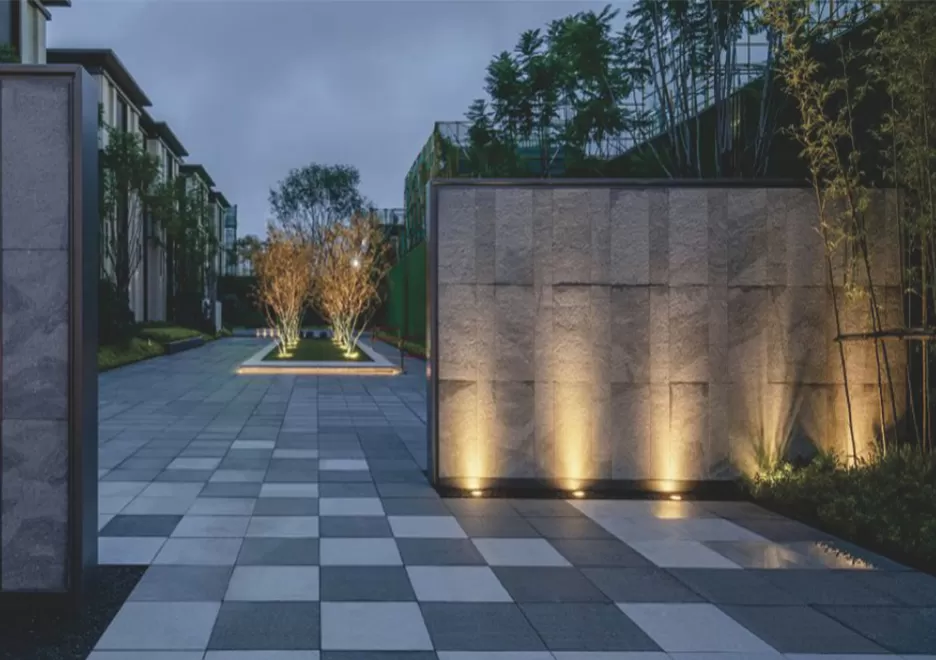

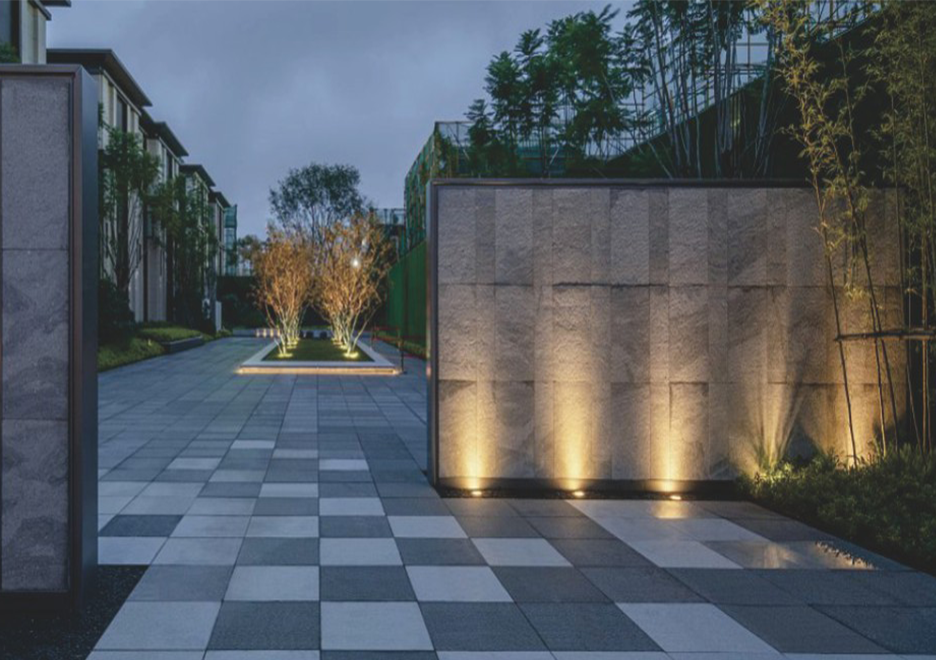

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Descreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.Installation on floor(with mouting sleeve) and ground(with or without mounting sleeve).Stainless steel screws,High strength 4MM toughened glass>92% light transmittance,extremely narrow to wide beam options,rotationally symmetric light.

ELECTRONICS

Power(Luminaire)5W/7WPower Factor>0.9, CCS auto calibrating
Input VoltageDC12V DC24V DC36V DC48V AC110-240V 50/60HzDriver OptionIntegral control gear
Dimming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear

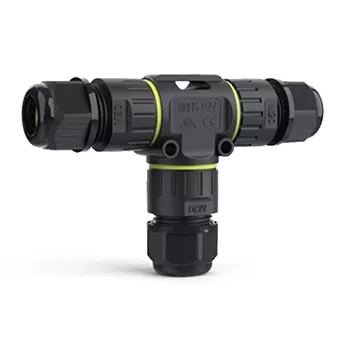

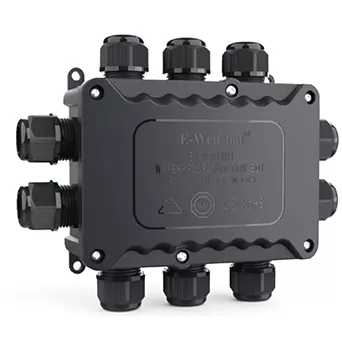

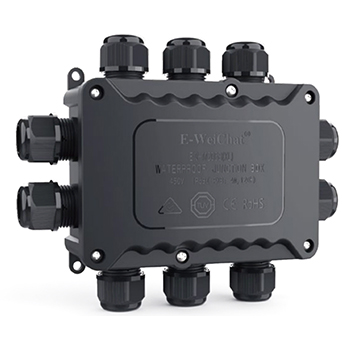

Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable


OPTICS

Light Source1PCS COBLumen (Luminaire):300-500LM
LED BrandCREE /LUMINUSLuminaire Lminous Efficacy90-100LM/W
Full White LED(FW)2200K/2400K/2700K/3000K/3500K/4000K/5000K/5700K/6500KTurnable White2700K-6500K
Multi Color/CRIRa>85, Ra>90
LED Life Span≥50,000hrsBeam Agle15°,18°,34°, 38°,
MacAdam Ellipse3 SDCM, 5SDCMOptional Optical Acessories

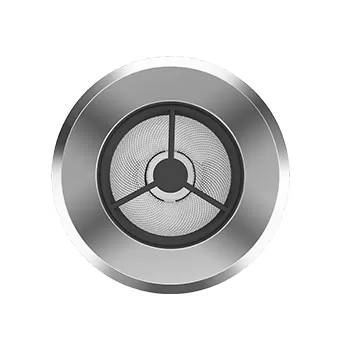

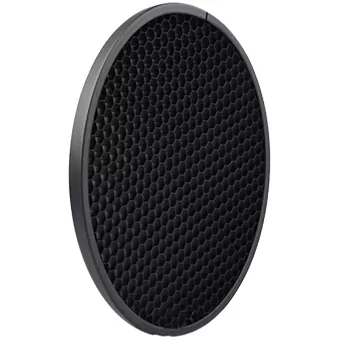

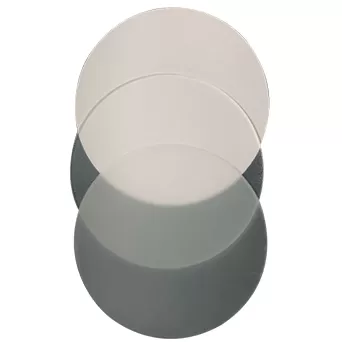

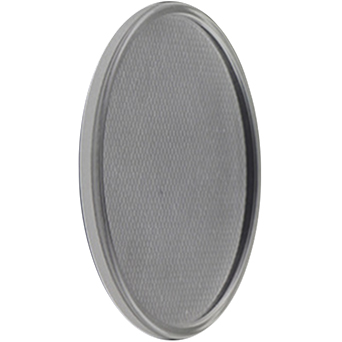

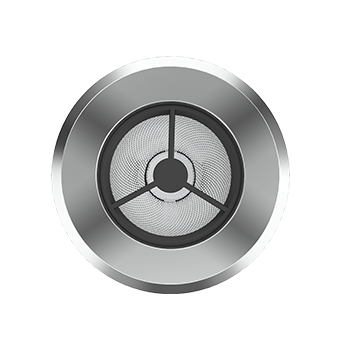

Diffuser, Filter, Honeycomb Louver, Three Fork Light Baffle Plate,

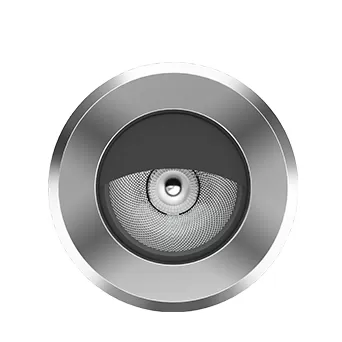

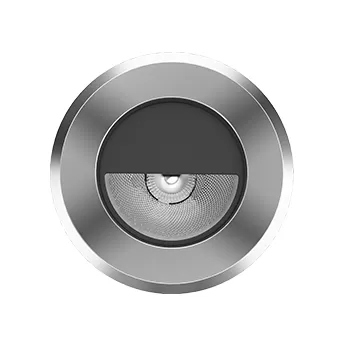

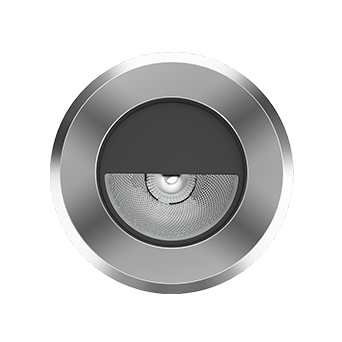

 Crescent Baffle Plate, Double Crescent Baffle Plate, Half Moonbaffle Plate


CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22


ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingADC12# Die-casting aluminum housing
ComplianceIK08, IP67, Class ICertificateIP67, CE, ETL, RoHS, CCC

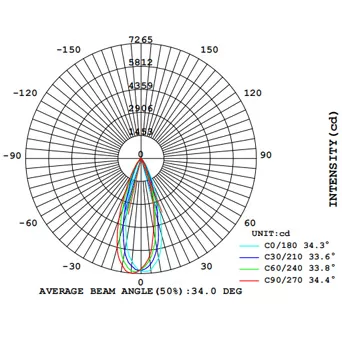

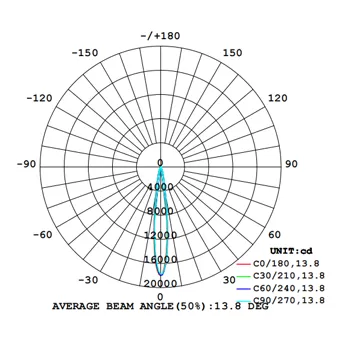

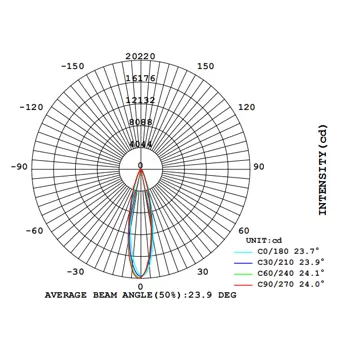

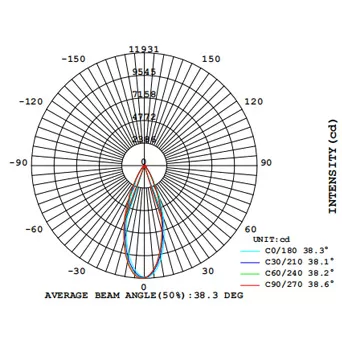

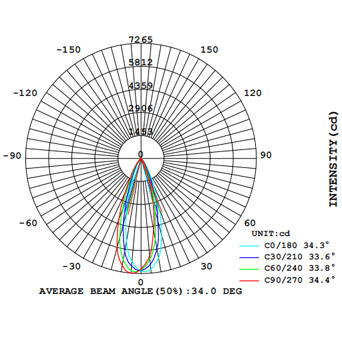

LIGHT DISTRIBUTION

MECHANICS

DimensionΦ80*H85mmWeight1.65KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialADC12# Die-casting aluminum housing
FinishStainless steel SUS316Mounting TypeOutdoor lighting for squares, outdoor parks, leisure places, etc

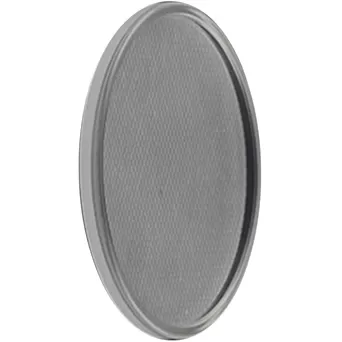

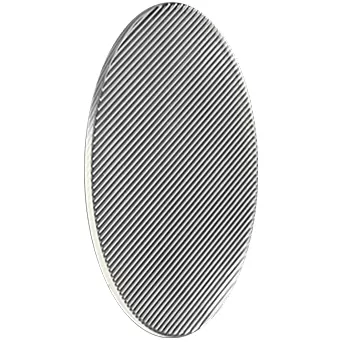

OPTIONAL ACCESSORIES

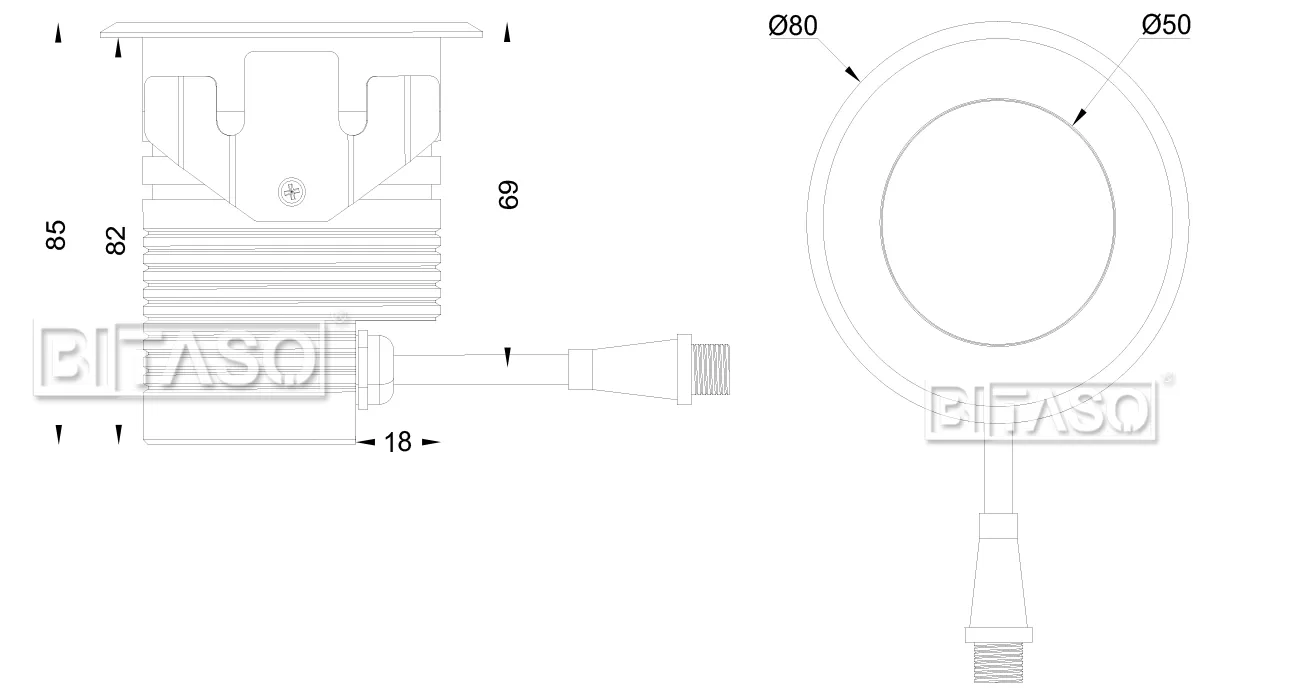

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

  • BITASO has been aiming at becoming top rate outdoor LED lighting brand worldwide with the spirit of craftsman and persist in enhancing the ability of innovation,supplying reliable lighitngs and professional after-sales services for customers at home and abroad.We have been always make our effort to create value for the customers and suppliers so that we can grow together.
