Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact architectural and stylish outdoor innovative projector for variety of floodlighting applications,ideal for illuminating large buildings and objects.Large area connectiongs between the rear of the housing and the LED S PCB ensure good heat conduction.Extremely narrow to wide beam options,ratationally symmetric light distribution,integrated power supply with dimmable options.
ELECTRONICS
| Power(Luminaire) | 5W/7W | Power Factor | >0.9, CCS auto calibrating |
| Input Voltage | DC12V DC24V DC36V DC48V | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 8 pin power+DMX integrated cable |
OPTICS
| Light Source | 3PCS SMD | Lumen (Luminaire): | 1200LM |
| LED Brand | CREE/OSRAM/TYANSHINE SMD | Luminaire Lminous Efficacy | 72LM/W, 90LM/W, 90LM-135LM/W |
| Full White LED(FW) | 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K | Turnable White | 3000K-6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50, 000hrs | Beam Agle | 12°, 25°, 38°, 15°, 40°, 60°, etc. |

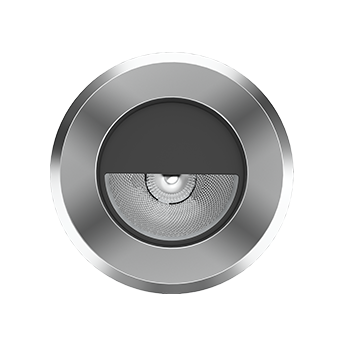

| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Diffuser, Filter, Honeycomb Louver,half shading |
CONTROL SYSTEM
| Control | DMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment) | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | CNC Stainless steel SUS316L |
| Compliance | IK08, IP68, Class I | Certificate | IP68, CE, ETL, RoHS, CCC |

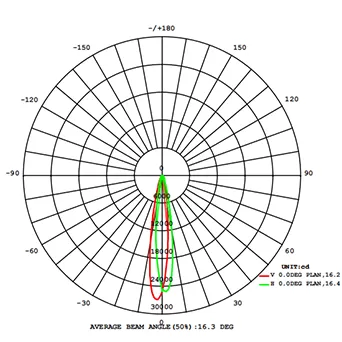

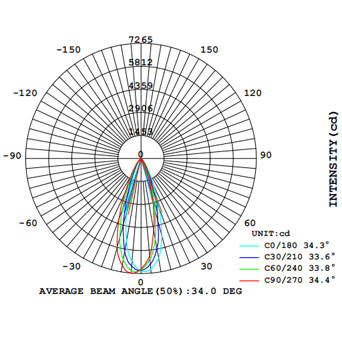

LIGHT DISTRIBUTION
MECHANICS
| Dimension | 80x85mm | Weight | 1.6KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | CNC Stainless steel SUS316L |
| Finish | TIGER PODER gray(RAL9006), black(RAL9005) | Mounting Type | Floor, underwater |

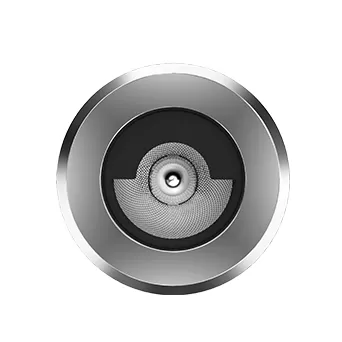

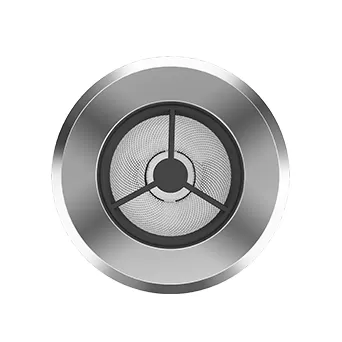

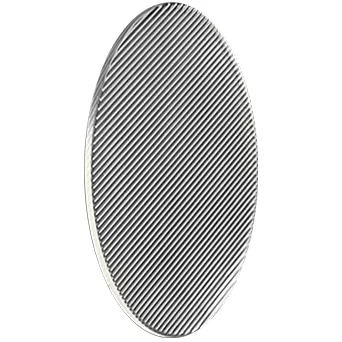

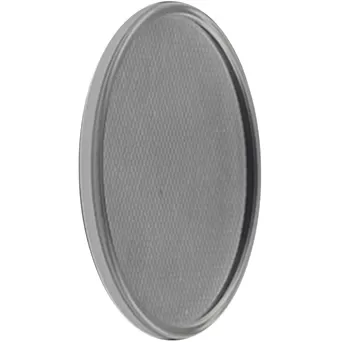

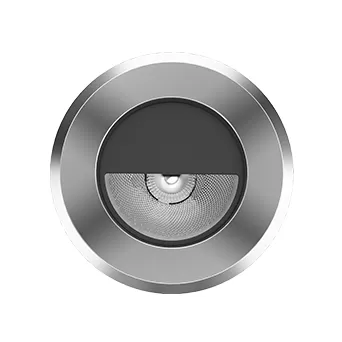

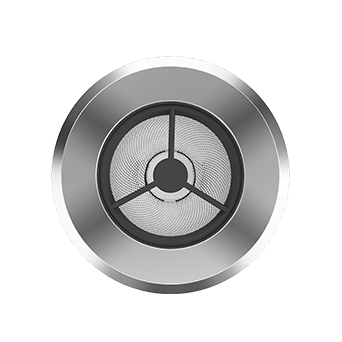

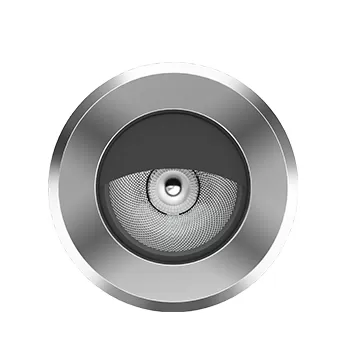

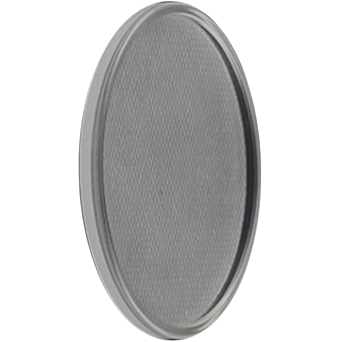

OPTIONAL ACCESSORIES

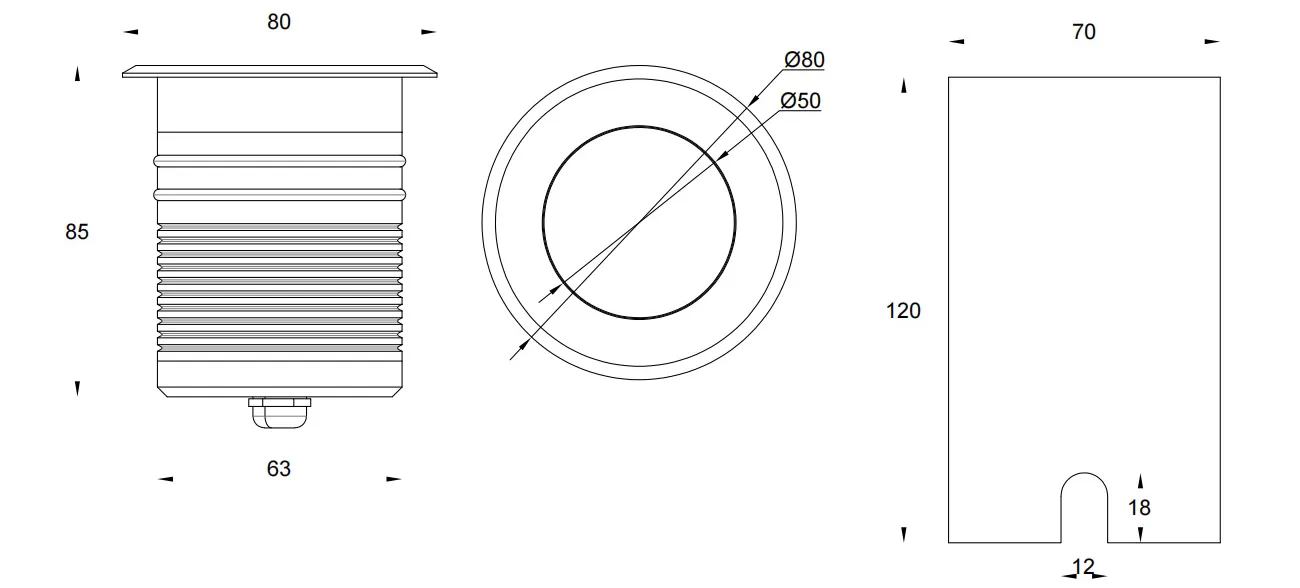

LUMINAIRE DIMENSION

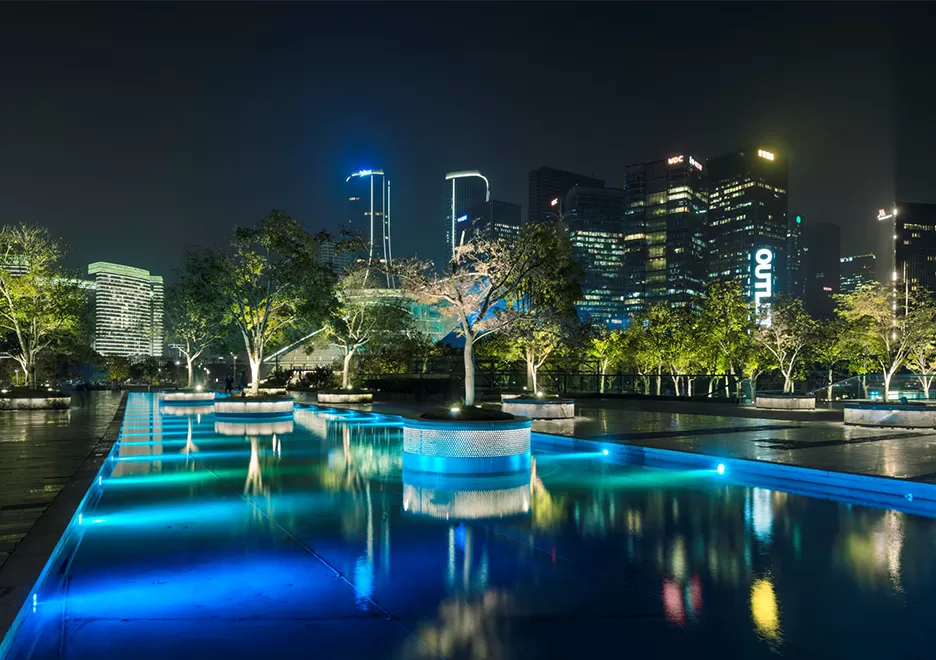

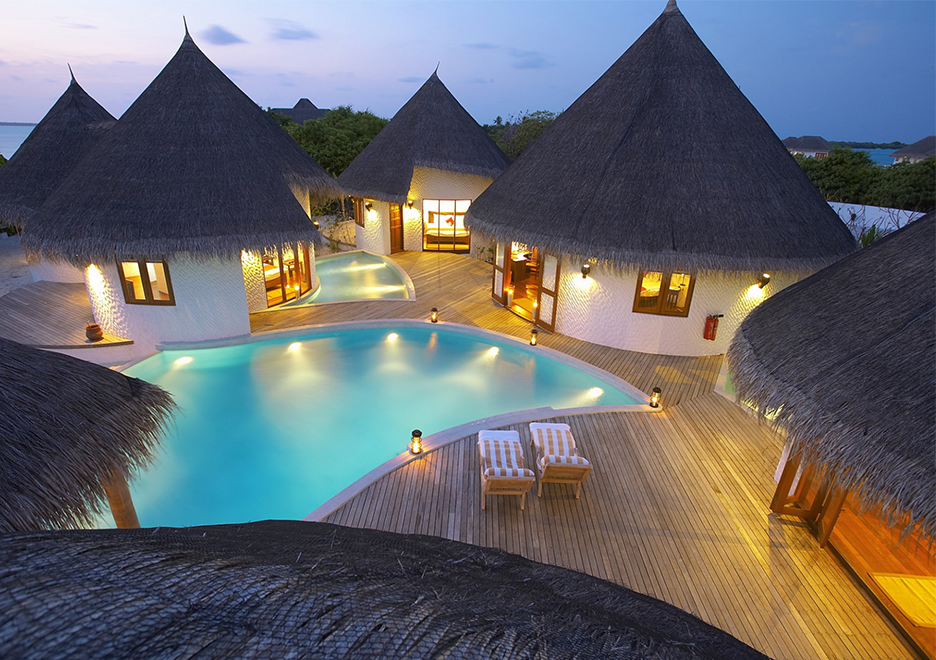

PROJECT REFERERNCE

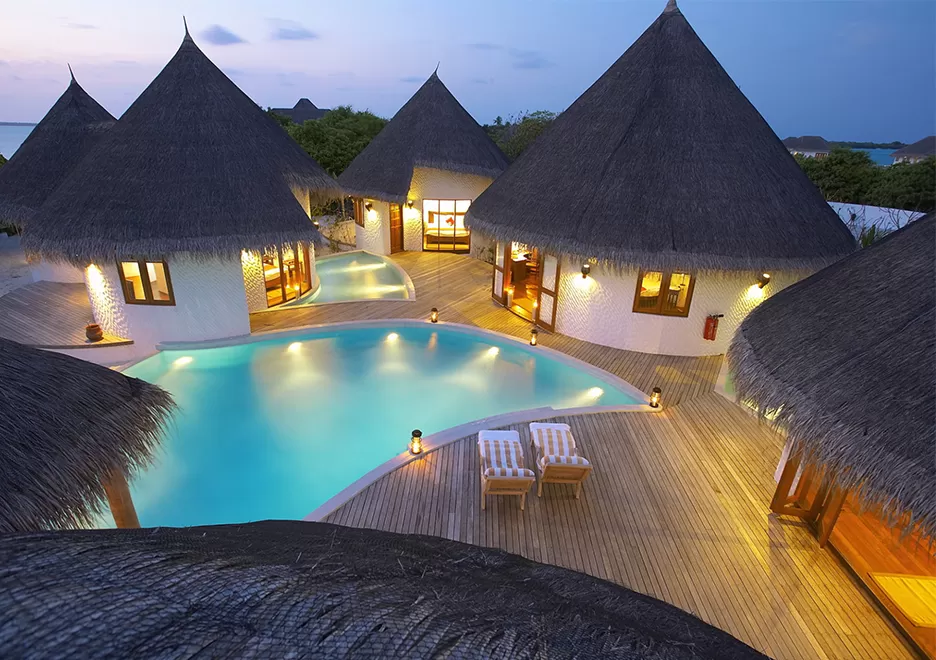

PROJECT REFERERNCE

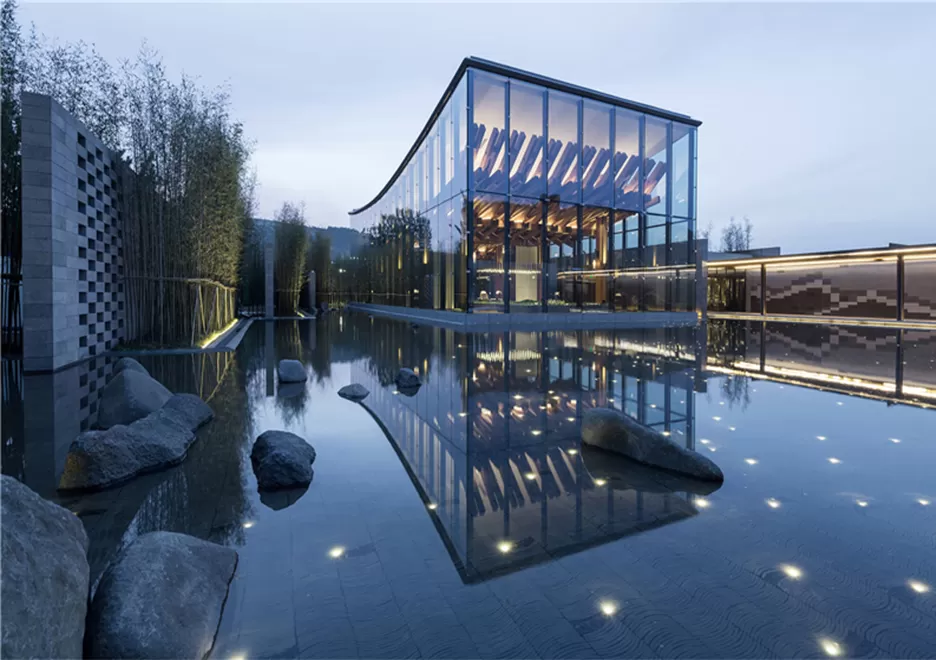

PROJECT REFERERNCE
