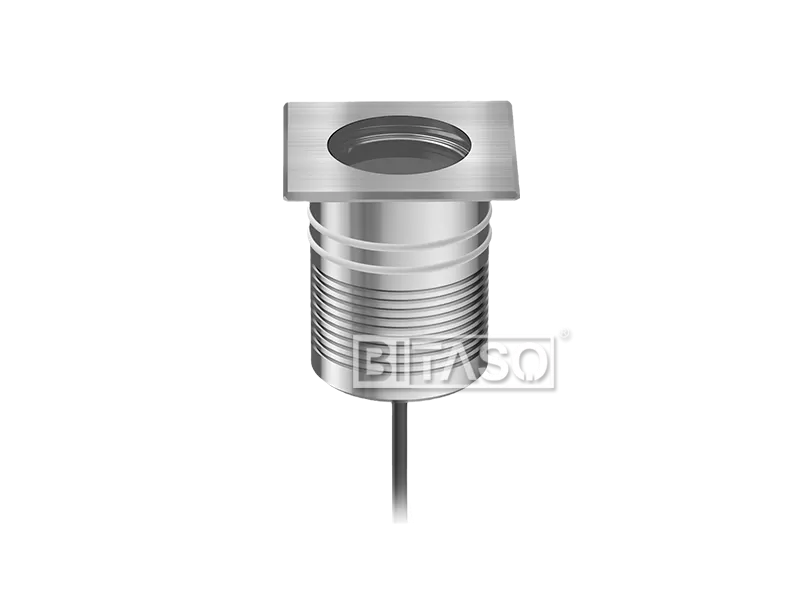

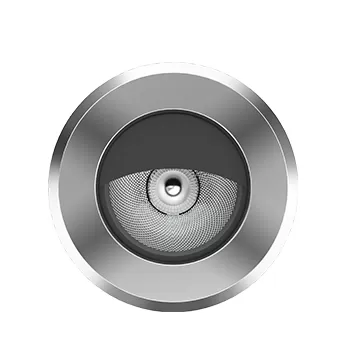

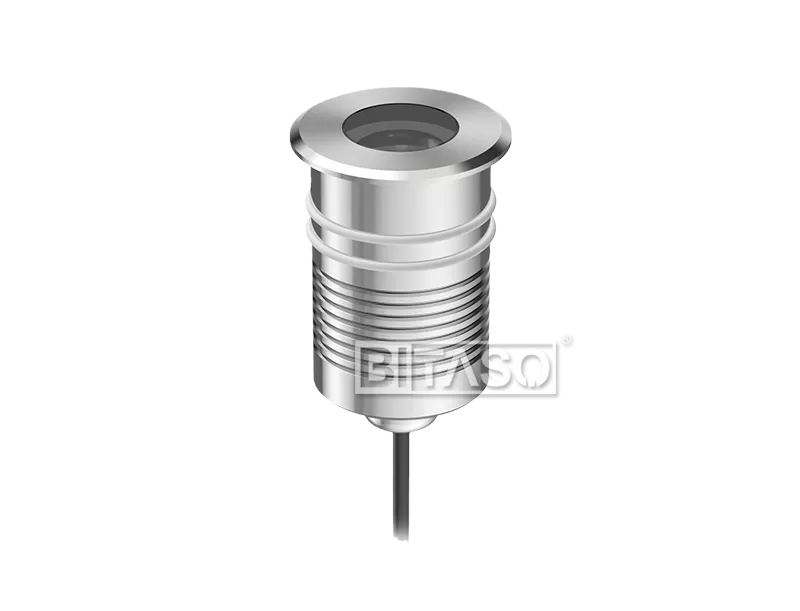

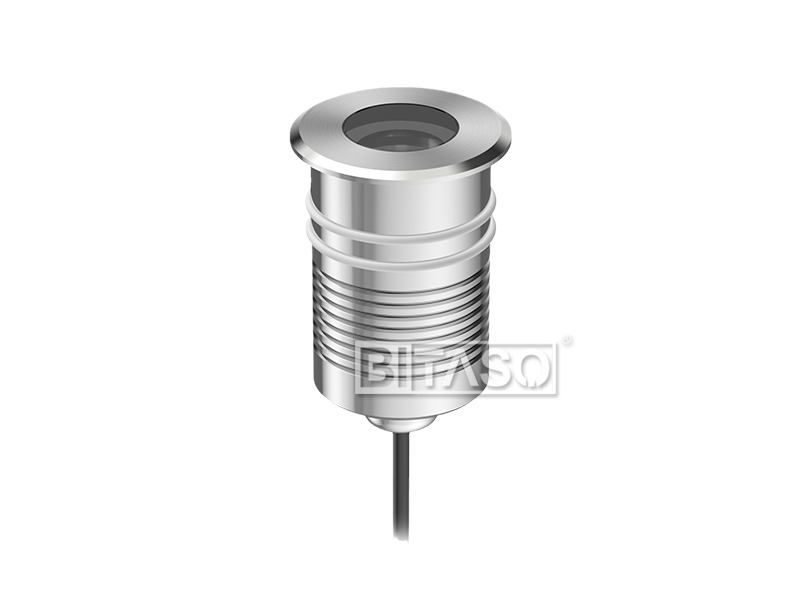

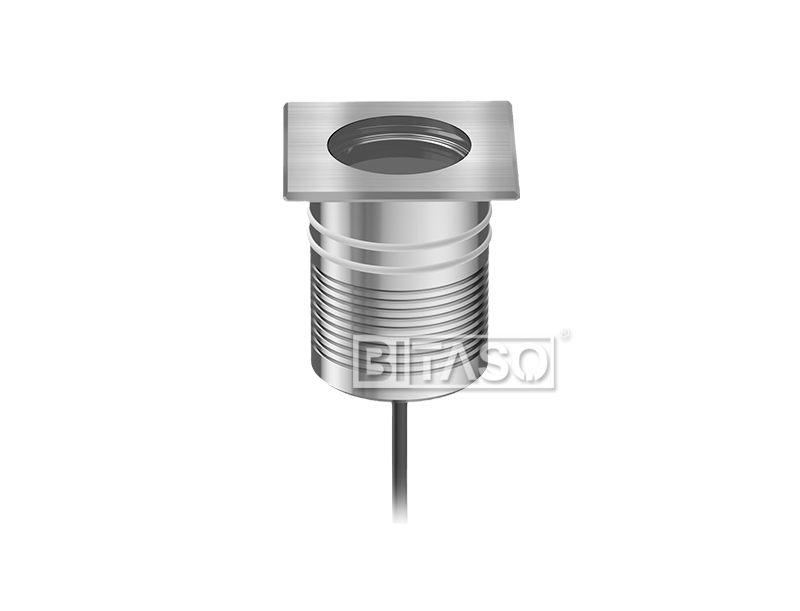

DORIS D38 SMD

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Compact architectural and stylish outdoor innovative projector for variety of floodlighting applications,ideal for illuminating large buildings and objects.Large area connectiongs between the rear of the housing and the LED S PCB ensure good heat conduction.Extremely narrow to wide beam options,ratationally symmetric light distribution,integrated power supply with dimmable options.

ELECTRONICS

Power(Luminaire)1W/1.5W/2W/1-1.5WPower Factor>0.9, CCS auto calibrating
Input VoltageDC12V DC24V DC36V DC48V Driver OptionIntegral control gear
Dmming TypeON/OFF, 0-10V, DALI, Triac, DMX512DriverIntegral control gear
Optional Eectronic AccessoriesPlug, Leading Cable, Connection Cable, Junction boxConnector8 pin power+DMX integrated cable

OPTICS

Light Source1PCS SMDLumen (Luminaire):1200LM
LED BrandCREE/OSRAM/TYANSHINE SMDLuminaire Lminous Efficacy72LM/W, 90LM/W, 90LM-135LM/W
Full White LED(FW)2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500KTurnable White2700K-6500K
Multi ColorRGB, RGBWCRIRa>85, Ra>90
LED Life Span≥50, 000hrsBeam Agle12°, 25°,  40°, 60°, etc.

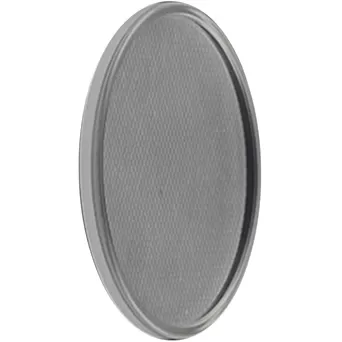

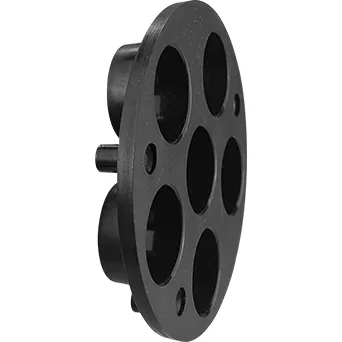

MacAdam Ellipse3 SDCM, 5SDCMOptional Optical AcessoriesDiffuser, Filter, Honeycomb Louver

CONTROL SYSTEM

ControlDMX512 /RDM (wireless/DALI/ 0-10V available on request, optional for automatic address assignment)DMX ChannelFW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCSOptionalVariantsCompatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta~-20 °C to 40 °CAnto-condensation SystemOptional
Corrosion Resistanceoptional for marine environmentPassive CoolingCNC Stainless steel SUS316L
ComplianceIK08, IP68, Class ICertificateIP68, CE, ETL, RoHS, CCC

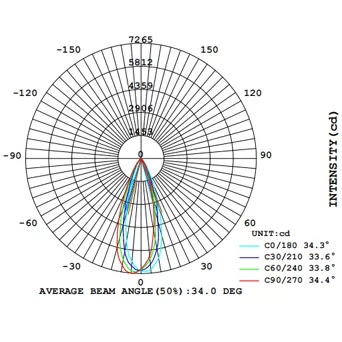

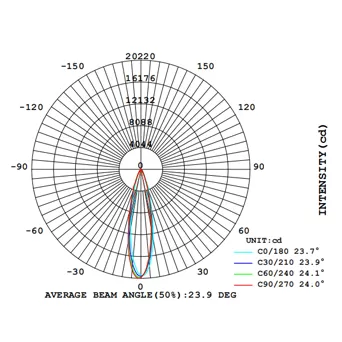

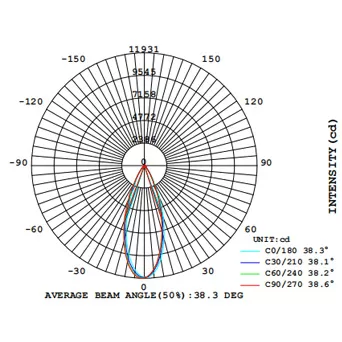

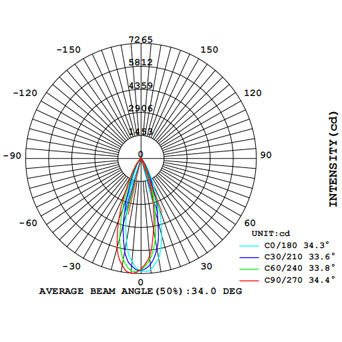

LIGHT DISTRIBUTION

MECHANICS

Dimension38x60mmWeight1.55KGS
Lens/Refector Cup MaterialPMMA + Anti-UV lensHousing Fixture MaterialCNC Stainless steel SUS316L
FinishTIGER PODER gray(RAL9006), black(RAL9005)Mounting TypeFloor, underwater

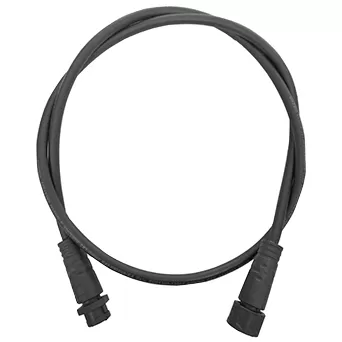

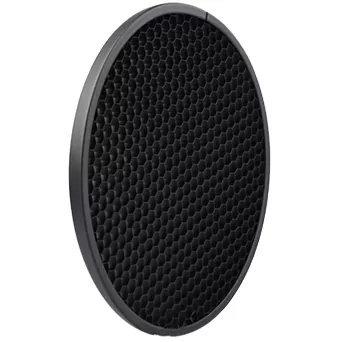

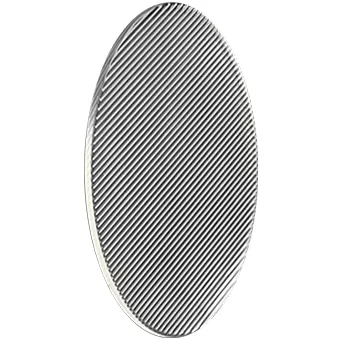

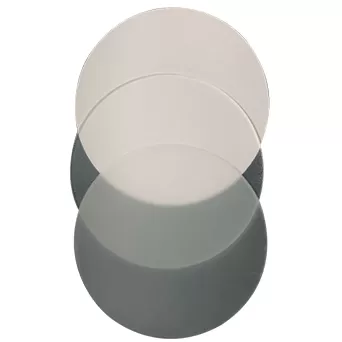

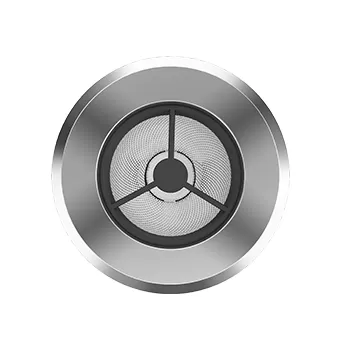

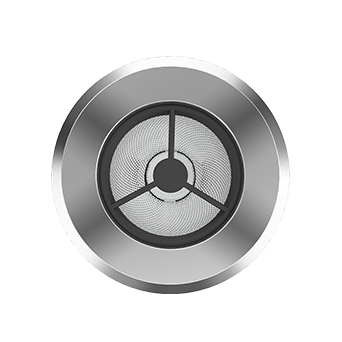

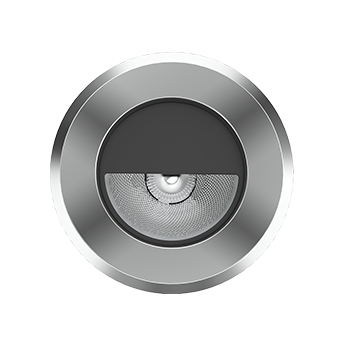

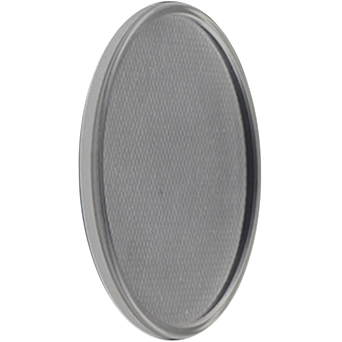

OPTIONAL ACCESSORIES

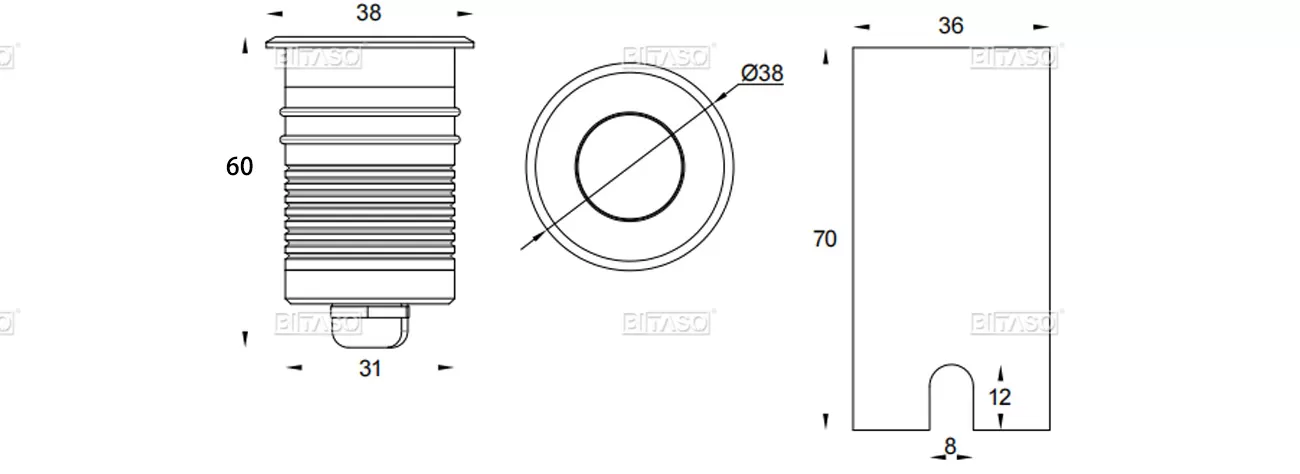

LUMINAIRE DIMENSION

LUMINAIRE DIMENSION

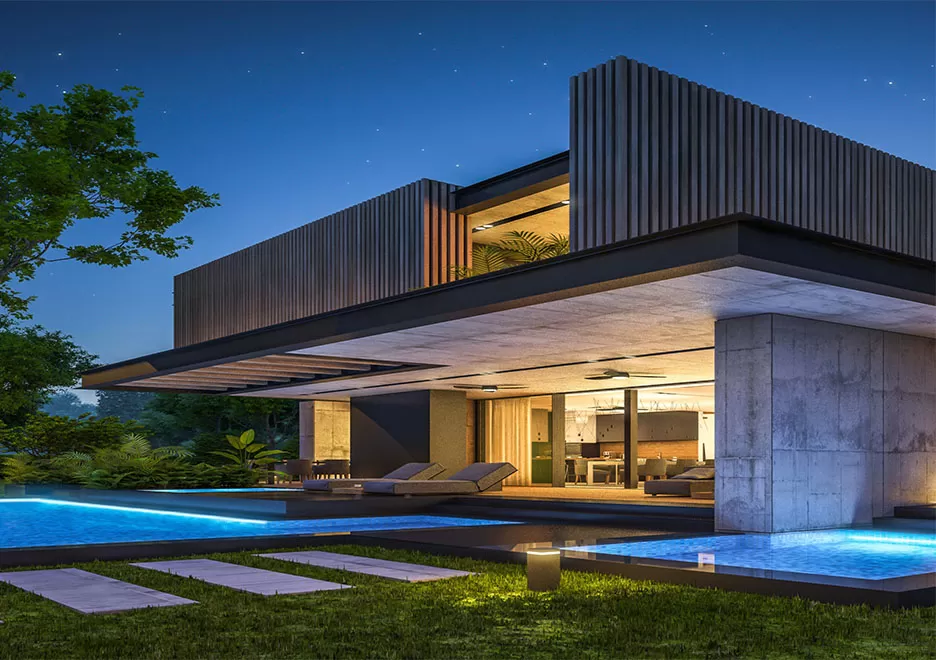

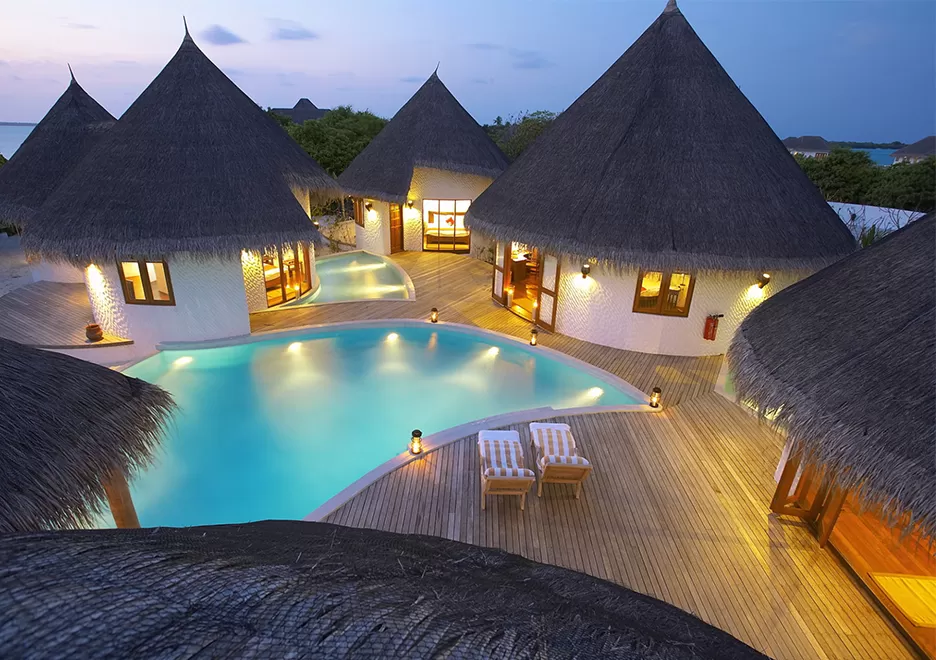

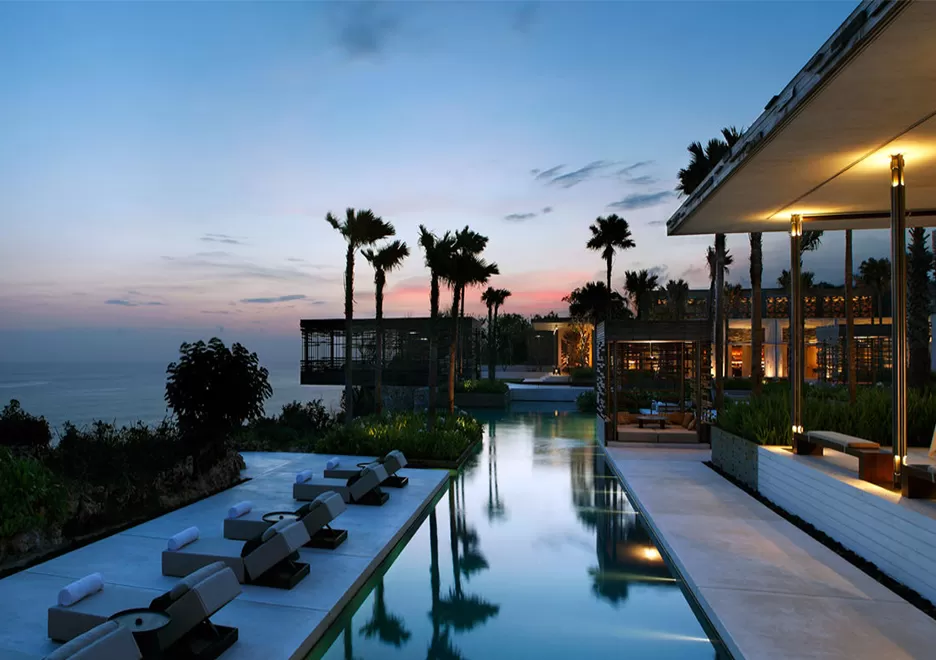

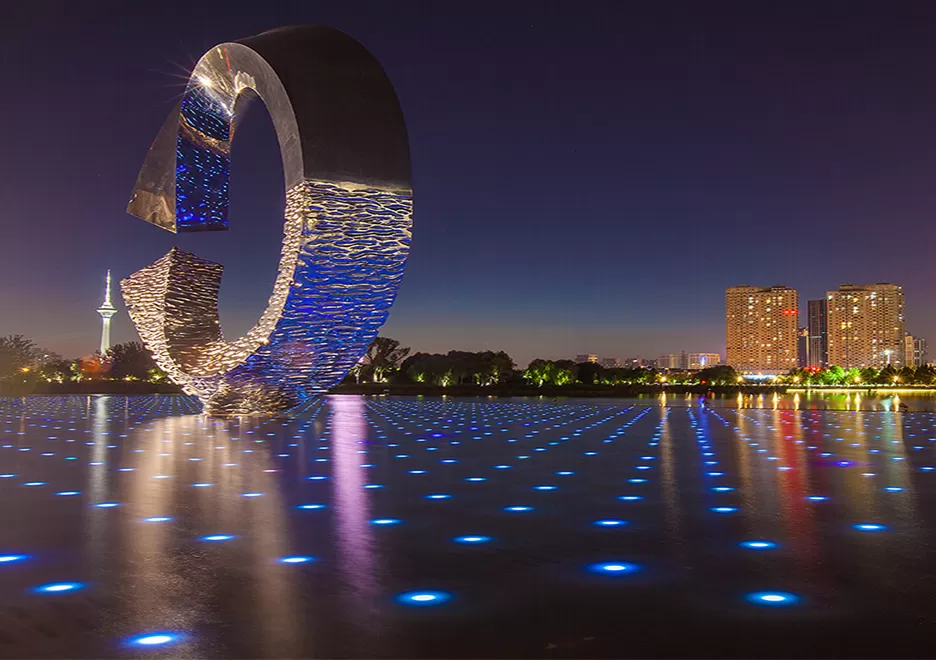

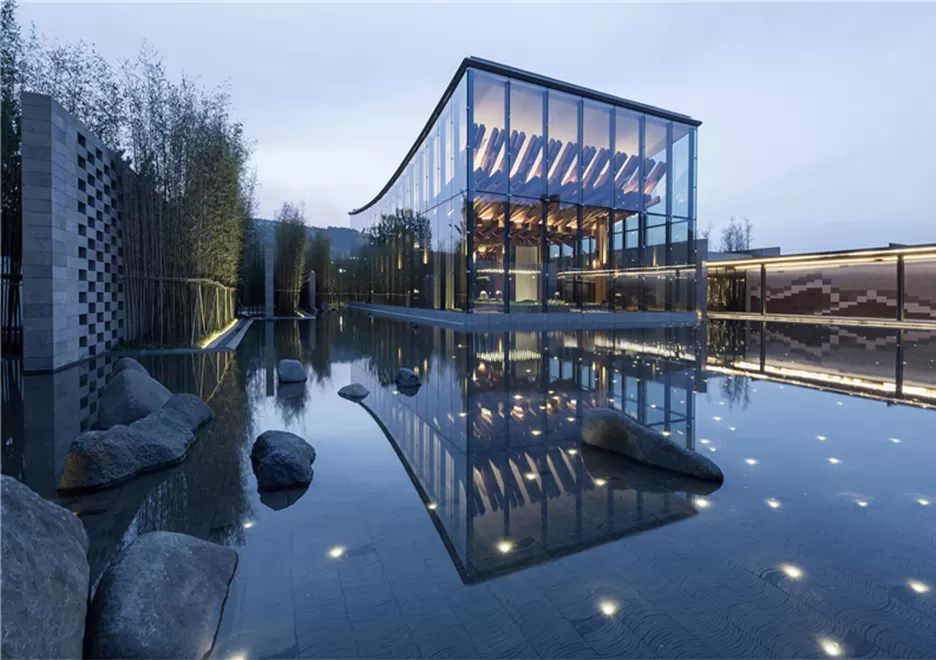

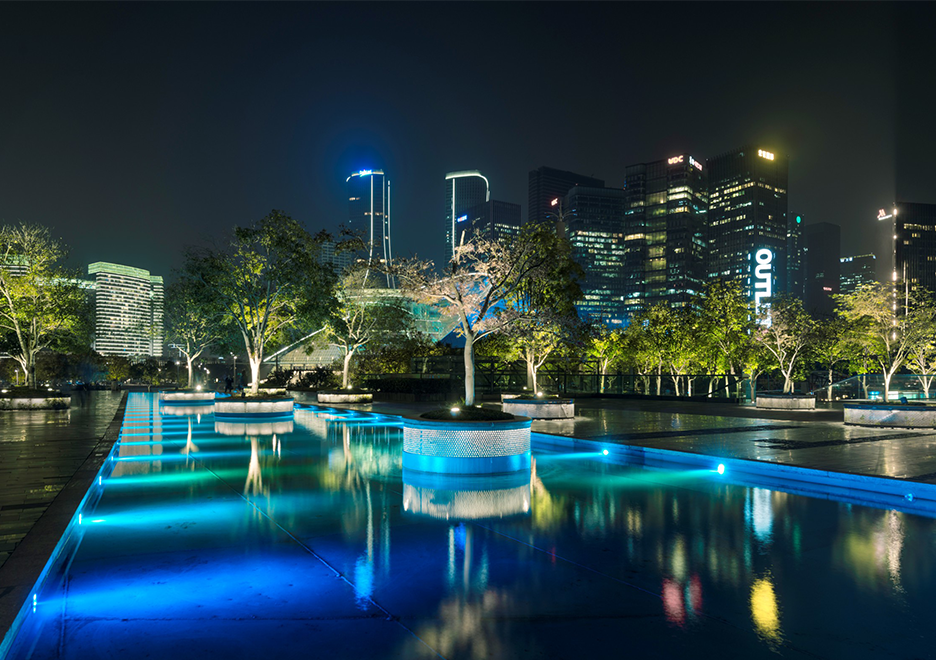

  • PROJECT REFERENCE

    PROJECT REFERENCE

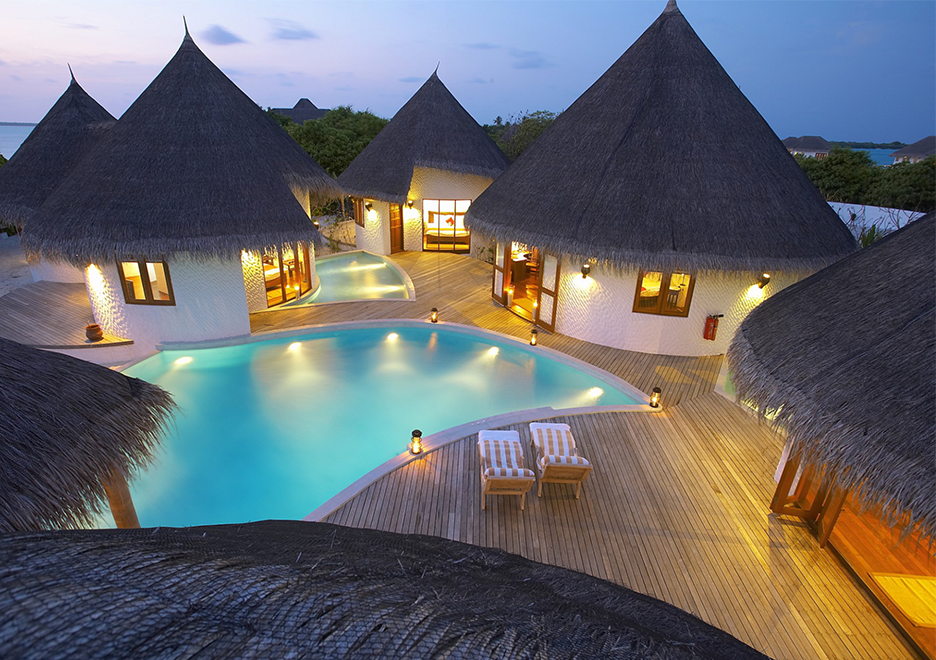

  • PROJECT REFERENCE

    PROJECT REFERENCE

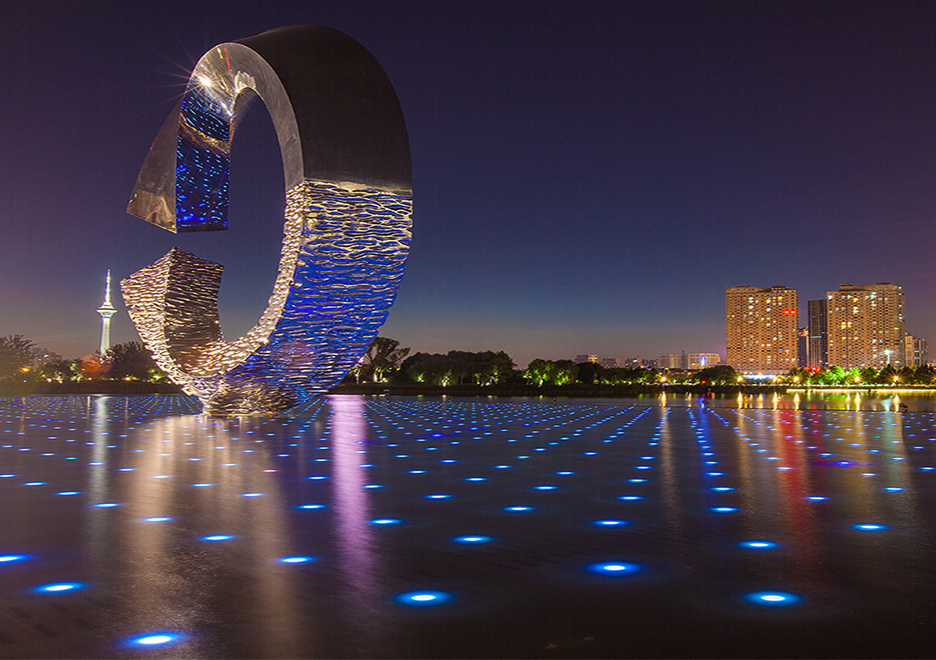

  • PROJECT REFERENCE

    PROJECT REFERENCE

  • PROJECT REFERENCE

    PROJECT REFERENCE

  • PROJECT REFERERNCE

    PROJECT REFERERNCE
