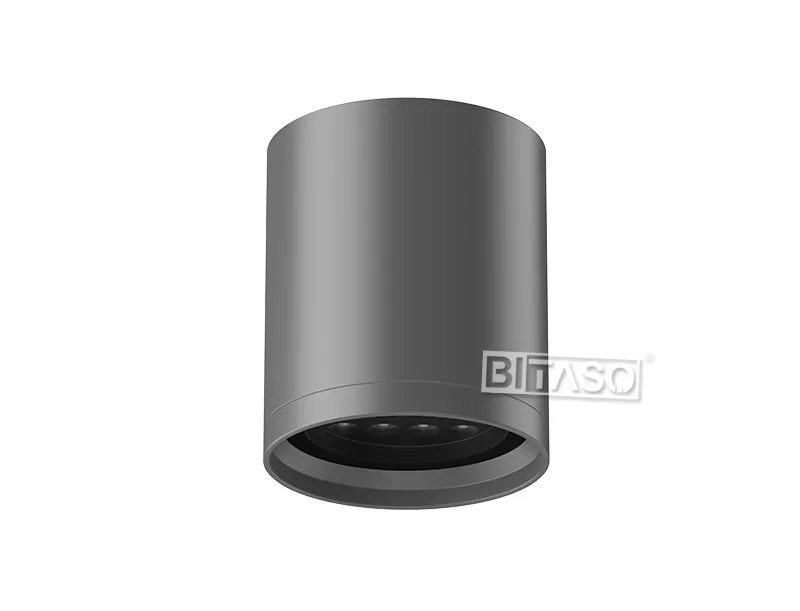

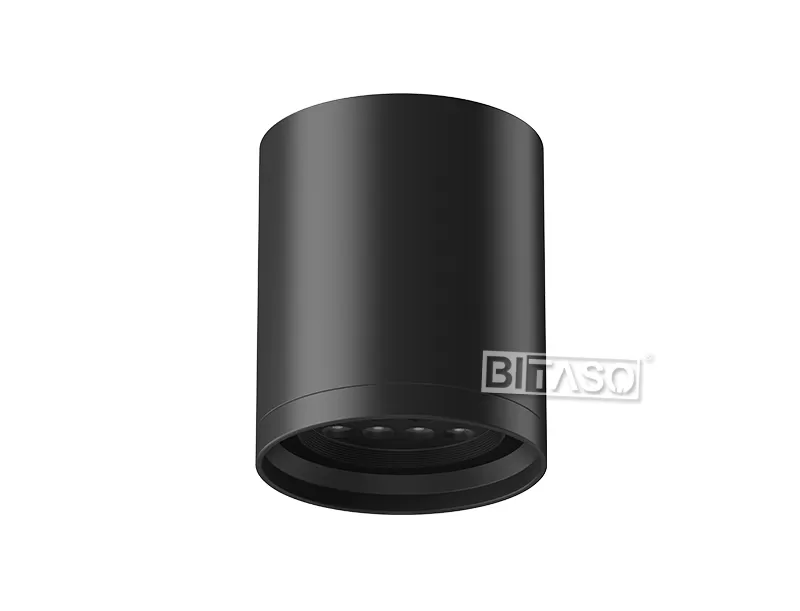

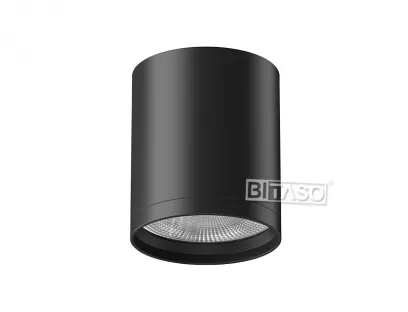

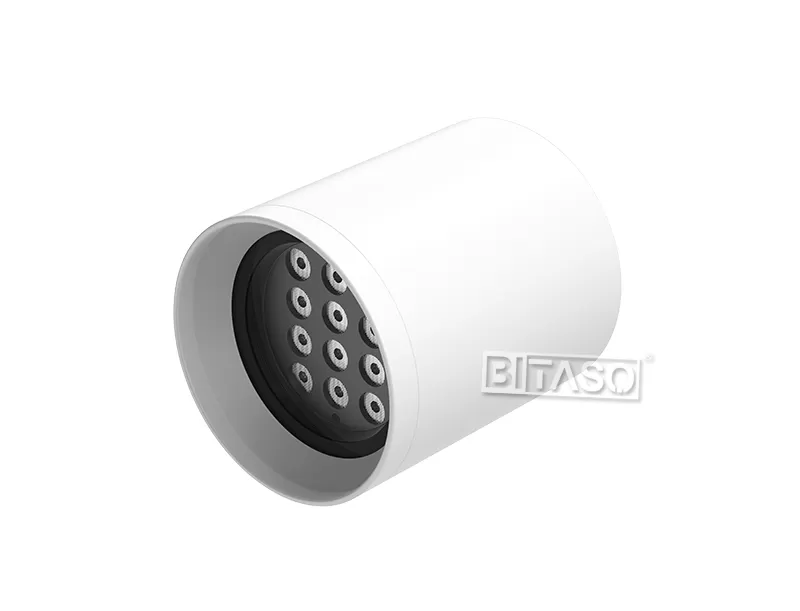

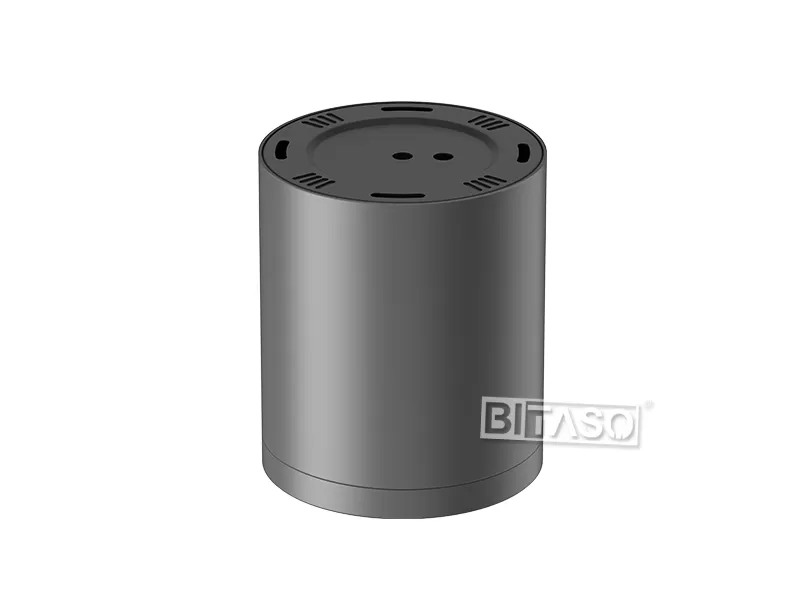

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,flood lighting and wall washing in the outdoor area.
ELECTRONICS
| Power(Luminaire) | 30W/60W/100W | Power Factor | >0.9 |
| Input Voltage | DC24V DC36V DC48V AC110-240V AC220-240V 50/60Hz | Driver Option | Integral control gear |
| Dimming Type | 0-10V, DALI, Triac, DMX512, PWM | Driver | Integral control gear |
| Optional Eectronic Accessories | Integral | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 12PCS SMD | Lumen（Luminaire): | 1200-2400LM/W |
| LED Brand | CREE/LUMINUS/OSRAM/TYANSHINE SMD | Luminaire Lminous Efficacy | 80LM/W |
| Full White LED(FW) | 2700K,3000K,3500K,4000K,4500K,5000K,5700K | Tunable White | 2700/6500K |
| Multi Color | RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10*22,10*55,20*60° |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Filter, Honeycomb Louver,Grille |
CONTROL SYSTEM
| Control | DMX512-RDM/DMX512/DALI/ 0-10V/1-10V/Triac | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | DC12# Die-casting aluminum housing |
| Compliance | IK08, IP65, Class I | Certificate | IP65, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | D170x210mm | Weight | 2.4KGS |
| Lens/Refector Cup Material | Anti-UV lens | Housing Fixture Material | DC12# Die-casting aluminum housing |
| Finish | Black/Grey/White | Mounting Type | Ceiling mounting |

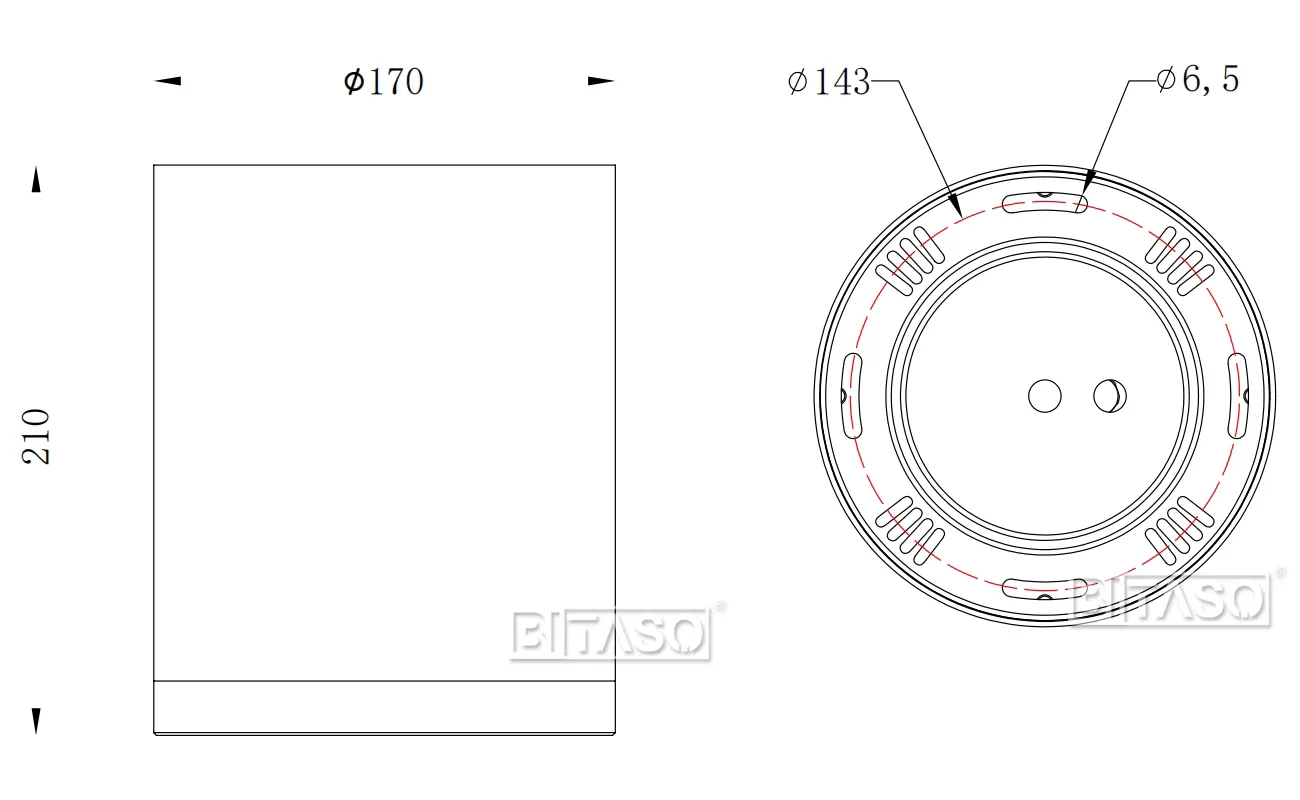

LUMINAIRE DIMENSION
