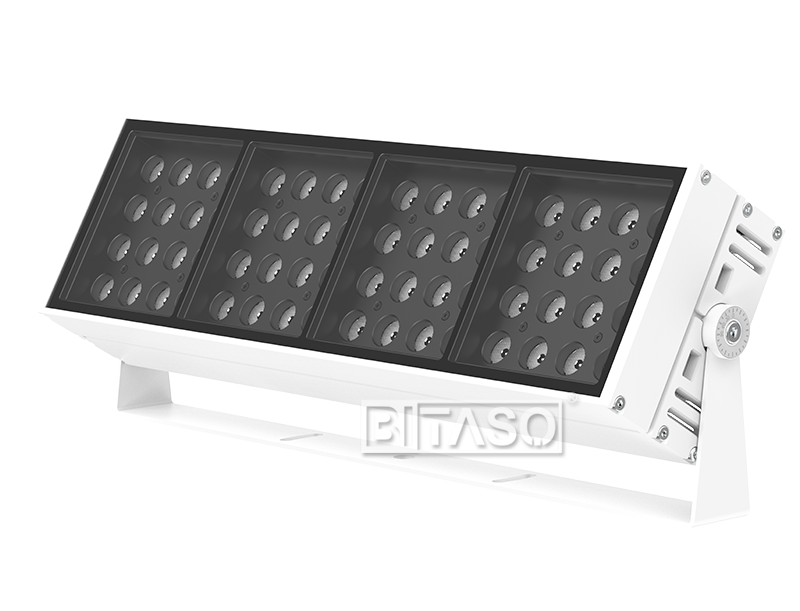

CUBIC D152 SMD

Luminaires with famous brands leds provide excellent light quality with highly precise light distribution, free of colour shifts and dis-tortion, special PCB layouts ensure the led modules are optimally matched to the optical system of the luminaires emit more than 90% of their initial luminous flux until 50000 operating hours.

Corrosion-resistant extruded aluminum housing gives the luminaire good thermal conductivity, and large area connections between the rear of the housing and the led's PCB ensure good heat conduction.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	160-200W	Power Factor	>0.9
Input Voltage	AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	4*16PCS SMD	Lumen（Luminaire):	14400LM-18000LM
LED Brand	OSRAM/CREE/TYANSHINE SMD	Luminaire Lminous Efficacy	90LM/W
Full White LED(FW)	2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K	Tunable White
Multi Color	Green, Red, Blue, Yellow, Amber, RGB, RGBW	CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	5°,8°,10°,12°,20°,25°,30°,40°,45°,60°,10°x22°,20°x60°,etc.
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Hood, Honeycomb Louver

CONTROL SYSTEM

Control	ON/OFF, DMX512	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	Extruded aluminum housing
Compliance	IK08, IP66, Class I	Certificate	IP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

MECHANICS

Dimension	529x212x550mm	Weight	11.55KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	Extruded aluminum housing
Finish	Black/Grey/White	Mounting Type	Floor/Ground

OPTIONAL ACCESSORIES

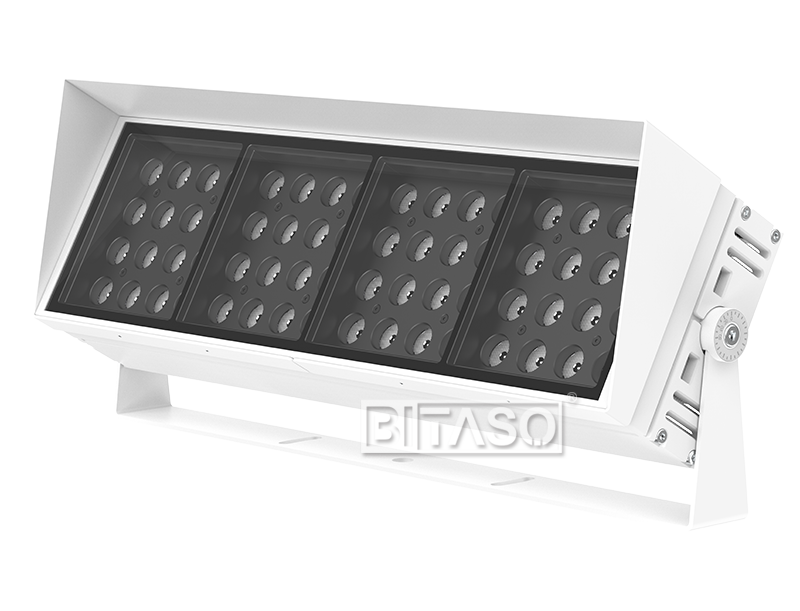

Cuboid Hood Angle25°
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

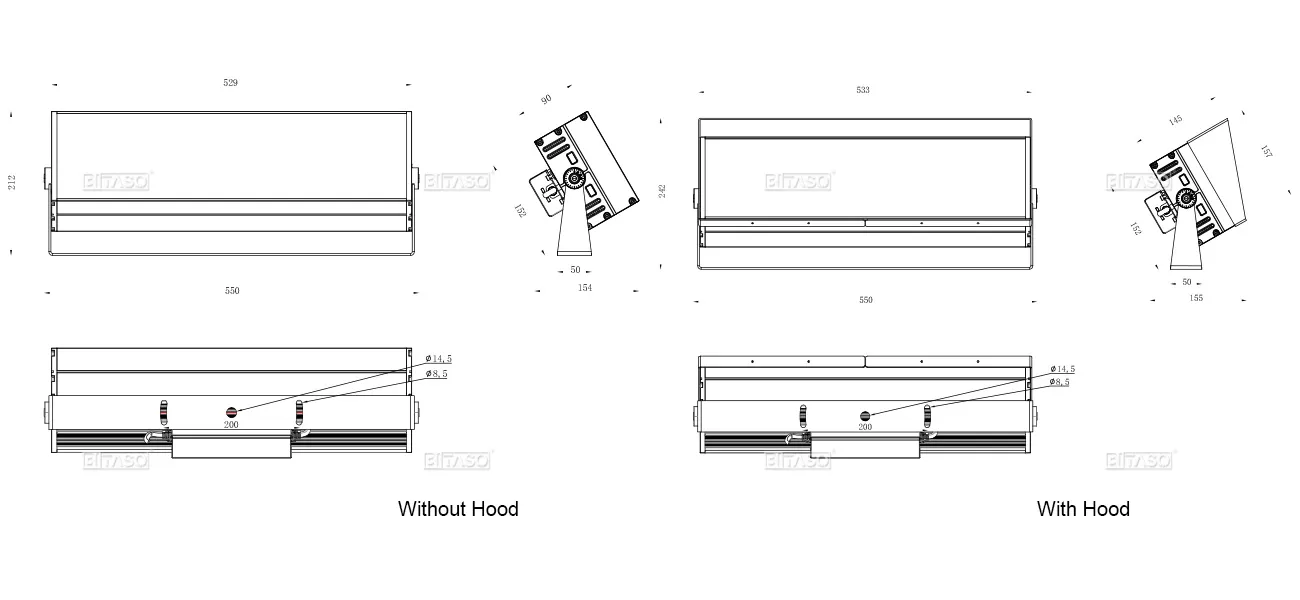

LUMINAIRE DIMENSION

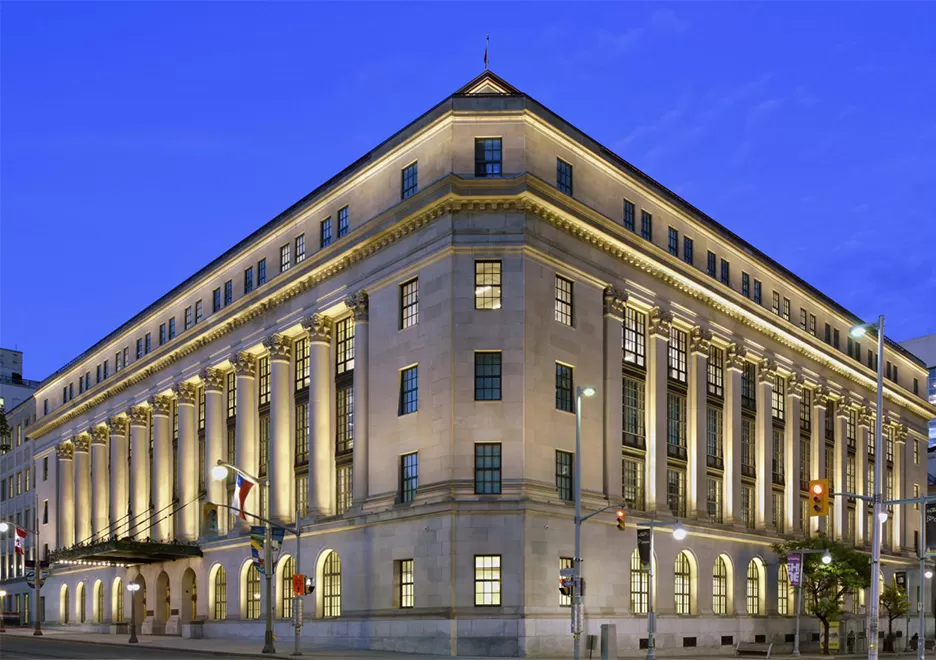

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

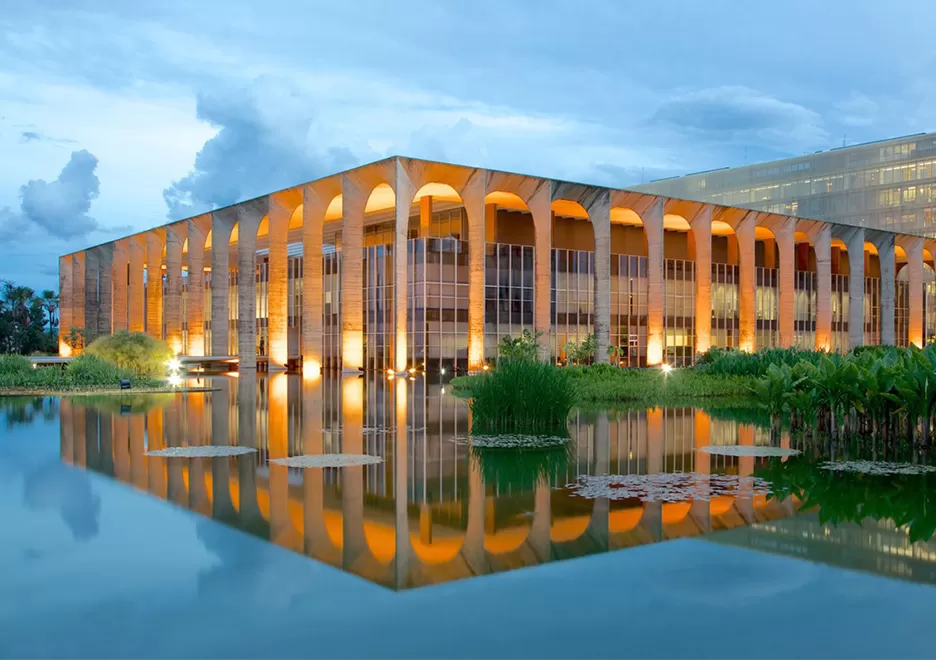

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

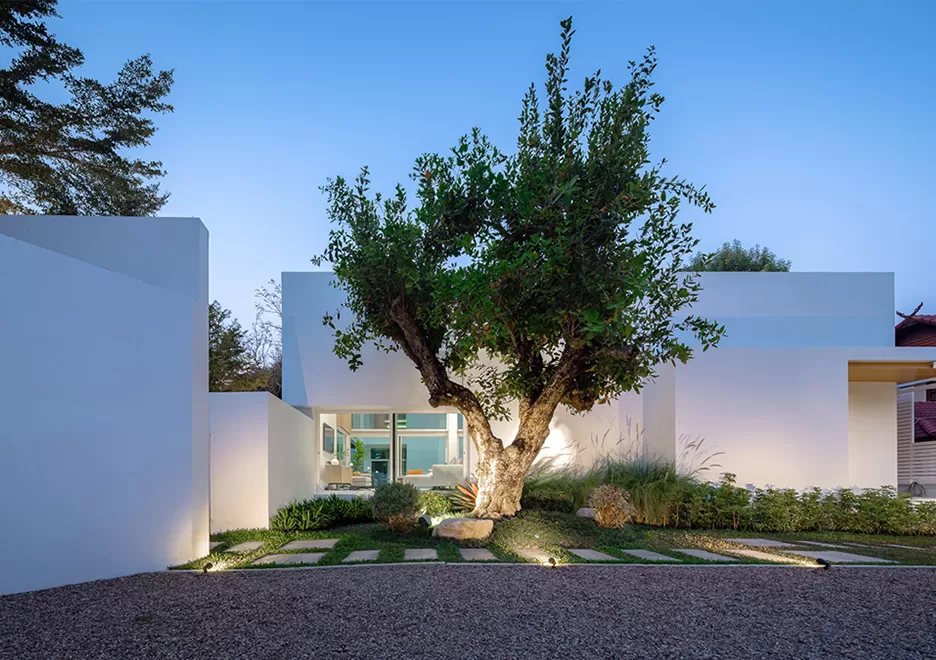

PROJECT REFERENCE

BITASO has been continusously committed itself to Outdoor Architecture&Landscape LED Lighting researching,developing,manufacturing and providing all-in-one solutions. After 9 years effort and development,we have a R&D team with 12 professional engineer and technicians, and got 20 new patents and approved by ISO9001 quality control system, and have been always focusing on acquired certification as CE, CSA, ETL, IK, IP,SASO, ROHS. BITASO has completed eight fields of outdoor lighting, and still focusing on independent technology innovation of new models design.

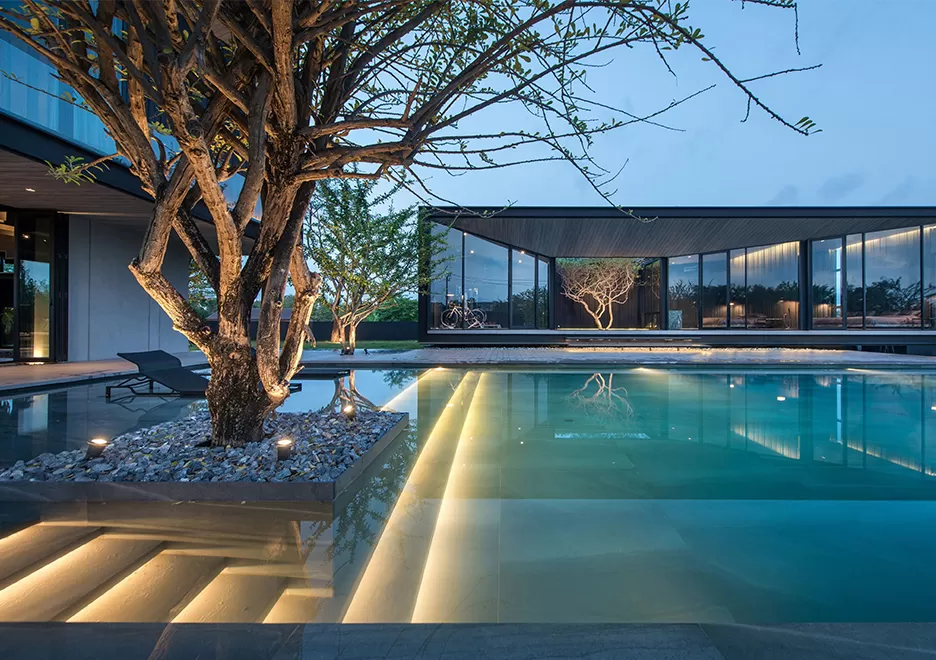

PROJECT REFERENCE
