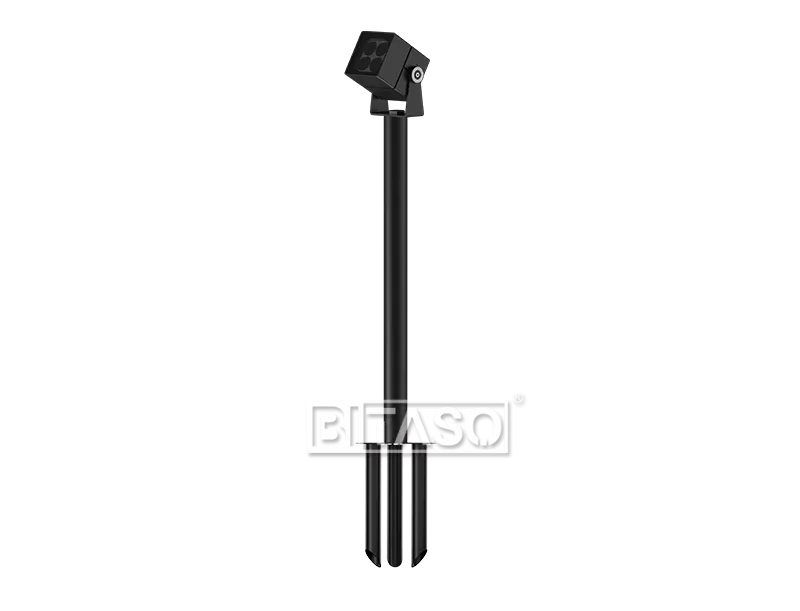

CUBIC landscape three legs spike spot light with ADC12# die-casting aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather.
Bright and warm led landscape square three legs spike projector lighting, CUBIC series architectural projector luminaire , 1.5W-32W, 2200-6500K, RGB, RGBW, Triac/0-10V/DALI/DMX512 dimmable, fresnel lens super narrow angle 1°/3°, led architectural projector luminaire. It can be widely used in garden, path, lawn, courtyard, patio, driveway, outdoor decoration. Let the 'darkness' have nowhere to hide.
ELECTRONICS
| Power(Luminaire) | 2.5W/1-5W/6-9W | Power Factor | >0.9 |
| Input Voltage | DC12V DC24V DC36V DC48V AC110-240V 50/60Hz | Driver Option | Integral control gear |
| Dmming Type | ON/OFF, 0-10V, DALI, Triac, DMX512 | Driver | Integral control gear |
| Optional Eectronic Accessories | Plug, Leading Cable, Connection Cable, Junction box | Connector | 2/3/4/5 Pin |
OPTICS
| Light Source | 4PCS SMD | Lumen（Luminaire): | 225LM, 90LM-450LM, 540LM-810LM |
| LED Brand | OSRAM/CREE/TYANSHINE/LUMINUS SMD | Luminaire Lminous Efficacy | 90LM/W |
| Full White LED(FW) | 2200K,2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K | Tunable White | 2700K/6500K |
| Multi Color | Green, Red, Blue, Yellow, Amber, RGB, RGBW | CRI | Ra>85, Ra>90 |
| LED Life Span | ≥50,000hrs | Beam Angle | 3°,5°,8°,10°,11°,20°,25°,30°,40°,45°,60°,10°x22°,20°x60°,etc. |
| MacAdam Ellipse | 3 SDCM, 5SDCM | Optional Optical Acessories | Cuboid hood Angle25°, Cuboid hood, Honeycomb Louver |
CONTROL SYSTEM
| Control | ON/OFF, 0-10V, DALI, Triac, DMX512 | DMX Channel | FW (1ch), TW (2chs ), RGBW(4chs) |
| CMS, CCS | Optional | Variants | Compatible with EN/ IEC 60598-2-22 |
ENVIRONMENT
| Operating Ta | ~-20 °C to 40 °C | Anto-condensation System | Optional |
| Corrosion Resistance | optional for marine environment | Passive Cooling | ADC12# Die-casting aluminum housing |
| Compliance | IK08, IP66, Class I | Certificate | IP66, CE, ETL, RoHS, CCC |
LIGHT DISTRIBUTION
MECHANICS
| Dimension | 70x70mm | Weight | 1.55KGS |
| Lens/Refector Cup Material | PMMA + Anti-UV lens | Housing Fixture Material | ADC12# Die-casting aluminum housing |
| Finish | Black/Grey/White | Mounting Type | Floor/Ground |
OPTIONAL ACCESSORIES
Cuboid Hood Angle25°
Cuboid Hood
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

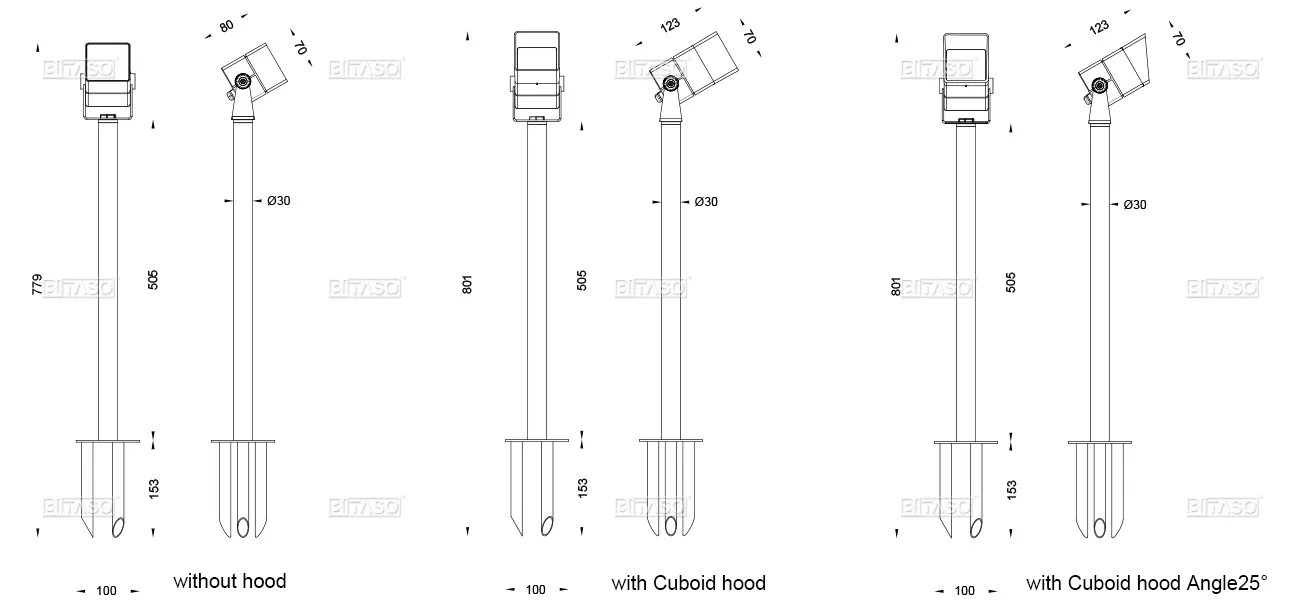

LUMINAIRE DIMENSION
PROJECT REFERENCE
