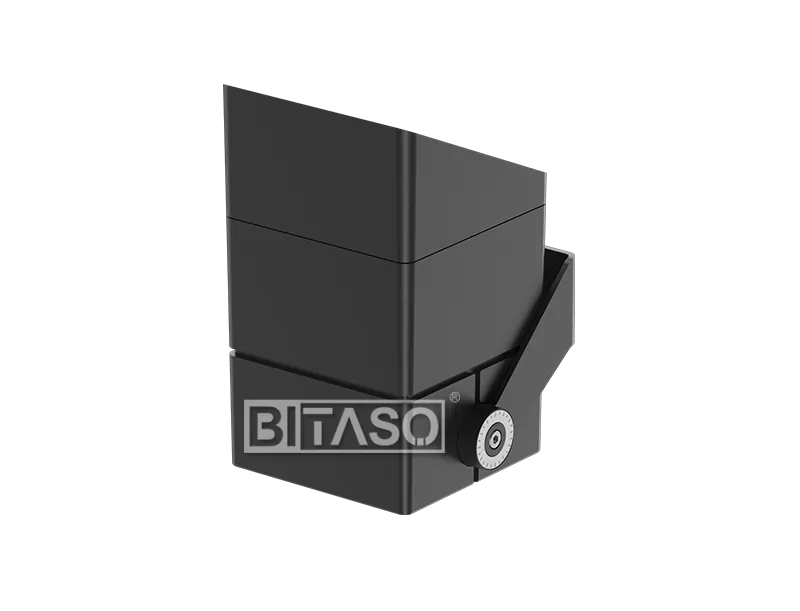

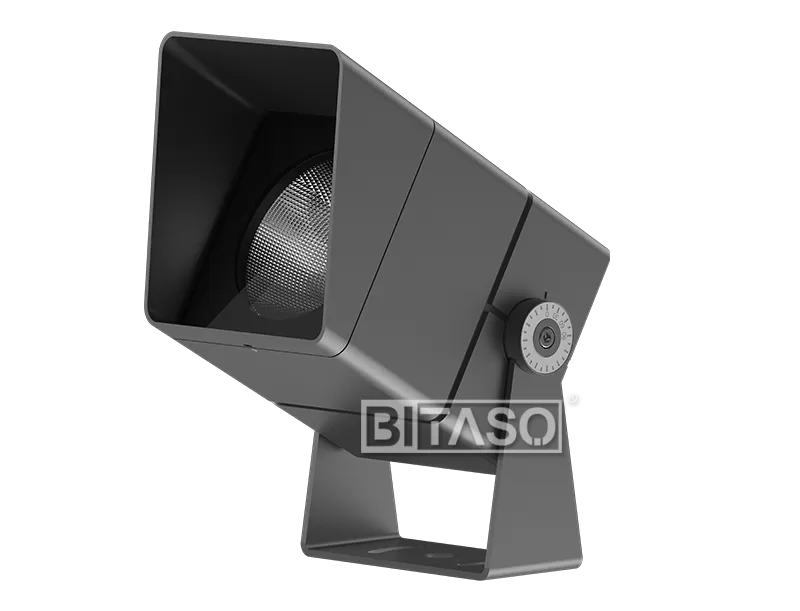

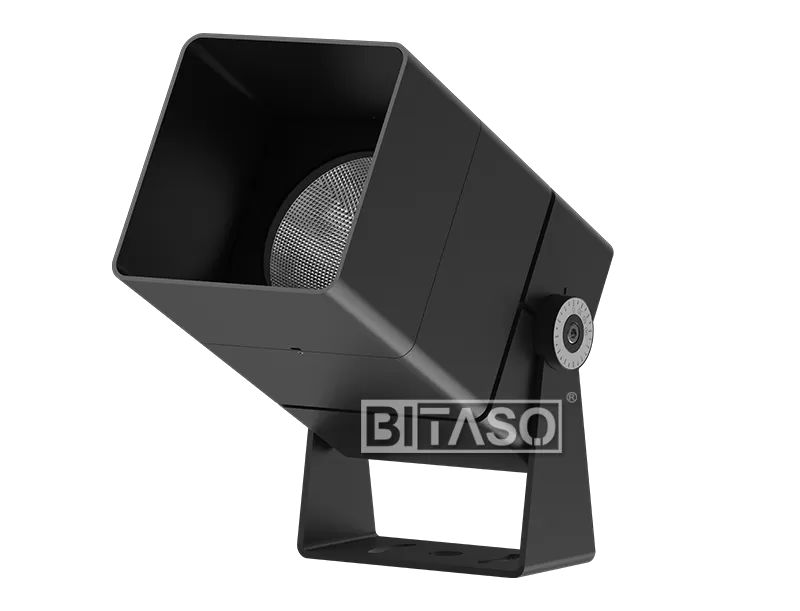

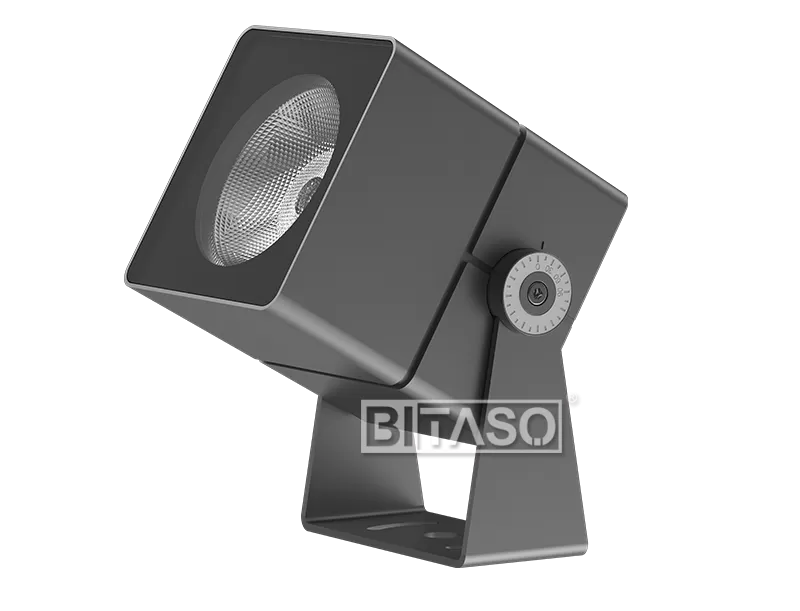

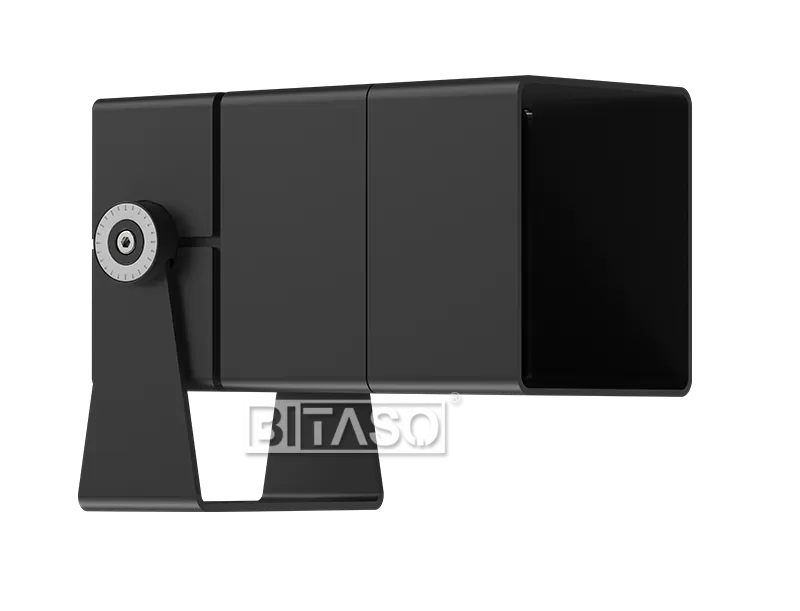

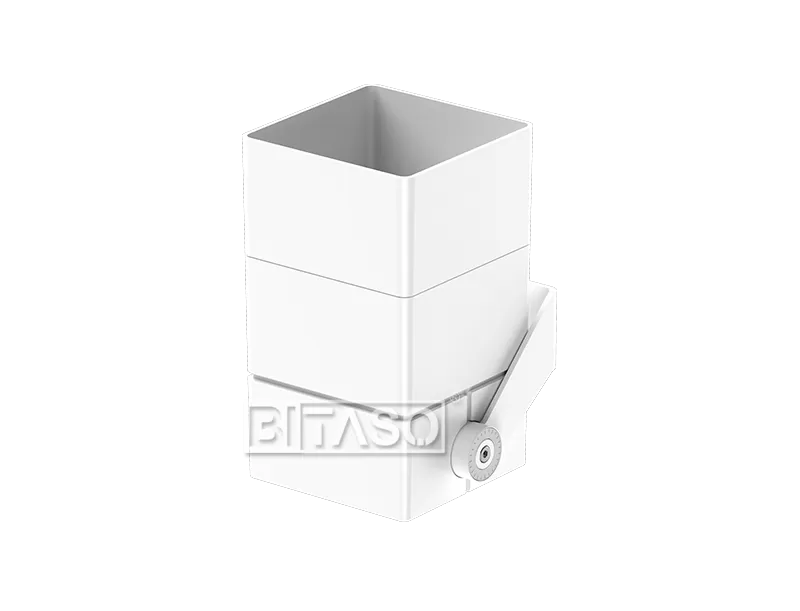

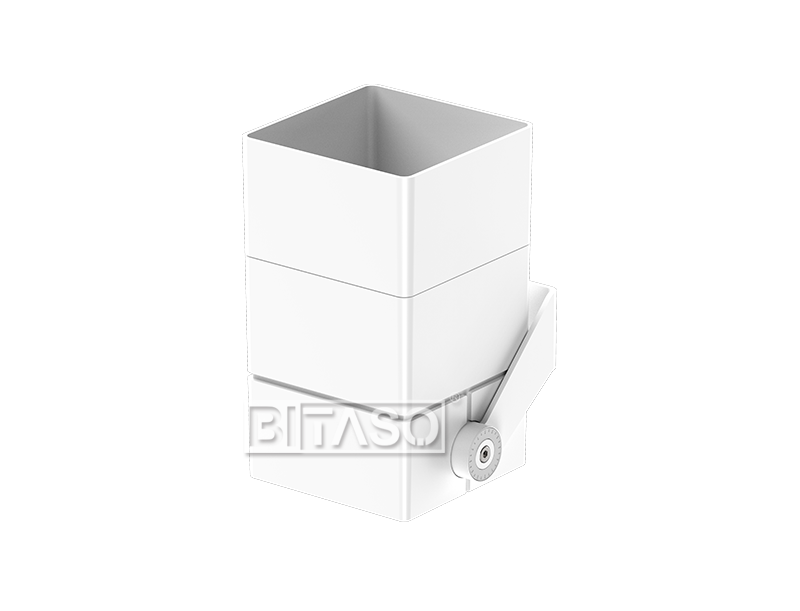

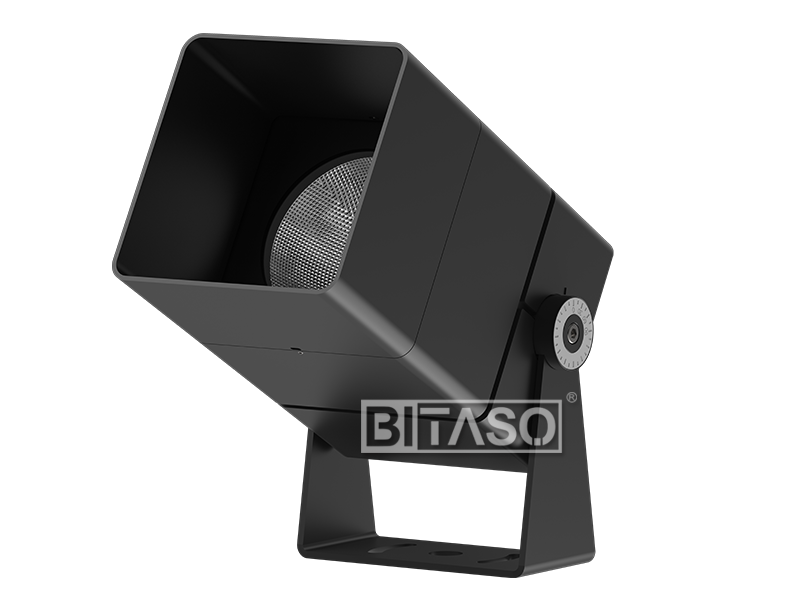

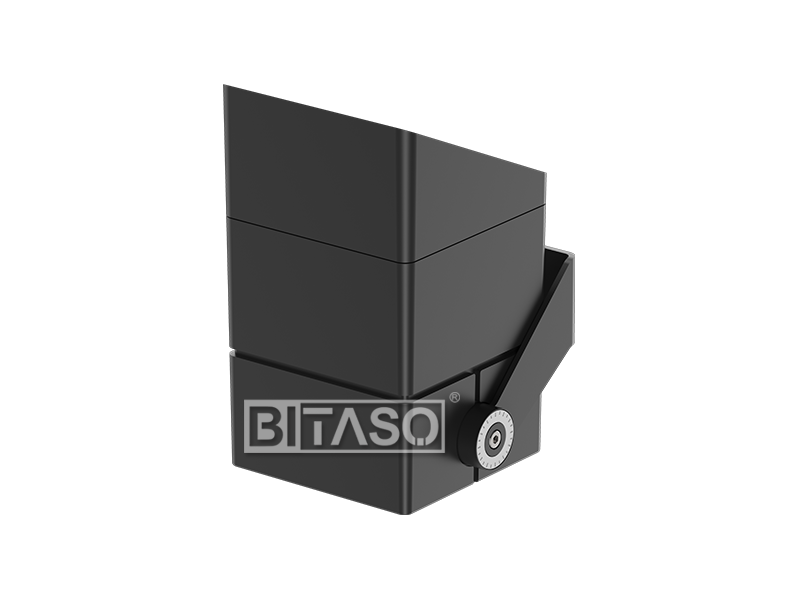

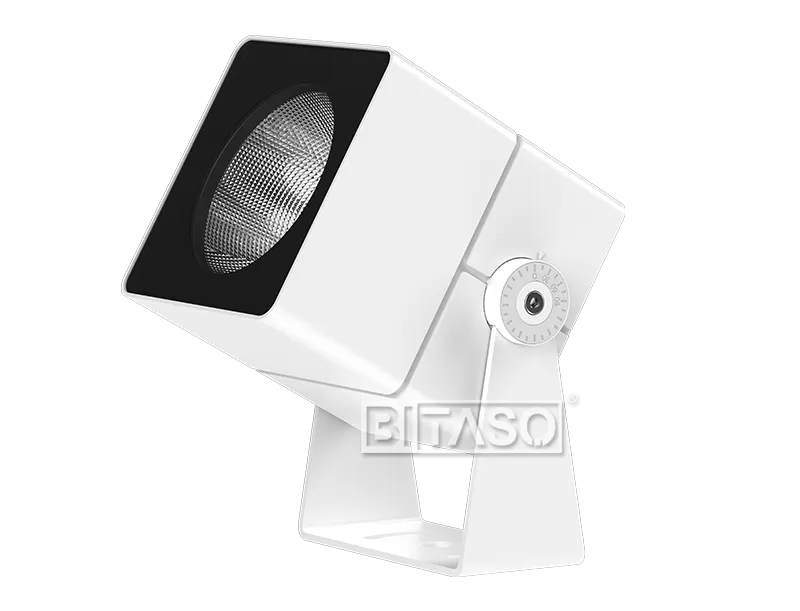

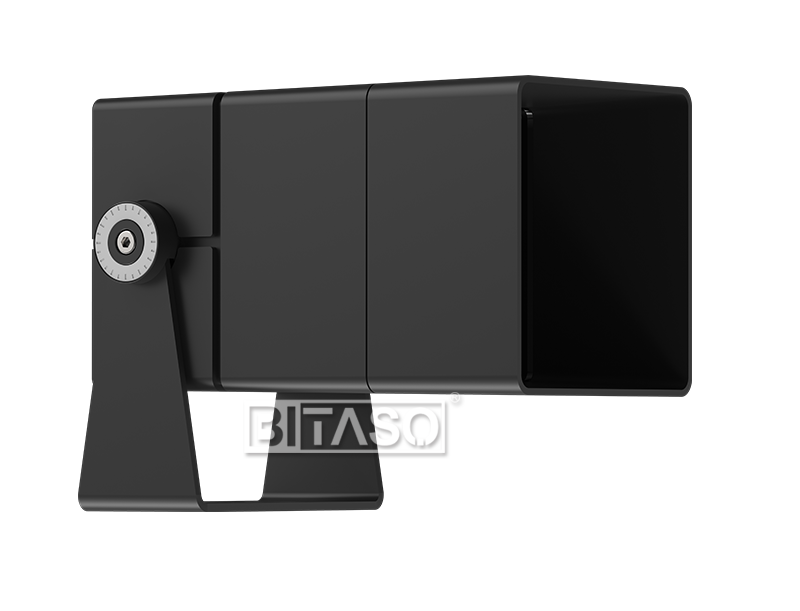

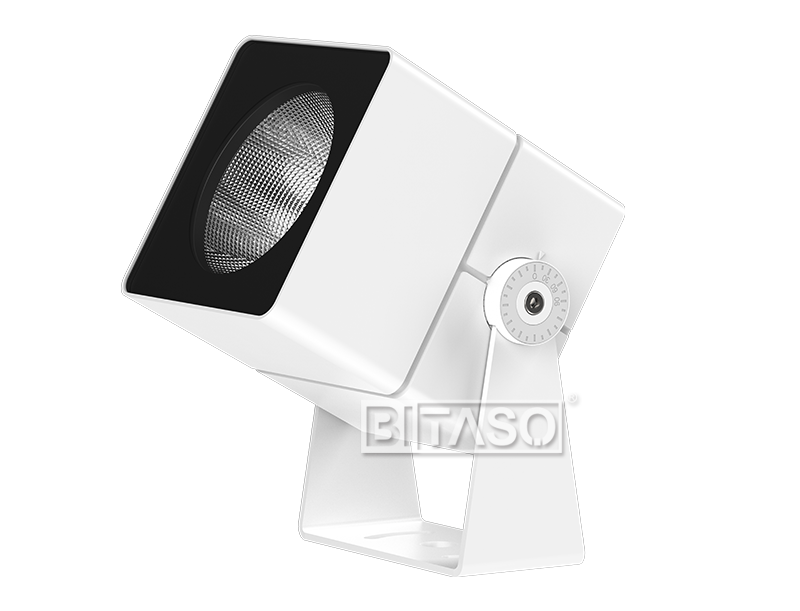

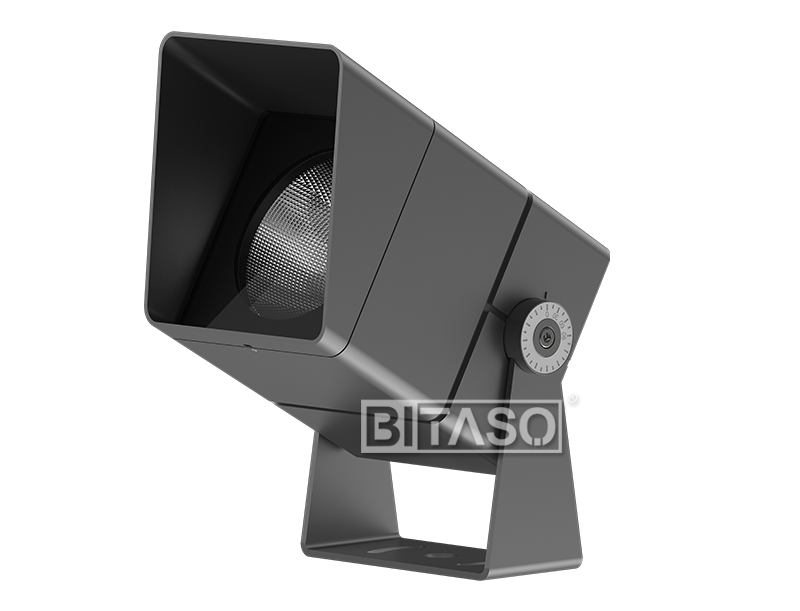

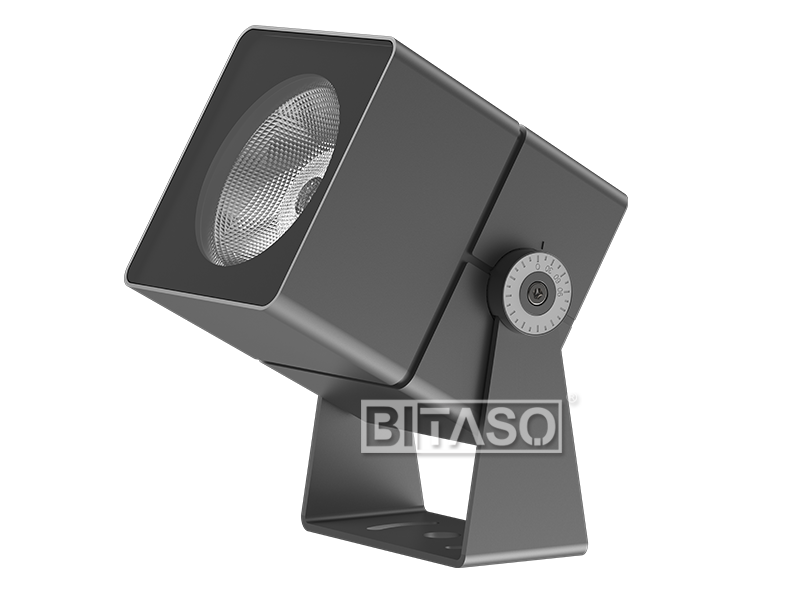

CUBIC D110 COB

CUBIC outdoor surface facade Light is constructed with 12# Die-casting powder coated aluminum, black/grey/white finished color. Better weatherproof performance, withstand different outdoor weather. Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort. Discreet and compact aesthetically designed architectural outdoor spotlight wallwasher lights, ideal for glare-free accent lighting, floodlighting and wall washing in the outdoor area.

Inquiry Now Next Product

ELECTRONICS

Power(Luminaire)	18-24W	Power Factor	>0.9
Input Voltage	DC24V DC36V DC48V AC110-240V 50/60Hz	Driver Option	Integral control gear
Dmming Type	ON/OFF, 0-10V, DALI, Triac, DMX512	Driver	Integral control gear
Optional Eectronic Accessories	Plug, Leading Cable, Connection Cable, Junction box	Connector	2/3/4/5 Pin

OPTICS

Light Source	1PCS COB	Lumen（Luminaire):	1620LM-2160LM
LED Brand	CREE	Luminaire Lminous Efficacy	90LM/W
Full White LED(FW)	2700K,3000K,3500K,4000K,4500K,5000K,5700K,6500K	Tunable White
Multi Color		CRI	Ra>85, Ra>90
LED Life Span	≥50,000hrs	Beam Angle	10°/23°/38°(Reflector Cup); 15°,24°,36°,60° (Lens)
MacAdam Ellipse	3 SDCM, 5SDCM	Optional Optical Acessories	Cuboid hood Angle25°, Cuboid hood, Honeycomb Louver

CONTROL SYSTEM

Control	ON/OFF, 0-10V, DALI, Triac, DMX512	DMX Channel	FW (1ch), TW (2chs ), RGBW(4chs)
CMS, CCS	Optional	Variants	Compatible with EN/ IEC 60598-2-22

ENVIRONMENT

Operating Ta	~-20 °C to 40 °C	Anto-condensation System	Optional
Corrosion Resistance	optional for marine environment	Passive Cooling	ADC12# Die-casting aluminum housing
Compliance	IK08, IP66, Class I	Certificate	IP66, CE, ETL, RoHS, CCC

LIGHT DISTRIBUTION

MECHANICS

Dimension	110x110x120mm	Weight	2.55KGS
Lens/Refector Cup Material	PMMA + Anti-UV lens	Housing Fixture Material	ADC12# Die-casting aluminum housing
Finish	Black/Grey/White	Mounting Type	Wall/Floor/Ground

OPTIONAL ACCESSORIES

Cuboid Hood Angle25°
Cuboid Hood
Honeycomb Grille
Honeycomb Louver
M16 2_3PIN IP68 Connector
20T-2_3_4PIN IP68 Connector

LUMINAIRE DIMENSION
